KUN61L-NKMDYG (2008)

Toyota Fortuner

Production Oct 2008 - Oct 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 4(0501- )

Click highlighted areas on diagram

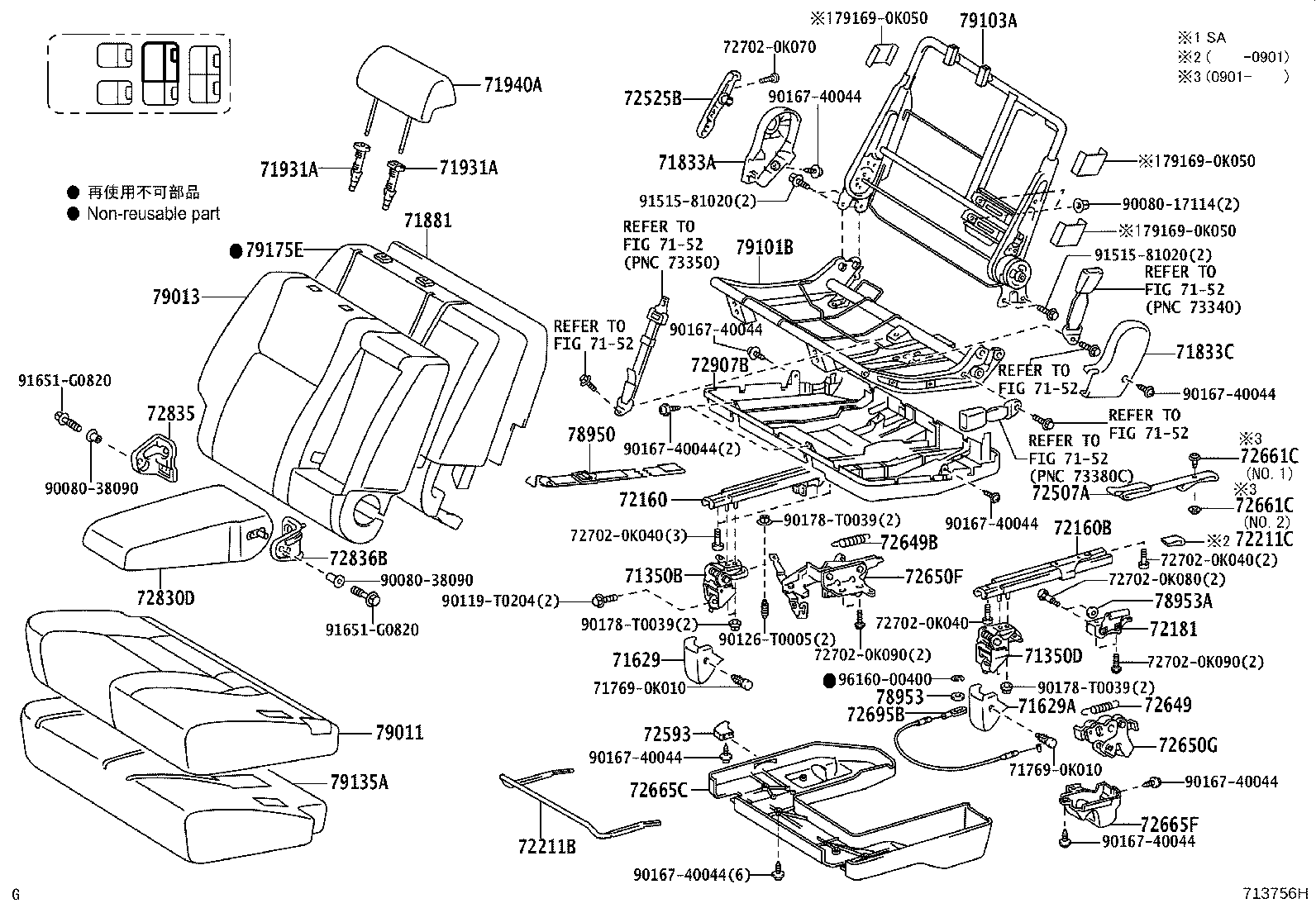

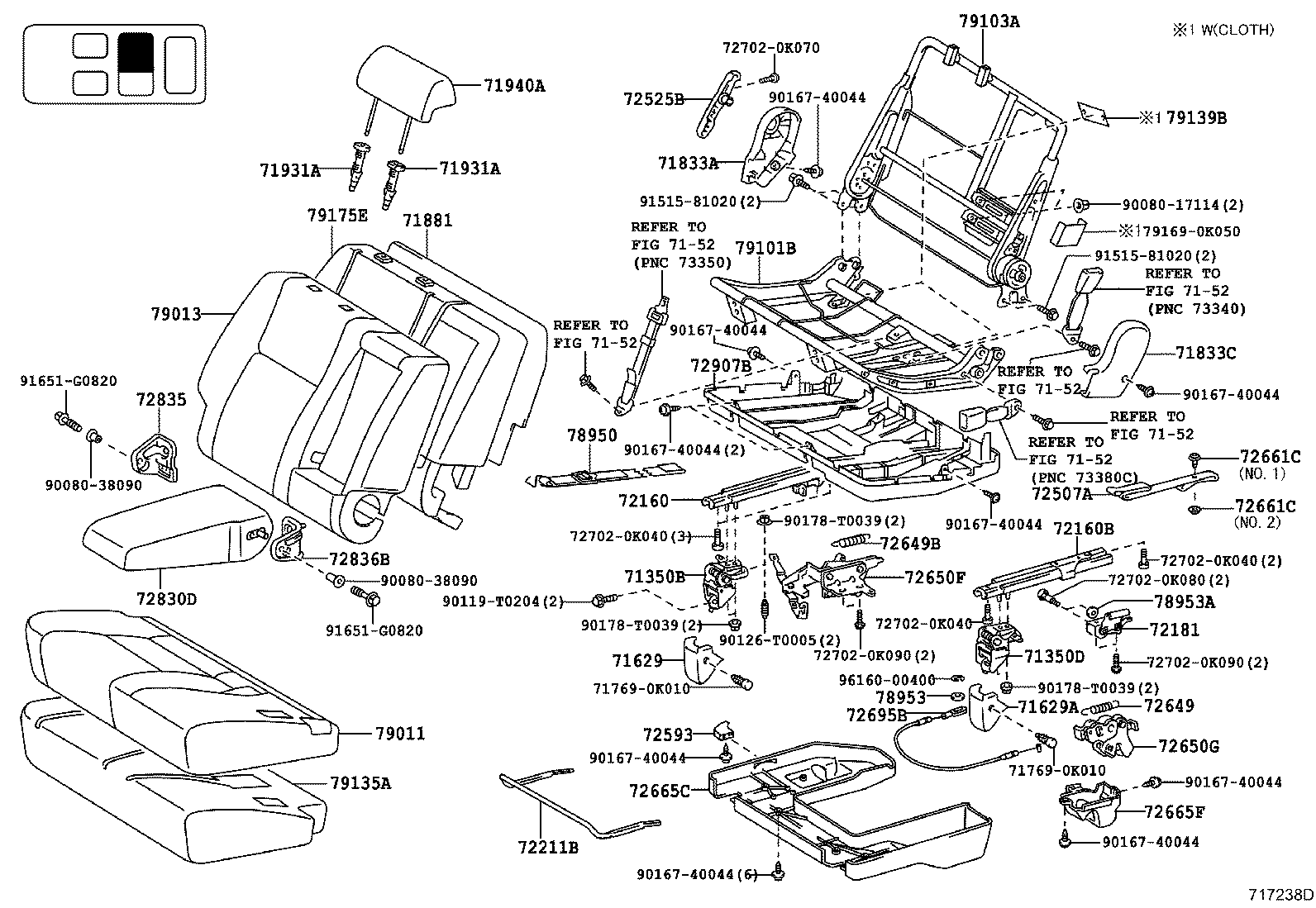

REAR NO.1 SEAT (RH) W(SLIDE SEAT)

diagram 71350B 71350D 7152 7152 7152 7152 7152 7152 71629 71629A 717690K010 717690K010 71833A 71833C 71881 71931A 71931A 71940A 72160 72160B 72181 72211B 72211C 72507A 72525B 72593 72649 72649B 72650F 72650G 72661C 72661C 72665C 72665F 72695B 727020K040 727020K040 727020K040 727020K070 727020K080 727020K090 727020K090 72830D 72835 72836B 72907B 78950 78953 78953A 79011 79013 79101B 79103A 79135A 791690K050 791690K050 791690K050 79175E 9008017114 9008038090 9008038090 90119T0204 90126T0005 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90178T0039 90178T0039 90178T0039 9151581020 9151581020 91651G0820 91651G0820 9616000400
Part # Description Qty Price
71629 - COVER, REAR SEAT CUSHION HINGE
71629-0K120A0

GGN50,KUN5#,60,TGN51,61

IVORY,TRIM0#

 1
71629A - COVER, REAR SEAT CUSHION HINGE, RH
71629-0K130A0

GGN50,KUN5#,60,TGN51,61

IVORY,TRIM0#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030A0

TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)

W/O(LOCK),IVORY,TRIM0#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030A0

TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)

W/O(LOCK),IVORY,TRIM0#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0K260E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
71940-0K260E1

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
72525B - HANDLE, RECLINING ADJUSTER RELEASE, RH
72525-0K020A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72593 - KNOB, RECLINING REMOTE CONTROL LEVER
72593-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72649 - SPRING, REAR SEAT CUSHION SUPPORT
72649-0K070

TGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV)..4FC;GGN60,TGN51..LHD..SUVW..(ANCOM,GCC,SA);GGN50,KUN51,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(4FC,5F)..(GCC,IDN,PHL,SA)

 2
72649B - SPRING, REAR SEAT CUSHION SUPPORT
72649-0K100

TGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV)..4FC;GGN60,TGN51..LHD..SUVW..(ANCOM,GCC,SA);GGN50,KUN51,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(4FC,5F)..(GCC,IDN,PHL,SA)

 2
72650F - LOCK ASSY, REAR SEAT, RH
72650-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
72650G - LOCK ASSY, REAR NO.2 SEAT, RH
72650-0K050

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
72665F - COVER, REAR SEAT LOCK, RH(FOR RH SEAT)
72665-0K080A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72695B - CABLE, REAR SEAT LOCK CONTROL, RH
72695-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
72830D - ARMREST ASSY, REAR SEAT, RH
72830-0K040E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
72835 - ARM, RR SEAT ARMREST, RH
72835-0K020

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
72836B - ARM, REAR SEAT ARMREST, LH
72836-0K020

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
78950 - BAND ASSY, FOLD SEAT STOPPER, NO.1
78950-0K040A0

TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)

IVORY,TRIM0#

 1
78950-0K060A0

GGN50,KUN51,61,TGN61..LA

IVORY,TRIM4#

 2
78953 - PLATE, REAR SEAT UNDER
78953-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
78953A - PLATE, REAR SEAT UNDER, NO.1
78953-0K030

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
79011 - COVER SUB-ASSY, NO.1 SEAT CUSHION, RH
79011-0K640E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
79013 - COVER SUB-ASSY, NO.1 SEAT BACK, RH
79013-0K750E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
79103A - FRAME SUB-ASSY, NO.1 SEAT BACK, RH
79103-0K110

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
Common parts
71769-0K010
72702-0K040
72702-0K070
72702-0K080
72702-0K090
79169-0K050
90080-17114
90080-38090
90119-T0204
90126-T0005
90167-40044
90178-T0039
91515-81020
91651-G0820
96160-00400
Linked diagrams
7152

ILLUST NO. 3 OF 4(0501- )

Click highlighted areas on diagram

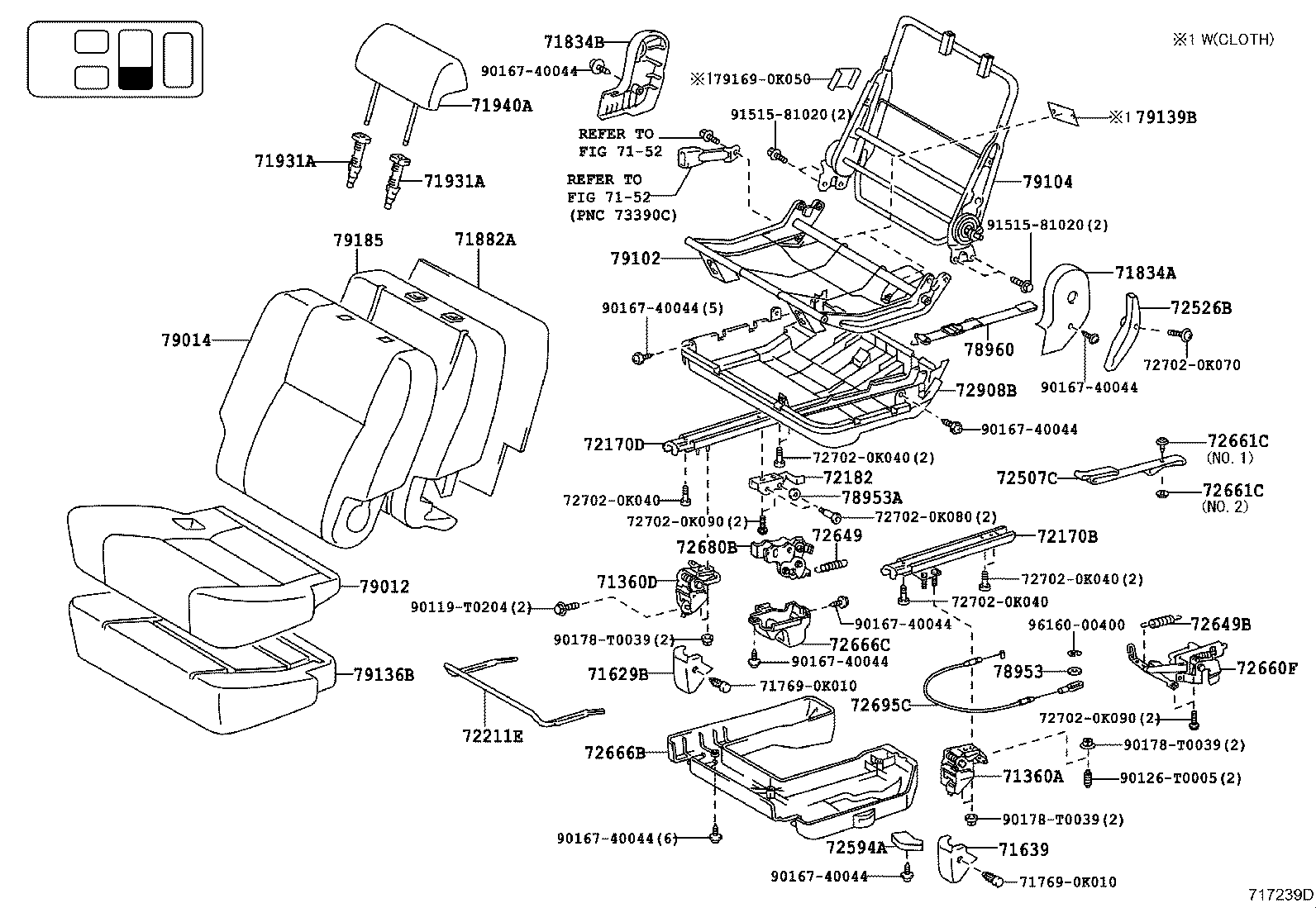

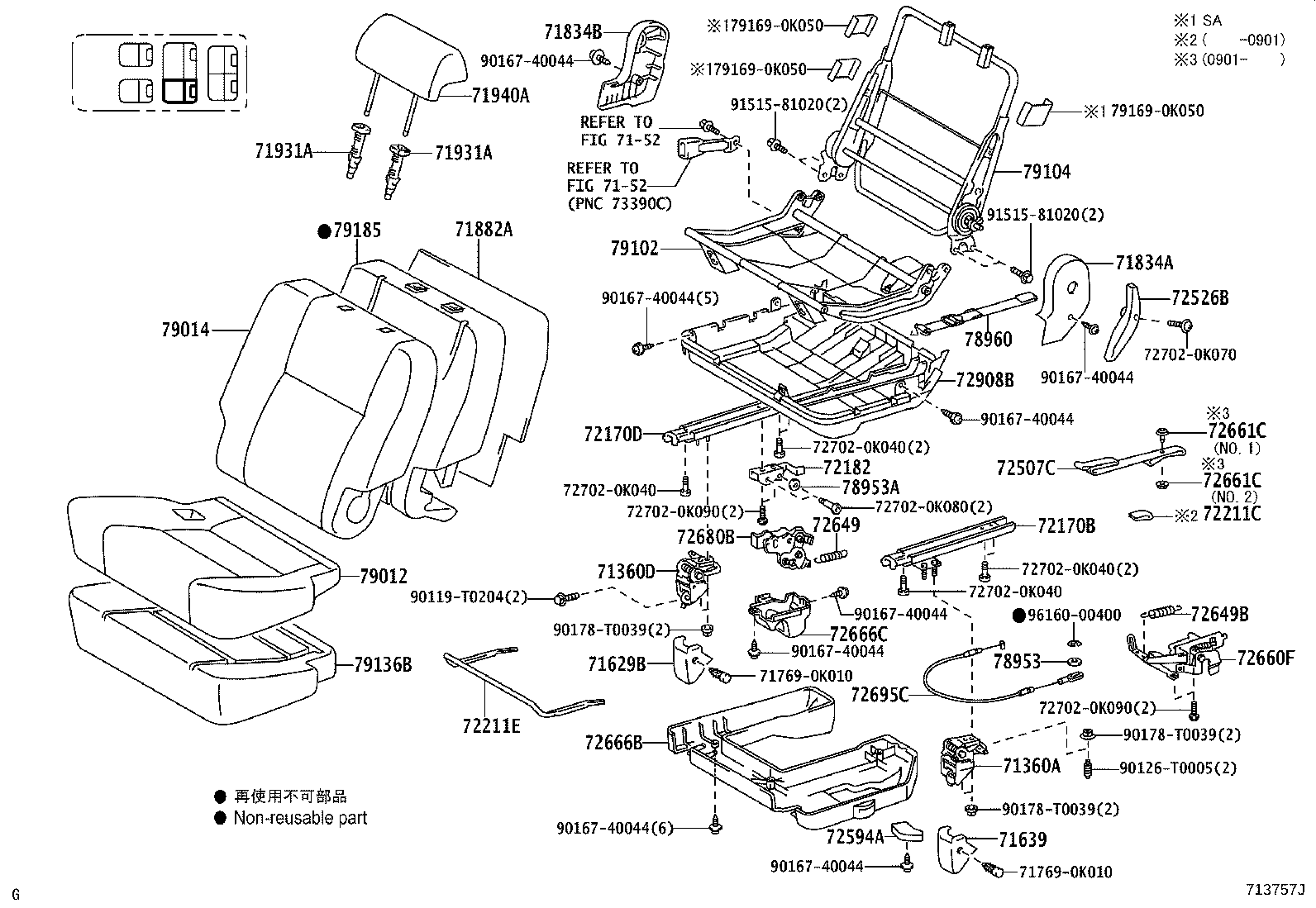

REAR NO.1 SEAT (LH) W(SLIDE SEAT)

diagram 71360A 71360D 7152 7152 71629B 71639 717690K010 717690K010 71834A 71834B 71882A 71931A 71931A 71940A 72170B 72170D 72182 72211C 72211E 72507C 72526B 72594A 72649 72649B 72660F 72661C 72661C 72666B 72666C 72680B 72695C 727020K040 727020K040 727020K040 727020K040 727020K070 727020K080 727020K090 727020K090 72908B 78953 78953A 78960 79012 79014 79102 79104 79136B 791690K050 791690K050 791690K050 79185 90119T0204 90126T0005 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90178T0039 90178T0039 90178T0039 9151581020 9151581020 9616000400
Part # Description Qty Price
71629B - PAD, REAR SEAT CUSHION COVER SIDE, LH
71629-0K140A0

KUN51,60,TGN51,61

IVORY,TRIM0#

 1
71639 - COVER, REAR SEAT CUSHION HINGE, LH
71629-0K150A0

KUN51,60,TGN51,61

IVORY,TRIM0#

 1
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030A0

TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)

W/O(LOCK),IVORY,TRIM0#

 2
71931A - SUPPORT, REAR SEAT HEADREST
71931-02030A0

TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)

W/O(LOCK),IVORY,TRIM0#

 2
71940A - HEADREST ASSY, REAR SEAT
71940-0K260E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
71940-0K260E1

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
72526B - HANDLE, RECLINING ADJUSTER RELEASE, NO.1 LH
72526-0K020A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72594A - KNOB, RECLINING REMOTE CONTROL LEVER, LH
72594-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72649 - SPRING, REAR SEAT CUSHION SUPPORT
72649-0K070

TGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV)..4FC;GGN60,TGN51..LHD..SUVW..(ANCOM,GCC,SA);GGN50,KUN51,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(4FC,5F)..(GCC,IDN,PHL,SA)

 2
72649B - SPRING, REAR SEAT CUSHION SUPPORT
72649-0K100

TGN61..5F..LA;TGN61..IDSUV..GCC;KUN51..LHD..(SUVW,THSUV)..4FC;GGN60,TGN51..LHD..SUVW..(ANCOM,GCC,SA);GGN50,KUN51,61,LAN50..(SUVW,THSUV)..(5F,5FC);GGN60,KUN60,TGN61..SUVW..(4FC,5F)..(GCC,IDN,PHL,SA)

 2
72660F - LOCK ASSY, REAR SEAT, LH
72660-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
72666C - COVER, REAR SEAT LOCK, NO.2 LH
72666-0K080A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 1
72680B - LOCK ASSY, REAR SEAT CUSHION, LH
72660-0K050

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
72695C - CABLE, REAR SEAT LOCK CONTROL, LH
72695-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
78953 - PLATE, REAR SEAT UNDER
78953-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
78953A - PLATE, REAR SEAT UNDER, NO.1
78953-0K030

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
78960 - BAND ASSY, FOLD SEAT STOPPER, NO.2
78950-0K040A0

TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH)

IVORY,TRIM0#

 1
79012 - COVER SUB-ASSY, NO.1 SEAT CUSHION, LH
79012-0K480E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
79014 - COVER SUB-ASSY, NO.1 SEAT BACK, LH
79014-0K500E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
79104 - FRAME SUB-ASSY, NO.1 SEAT BACK, LH
79104-0K050

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
Common parts
71769-0K010
72702-0K040
72702-0K070
72702-0K080
72702-0K090
79169-0K050
90119-T0204
90126-T0005
90167-40044
90178-T0039
91515-81020
96160-00400
Linked diagrams
7152

ILLUST NO. 4 OF 4(0501- )

Click highlighted areas on diagram

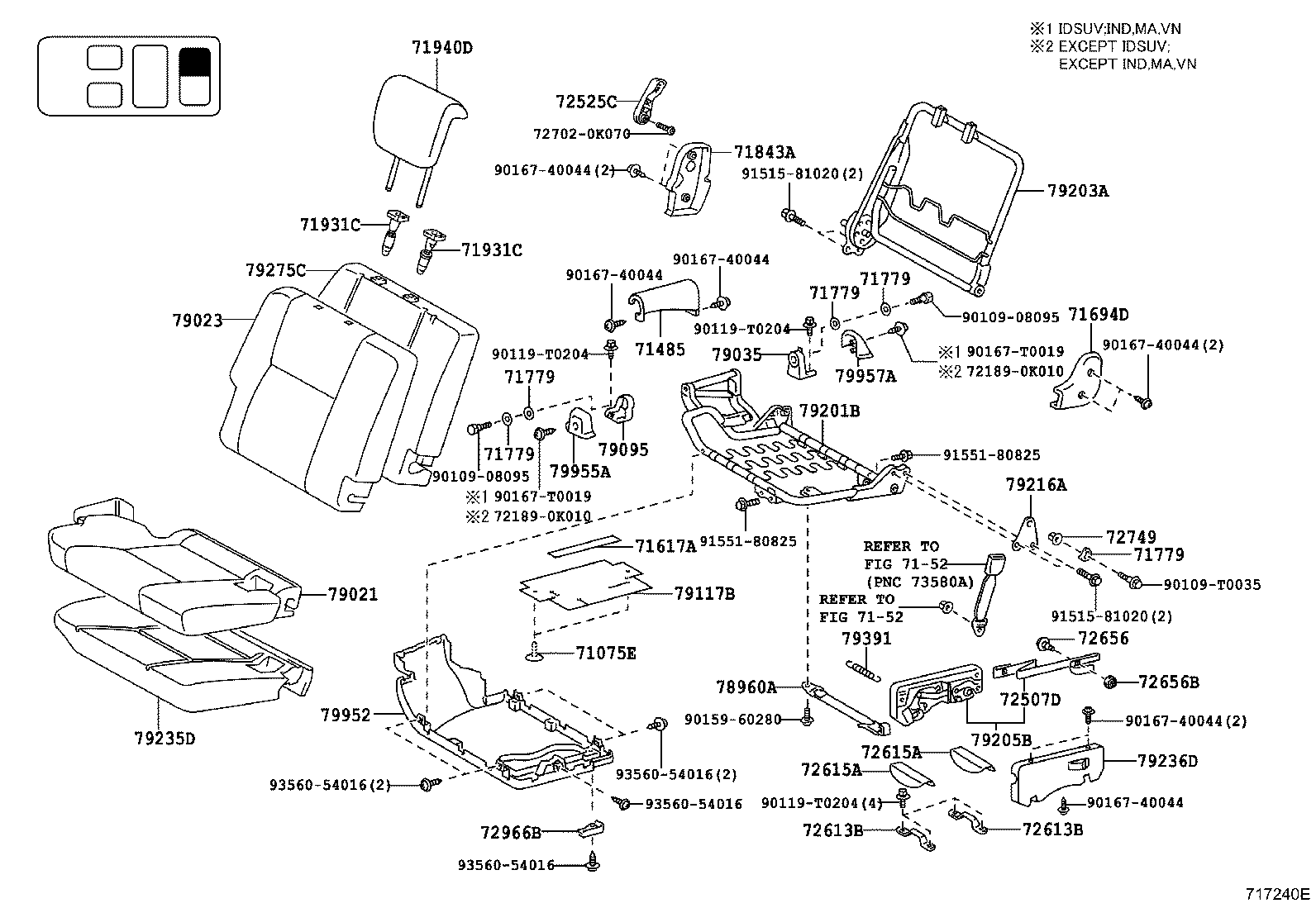

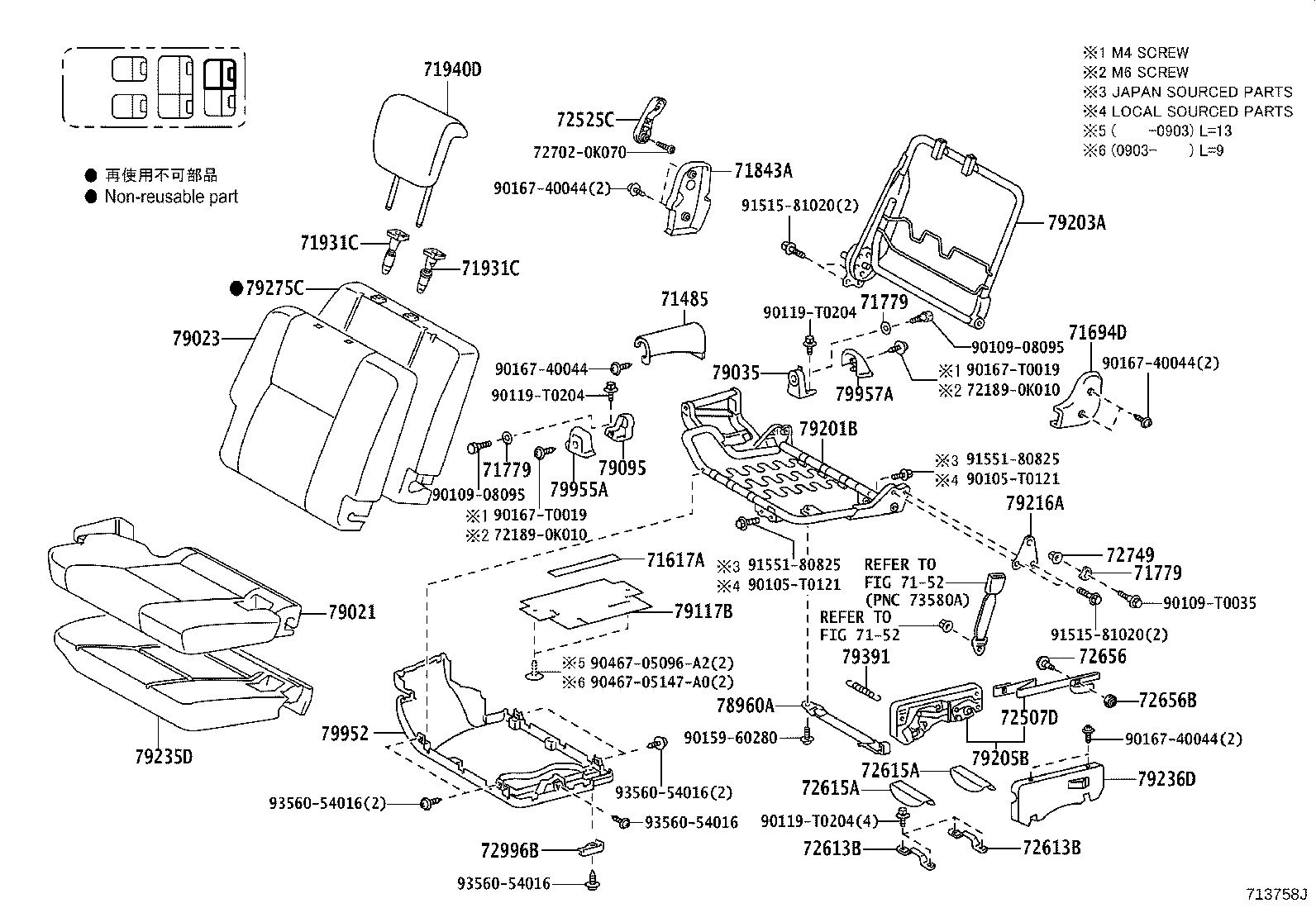

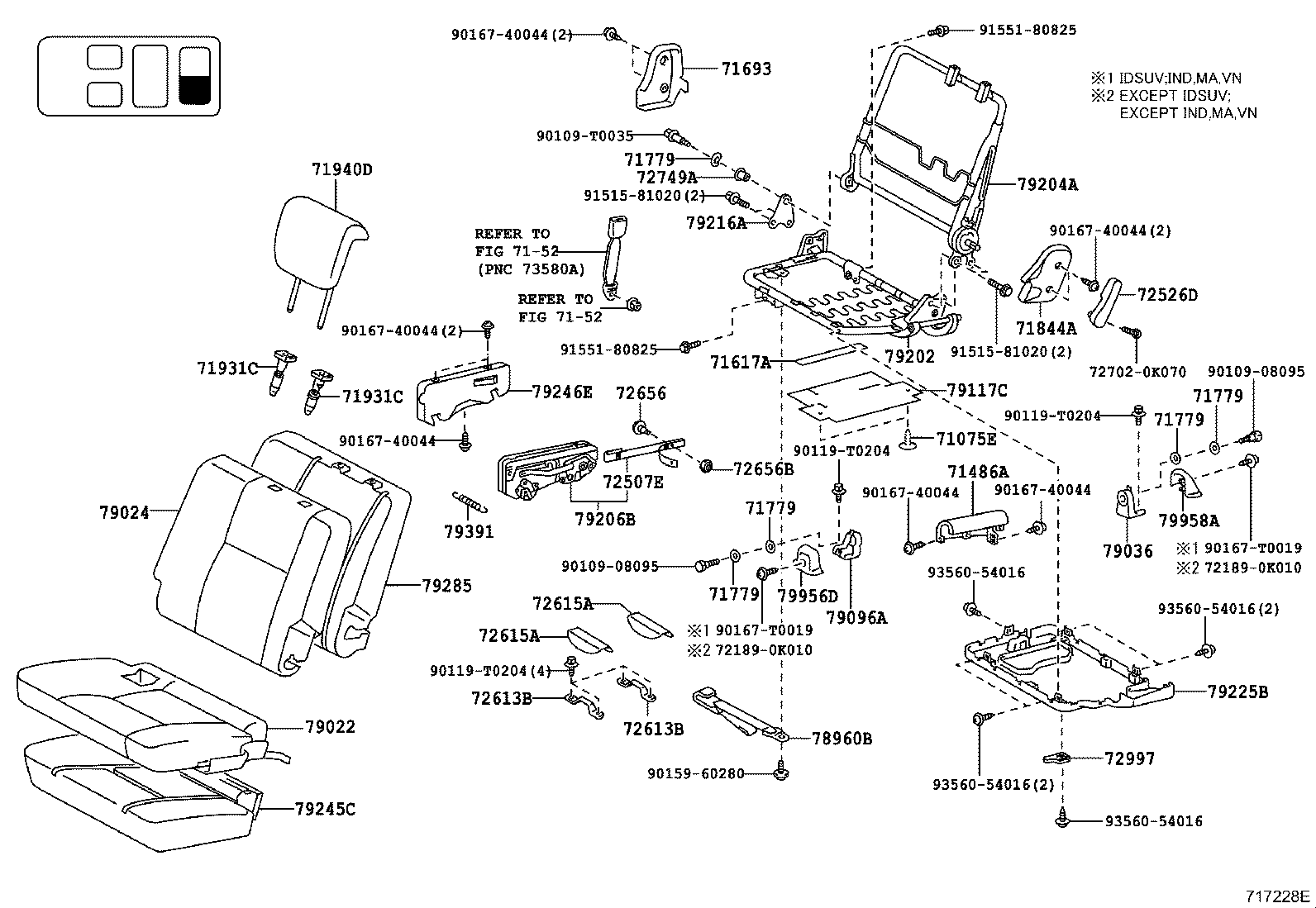

REAR NO.2 SEAT (RH)

diagram 71485 7152 7152 71617A 71694D 71779 71779 71779 71843A 71931C 71931C 71940D 721890K010 721890K010 72507D 72525C 72613B 72613B 72615A 72615A 72656 72656B 727020K070 72749 72996B 78960A 79021 79023 79035 79095 79117B 79201B 79203A 79205B 79216A 79235D 79236D 79275C 79391 79952 79955A 79957A 90105T0121 90105T0121 9010908095 9010908095 90109T0035 90119T0204 90119T0204 90119T0204 9015960280 9016740044 9016740044 9016740044 9016740044 90167T0019 90167T0019 9046705096A2 9046705147A0 9151581020 9151581020 9155180825 9155180825 9356054016 9356054016 9356054016 9356054016
Part # Description Qty Price
71940D - HEADREST ASSY, REAR NO.2 SEAT, RH
71940-0K830E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
71940-0K830E1

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
72996B - COVER, REAR SEAT BACK, INNER RH
72996-0K010A0

KUN51,60,TGN51,61

IVORY,TRIM0#

 1
79021 - COVER SUB-ASSY, NO.2 SEAT CUSHION, RH
79021-0K350E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
79023 - COVER SUB-ASSY, NO.2 SEAT BACK, RH
79023-0K300E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
Common parts
72189-0K010
72702-0K070
90105-T0121
90109-08095
90109-T0035
90119-T0204
90159-60280
90167-40044
90167-T0019
90467-05096A2
90467-05147A0
91515-81020
91551-80825
93560-54016
Linked diagrams
7152

ILLUST NO. 4 OF 4(0501- )

Click highlighted areas on diagram

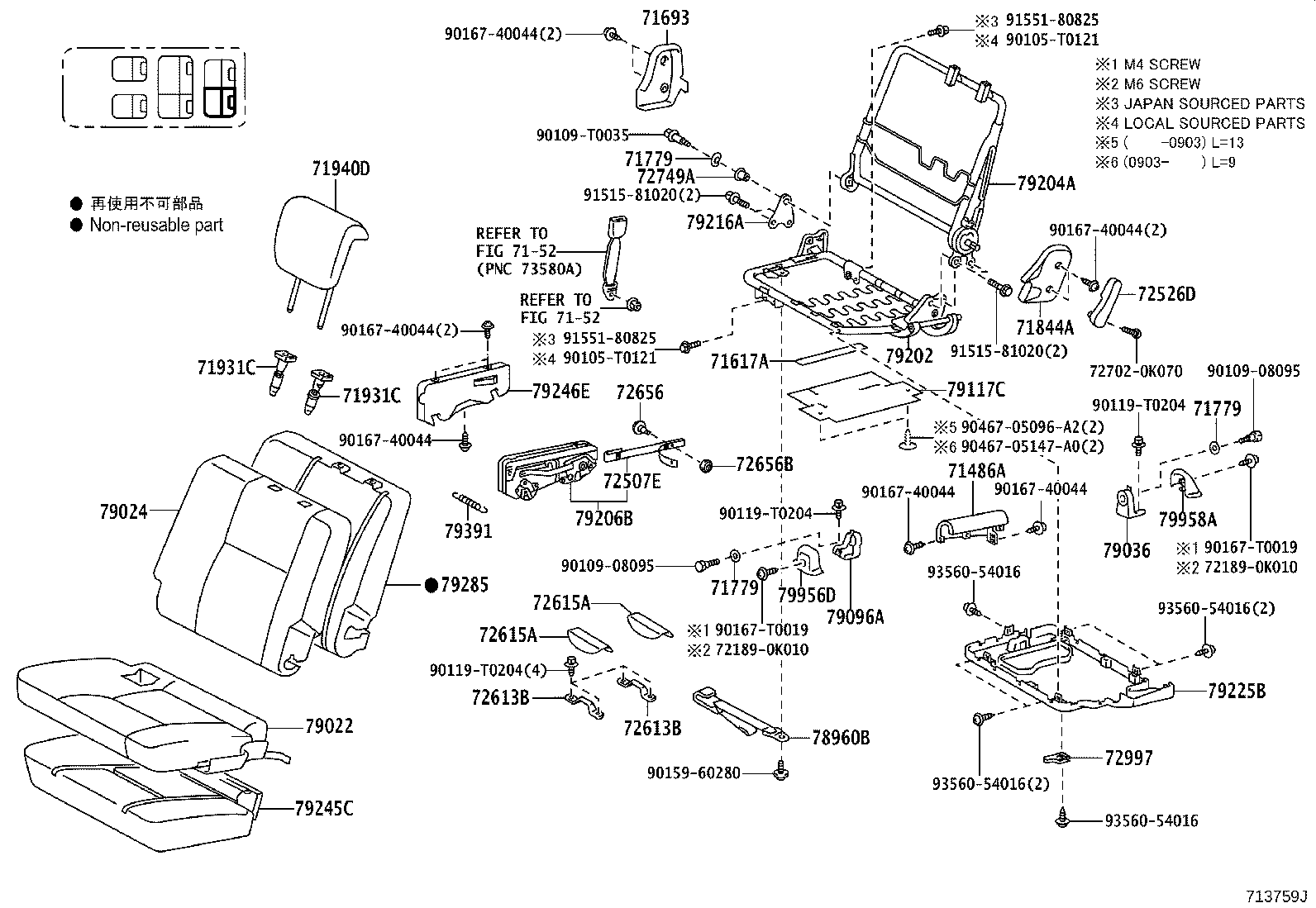

REAR NO.2 SEAT (LH)

diagram 71486A 7152 7152 71617A 71693 71779 71779 71779 71844A 71931C 71931C 71940D 721890K010 721890K010 72507E 72526D 72613B 72613B 72615A 72615A 72656 72656B 727020K070 72749A 72997 78960B 79022 79024 79036 79096A 79117C 79202 79204A 79206B 79216A 79225B 79245C 79246E 79285 79391 79956D 79958A 90105T0121 90105T0121 9010908095 9010908095 90109T0035 90119T0204 90119T0204 90119T0204 9015960280 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90167T0019 90167T0019 9046705096A2 9046705147A0 9151581020 9151581020 9155180825 9155180825 9356054016 9356054016 9356054016 9356054016
Part # Description Qty Price
71940D - HEADREST ASSY, REAR NO.2 SEAT, RH
71940-0K830E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
71940-0K830E1

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 2
72997 - COVER, REAR SEAT BACK, LH
72997-0K010A0

KUN51,60,TGN51,61

IVORY,TRIM0#

 1
78960B - BAND ASSY, FOLD SEAT STOPPER, NO.4
78960-0K040E0

KUN51..RHD..(GEN,SA,TH);KUN51..LHD..(SUVW,THSUV)..(GEN,LA,PHL);GGN50,60,KUN6#,LAN50,TGN51,61..(SUVW,THSUV)..(GEN,IDN,LA,PHL,SA,TH)

SAND BEIGE,TRIM4#

 1
79022 - COVER SUB-ASSY, NO.2 SEAT CUSHION, LH
79022-0K350E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
79024 - COVER SUB-ASSY, NO.2 SEAT BACK, LH
79024-0K300E0

KUN61,TGN61..LA

SAND BEIGE,TRIM4#

 1
Common parts
72189-0K010
72702-0K070
90105-T0121
90109-08095
90109-T0035
90119-T0204
90159-60280
90167-40044
90167-T0019
90467-05096A2
90467-05147A0
91515-81020
91551-80825
93560-54016
Linked diagrams
7152

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.2 SEAT(LH)

diagram 71075E 71486A 7152 7152 71617A 71693 71779 71779 71779 71779 71779 71844A 71931C 71931C 71940D 721890K010 721890K010 72507E 72526D 72613B 72613B 72615A 72615A 72656 72656B 727020K070 72749A 72997 78960B 79022 79024 79036 79096A 79117C 79202 79204A 79206B 79216A 79225B 79245C 79246E 79285 79391 79956D 79958A 9010908095 9010908095 90109T0035 90119T0204 90119T0204 90119T0204 9015960280 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90167T0019 90167T0019 9151581020 9151581020 9155180825 9155180825 9356054016 9356054016 9356054016 9356054016
Part # Description Qty Price
Common parts
72189-0K010
72702-0K070
90109-08095
90109-T0035
90119-T0204
90159-60280
90167-40044
90167-T0019
91515-81020
91551-80825
93560-54016
Linked diagrams
7152

ILLUST NO. 1 OF 4(1107- )LHD

Click highlighted areas on diagram

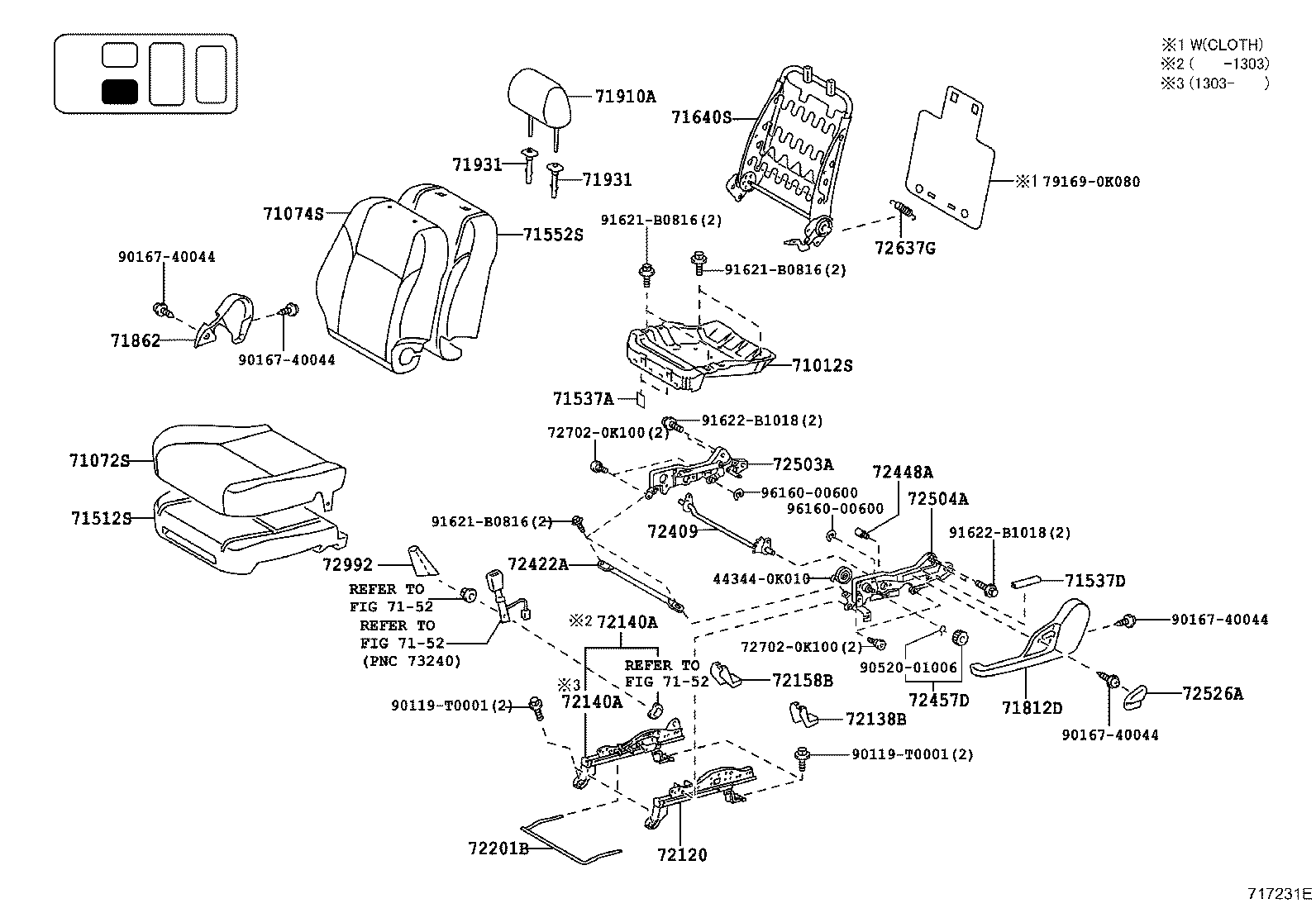

DRIVER SEAT W(MANUAL SEAT)

diagram 443440K010 71012S 71072S 71074S 71512S 7152 7152 7152 71537A 71537D 71552S 71640S 71812D 71862 71910A 71931 71931 72120 72138B 72140A 72140A 72158B 72201B 72409 72422A 72448A 72457D 72503A 72504A 72526A 72637G 727020K100 727020K100 72992 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9052001006 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018 9616000600 9616000600
Part # Description Qty Price
Common parts
44344-0K010
72702-0K100
79169-0K080
90119-T0001
90167-40044
90520-01006
91621-B0816
91622-B1018
96160-00600
Linked diagrams
7152

ILLUST NO. 1 OF 4(1107- )LHD

Click highlighted areas on diagram

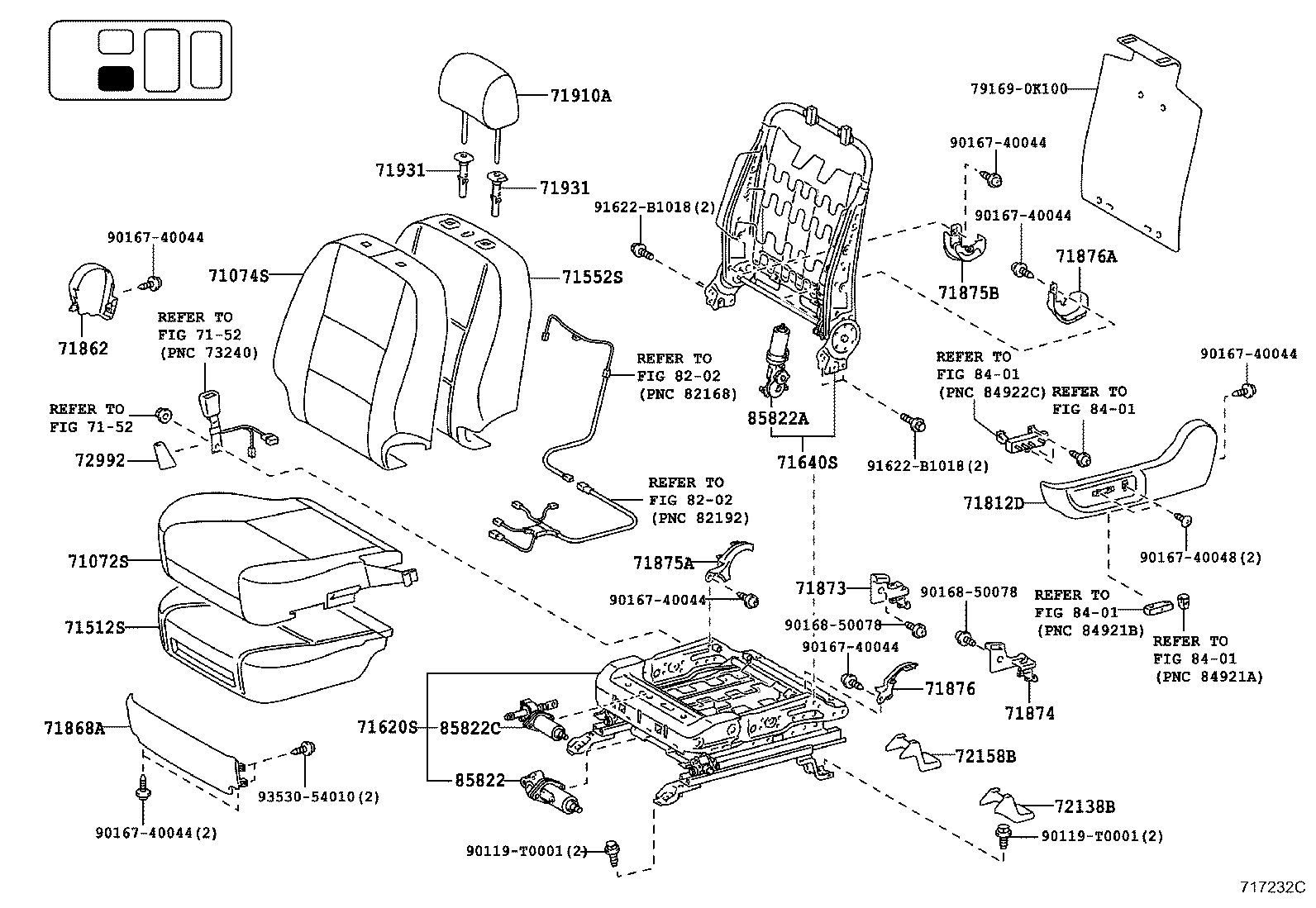

DRIVER SEAT W(POWER SEAT)

diagram 71072S 71074S 71512S 7152 7152 71552S 71620S 71640S 71812D 71862 71868A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72138B 72158B 72992 791690K100 8202 8202 8401 8401 8401 8401 85822 85822A 85822C 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 1 OF 4(1107- )LHD

Click highlighted areas on diagram

*DRS W(POWER & SRS SIDE AIR BAG)

diagram 71072S 71074S 71440S 71512S 7152 7152 71552S 71620S 71812D 71862 71868A 71873 71874 71875A 71875B 71876 71876A 71910A 71931 71931 72138B 72158B 72992 791690K100 8202 8202 8401 8401 8401 8401 85822 85822C 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740048 9016850078 9016850078 91622B1018 91622B1018 9353054010
Part # Description Qty Price
Common parts
79169-0K100
90119-T0001
90167-40044
90167-40048
90168-50078
91622-B1018
93530-54010
Linked diagrams
7152
8202
8401

ILLUST NO. 2 OF 4(1107- )LHD

Click highlighted areas on diagram

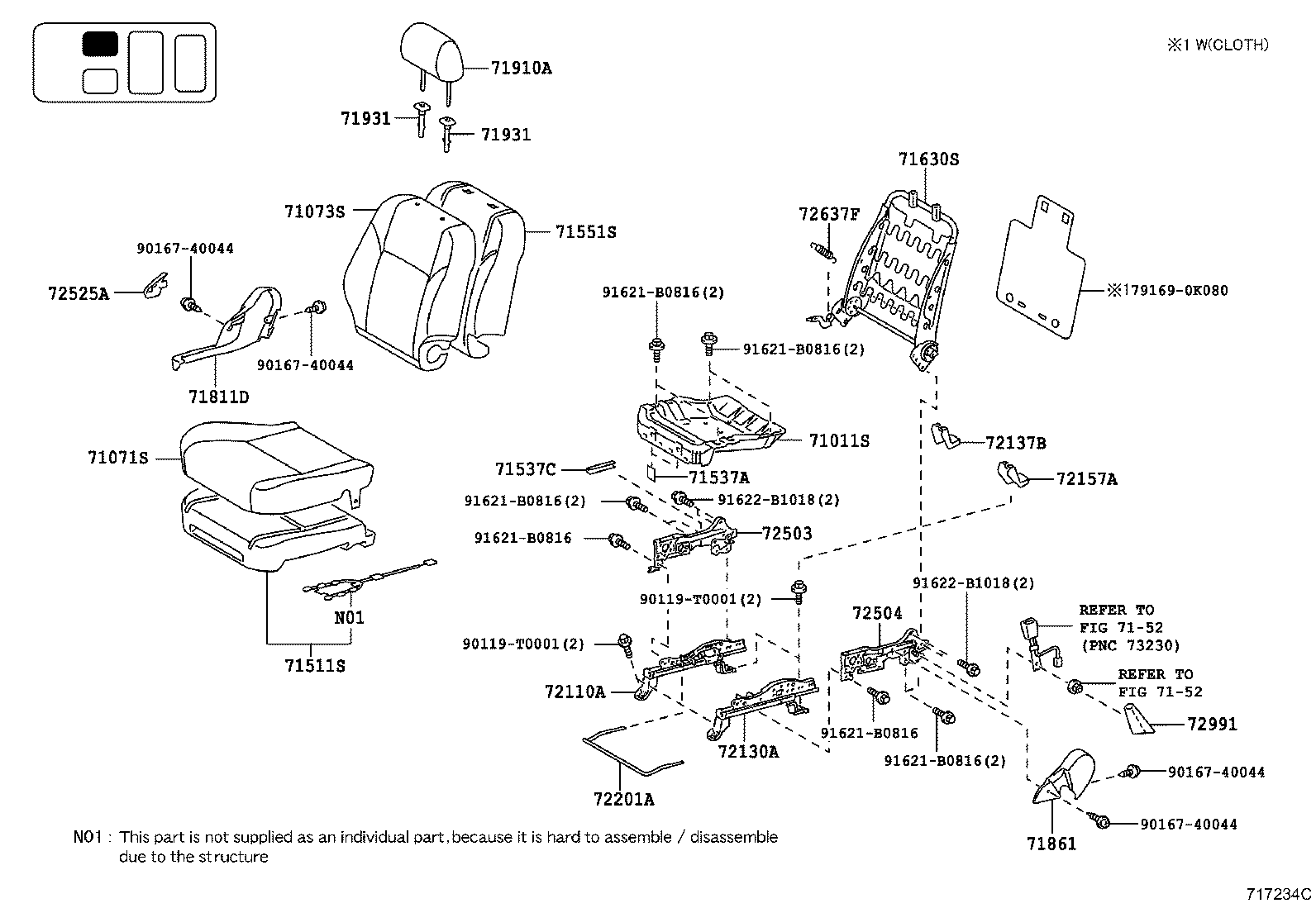

PASSENGER SEAT

diagram 71011S 71071S 71073S 71511S 7152 7152 71537A 71537C 71551S 71630S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72525A 72637F 72991 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
79169-0K080
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 2 OF 4(1107- )LHD

Click highlighted areas on diagram

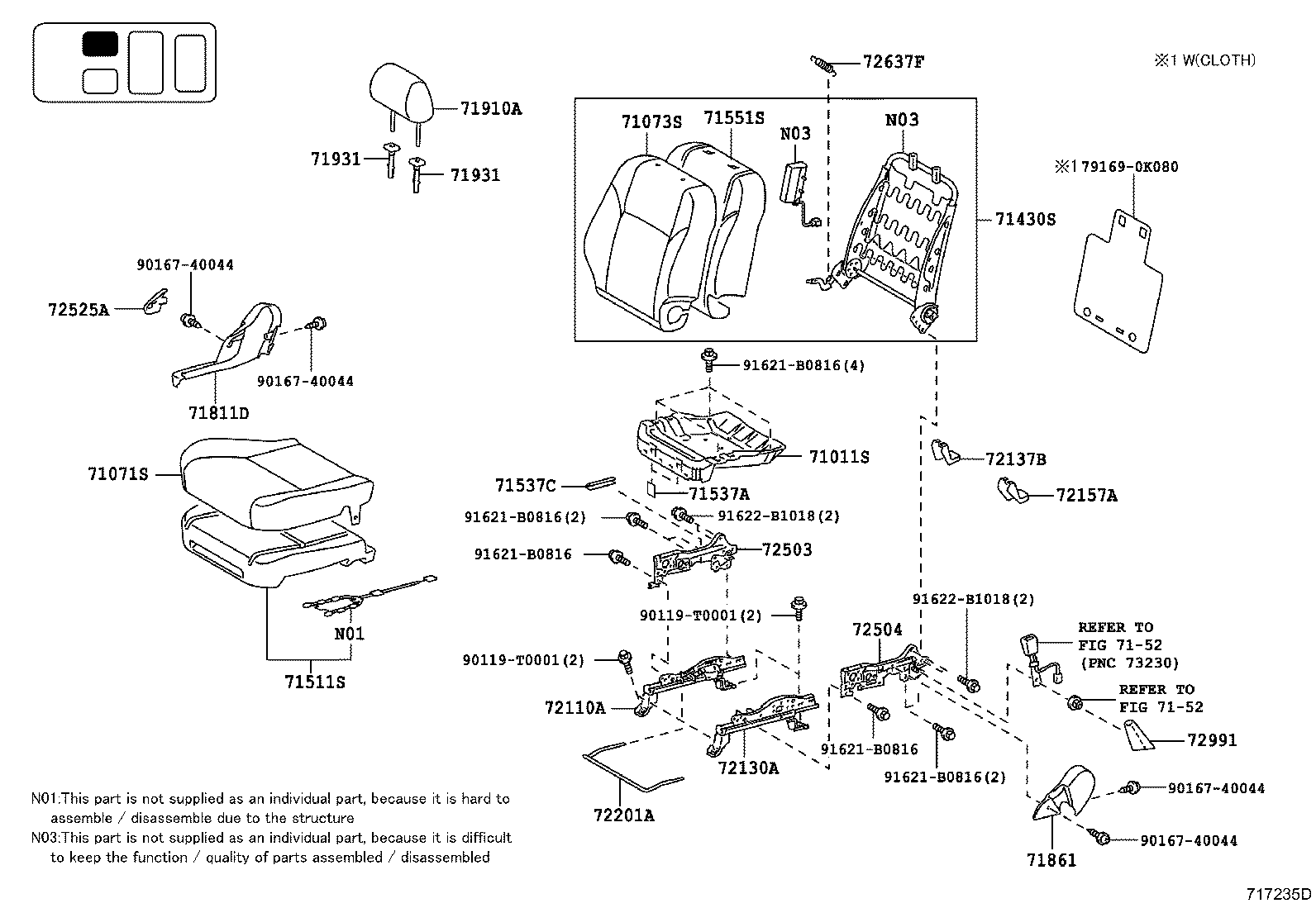

PASSENGER SEAT W(SRS SIDE AIR BAG)

diagram 71011S 71071S 71073S 71430S 71511S 7152 7152 71537A 71537C 71551S 71811D 71861 71910A 71931 71931 72110A 72130A 72137B 72157A 72201A 72503 72504 72525A 72637F 72991 791690K080 90119T0001 90119T0001 9016740044 9016740044 9016740044 9016740044 91621B0816 91621B0816 91621B0816 91621B0816 91621B0816 91622B1018 91622B1018
Part # Description Qty Price
Common parts
79169-0K080
90119-T0001
90167-40044
91621-B0816
91622-B1018
Linked diagrams
7152

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.1 SEAT(RH) W(SLIDE)

diagram 71350B 71350D 7152 7152 7152 7152 7152 7152 71629 71629A 717690K010 717690K010 71833A 71833C 71881 71931A 71931A 71940A 72160 72160B 72181 72211B 72507A 72525B 72593 72649 72649B 72650F 72650G 72661C 72661C 72665C 72665F 72695B 727020K040 727020K040 727020K040 727020K070 727020K080 727020K090 727020K090 72830D 72835 72836B 72907B 78950 78953 78953A 79011 79013 79101B 79103A 79135A 79139B 791690K050 79175E 9008017114 9008038090 9008038090 90119T0204 90126T0005 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90178T0039 90178T0039 90178T0039 9151581020 9151581020 91651G0820 91651G0820 9616000400
Part # Description Qty Price
Common parts
71769-0K010
72702-0K040
72702-0K070
72702-0K080
72702-0K090
79169-0K050
90080-17114
90080-38090
90119-T0204
90126-T0005
90167-40044
90178-T0039
91515-81020
91651-G0820
96160-00400
Linked diagrams
7152

ILLUST NO. 3 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.1 SEAT(LH) W(SLIDE)

diagram 71360A 71360D 7152 7152 71629B 71639 717690K010 717690K010 71834A 71834B 71882A 71931A 71931A 71940A 72170B 72170D 72182 72211E 72507C 72526B 72594A 72649 72649B 72660F 72661C 72661C 72666B 72666C 72680B 72695C 727020K040 727020K040 727020K040 727020K040 727020K070 727020K080 727020K090 727020K090 72908B 78953 78953A 78960 79012 79014 79102 79104 79136B 79139B 791690K050 79185 90119T0204 90126T0005 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90178T0039 90178T0039 90178T0039 9151581020 9151581020 9616000400
Part # Description Qty Price
Common parts
71769-0K010
72702-0K040
72702-0K070
72702-0K080
72702-0K090
79169-0K050
90119-T0204
90126-T0005
90167-40044
90178-T0039
91515-81020
96160-00400
Linked diagrams
7152

ILLUST NO. 4 OF 4(1107- )

Click highlighted areas on diagram

REAR NO.2 SEAT(RH)

diagram 71075E 71485 7152 7152 71617A 71694D 71779 71779 71779 71779 71779 71843A 71931C 71931C 71940D 721890K010 721890K010 72507D 72525C 72613B 72613B 72615A 72615A 72656 72656B 727020K070 72749 72966B 78960A 79021 79023 79035 79095 79117B 79201B 79203A 79205B 79216A 79235D 79236D 79275C 79391 79952 79955A 79957A 9010908095 9010908095 90109T0035 90119T0204 90119T0204 90119T0204 9015960280 9016740044 9016740044 9016740044 9016740044 9016740044 9016740044 90167T0019 90167T0019 9151581020 9151581020 9155180825 9155180825 9356054016 9356054016 9356054016 9356054016
Part # Description Qty Price
Common parts
72189-0K010
72702-0K070
90109-08095
90109-T0035
90119-T0204
90159-60280
90167-40044
90167-T0019
91515-81020
91551-80825
93560-54016
Linked diagrams
7152
