KUN61L-NKMDYG (2008)

Toyota Fortuner

Production Oct 2008 - Oct 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

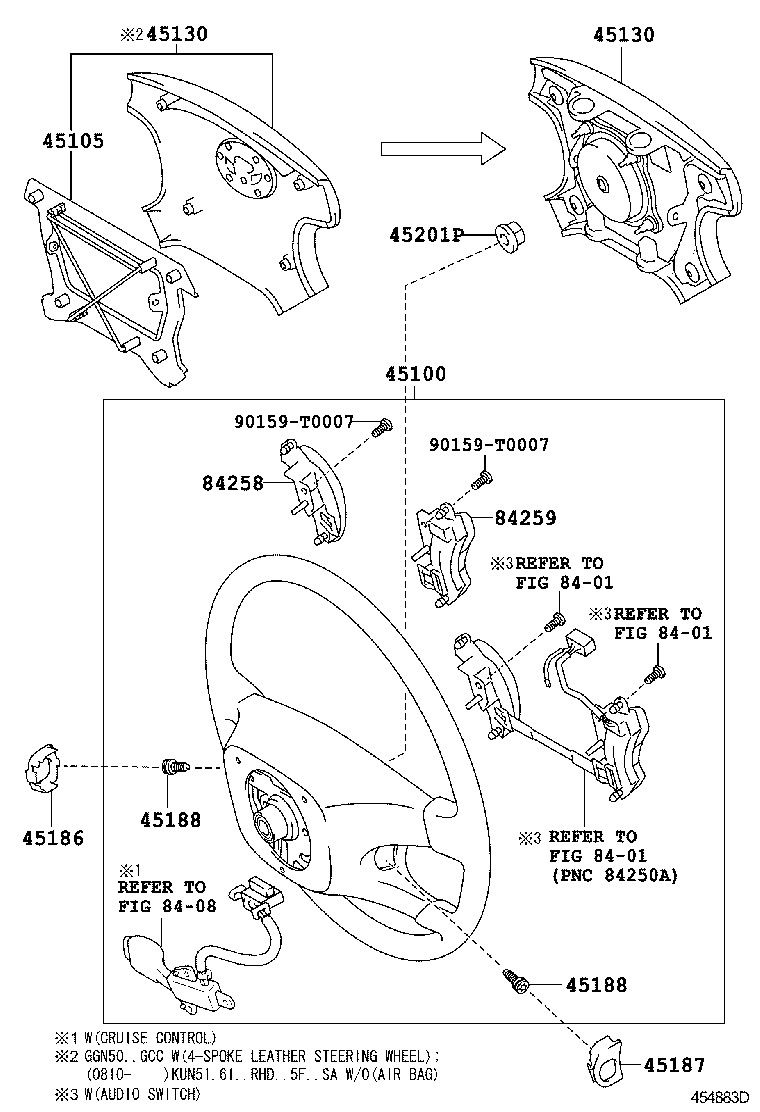

(0501- )

Click highlighted areas on diagram

4-SPOKE

diagram 45100 45105 45130 45130 45186 45187 45188 45188 45201P 8401 8401 8401 8408 84258 84259 90159T0007 90159T0007
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-0K221E1

KUN61,TGN61..5F..LA

3-SPOKE,URETHANE,ASH BROWN,TRIM4#

 1
45100-0K111E1

KUN61,TGN61..5F..LA

4-SPOKE,URETHANE,SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-02180E1

KUN61,TGN61..5F..LA

ASH BROWN,TRIM4#

 1
45130-0K080E1

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#

 1
45130 - BUTTON ASSY, HORN
45130-02180E1

KUN61,TGN61..5F..LA

ASH BROWN,TRIM4#

 1
45130-0K080E1

KUN61,TGN61..5F..LA

SRS AIR BAG-WITH(DRIVER & PASSENGER),ASH BROWN,TRIM4#

 1
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-0K010

KUN51..LHD..SA;KUN61,LAN50,TGN51,61..LHD..5F..(LA,SA)

L=18,SRS AIR BAG-WITH(DRIVER & PASSENGER)

 2
45188 - SCREW, STEERING WHEEL PAD ATTACHING
45188-0K010

KUN51..LHD..SA;KUN61,LAN50,TGN51,61..LHD..5F..(LA,SA)

L=18,SRS AIR BAG-WITH(DRIVER & PASSENGER)

 2
45201P - NUT, STEERING WHEEL SET
90179-12071

TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR

 1
Common parts
90159-T0007
Linked diagrams
8401
8408

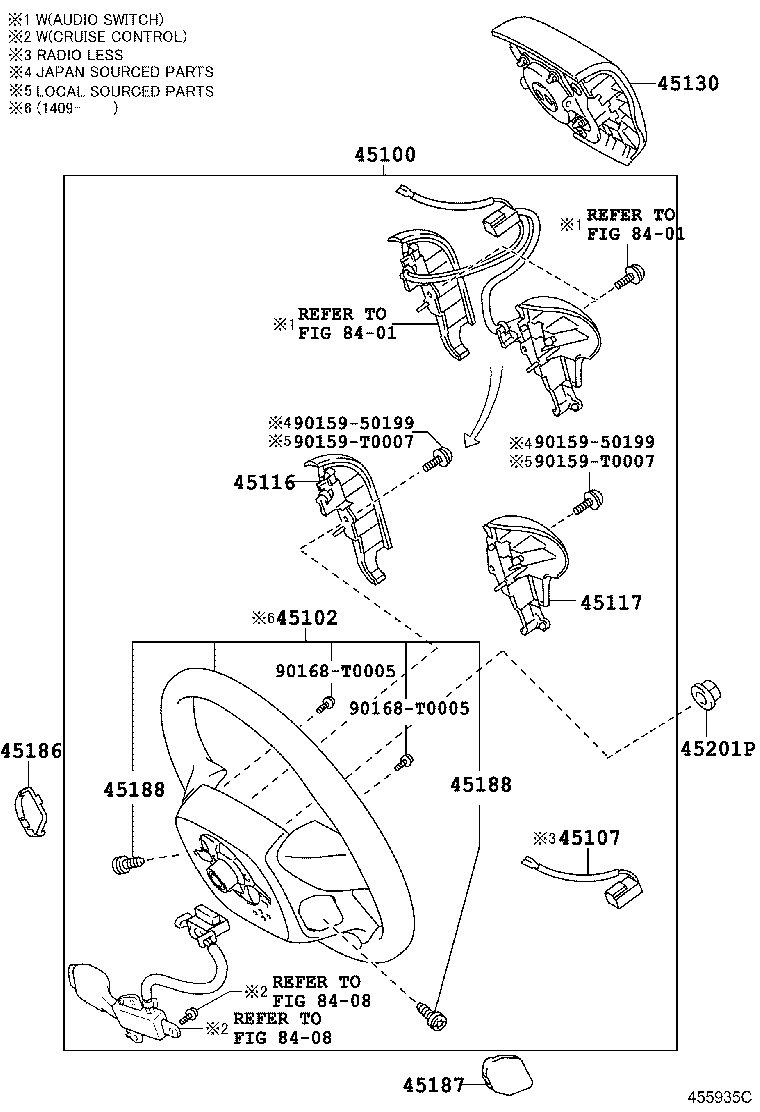

(1107- )

Click highlighted areas on diagram

diagram 45100 45102 45107 45116 45117 45130 45186 45187 45188 45188 45201P 8401 8401 8408 8408 9015950199 9015950199 90159T0007 90159T0007 90168T0005 90168T0005
Part # Description Qty Price
Common parts
90159-50199
90159-T0007
90168-T0005
Linked diagrams
8401
8408
