KUN61L-NKMDYG (2008)
Toyota Fortuner
Production
Oct 2008
-
Oct 2011
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

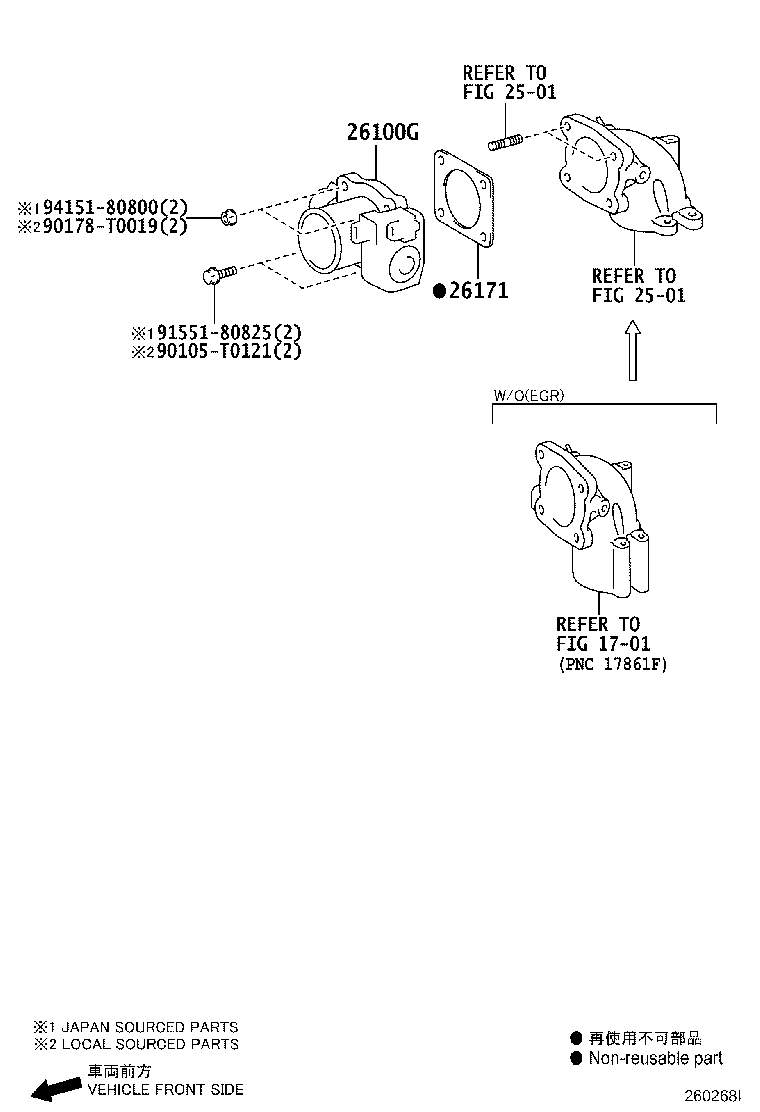

(0501- )1KDFTV,2KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 26100G - BODY ASSY, DIESEL THROTTLE | ||||
| 26100-0L010 |
1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH) *130 |
1 | ||
| 26171 - GASKET, VENTURI | ||||
| 26171-0L020 |
1KDFTV,2KDFTV..KUN50,61..5F..DLX;1KDFTV,2KDFTV..KUN51,60..SUVW..(IDN,LA,PHL,TH) *130 |
1 | ||
| Common parts | ||||
| 90105-T0121 | ||||
| 90178-T0019 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2501 | ||||

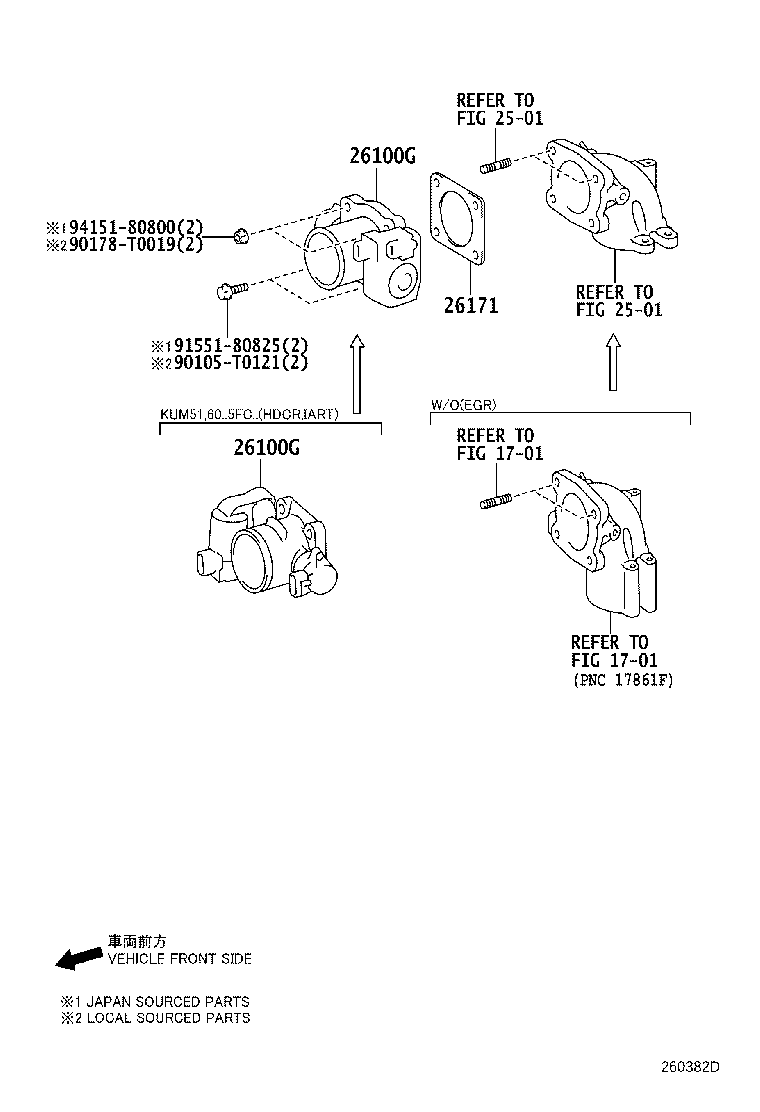

(1107- )1KDFTV,2KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0121 | ||||
| 90178-T0019 | ||||
| 91551-80825 | ||||
| 94151-80800 | ||||
| Linked diagrams | ||||
| 1701 | ||||
| 2501 | ||||
