KUN61L-NKMDYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501-0610)

Click highlighted areas on diagram

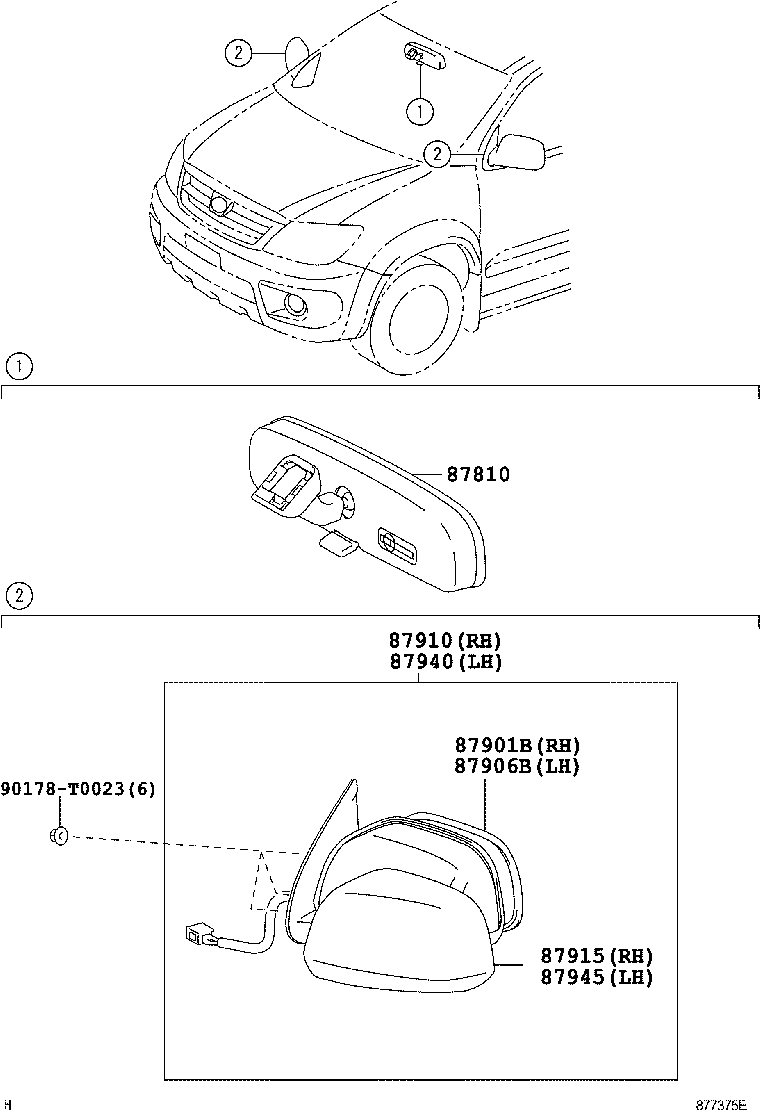

diagram 87810 87901B 87906B 87910 87915 87940 87945 90178T0023
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0K200

KUN61,TGN61..LA

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0K180

KUN61,TGN61..LA

NO PAINT REQ.

 1
Common parts
90178-T0023

(0610- )

Click highlighted areas on diagram

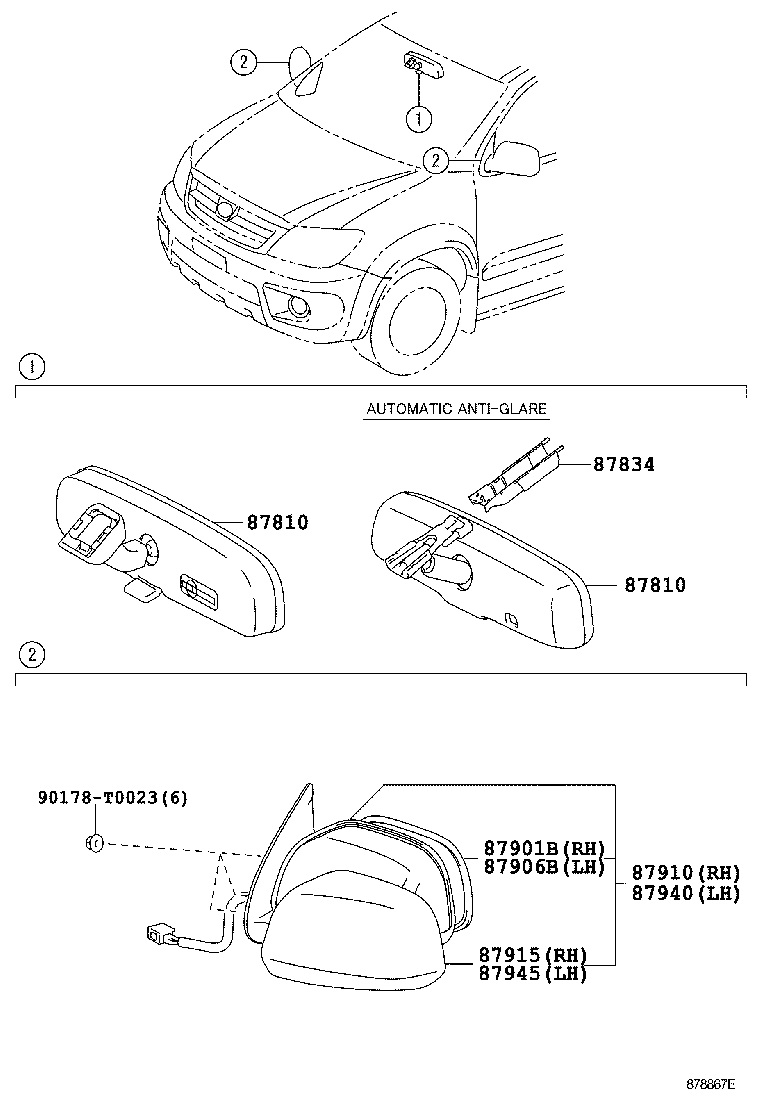

diagram 87810 87810 87834 87901B 87906B 87910 87915 87940 87945 90178T0023
Part # Description Qty Price
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
87810 - MIRROR ASSY, INNER REAR VIEW
87810-06041

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 1
87910 - MIRROR ASSY, OUTER REAR VIEW, RH
87910-0K200

KUN61,TGN61..LA

NO PAINT REQ.

 1
87940 - MIRROR ASSY, OUTER REAR VIEW, LH
87940-0K180

KUN61,TGN61..LA

NO PAINT REQ.

 1
Common parts
90178-T0023

(1107- )IDSUV,SUVW,THSUV..CO,EPT,GCC,GEN,IDN,KZS,LA,MA,PHL,TH

Click highlighted areas on diagram

diagram 8106 8106 87810 87810 87834 87910 87915 87931 87940 87945 87961 90178T0023
Part # Description Qty Price
Common parts
90178-T0023
Linked diagrams
8106
