KUN61L-NKMDYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(0501- )5F

Click highlighted areas on diagram

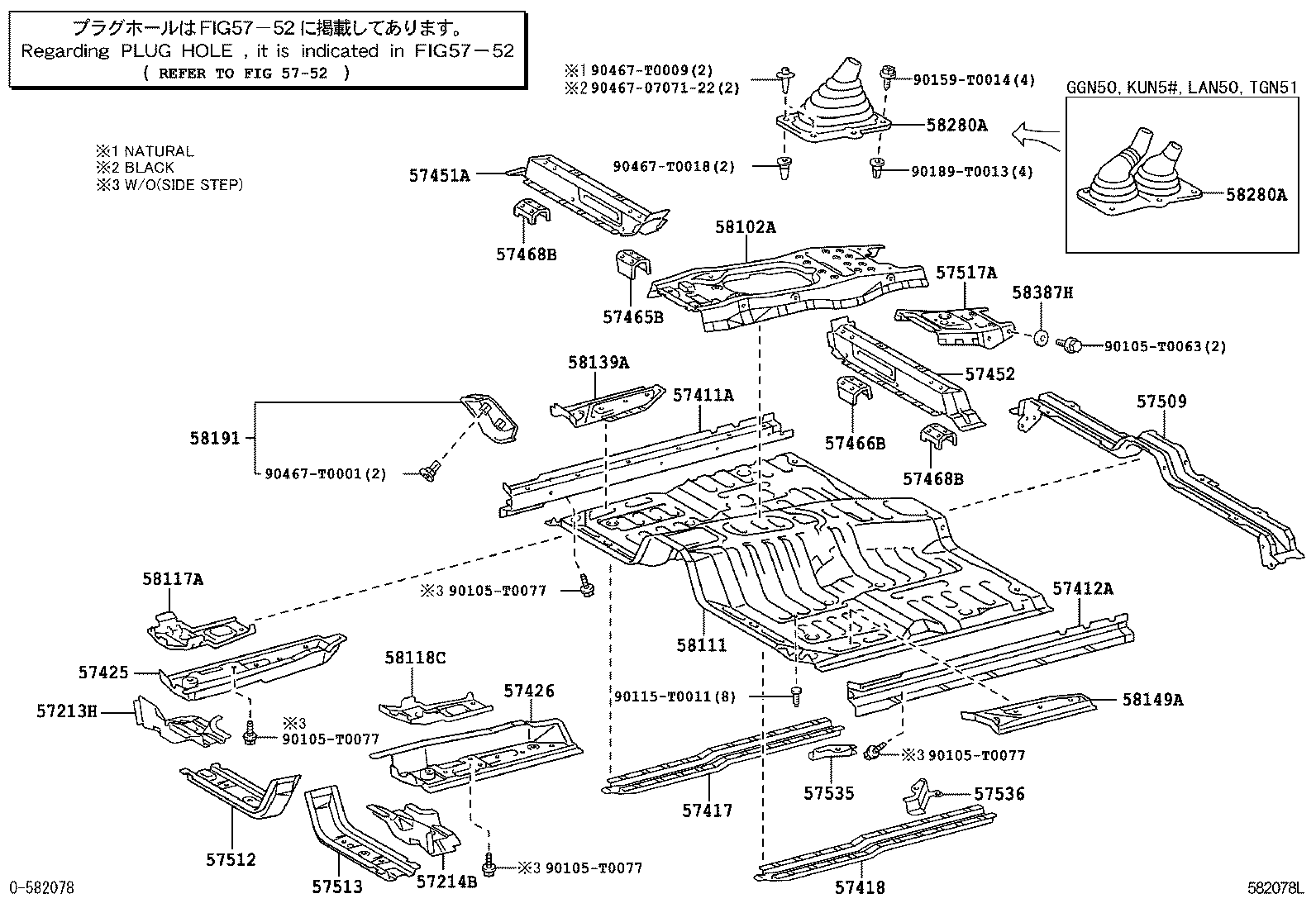

FLOOR PAN

diagram 57213H 57214B 57411A 57412A 57417 57418 57425 57426 57451A 57452 57465B 57466B 57468B 57468B 57509 57512 57513 57517A 5752 57535 57536 58102A 58111 58117A 58118C 58139A 58149A 58191 58280A 58280A 58387H 90105T0063 90105T0077 90105T0077 90105T0077 90105T0077 90115T0011 90159T0014 90189T0013 904670707122 90467T0001 90467T0009 90467T0018
Part # Description Qty Price
57213H - BRACKET, BODY MOUNTING, NO.2 RH
57213-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57213-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57214B - BRACKET, BODY MOUNTING, NO.2 LH
57214-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57214-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57411A - MEMBER, FLOOR SIDE, INNER RH
57411-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57411-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57412A - MEMBER, FLOOR SIDE, INNER LH
57412-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57412-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH
57417-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57417-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH
57418-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57418-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH
57425-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57425-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH
57426-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57426-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57452 - MEMBER, FRONT FLOOR CROSS, LH
57452-0K010

TGN51..SUVW;TGN51..IDSUV..GCC;GGN50,60,KUN5#,6#,LAN50,TGN61

 1
57452-0K020

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57465B - BRACKET, FRONT SEAT, INNER
57465-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57465-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57466B - BRACKET, FRONT SEAT, INSIDE LH
57466-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57466-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 2
57468-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
57468B - BRACKET, FRONT SEAT, REAR
57468-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 2
57468-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER
57509-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57509-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57512 - REINFORCEMENT, FRONT FLOOR, RH
57512-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57512-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57513 - REINFORCEMENT, FRONT FLOOR, LH
57513-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57513-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR
57516-0K020

GGN50,KUN51,6#,LAN50,TGN51,61..LHD..5F

 1
57535 - BRACE, FRONT FLOOR, RH
57535-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57535-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
57536 - BRACE, FRONT FLOOR, LH
57536-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
57536-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR
58102-0K020

KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F

 1
58102-0K020

GGN50..LHD..5F;KUN51,6#,LAN50,TGN51,61..5F

 1
58111 - PAN, FRONT FLOOR
58111-0K030

KUN6#,TGN61..5F

 1
58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH
58117-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
58117-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH
58118-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
58118-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
58139A - PLATE, FRONT FLOOR SIDE, REAR RH
58139-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
58139-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
58149A - PLATE, FRONT FLOOR SIDE, REAR LH
58149-0K010

TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 1
58149-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 1
58387H - PLATE, REAR FLOOR
58387-0K010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
58387-0K010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 2
Common parts
90105-T0063
90105-T0077
90115-T0011
90159-T0014
90189-T0013
90467-0707122
90467-T0001
90467-T0009
90467-T0018
