KUN61L-NKMDYG (2005)
Toyota Fortuner
(0501-0604)LA ; (0501-0608)GCC,IDN,PHL,TH ; (0501-0609)MA ; (0501-0610)SA ; (0501-0
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

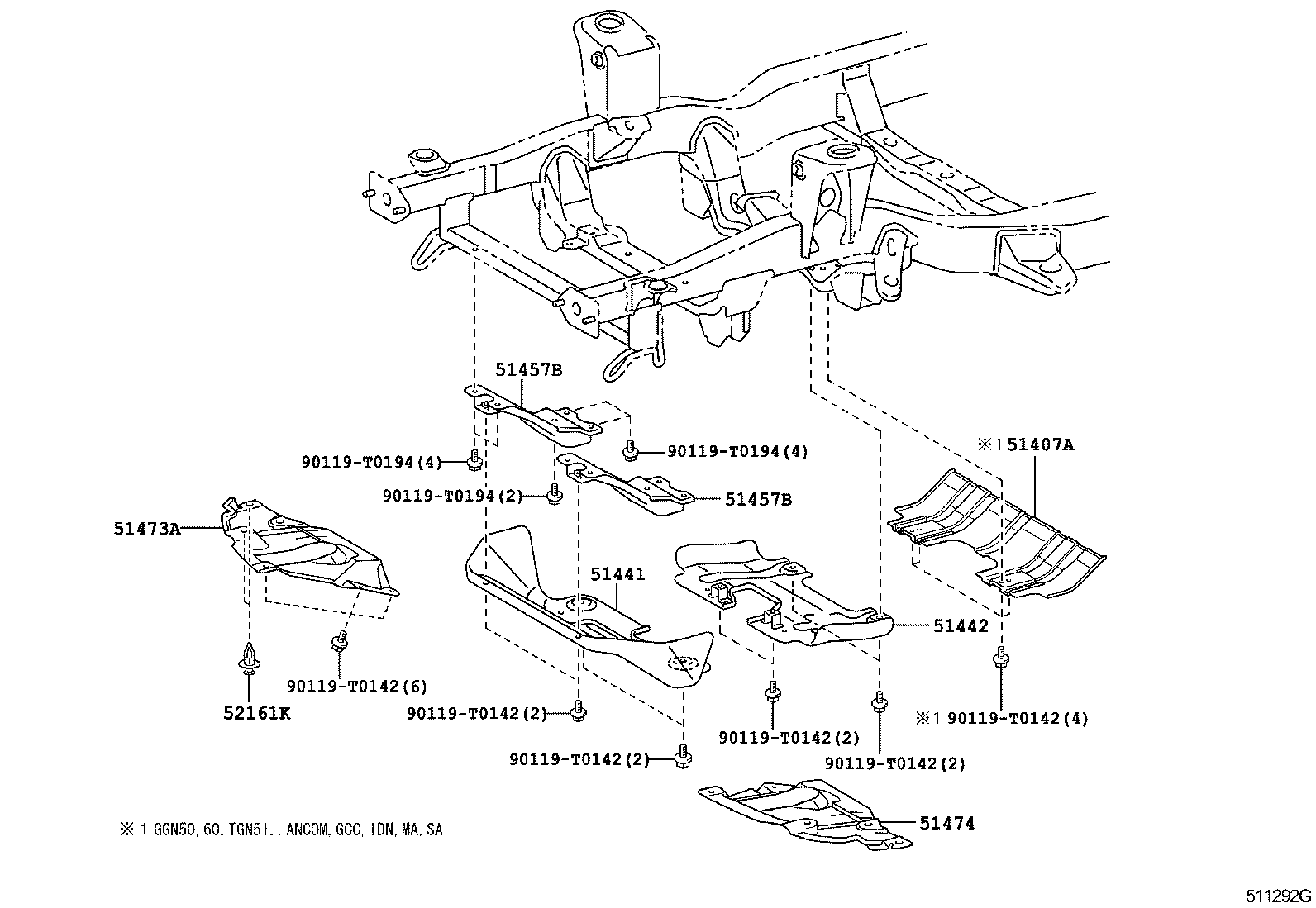

| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-0K020 |
GGN60,KUN51,61,LAN50,TGN51,61..LA,SA |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51420-0K010 |
KUN51,61,TGN61..LA |
1 | ||
| 51420-0K010 |
GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,IND,LA,MA,PHL,TH,VN |
1 | ||
| 51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE | ||||
| 51405-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 51405-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE | ||||
| 51405-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 51405-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 51473A - COVER SUB-ASSY, ENGINE SIDE, RH | ||||
| 51473-71020 |
KUN51,61,TGN61..LA |
1 | ||
| 51473-71031 |
KUN51..LA;KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51,61..LA,SA |
1 | ||
| 51474 - COVER SUB-ASSY, ENGINE SIDE, LH | ||||
| 51474-71020 |
KUN51,61,TGN61..LA |
1 | ||
| 51474-71031 |
KUN51..LA;KUN51..RHD..SA;GGN50,60,KUN61,LAN50,TGN51,61..LA,SA |
1 | ||
| 52161K - PIECE, FRONT BUMPER | ||||
| 52161-0K050 |
KUN51,61,TGN61..LA |
4 | ||
| 52161-0K050 |
KUN51,61,TGN61..LA |
4 | ||
| 52161-0K050 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
4 | ||
| Common parts | ||||
| 90119-T0142 | ||||
| 90119-T0194 | ||||
(0604-0610)LA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51441 - COVER, ENGINE UNDER, NO.1 | ||||
| 51410-0K020 |
GGN60,KUN51,61,LAN50,TGN51,61..LA,SA |
1 | ||
| 51442 - COVER, ENGINE UNDER, NO.2 | ||||
| 51420-0K010 |
KUN51,61,TGN61..LA |
1 | ||
| 51420-0K010 |
GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..ANCOM,GEN,IDN,IND,LA,MA,PHL,TH,VN |
1 | ||
| 51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE | ||||
| 51405-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 51405-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 51457B - BRACE, FRONT SIDE MEMBER TO FRONT SUSPENSION CROSSMEMBE | ||||
| 51405-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 51405-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| Common parts | ||||
| 90119-T0142 | ||||
| 90119-T0194 | ||||
| Linked diagrams | ||||
| 5353 | ||||
(1107- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90119-T0142 | ||||
| 90119-T0194 | ||||
| Linked diagrams | ||||
| 5252 | ||||
