KUN61L-NKMDYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )ANCOM,LA,SA ; (0808- )KUN51..5F..GEN ; (0808- )KUN51,61..4FC..GEN,

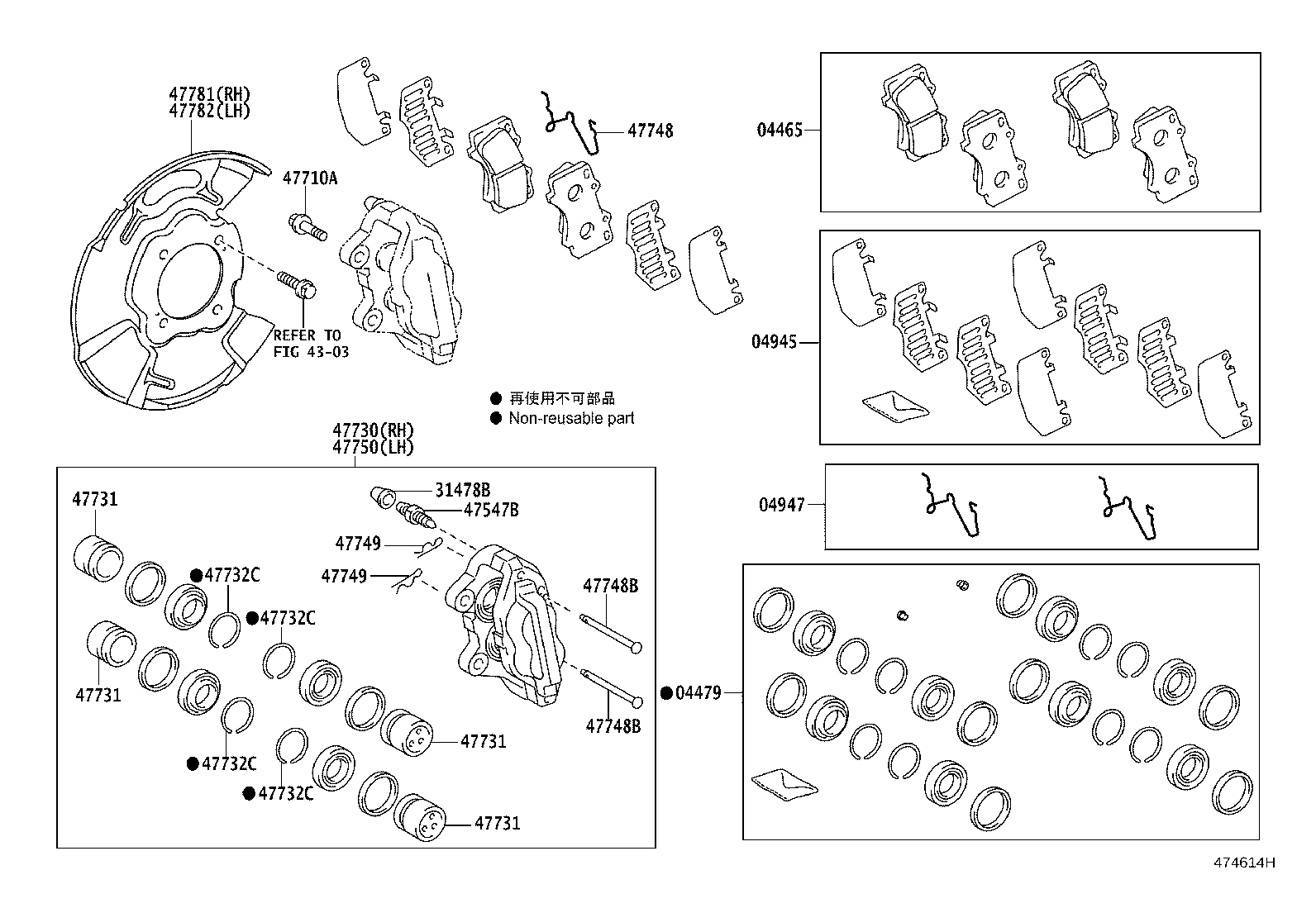

Click highlighted areas on diagram

diagram 04465 04479 04945 04947 31478B 4303 47547B 47710A 47730 47731 47731 47731 47731 47732C 47732C 47732C 47732C 47748 47748B 47748B 47749 47749 47750 47781 47782
Part # Description Qty Price
31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
31478-30010

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

 2
47710A - BOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)
90105-12175

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

*12-1.25PX35-27

 4
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 8
47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE)
90522-50003

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 8
47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE)
47748-35010

GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA

 2
Linked diagrams
4303
