KUN61L-NKMDYG (2005)
Toyota Fortuner
Production
Sep 2005
-
Oct 2008
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

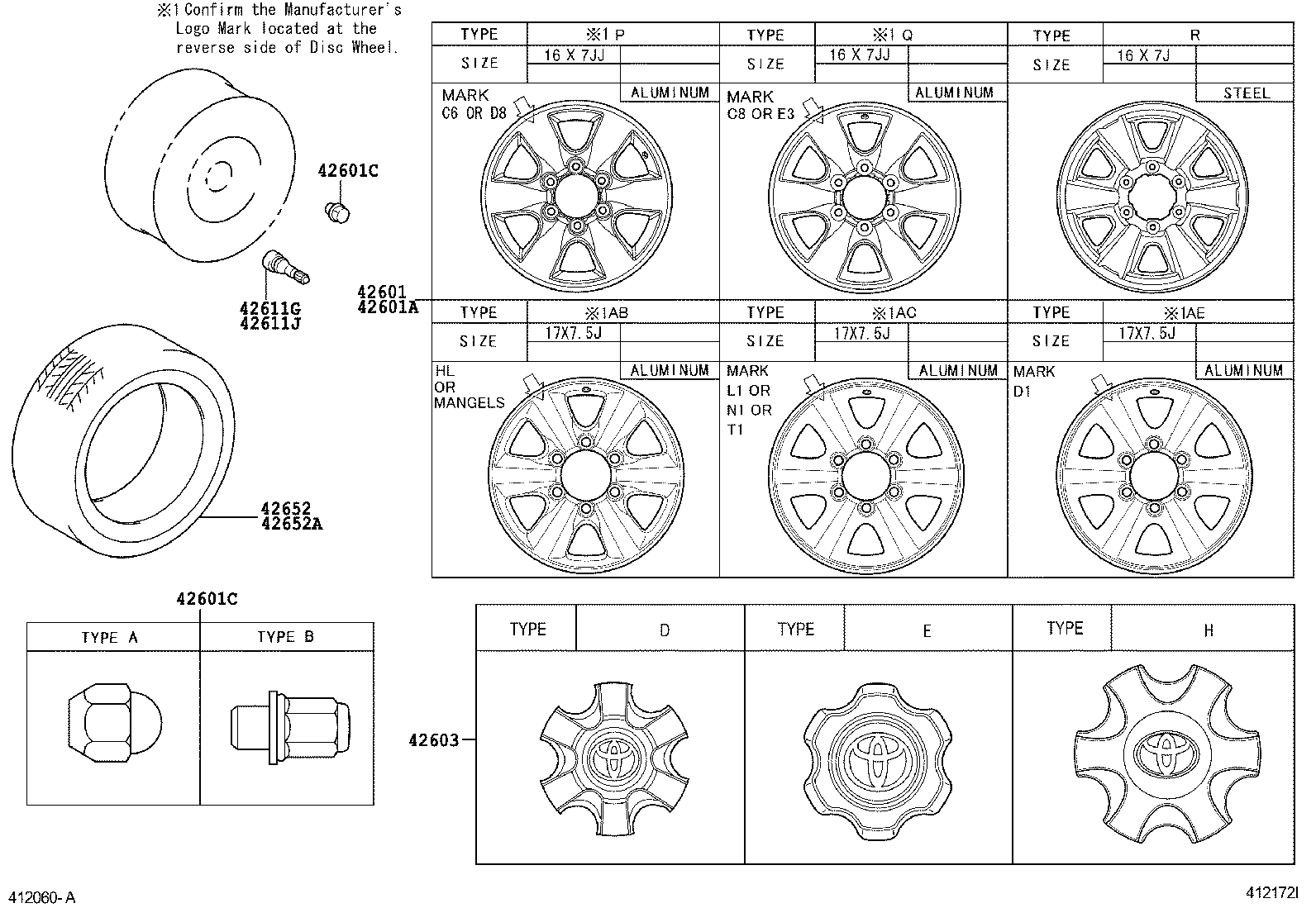

ILLUST NO. 1 OF 2(0501- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 42601 - WHEEL, DISC | ||||
| 42611-0K040 |
KUN61,TGN61..LA 16X7J, #,TYPE R:REFER ILLUST. |
4 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01082 |
LAN50;KUN61,TGN61..5F..LA;GGN50,TGN51,61..LHD..(GCC,SA) TYPE A:REFER ILLUST. |
24 | ||
| 42601C - NUT, HUB (FOR AXLE) | ||||
| 90942-01082 |
LAN50;KUN61,TGN61..5F..LA;GGN50,TGN51,61..LHD..(GCC,SA) TYPE A:REFER ILLUST. |
24 | ||
| 42603 - ORNAMENT SUB-ASSY, WHEEL HUB | ||||
| 42603-0K050 |
GGN50,TGN51,61..GCC;KUN61,TGN61..5F..LA *ALU,TYPE E:REFER ILLUST. |
4 | ||
| 42652 - TIRE | ||||
| 42652-0K320 |
KUN51,61,TGN61..LA 265/70R16,*B/S |
4 | ||
| 42652A - TIRE (FOR SPARE) | ||||
| 42652-0K320 |
KUN51,61,TGN61..LA 265/70R16,*B/S |
1 | ||
ILLUST NO. 2 OF 2(0509- )ANCOM,LA,SA
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42309 | ||||
| 90080-42310 | ||||
| 90080-42311 | ||||
| 90080-42312 | ||||
| 90080-42314 | ||||
| 90080-42315 | ||||
| 90080-42316 | ||||
| 90080-42317 | ||||
| 90080-42318 | ||||
| 90080-42321 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
ILLUST NO. 1 OF 2(1107- )
Click highlighted areas on diagram
DISC WHEEL & WHEEL HUB ORNAMENT
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(1107- )GGN50,60,KUN6#,LAN50,TGN51,61..ANCOM,CO,IND,LA,SA
Click highlighted areas on diagram
BALANCE WEIGHT
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90080-42309 | ||||
| 90080-42310 | ||||
| 90080-42311 | ||||
| 90080-42312 | ||||
| 90080-42314 | ||||
| 90080-42315 | ||||
| 90080-42316 | ||||
| 90080-42317 | ||||
| 90080-42318 | ||||
| 90080-42321 | ||||
| 90942-03146 | ||||
| 90942-03147 | ||||
| 90942-03148 | ||||
| 90942-03149 | ||||
| 90942-03150 | ||||
| 90942-03151 | ||||
| 90942-03152 | ||||
| 90942-03153 | ||||
| 90942-03154 | ||||
| 90942-03167 | ||||
| 90942-03360 | ||||
| 90942-03361 | ||||
| 90942-03362 | ||||
| 90942-03363 | ||||
| 90942-03364 | ||||
| 90942-03365 | ||||
| 90942-03366 | ||||
| 90942-03367 | ||||
| 90942-03368 | ||||
| 90942-03369 | ||||
