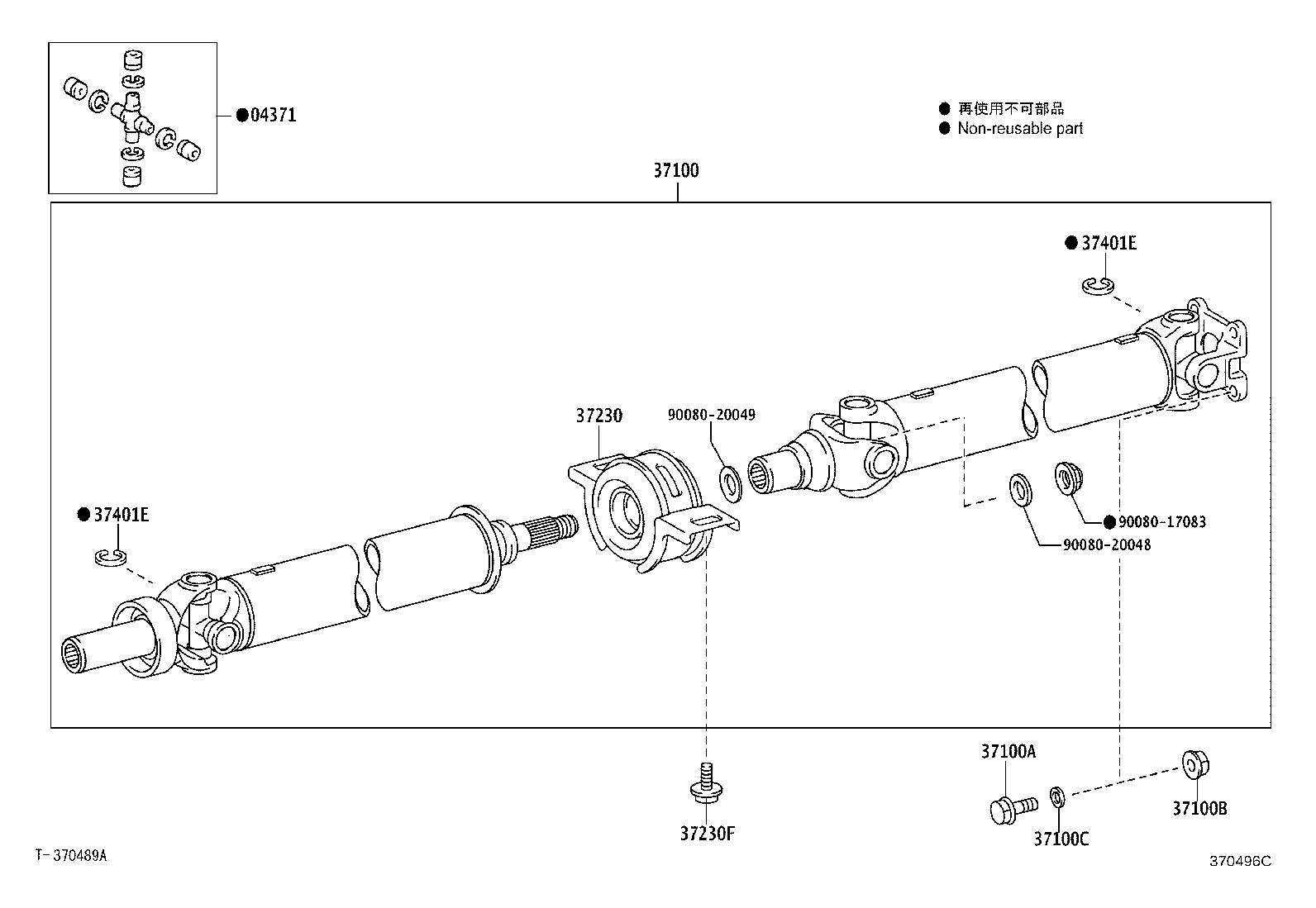

KUN61L-NKMDYG (2005)
Toyota Fortuner
(0509- )GGN60,KUN61,TGN61..ANCOM,GEN,LA,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04371 - SPIDER KIT, UNIVERSAL JOINT(FOR PROPELLER SHAFT) | ||||
| 04371-04030 |
GGN60,KUN61,TGN61..ANCOM,LA,SA |
3 | ||
| 37100 - SHAFT ASSY, PROPELLER W/CENTER BEARING | ||||
| 37100-0K410 |
KUN61..LA |
1 | ||
| 37100A - BOLT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90105-T0084 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
4 | ||
| 90105-T0084 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
4 | ||
| 37100B - NUT, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTING) | ||||
| 90178-T0024 |
KUN6#,TGN61;GGN60..SUVW..5FC |
4 | ||
| 37100C - WASHER, NO.1 (FOR PROPELLER SHAFT & DIFFERENTIAL SETTIN | ||||
| 90201-T0003 |
KUN6#,TGN61;GGN60..SUVW..5FC |
4 | ||
| 37230F - BOLT, NO.1 (FOR CENTER SUPPORT BEARING) | ||||
| 90119-T0148 |
KUN6#,TGN61;GGN60..SUVW..5FC |
2 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.44,RED,NO.2 |
9 | ||
| 90080-52041 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.49,COPPER,NO.2 |
9 | ||
| 90080-52174 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.41,NO.2 |
9 | ||
| 90080-52038 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.64,BLUE,NO.2 |
9 | ||
| 90080-52044 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.38,GREEN,NO.2 |
9 | ||
| 90080-52156 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.52,NO.1 |
3 | ||
| 90080-52040 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.54,SILVER,NO.2 |
9 | ||
| 90080-52176 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.48,NO.2 |
9 | ||
| 90080-52178 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.61,NO.2 |
9 | ||
| 90080-52179 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.66,NO.2 |
9 | ||
| 90080-52042 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.51,BLACK,NO.2 |
9 | ||
| 90080-52039 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.59,YELLOW,NO.2 |
9 | ||
| 90080-52180 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.71,NO.2 |
9 | ||
| 90080-52175 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.46,NO.2 |
9 | ||
| 90080-52177 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.56,NO.2 |
9 | ||
| 37401E - RING, SNAP (FOR REAR PROPELLER SHAFT JOINT SPIDER BEARI | ||||
| 90080-52043 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.44,RED,NO.2 |
9 | ||
| 90080-52041 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.49,COPPER,NO.2 |
9 | ||
| 90080-52174 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.41,NO.2 |
9 | ||
| 90080-52038 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.64,BLUE,NO.2 |
9 | ||
| 90080-52044 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.38,GREEN,NO.2 |
9 | ||
| 90080-52156 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.52,NO.1 |
3 | ||
| 90080-52040 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.54,SILVER,NO.2 |
9 | ||
| 90080-52176 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.48,NO.2 |
9 | ||
| 90080-52178 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.61,NO.2 |
9 | ||
| 90080-52179 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.66,NO.2 |
9 | ||
| 90080-52042 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.51,BLACK,NO.2 |
9 | ||
| 90080-52039 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.59,YELLOW,NO.2 |
9 | ||
| 90080-52180 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.71,NO.2 |
9 | ||
| 90080-52175 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.46,NO.2 |
9 | ||
| 90080-52177 |
GGN60..SUVW..5FC;KUN61,TGN61..LA,SA T=1.56,NO.2 |
9 | ||
| Common parts | ||||
| 90080-17083 | ||||
| 90080-20048 | ||||
| 90080-20049 | ||||
