KUN61L-NKMDYG (2005)

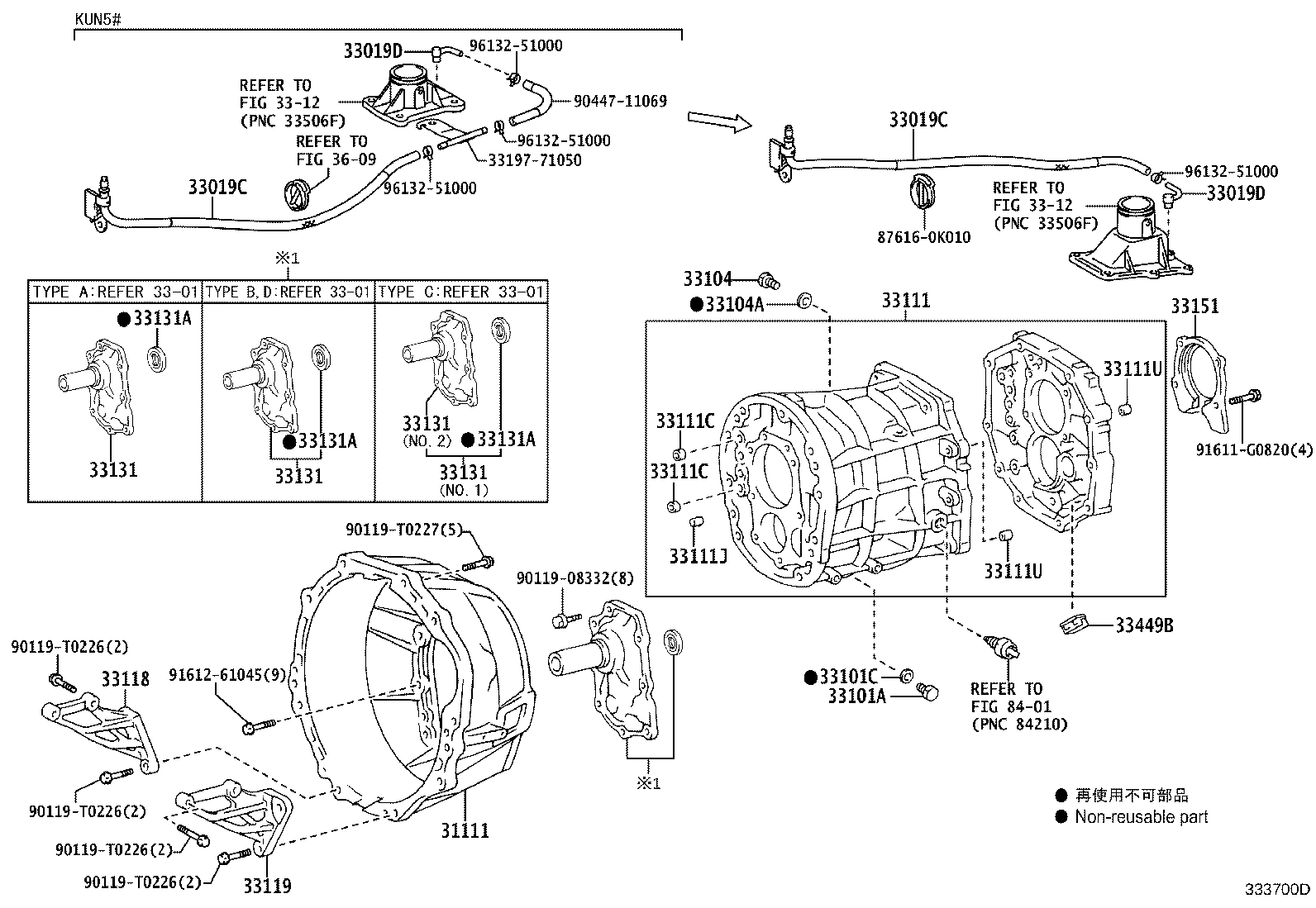

Toyota Fortuner
(0501-0808)KUN5#,6#..5F
R151
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN5#,61..SUVW..5F TYPE C:REFER 33-01 |
1 | ||
| 31111-0K010 |
KUN5#,61..5F..(LA,MA,SA) |
1 | ||
| 31111-0K020 |
TGN51,61..LA,SA;TGN51,61..IDSUV..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 90331-14004 |
GGN60,TGN51,61..LA,SA OD=14 |
1 | ||
| 96411-41800 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 90331-14004 |
GGN60,TGN51,61..LA,SA OD=14 |
1 | ||
| 96411-41800 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN51,6#..(SUVW,THSUV)..5F |
1 | ||
| 33118-04020 |
KUN5#,6#..(SUVW,THSUV)..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
KUN51,6#..(SUVW,THSUV)..5F |
1 | ||
| 33119-0K020 |
KUN5#,6#..(SUVW,THSUV)..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| Common parts | ||||
| 90119-08332 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(0808- )KUN5#,6#..5F
R151,R151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN5#,61..SUVW..5F TYPE C:REFER 33-01 |
1 | ||
| 31111-0K010 |
KUN5#,61..5F..(LA,MA,SA) |
1 | ||
| 31111-0K020 |
TGN51,61..LA,SA;TGN51,61..IDSUV..5F |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71020 |
KUN61..5F |
1 | ||
| 33019-71020 |
KUN6#..5F |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71020 |
KUN61..5F |
1 | ||
| 33019-71020 |
KUN6#..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 90331-14004 |
GGN60,TGN51,61..LA,SA OD=14 |
1 | ||
| 96411-41800 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 90331-14004 |
GGN60,TGN51,61..LA,SA OD=14 |
1 | ||
| 96411-41800 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33118 - PLATE, STIFFENER, RH(MTM) | ||||
| 33118-04020 |
KUN51,6#..(SUVW,THSUV)..5F |
1 | ||
| 33118-04020 |
KUN5#,6#..(SUVW,THSUV)..5F |
1 | ||
| 33119 - PLATE, STIFFENER, LH(MTM) | ||||
| 33119-0K020 |
KUN51,6#..(SUVW,THSUV)..5F |
1 | ||
| 33119-0K020 |
KUN5#,6#..(SUVW,THSUV)..5F |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| Common parts | ||||
| 33197-71050 | ||||
| 87616-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90447-11069 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||

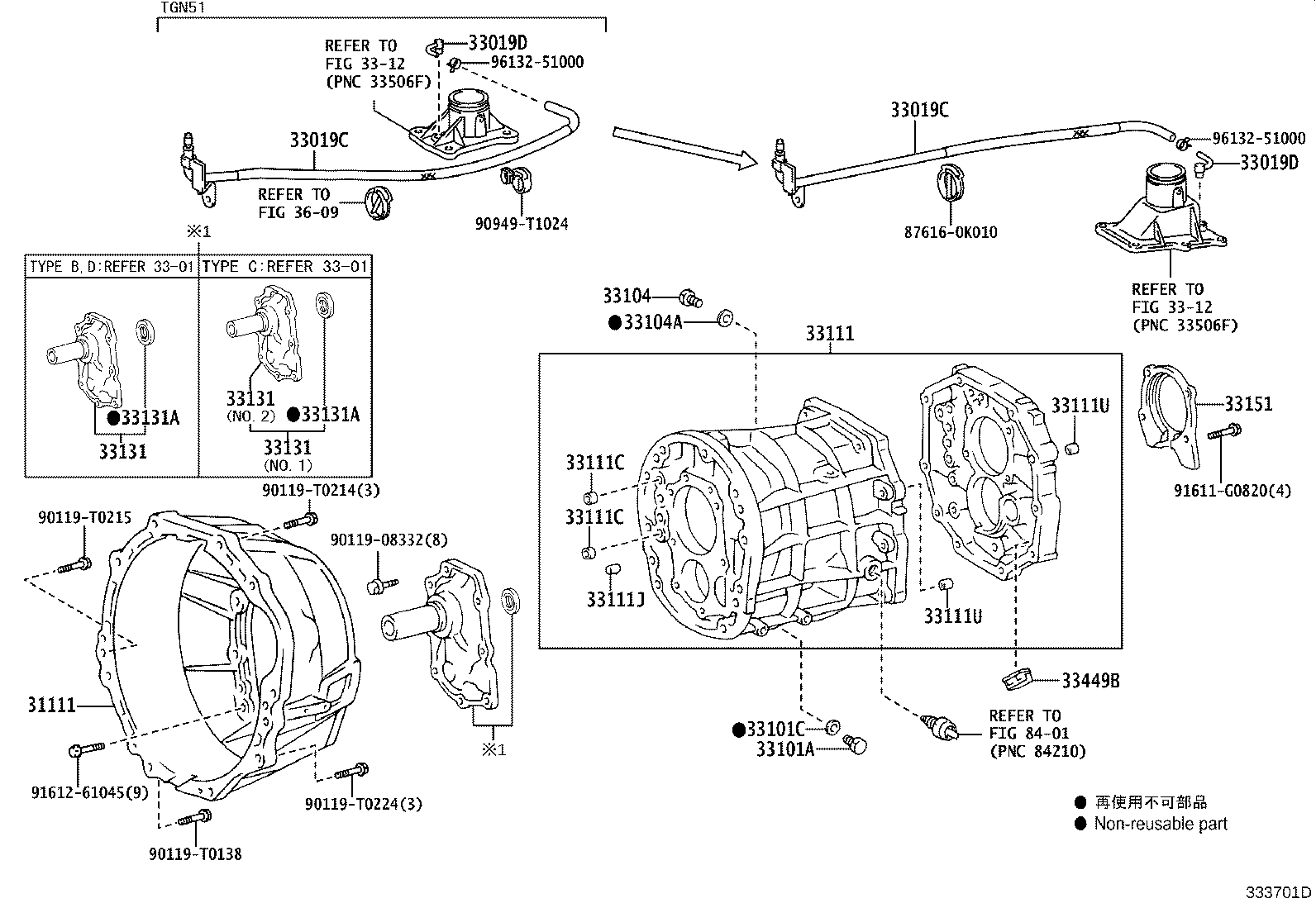

(0808- )TGN51,61..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31111 - HOUSING, CLUTCH | ||||
| 31111-0K010 |
KUN5#,61..SUVW..5F TYPE C:REFER 33-01 |
1 | ||
| 31111-0K010 |
KUN5#,61..5F..(LA,MA,SA) |
1 | ||
| 31111-0K020 |
TGN51,61..LA,SA;TGN51,61..IDSUV..5F |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71020 |
KUN61..5F |
1 | ||
| 33019-71020 |
KUN6#..5F |
1 | ||
| 33019C - BREATHER SUB-ASSY, TRANSMISSION | ||||
| 33019-71020 |
KUN61..5F |
1 | ||
| 33019-71020 |
KUN6#..5F |
1 | ||
| 33101A - PLUG(FOR MANUAL TRANSMISSION FILLER) | ||||
| 90341-18006 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG) | ||||
| 90430-18008 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104 - PLUG SUB-ASSY, DRAIN(MTM) | ||||
| 90341-18006 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33104A - GASKET, DRAIN PLUG(MTM) | ||||
| 90430-18008 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111 - CASE, MANUAL TRANSMISSION | ||||
| 33101-0K010 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 90331-14004 |
GGN60,TGN51,61..LA,SA OD=14 |
1 | ||
| 96411-41800 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111C - PLUG(FOR TRANSMISSION CASE) | ||||
| 90331-14004 |
GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=14,TYPE C:REFER 33-01 |
1 | ||
| 90331-14004 |
GGN60,TGN51,61..LA,SA OD=14 |
1 | ||
| 96411-41800 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) OD=18,TYPE C:REFER 33-01 |
3 | ||
| 33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE) | ||||
| 90250-12002 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=16,OD=12,TYPE C:REFER 33-01 |
2 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE) | ||||
| 90253-15001 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) L=14,OD=15,TYPE C:REFER 33-01 |
4 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131 - RETAINER, BEARING, FRONT(MTM) | ||||
| 33018-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..SUVW..5F T/P C:SEE 33-01,NO.2 |
1 | ||
| 33018-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.1 |
1 | ||
| 33131-0K010 |
KUN5#,61..5F..(LA,MA,SA) NO.2 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33131A - SEAL, OIL(FOR TRANSMISSION FRONT BEARING RETAINER) | ||||
| 90311-T0017 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33151 - RETAINER, OUTPUT SHAFT REAR BEARING(MTM) | ||||
| 33151-0K010 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| 33449B - MAGNET, TRANSMISSION | ||||
| 33449-35030 |
GGN50..IDSUV..5F;GGN50,KUN5#,61..5F..(ANCOM,LA,MA,SA,TH) TYPE C:REFER 33-01 |
1 | ||
| Common parts | ||||
| 87616-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90949-T1024 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(1107- )KUN51,6#..5F
R151,R151F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33197-0K010 | ||||
| 33197-71070 | ||||
| 90119-08332 | ||||
| 90119-T0225 | ||||
| 90119-T0226 | ||||
| 90119-T0227 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90447-11069 | ||||
| 90469-T0004 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
(1107- )TGN51,61..5F
R150,R150F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 33197-0K010 | ||||
| 90119-08332 | ||||
| 90119-T0138 | ||||
| 90119-T0214 | ||||
| 90119-T0215 | ||||
| 90119-T0224 | ||||
| 90119-T0225 | ||||
| 90119-T0295 | ||||
| 90119-T0296 | ||||
| 90119-T0297 | ||||
| 90949-T1024 | ||||
| 91611-G0820 | ||||
| 91612-61045 | ||||
| 96132-51000 | ||||
| Linked diagrams | ||||
| 3312 | ||||
| 3609 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
