KUN61L-NKMDYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0509- )1KDFTV..5F..LA

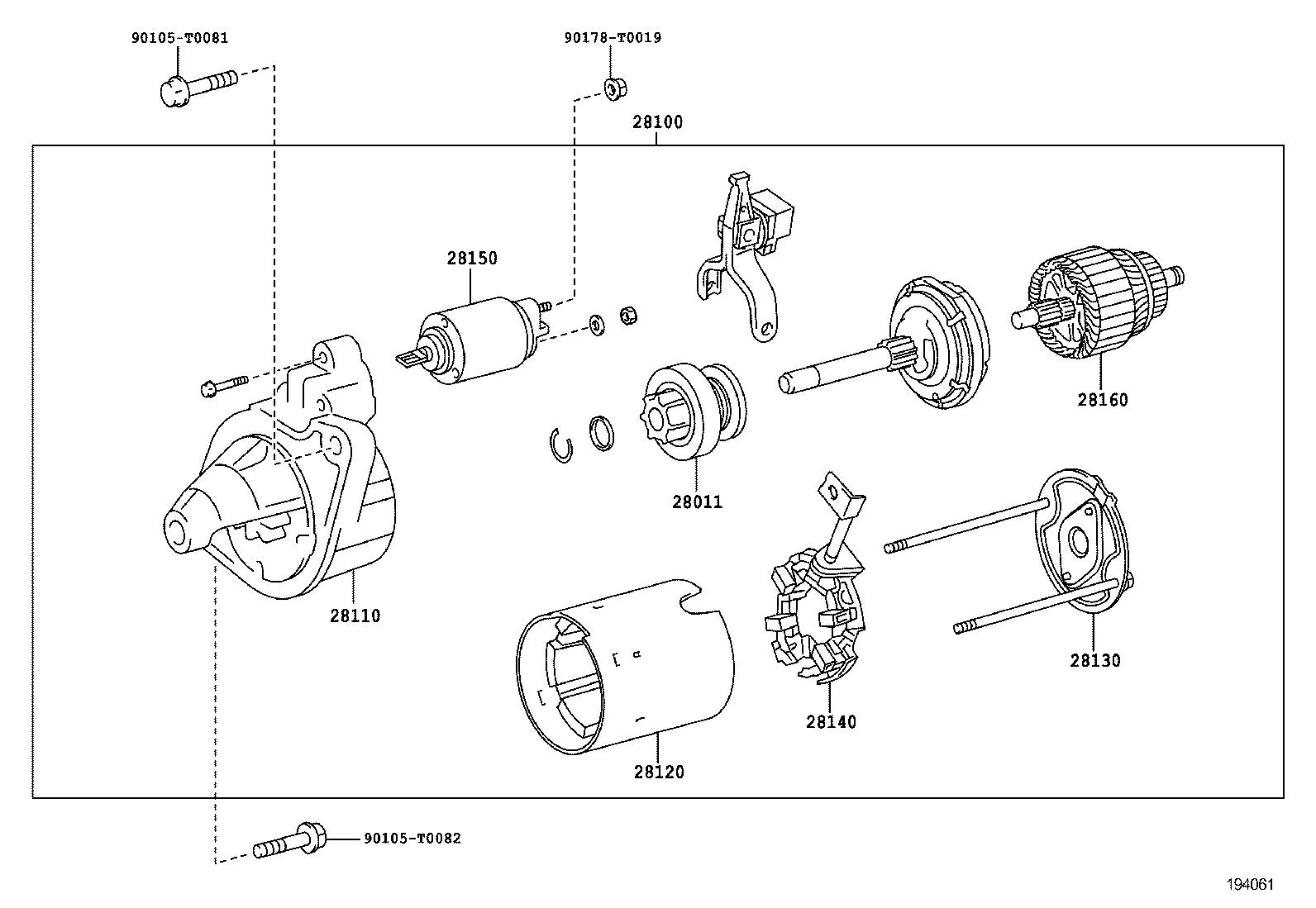

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28100 28110 28120 28130 28140 28150 28160 90105T0081 90105T0082 90178T0019
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-0L070

1KDFTV..KUN51,61..5F..LA

 1
28100 - STARTER ASSY
28100-0L070

1KDFTV..KUN51,61..5F..LA

12V 2.2KW

 1
28100-0L071

1KDFTV..KUN51,61..5F..LA

12V 2.2KW

 1
28120 - YOKE ASSY, STARTER
28120-0L070

1KDFTV..KUN51,61..5F..LA

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-0L070

1KDFTV..KUN51,61..LHD..SUVW..5F

 1
28150 - SWITCH ASSY, MAGNET STARTER
28150-0L070

1KDFTV..KUN51,61..5F..LA

 1
28150-0L071

1KDFTV..KUN51,61..LHD..SUVW..5F

 1
28160 - ARMATURE ASSY, STARTER
28160-0L070

1KDFTV..KUN51,61..LHD..SUVW..5F

 1
Common parts
90105-T0081
90105-T0082
90178-T0019

(1107- )1KDFTV..KUN61 ; (1107- )1KDFTV..KUN51..4FC,5FC ; (1107- )1KDFTV..K

Click highlighted areas on diagram

12V 2.2KW

diagram 28011 28011B 28100 28120 28120A 28140 28150 28160 90105T0081 90105T0082 90178T0019 90178T0022 90178T0022 9671119006
Part # Description Qty Price
Common parts
90105-T0081
90105-T0082
90178-T0019
90178-T0022
96711-19006
