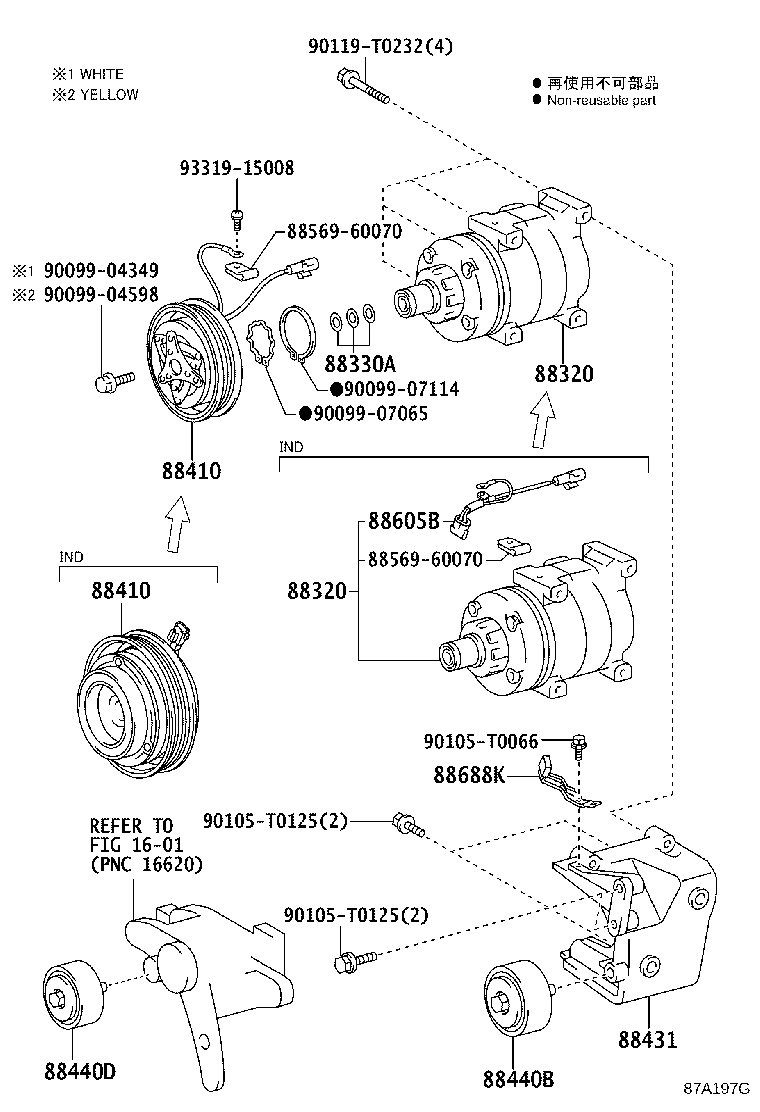

Toyota Fortuner KUN51 HEATING & AIR CONDITIONING - COMPRESSOR

Part #	Description	Period	Qty
88320 - COMPRESSOR ASSY, COOLER
88320-0K090	KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88320-0K090	KUN50,61..4FC..(MA,TH);KUN51,60..GEN,IDN,IND,PHL,TH,VN	08/2008 - 12/2999	1
88320 - COMPRESSOR ASSY, COOLER
88320-0K090	KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88320-0K090	KUN50,61..4FC..(MA,TH);KUN51,60..GEN,IDN,IND,PHL,TH,VN	08/2008 - 12/2999	1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-30420	TGN51..IDN,MA;TGN61..IDSUV..IDN;TGN61..SUVW..(IDN,PHL);KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88410 - CLUTCH ASSY, MAGNET
88410-0K100	KUN50,61..4FC..(MA,TH);KUN51,60..GEN,IDN,PHL,TH,VN	08/2008 - 12/2999	1
88410-0K100	KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88410 - CLUTCH ASSY, MAGNET
88410-0K100	KUN50,61..4FC..(MA,TH);KUN51,60..GEN,IDN,PHL,TH,VN	08/2008 - 12/2999	1
88410-0K100	KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-0K020	KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88431-0K020	KUN50,61..4FC..(MA,TH);KUN51,60..GEN,IDN,IND,PHL,TH,VN	08/2008 - 12/2999	1
88440B - PULLEY ASSY, IDLE
88440-0K060	KUN5#,60..(SUVW,THSUV)..(GEN,IDN,MA,PHL,TH)	01/2005 - 09/2008	1
88440D - PULLEY ASSY, IDLE NO.2
88440-0K010	KUN51,60..GEN,IDN,PHL,TH	01/2005 - 08/2008	1
88440-0K010	KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)	08/2008 - 12/2999	1
88688K - BRACKET, COOLER COMPRESSOR
88688-0K100	KUN51,60..GEN,IDN,PHL,TH	01/2005 - 08/2008	1
88688-0K100	KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)	08/2008 - 12/2999	1
Common parts
88569-60070
90099-04349
90099-04598
90099-07065
90099-07114
90105-T0066
90105-T0125
90119-T0232
93319-15008
Linked diagrams
1601

KUN51R-NKPSYT (2008)

(0808- )KUN51,6#..GEN,IDN,IND,PHL,TH,VN ; (0809- )KUN50

(1107- )KUN5#,6#..IDSUV,SUVW,THSUV..CO,GEN,IDN,LA,MA,PHL,TH,VN
