KUN51R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(0501- )

Click highlighted areas on diagram

O-RING

diagram 9006814022 9006814023 9006814024 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121

ILLUST NO. 3 OF 4(0501- )GCC,GEN,IDN,MA,PHL,SA,TH,VN

Click highlighted areas on diagram

REAR

diagram 8714 88716B 88716C 88717 88717A 887180K100 887180K110 887180K120 887180K160 887180K160 887180K170 887180K170 887180K180 887180K330 887180K350 887180K400 887180K400 887180K420 9009900313 9009900313 9009900313 90105T0148 90105T0148 9017906264 9017906264 9017906264
Part # Description Qty Price
88716B - PIPE, COOLER REFRIGERANT LIQUID, B
88706-0K050

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH)

 1
88706-0K050

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
88716C - PIPE, COOLER REFRIGERANT LIQUID, C
88706-0K060

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH)

 1
88706-0K060

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
88717 - PIPE, COOLER REFRIGERANT SUCTION, NO.1
88707-0K320

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH)

 1
88707-0K320

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
88717A - PIPE, COOLER REFRIGERANT SUCTION, A
88707-0K330

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH)

 1
88707-0K330

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
Common parts
88718-0K100
88718-0K110
88718-0K120
88718-0K160
88718-0K170
88718-0K180
88718-0K330
88718-0K350
88718-0K400
88718-0K420
90099-00313
90105-T0148
90179-06264
Linked diagrams
8714

ILLUST NO. 2 OF 4(0808- )KUN51,6#..SUVW..IDN,TH

Click highlighted areas on diagram

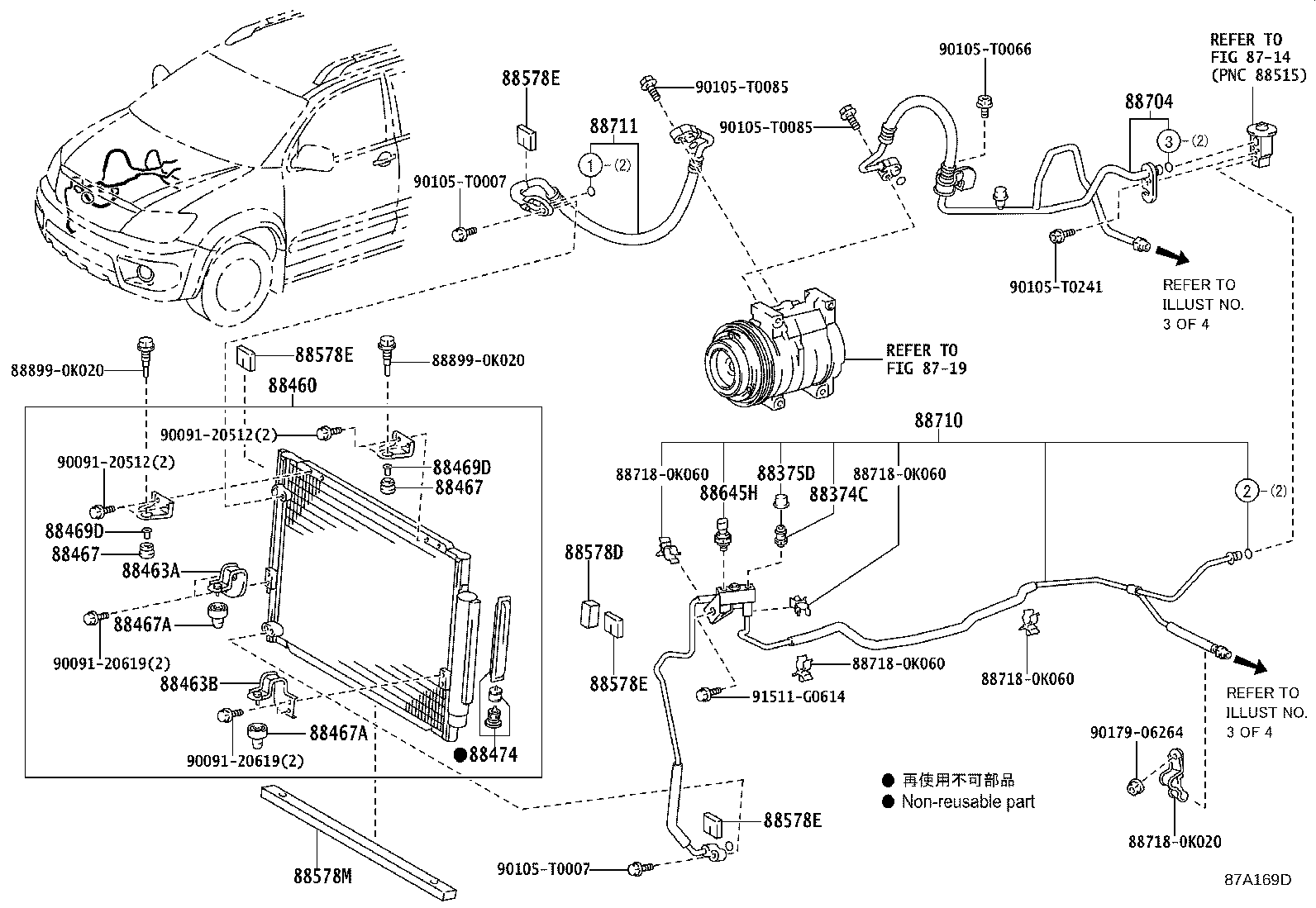

FRONT---DUAL AIR CONDITIONER

diagram 8714 8719 88374C 88375D 88460 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K020 887180K060 887180K060 887180K060 887180K060 888990K020 888990K020 9009120512 9009120512 9009120619 9009120619 90105T0007 90105T0007 90105T0066 90105T0085 90105T0085 90105T0241 9017906264 91511G0614
Part # Description Qty Price
88374C - VALVE, SERVICE, NO.2
88374-30010

KUN51..RHD;GGN60..5FC..SA;GGN50,KUN51..LHD..(4FC,5F)..(GEN,PHL);KUN6#,LAN50,TGN51..IDN,MA,PHL,SA,TH,VN;GGN50,KUN50,TGN61..(4FC,5FC)..(GEN,IDN,MA,PHL,SA)

 1
88375D - CAP, SERVICE VALVE, NO.2
88375-30280

KUN50,TGN61..4FC..(IDN,MA,PHL);GGN50,KUN51,6#,TGN51..GEN,IDN,IND,MA,PHL,TH,VN

 1
88460 - CONDENSER ASSY, COOLER
88460-0K030

KUN51,60..GEN,IDN,PHL,TH

 1
88460-0K030

KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K250

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 1
88463-0K250

TGN61..SUVW..(IDN,PHL);GGN50,KUN51,6#,TGN51..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K260

TGN61..SUVW..(IDN,PHL);GGN50,KUN51,6#,TGN51..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
88463-0K260

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 2
88467-12180

TGN51,61..SUVW..(IDN,PHL,VN);GGN50,KUN51,6#..GEN,IDN,PHL,TH,VN

 4
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 2
88467-12180

TGN51,61..SUVW..(IDN,PHL,VN);GGN50,KUN51,6#..GEN,IDN,PHL,TH,VN

 4
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

TGN51,61..IDN,PHL;GGN50,KUN51,60..GEN,IDN,PHL,TH

 2
88467-28040

TGN61..IDN,PHL;GGN50,KUN51,6#,TGN51..GEN,IDN,PHL,TH,VN

 2
88467A - CUSHION, COOLER CONDENSER, NO.2
88467-28040

TGN51,61..IDN,PHL;GGN50,KUN51,60..GEN,IDN,PHL,TH

 2
88467-28040

TGN61..IDN,PHL;GGN50,KUN51,6#,TGN51..GEN,IDN,PHL,TH,VN

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 2
88469-52010

TGN51,61..SUVW..(IDN,PHL,VN);GGN50,KUN51,6#..GEN,IDN,PHL,TH,VN

 4
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 2
88469-52010

TGN51,61..SUVW..(IDN,PHL,VN);GGN50,KUN51,6#..GEN,IDN,PHL,TH,VN

 4
88474 - DRYER, COOLER
88474-17010

TGN61..IDN,LA,PHL;GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51..ANCOM,GEN,IDN,IND,LA,MA,PHL,TH,VN

 1
88474-17010

TGN51..IDN,MA;TGN61..IDSUV..IDN;KUN51..(SUVW,THSUV)..(GEN,LA,PHL,TH);GGN60,KUN60,TGN61..SUVW..(ANCOM,IDN,PHL);GGN50,KUN50,61,TGN61..(5F,5FC)..(ANCOM,GEN,LA,MA)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K110

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
88578-0K110

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH,VN)

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 4
88578-0K100

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH,VN)

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 4
88578-0K100

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH,VN)

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 4
88578-0K100

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH,VN)

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K100

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 4
88578-0K100

GGN50,KUN51,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH,VN)

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K090

GGN50,KUN51,60..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

 1
88578-0K090

GGN50,60,KUN51,6#..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH,VN)

 1
88645H - SWITCH, PRESSURE NO.1
88645-34010

KUN51..RHD;GGN60..5FC..SA;GGN50..5FC..(GEN,LA,SA);KUN51..LHD..(GEN,LA,PHL);KUN6#,LAN50,TGN51..IDN,LA,PHL,SA,TH,VN;GGN50,TGN61..(4FC,5F)..(GEN,IDN,LA,PHL)

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K120

KUN51..TH

 1
88704-0K120

KUN51,6#..SUVW..(GEN,TH)

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K080

TGN51,61..SUVW..(IDN,PHL);GGN50,KUN51,60..GEN,IDN,PHL,TH

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K080

KUN51,60..GEN,IDN,PHL,TH

 1
88711-0K080

KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
Common parts
88718-0K020
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0066
90105-T0085
90105-T0241
90179-06264
91511-G0614
Linked diagrams
8714
8719

ILLUST NO. 2 OF 4(1107- )KUN51,6#..RHD..SUVW..GEN,IDN,TH ; (1308- )KUN51,60..RHD..IDSUV..GEN

Click highlighted areas on diagram

FRONT(DUAL AIR CONDITIONER)

diagram 8714 8719 88374B 88374C 88375B 88375D 88460 88463A 88463B 88467 88467 88467A 88467A 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88645H 88704 88710 88711 887180K020 887180K060 887180K060 887180K060 887180K060 888990K020 9009120512 9009120512 9009120619 9009120619 90105T0007 90105T0007 90105T0014 90105T0066 90105T0085 90105T0085 90105T0241 9017906264 91511G0614
Part # Description Qty Price
Common parts
88718-0K020
88718-0K060
88899-0K020
90091-20512
90091-20619
90105-T0007
90105-T0014
90105-T0066
90105-T0085
90105-T0241
90179-06264
91511-G0614
Linked diagrams
8714
8719
