KUN51R-NKPSYT (2008)
Toyota Fortuner
Production
Aug 2008
-
Jul 2011
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0808- )KUN51..4FC..TH

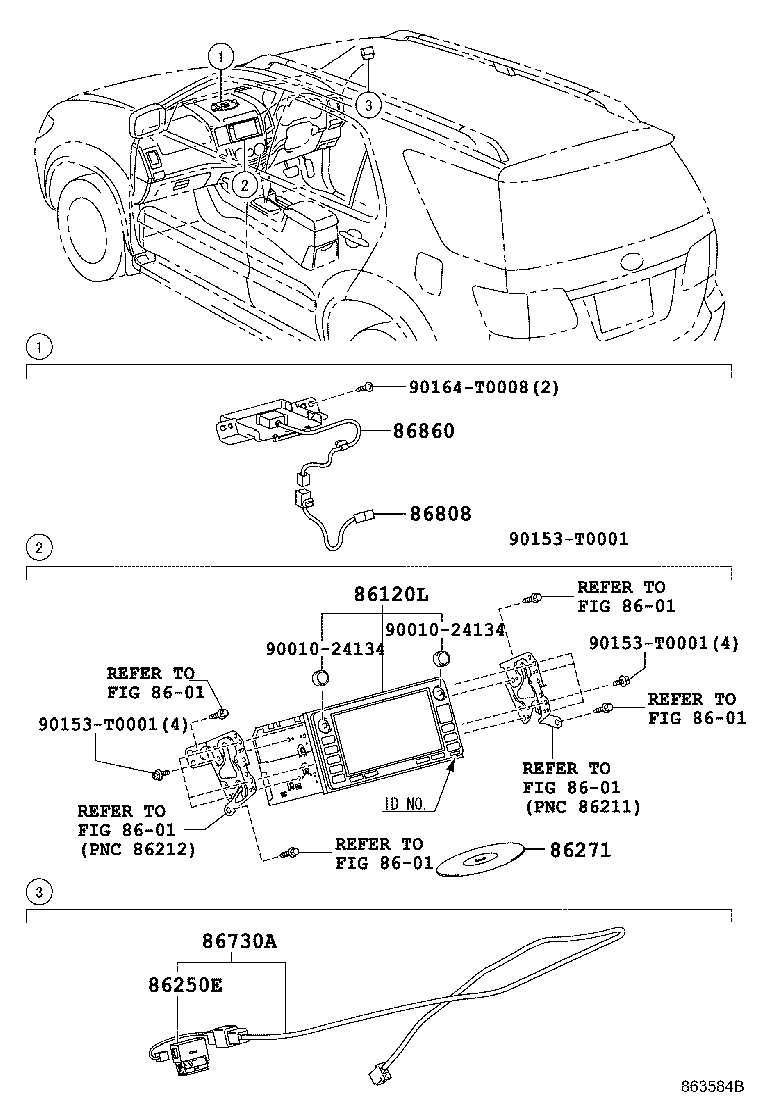

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86120L - RECEIVER ASSY, NAVIGATION | ||||
| 86120-71010 |
KUN51..4FC..TH AISHIN AW,AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86250E - MICROPHONE ASSY, AMPLIFIER | ||||
| 86250-52030 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86271 - DISC, DISC PLAYER | ||||
| 86271-33102 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86271-33104 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86271-33103 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86730A - MICROPHONE ASSY, TELEPHONE | ||||
| 86730-71010 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86808 - CORD SUB-ASSY, NAVIGATION ANTENNA, NO.1 | ||||
| 86808-71010 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| 86860 - ANTENNA ASSY, NAVIGATION | ||||
| 86860-71010 |
KUN51..4FC..TH AUDIO-AVN DVD 6SPEAKER |
1 | ||
| Common parts | ||||
| 90010-24134 | ||||
| 90153-T0001 | ||||
| 90164-T0008 | ||||
| Linked diagrams | ||||
| 8601 | ||||
(1107-1308)
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90153-T0001 | ||||
| 90164-T0008 | ||||
| Linked diagrams | ||||
| 8601 | ||||
