KUN51R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0501- )KUN51..4FC..TH ; (0501- )KUN61,TGN51,61..GCC,IDN,TH,VN ; (0501- )G

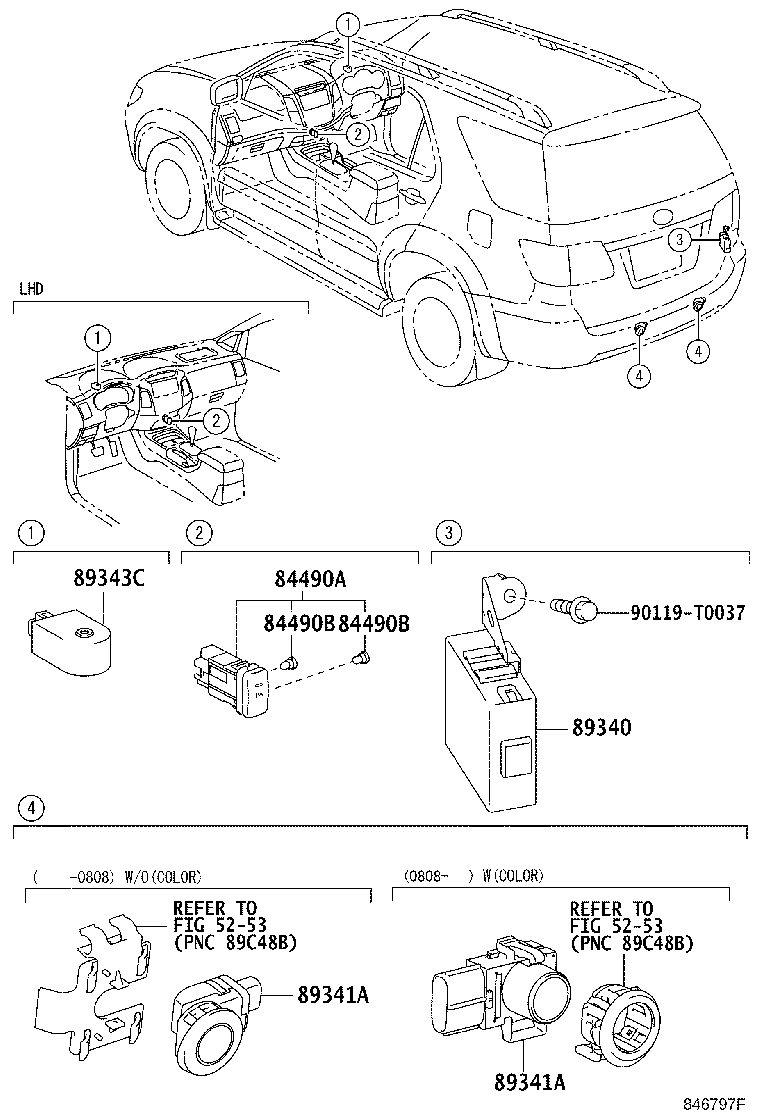

Click highlighted areas on diagram

diagram 5253 5253 84490A 84490B 84490B 89340 89341A 89341A 89343C 90119T0037
Part # Description Qty Price
84490A - SWITCH ASSY, BACK SONAR OR CLEARANCE SONAR
84490-0K010

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

 1
84490B - BULB(FOR BACK SONAR SWITCH)
90011-01056

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

14V 0.91W

 1
90011-01055

KUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN

14V 0.84W,W(CAP)

 1
90011-01056

KUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN

14V 0.91W

 1
90011-01055

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

14V 0.84W,W(CAP)

 1
84490B - BULB(FOR BACK SONAR SWITCH)
90011-01056

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

14V 0.91W

 1
90011-01055

KUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN

14V 0.84W,W(CAP)

 1
90011-01056

KUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN

14V 0.91W

 1
90011-01055

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

14V 0.84W,W(CAP)

 1
89340 - COMPUTER ASSY, REAR CLEARANCE WARNING
89340-71020

KUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN

 1
89340-71010

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

 1
89341A - SENSOR, ULTRASONIC, NO.1
89341-48010C1

KUN51..4FC..TH;KUN61,TGN61..GCC,IDN,TH;GGN50,KUN60,TGN51..GCC,IDN

DUMMY-MAT BLACK,040 ,1C0 ,1E9 ,209 ,4P9 ,8T7

 2
89341-71010

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

 2
89341A - SENSOR, ULTRASONIC, NO.1
89341-48010C1

KUN51..4FC..TH;KUN61,TGN61..GCC,IDN,TH;GGN50,KUN60,TGN51..GCC,IDN

DUMMY-MAT BLACK,040 ,1C0 ,1E9 ,209 ,4P9 ,8T7

 2
89341-71010

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

 2
89343C - BUZZER, CLEARANCE WARNING, NO.1
89343-30010

KUN51..4FC..TH;GGN50,KUN51,60..GCC,IDN,IND;KUN61,TGN51,61..GCC,IDN,TH,VN

 1
89343-30010

KUN51..4FC..TH;KUN60,TGN51,61..IDN,TH

 1
Common parts
90119-T0037
Linked diagrams
5253
