KUN51R-NKPSYT (2008)
Toyota Fortuner
ILLUST NO. 1 OF 2(0501- )KUN5#,6#..IDN,LA,MA,PHL,TH,VN
FUEL TANK
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 77017B - TUBE SUB-ASSY, FUEL TANK VENT | ||||
| 77010-0K020 |
KUN5#,6# |
1 | ||
| 77026A - TUBE SUB-ASSY, FUEL EVAPORATION, NO.1 | ||||
| 77027-0K020 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77035 - CABLE SUB-ASSY, FUEL LID LOCK CONTROL | ||||
| 77035-0K070 |
KUN6#..RHD..SUVW..5F;GGN50,60,KUN51,LAN50,TGN51,61..RHD..(IDN,SA,TH) |
1 | ||
| 77035-0K070 |
KUN51,6#,TGN51,61..SUVW..(GEN,IDN,IND,TH) |
1 | ||
| 77100 - TANK ASSY, FUEL | ||||
| 77001-0K040 |
KUN50,61,LAN50..5F..(MA,SA);KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH) |
1 | ||
| 77144 - RETAINER, FUEL PUMP GAUGE | ||||
| 77144-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77169A - GASKET, FUEL SUCTION TUBE SET | ||||
| 77169-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77201 - PIPE SUB-ASSY, FUEL TANK INLET | ||||
| 77201-0K143 |
KUN51,60..SUVW,THSUV;KUN50,61,LAN50,TGN61..5F..(LA,MA,SA) |
1 | ||
| 77204A - TUBE, FUEL TANK RETURN | ||||
| 77204-0K040 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77209D - TUBE SUB-ASSY, FUEL TANK MAIN | ||||
| 77209-0K040 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77213B - HOSE, FUEL TANK TO FILLER PIPE | ||||
| 77213-0K030 |
KUN61..5F;TGN51..MA;GGN50,60,KUN50..(5F,5FC)..(ANCOM,MA);KUN51,60,LAN50..(SUVW,THSUV)..(GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77241V - CLIP, TUBE JOINT | ||||
| 77241-35450 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77241W - CLIP, TUBE JOINT | ||||
| 77241-33011 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77269A - HOSE, FUEL TANK BREATHER | ||||
| 77269-0K030 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77277T - BRACKET, CHECK VALVE | ||||
| 77277-0K010 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K040 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 77281-0K040 |
GGN50..5FC..SA;KUN51,61,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,KUN60,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,PHL,VN |
2 | ||
| 77281 - BRACKET, FUEL MAIN TUBE, NO.1 | ||||
| 77281-0K040 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 77281-0K040 |
GGN50..5FC..SA;KUN51,61,LAN50,TGN61;GGN60,KUN50..4FC,5FC;GGN50,KUN60,TGN51..ANCOM,GCC,GEN,IDN,LA,MA,PHL,VN |
2 | ||
| 77286K - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K120 |
GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN |
1 | ||
| 77286-0K120 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77290 - SHIELD ASSY, FUEL TANK FILLER PIPE | ||||
| 77291-0K060 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77291-0K060 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 77306 - LEVER SUB-ASSY, FUEL LID LOCK OPEN | ||||
| 77306-0K010 |
GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN |
1 | ||
| 77306-0K010 |
TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH) |
1 | ||
| 77310A - CAP ASSY, FUEL TANK | ||||
| 77300-60010 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77300-52030 |
GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN |
1 | ||
| 77316 - GASKET, FUEL TANK CAP | ||||
| 77316-16010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77316-52040 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 77350 - LID ASSY, FUEL FILLER OPENING | ||||
| 77350-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77350-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 77366 - SPRING, FUEL FILLER OPENING LID HINGE | ||||
| 77360-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77360-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 77377 - RETAINER, FUEL FILLER OPENING LID LOCK | ||||
| 77377-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77391 - RING, FUEL INLET BOX | ||||
| 77391-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77391A - RING, FUEL INLET BOX | ||||
| 77391-0K020 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77391-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 77601A - BAND SUB-ASSY, FUEL TANK, NO.1 | ||||
| 77601-0K050 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 77601-0K050 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
1 | ||
| 77602B - BAND SUB-ASSY, FUEL TANK, NO.1 LH | ||||
| 77602-0K050 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH) |
1 | ||
| 77602-0K050 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
1 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH |
2 | ||
| 77653-0K041 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
2 | ||
| 77611A - PIN (FOR FUEL TANK BAND) | ||||
| 77653-0K040 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IDN,LA,MA,PHL,TH |
2 | ||
| 77653-0K041 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
2 | ||
| 77641A - PROTECTOR, FUEL TANK, NO.1 | ||||
| 77641-0K040 |
TGN61..5F..LA;TGN61..IDSUV..(GCC,IDN);GGN60,TGN51..ANCOM,GCC,IDN,MA,TH;GGN50,KUN50,61..(5F,5FC)..(ANCOM,GCC,GEN,LA,MA);KUN51,60,TGN61..(SUVW,THSUV)..SR..(GCC,GEN,IDN,LA,PHL,TH) |
1 | ||
| 77641-0K040 |
KUN60..IDN,PHL,VN;GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,61,TGN51,61..ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN |
1 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH) |
2 | ||
| 77644-35030 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
2 | ||
| 77644 - BOLT, FUEL TANK | ||||
| 77644-35030 |
TGN51..RHD;TGN61..IDSUV..IDN;KUN5#,60,TGN61..SUVW..(IDN,MA,PHL,TH) |
2 | ||
| 77644-35030 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
2 | ||
| 77652 - CUSHION, FUEL TANK, NO.1 | ||||
| 77652-0K030 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 77681 - SEAT, FUEL TANK BAND, RH | ||||
| 77681-0K050 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
1 | ||
| 77681-0K050 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77682 - SEAT, FUEL TANK BAND, LH | ||||
| 77682-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77682-0K010 |
KUN51..PHL,TH;KUN60..IDN,PHL,VN;KUN50,61,TGN51,61..4FC..(IDN,MA,PHL,TH,VN) |
1 | ||
| 77697 - INSULATOR, FUEL TANK HEAT, NO.1 | ||||
| 77697-0K020 |
TGN51;KUN50,61,LAN50..5F;TGN61..IDSUV..(GCC,IDN);KUN51,60,TGN61..SUVW,THSUV |
1 | ||
| Common parts | ||||
| 61668-0K010 | ||||
| 77644-0K010 | ||||
| 90105-T0204 | ||||
| 90179-08234 | ||||
| 90179-08241 | ||||
| 90269-06017 | ||||
| 90460-46005 | ||||
| 90466-T0037 | ||||
| 90466-T0040 | ||||
| 90468-14039 | ||||
| 90959-T1001 | ||||
| Linked diagrams | ||||
| 8401 | ||||

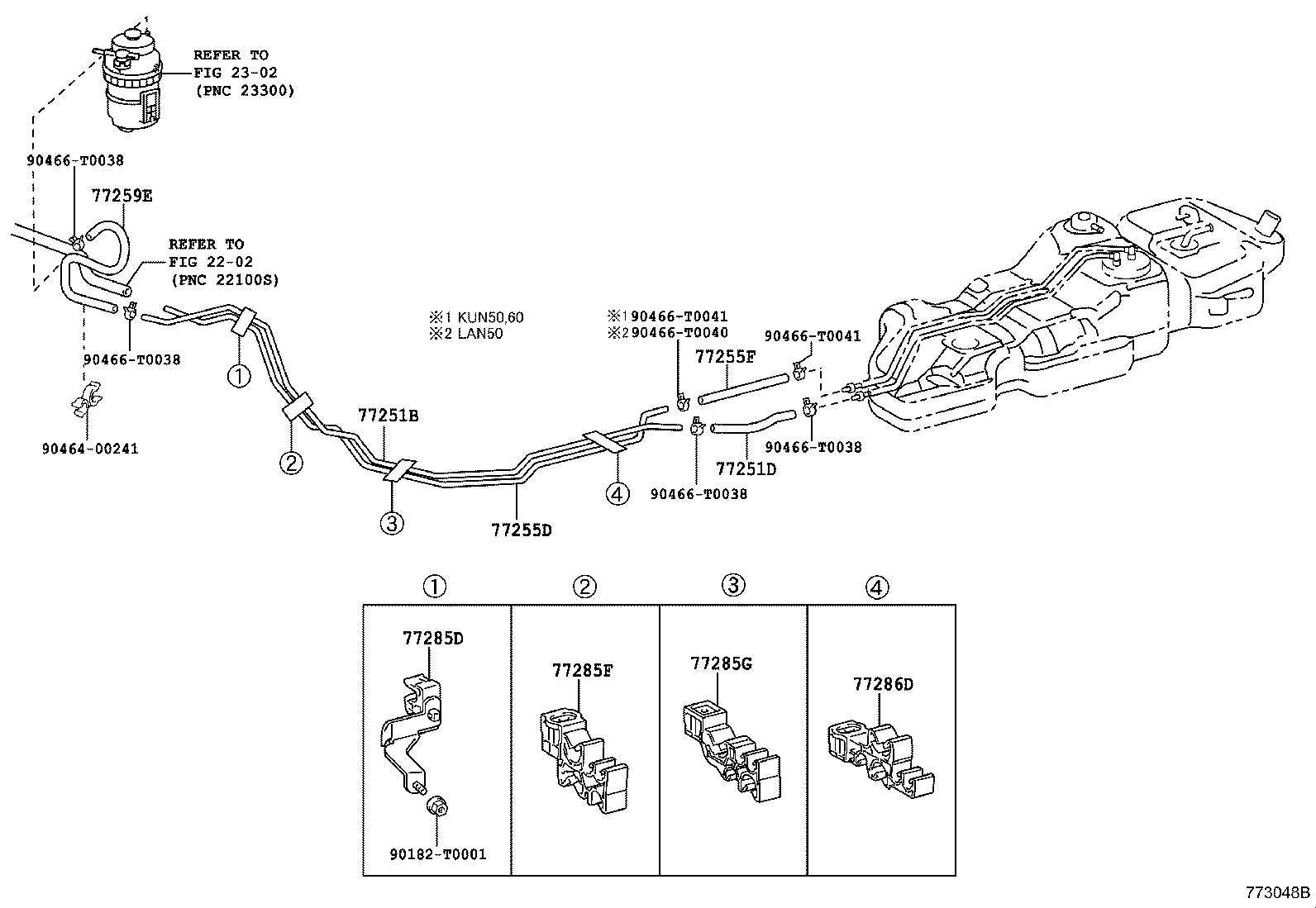

ILLUST NO. 2 OF 2(0501- )KUN51,61 ; (0501- )KUN60..TH
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23917 - COOLER, FUEL | ||||
| 23917-30011 |
1KDFTV..KUN51,61;2KDFTV..KUN60..TH |
1 | ||
| 23917-30010 |
1KDFTV..KUN51,61 |
1 | ||
| 77251B - TUBE, FUEL MAIN | ||||
| 77251-0K060 |
KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN |
1 | ||
| 77251-0K060 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77251D - HOSE, FUEL, NO.2(FOR FUEL MAIN TUBE) | ||||
| 95332-10018 |
KUN50,61,LAN50..5F..(MA,SA);KUN51,60..(SUVW,THSUV)..(GEN,IDN,PHL,SA,TH) *H,L=180 |
1 | ||
| 95338-10018 |
KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN L=180 |
1 | ||
| 77255D - TUBE, FUEL RETURN | ||||
| 77255-0K090 |
KUN61..5F;KUN51..SUVW,THSUV |
1 | ||
| 77255-0K090 |
KUN51,61 |
1 | ||
| 77255F - HOSE, FUEL, NO.2 (FOR FUEL RETURN TUBE) | ||||
| 95337-08040 |
KUN51,61 L=400 |
1 | ||
| 95333-08040 |
KUN51,61 L=400 |
1 | ||
| 77259D - HOSE, FUEL, NO.1 | ||||
| 77259-71010 |
KUN51,61 |
1 | ||
| 77259-71060 |
KUN51,61 |
1 | ||
| 77259E - HOSE, FUEL | ||||
| 77259-0K060 |
KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN |
1 | ||
| 77259-0K050 |
KUN51,60 |
1 | ||
| 77285A - SUPPORT, FUEL RETURN AND MAIN TUBE | ||||
| 77285-0K200 |
KUN61..5F;KUN51..SUVW,THSUV |
1 | ||
| 77285-0K200 |
KUN51,61 |
1 | ||
| 77285D - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K030 |
KUN50..4FC;KUN51,61,LAN50;KUN60..IDN,PHL,VN |
1 | ||
| 77285-0K030 |
KUN50,61,LAN50..5F;KUN51,60..SUVW,THSUV |
1 | ||
| 77285F - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K040 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77285-0K040 |
GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN |
1 | ||
| 77285G - CLAMP, FUEL TUBE, NO.1 | ||||
| 77285-0K050 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77285-0K050 |
GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN |
1 | ||
| 77286D - CLAMP, FUEL TUBE, NO.2 | ||||
| 77286-0K090 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 77286-0K090 |
GGN60..SUVW..5FC;KUN51,61,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC);GGN50,KUN60..ANCOM,GCC,GEN,IDN,LA,PHL,VN |
1 | ||
| 77286L - CLAMP, FUEL TUBE, NO.5 | ||||
| 77286-0K070 |
KUN51,61 |
1 | ||
| 77286-0K070 |
KUN61..5F;KUN51..SUVW,THSUV |
1 | ||
| Common parts | ||||
| 90182-T0001 | ||||
| 90182-T0021 | ||||
| 90464-00241 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 8202 | ||||
ILLUST NO. 3 OF 4(1107- )KUN51..SASUV,SUVW,THSUV..GEN,LA,PHL,TH
FUEL TUBE
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90182-T0001 | ||||
| 90464-00241 | ||||
| 90466-T0038 | ||||
| 90466-T0040 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
ILLUST NO. 3 OF 4(1107- )KUN5#,61 ; (1107- )KUN60..SUVW ; (1107- )KUN60..IDSUV..IDN,PHL
FUEL TUBE(W/FUEL COOLER)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90182-T0001 | ||||
| 90182-T0021 | ||||
| 90464-00241 | ||||
| 90466-T0038 | ||||
| 90466-T0041 | ||||
| Linked diagrams | ||||
| 2202 | ||||
| 2302 | ||||
| 8202 | ||||
ILLUST NO. 4 OF 4(1107- )
FUEL LID OPENER
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90269-06017 | ||||
| 90959-T1001 | ||||
