KUN51R-NKPSYT (2008)

Toyota Fortuner

Production Aug 2008 - Jul 2011
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0808- )GCC,GEN,IDN,IND,PHL,TH,VN ; (0809-)MA

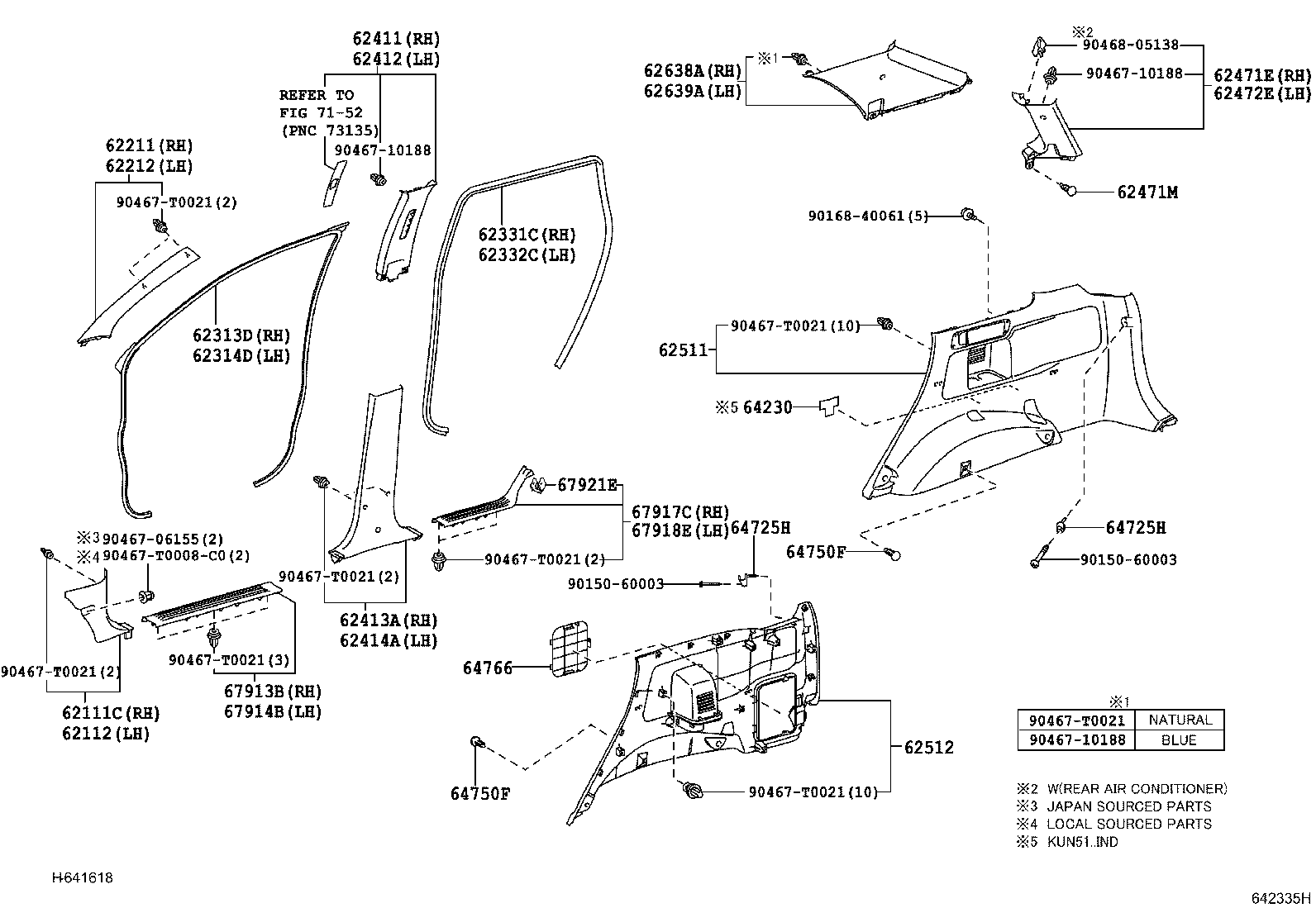

Click highlighted areas on diagram

diagram 62111C 62112 62211 62212 62313D 62314D 62331C 62332C 62411 62412 62413A 62414A 62471E 62471M 62472E 62511 62512 62638A 62639A 64230 64725H 64725H 64750F 64750F 64766 67913B 67914B 67917C 67918E 67921E 7152 9015060003 9015060003 9016840061 9046706155 9046710188 9046710188 9046710188 90467T0008C0 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 9046805138
Part # Description Qty Price
62111C - BOARD, COWL SIDE TRIM, RH
62111-0K010A0

GGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
62112 - BOARD, COWL SIDE TRIM, LH
62112-0K010A0

GGN50,KUN5#,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
62211 - GARNISH, FRONT PILLAR, RH
62211-0K020A0

TGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
62212 - GARNISH, FRONT PILLAR, LH
62212-0K020A0

TGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
62313D - TRIM, FRONT DOOR OPENING, RH
62311-0K010

GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN

 1
62311-0K010

TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)

 1
62314D - TRIM, FRONT DOOR OPENING, LH
62312-0K010

TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)

 1
62312-0K010

GGN50..GCC,GEN;GGN50,60,KUN50..RHD..(4FC,5FC);KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,MA,PHL,SA,TH,VN

 1
62331C - WEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62331-0K020

GGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,PHL,SA,TH,VN

 1
62331-0K020

TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)

 1
62332C - WEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62332-0K020

GGN50..GCC,GEN;GGN50,60..5FC..SA;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,PHL,SA,TH,VN

 1
62332-0K020

TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,PHL,SA,TH)

 1
62411 - GARNISH, CENTER PILLAR, RH
62411-0K010A0

TGN51,61..IDSUV..GCC;TGN51,61..SUVW..(GCC,IDN,MA,PHL,TH);GGN50,KUN5#,60..GCC,GEN,IDN,MA,PHL,TH

IVORY,TRIM0#

 1
62412 - GARNISH, CENTER PILLAR, LH
62412-0K010A0

TGN51,61..IDSUV..GCC;TGN51,61..SUVW..(GCC,IDN,MA,PHL,TH);GGN50,KUN5#,60..GCC,GEN,IDN,MA,PHL,TH

IVORY,TRIM0#

 1
62413A - GARNISH, CENTER PILLAR, LOWER RH
62413-0K010A0

TGN51..GCC,IDN,MA;GGN50,KUN5#,60,TGN61..GCC,IDN,MA,PHL,TH

IVORY,TRIM0#

 1
62414A - GARNISH, CENTER PILLAR, LOWER LH
62414-0K010A0

TGN51..GCC,IDN,MA;GGN50,KUN5#,60,TGN61..GCC,IDN,MA,PHL,TH

IVORY,TRIM0#

 1
62471E - GARNISH, ROOF SIDE, INNER UPPER RH
62471-0K020A0

TGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,MA,PHL,SA,TH)

IVORY,TRIM0#

 1
62471M - CLIP
90467-T0004A0

TGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

IVORY,TRIM0#

 2
62472E - GARNISH, ROOF SIDE, INNER UPPER LH
62472-0K020A0

TGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,MA,PHL,SA,TH)

IVORY,TRIM0#

 1
62511 - BOARD, QUARTER INSIDE TRIM, RH
62510-0K020A0

TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

IVORY,TRIM0#

 1
62512 - BOARD, QUARTER INSIDE TRIM, LH
62520-0K020A0

TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

IVORY,TRIM0#

 1
62638A - GARNISH, QUARTER PILLAR, RH
62638-0K020A0

TGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,MA,PHL,SA,TH)

IVORY,TRIM0#

 1
62639A - GARNISH, QUARTER PILLAR, LH
62639-0K020A0

TGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..(5F,5FC)..(GCC,GEN,MA,SA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..(GCC,GEN,IDN,MA,PHL,SA,TH)

IVORY,TRIM0#

 1
64725H - HOOK, QUARTER TRIM,
64725-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
64725H - HOOK, QUARTER TRIM,
64725-0K010A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-T0003A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
64750F - CLIP(FOR DECK SIDE TRIM PANEL)
90467-T0003A0

TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH)

IVORY,TRIM0#

 2
64766 - COVER SUB-ASSY, QUARTER TRIM JACK
64766-0K010A0

TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,TGN51..GCC,GEN,IDN,MA,TH;KUN51,60,TGN61..(SUVW,THSUV)..(GCC,GEN,IDN,PHL,TH)

IVORY,TRIM0#

 1
67913B - PLATE, FRONT DOOR SCUFF, RH
67913-0K010A0

TGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
67914B - PLATE, FRONT DOOR SCUFF, LH
67914-0K010A0

TGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
67917C - PLATE, REAR DOOR SCUFF, RH
67917-0K040A0

TGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
67918E - PLATE, REAR DOOR SCUFF, LH
67918-0K040A0

TGN51,61..IDSUV..GCC;GGN50,KUN50..GCC,GEN,MA;KUN51,60,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH)

IVORY,TRIM0#

 1
67921E - RETAINER, REAR DOOR SCUFF PLATE
67921-71010

GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC)

 2
67921-71010

TGN51,61..IDSUV..GCC;GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH)

 2
Common parts
90150-60003
90168-40061
90467-06155
90467-10188
90467-T0008C0
90467-T0021
90468-05138
Linked diagrams
7152

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 62111C 62112 62155C 62156B 62170A 62170B 62180A 62211 62212 62313D 62314D 62331C 62332C 62411 62412 62413A 62414A 62471E 62471M 62472E 62638A 62638A 62638B 62638B 62639A 62639A 67913B 67914B 67917C 67918E 67921E 7152 7455 7455 9046706155 9046710161 9046710188 9046710188 90467T0008C0 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 90467T0021 9046805138
Part # Description Qty Price
Common parts
90467-06155
90467-10161
90467-10188
90467-T0008C0
90467-T0021
90468-05138
Linked diagrams
7152
7455

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 61653C 61653C 61654D 61654D 62511 62511 62512 62512 64230 64725H 64725H 64725H 64725H 64750F 64750F 64750F 64750F 64766 64766 64910M 64931D 64932C 64935A 64936A 90105T0193 90105T0193 90105T0193 90105T0193 9015060003 9015060003 9015060003 9015060003 90159T0024 90159T0024 90467T0021 90467T0021 90467T0021 90467T0021
Part # Description Qty Price
Common parts
90105-T0193
90150-60003
90159-T0024
90467-T0021
