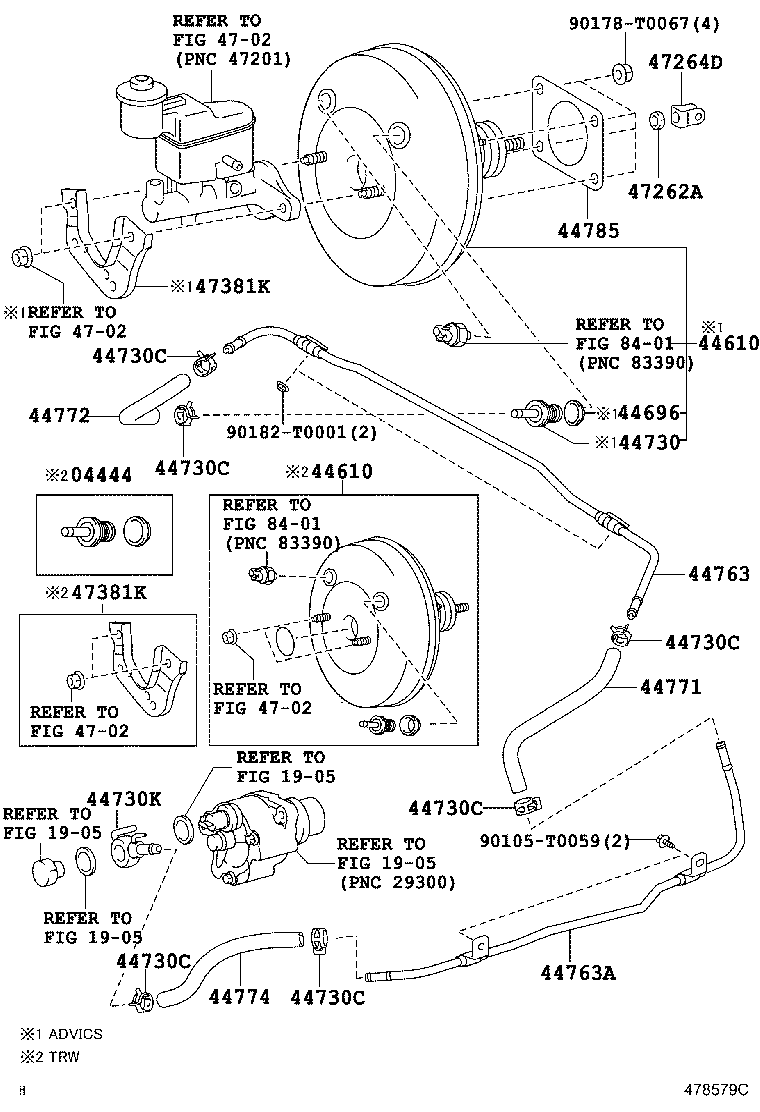

KUN51R-NKPSY (2011)
Toyota Fortuner
(1107- )KUN5#,6#..RHD
W(VSC)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0K180 |
KUN51..5F..TH;KUN60..RHD..SR;KUN50,61..IDN,IND,MA;KUN51..RHD..(IDSUV,SUVW)..GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48050 |
KUN51..5F..TH;GGN50..5FC..CO;KUN61..4FC..IND;KUN51..IDSUV..LA;KUN51..LHD..4FC..SA;GGN50..ANCOM,GCC,GEN,LA,SA;KUN60,TGN51..GCC,GEN,IDN,MA,PHL,TH;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48050 |
KUN51..5F..TH;GGN50..5FC..CO;KUN61..4FC..IND;KUN51..IDSUV..LA;KUN51..LHD..4FC..SA;GGN50..ANCOM,GCC,GEN,LA,SA;KUN60,TGN51..GCC,GEN,IDN,MA,PHL,TH;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22150 |
KUN61..4FC;KUN51..IDSUV..LA;KUN51,60..4FC..SA;GGN50,KUN61..5FC..(CO,TH);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH;GGN50,KUN51..SR..(HTWC,IART)..(ANCOM,GCC,GEN,LA,SA);KUN51,60,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH) |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) | ||||
| 90405-T0003 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,TGN51,61..RHD..(GEN,IDN,MA,PKN,SA,TH) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-0K010 |
KUN61..4FC..(IND,TH);KUN60..RHD..SUVW..(GEN,IDN);KUN51..RHD..SUVW..(4FC,5F)..(GEN,TH) |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-0K010 |
KUN51..5F..TH;KUN61..4FC..IND;KUN51..RHD..(IDSUV,SUVW)..GEN;KUN50,60,TGN51,61..RHD..(GEN,IDN,MA,PKN,TH) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-0K020 |
KUN51..4FC..CO;KUN61..4FC..(IND,TH);KUN60..SUVW..(GEN,IDN,PHL);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-17010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK | ||||
| 94120-41000 |
KUN51..5F..TH;TGN61..GCC,PHL;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51..ANCOM,GCC,GEN,IDN,MA,PHL,TH (J) |
1 | ||
| 90016-AC101 |
KUN51..5F..TH;TGN61..GCC,PHL;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51..ANCOM,GCC,GEN,IDN,MA,PHL,TH (L) |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-0K010 |
KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90178-T0067 | ||||
| 90182-T0001 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||
| 4708 | ||||
| 8401 | ||||
(1107- )KUN5#,6#..RHD
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0K180 |
KUN51..5F..TH;KUN60..RHD..SR;KUN50,61..IDN,IND,MA;KUN51..RHD..(IDSUV,SUVW)..GEN |
1 | ||
| 44610 - BOOSTER ASSY, BRAKE | ||||
| 44610-0K180 |
KUN51..5F..TH;KUN60..RHD..SR;KUN50,61..IDN,IND,MA;KUN51..RHD..(IDSUV,SUVW)..GEN |
1 | ||
| 44696 - GROMMET, CHECK VALVE | ||||
| 90080-48050 |
KUN51..5F..TH;GGN50..5FC..CO;KUN61..4FC..IND;KUN51..IDSUV..LA;KUN51..LHD..4FC..SA;GGN50..ANCOM,GCC,GEN,LA,SA;KUN60,TGN51..GCC,GEN,IDN,MA,PHL,TH;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH |
1 | ||
| 44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE) | ||||
| 44730-22150 |
KUN61..4FC;KUN51..IDSUV..LA;KUN51,60..4FC..SA;GGN50,KUN61..5FC..(CO,TH);GGN60,KUN50,TGN61..ANCOM,GCC,GEN,IDN,MA,PHL,SA,TH;GGN50,KUN51..SR..(HTWC,IART)..(ANCOM,GCC,GEN,LA,SA);KUN51,60,TGN51..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,MA,PHL,TH) |
1 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730C - CLIP(FOR VACUUM HOSE) | ||||
| 90466-T0019 |
LAN50..LHD;KUN5#,6#..RHD |
6 | ||
| 44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP) | ||||
| 90405-T0003 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN |
1 | ||
| 44763 - TUBE, BOOSTER VACUUM | ||||
| 44763-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,TGN51,61..RHD..(GEN,IDN,MA,PKN,SA,TH) |
1 | ||
| 44763A - TUBE, HOSE TO HOSE, NO.1 | ||||
| 44763-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN |
1 | ||
| 44771 - HOSE, VACUUM TUBE CONNECTOR | ||||
| 44771-0K010 |
KUN61..4FC..(IND,TH);KUN60..RHD..SUVW..(GEN,IDN);KUN51..RHD..SUVW..(4FC,5F)..(GEN,TH) |
1 | ||
| 44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE | ||||
| 44772-0K010 |
KUN51..5F..TH;KUN61..4FC..IND;KUN51..RHD..(IDSUV,SUVW)..GEN;KUN50,60,TGN51,61..RHD..(GEN,IDN,MA,PKN,TH) |
1 | ||
| 44774 - HOSE, UNION TO CONNECTOR TUBE | ||||
| 44774-0K020 |
KUN51..4FC..CO;KUN61..4FC..(IND,TH);KUN60..SUVW..(GEN,IDN,PHL);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH) |
1 | ||
| 44785 - GASKET, BRAKE BOOSTER | ||||
| 44785-17010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK | ||||
| 94120-41000 |
KUN51..5F..TH;TGN61..GCC,PHL;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51..ANCOM,GCC,GEN,IDN,MA,PHL,TH (J) |
1 | ||
| 90016-AC101 |
KUN51..5F..TH;TGN61..GCC,PHL;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51..ANCOM,GCC,GEN,IDN,MA,PHL,TH (L) |
1 | ||
| 47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD | ||||
| 47264-0K010 |
KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH |
1 | ||
| 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP | ||||
| 47381-0K010 |
KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH |
1 | ||
| 47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP | ||||
| 47381-0K010 |
KUN51..5F..TH;KUN61..4FC..IND;KUN51..LHD..4FC..SA;GGN50,KUN51..IDSUV..LA;KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL);GGN50,60,KUN50,60,TGN51,61..ANCOM,GCC,GEN,IDN,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90105-T0059 | ||||
| 90178-T0067 | ||||
| 90182-T0001 | ||||
| Linked diagrams | ||||
| 1905 | ||||
| 4702 | ||||
| 8401 | ||||
