KUN51R-NKPSY (2011)

Toyota Fortuner

Production Jul 2011 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

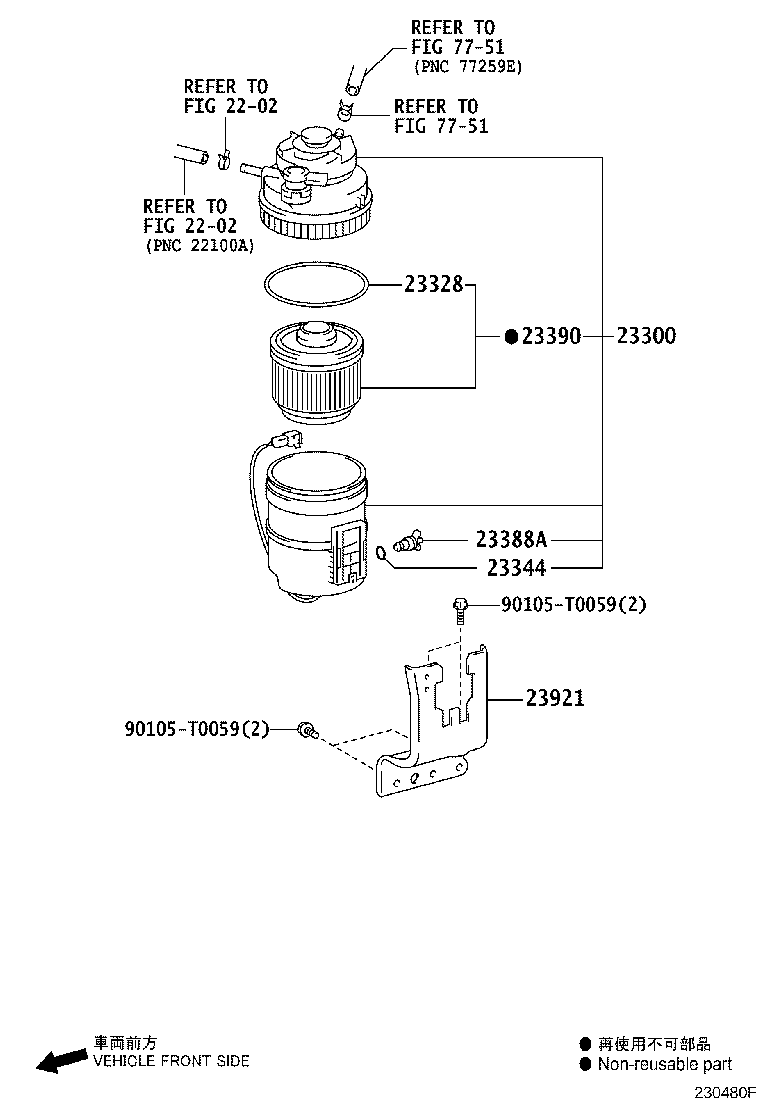

(0501- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 2202 2202 23300 23328 23344 23388A 23390 23921 7751 7751 90105T0059 90105T0059
Part # Description Qty Price
Common parts
90105-T0059
Linked diagrams
2202
7751

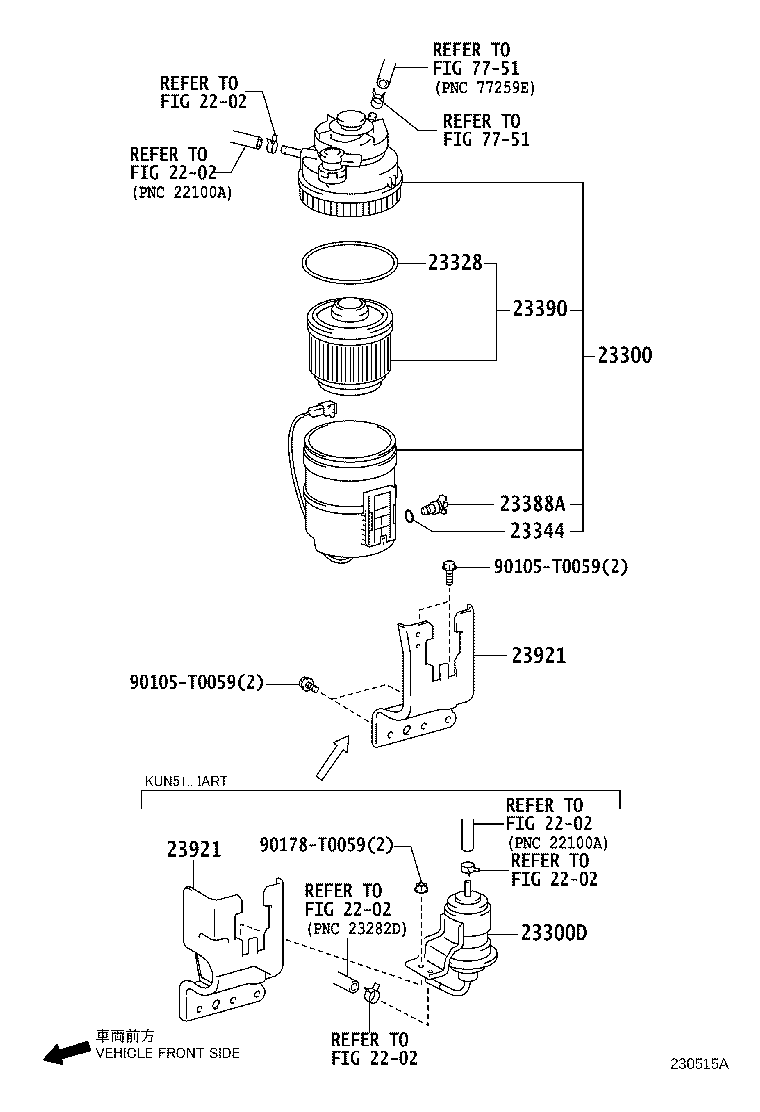

(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 2202 2202 2202 2202 2202 2202 23300 23300D 23328 23344 23388A 23390 23921 23921 7751 7751 90105T0059 90105T0059 90178T0059
Part # Description Qty Price
23300 - FILTER ASSY, FUEL
23300-0L041

1KDFTV..KUN51..IART;1KDFTV,2KDFTV..KUN5#,6#..CO,GEN,IDN,IND,MA,PHL,SA,TH,VN

 1
23328 - GASKET(FOR FUEL FILTER)
23344-0L010

1KDFTV..KUN61..4FC;1KDFTV..KUN51..RHD..(GEN,SA,TH);1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,TH,VN

 1
23344 - GASKET, CLAMPING NUT(FOR FUEL FILTER)
23344-0L041

1KDFTV..KUN61..4FC;1KDFTV..KUN51..RHD..(GEN,SA,TH);1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,TH,VN

 1
23388A - PLUG, FUEL FILTER DRAIN
23388-0L041

1KDFTV..KUN61..4FC;1KDFTV..KUN51..RHD..(GEN,SA,TH);1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,TH,VN

 1
23390 - ELEMENT ASSY, FUEL FILTER
23390-0L041

1KDFTV..KUN61..4FC;1KDFTV..KUN51..RHD..(GEN,SA,TH);1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(5F,5FC)..(CO,SA);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,TH,VN;1KDFTV..KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC

 1
23921 - SUPPORT, FUEL FILTER
23921-0L010

2KDFTV..KUN60..SUVW..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(SUVW,THSUV)..(GEN,MA,PHL,TH)

 1
23921 - SUPPORT, FUEL FILTER
23921-0L010

2KDFTV..KUN60..SUVW..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(SUVW,THSUV)..(GEN,MA,PHL,TH)

 1
Common parts
90105-T0059
90178-T0059
Linked diagrams
2202
7751
