KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0909- )IND

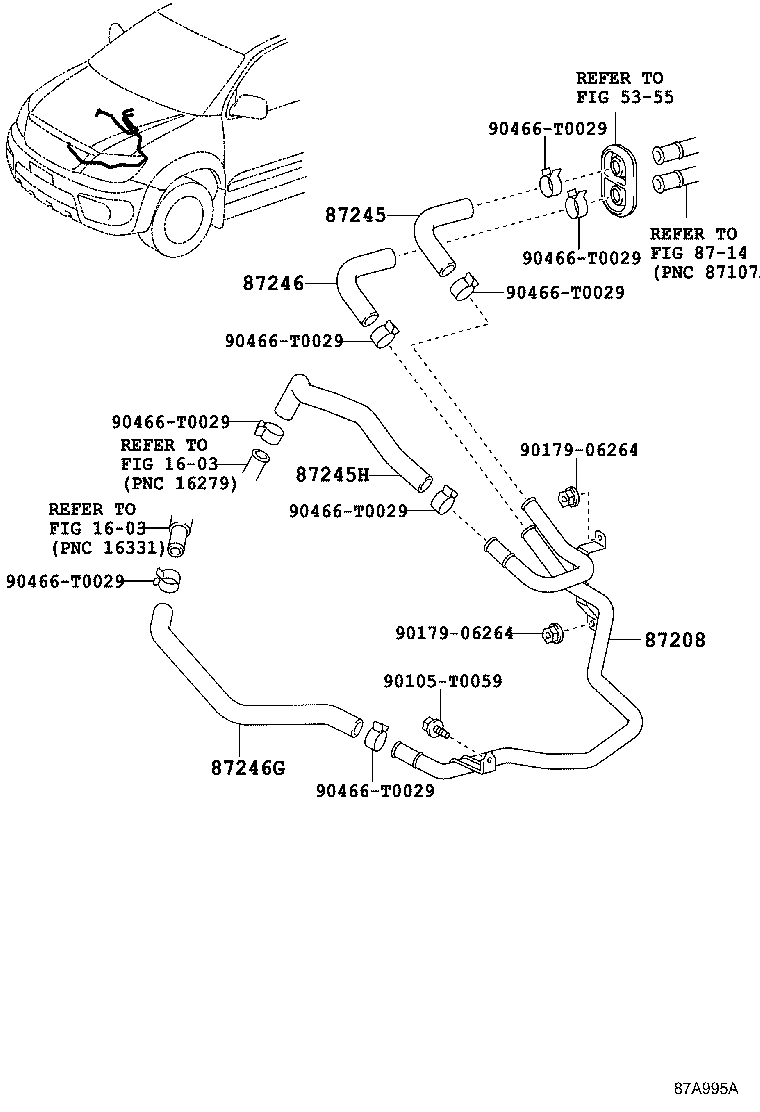

Click highlighted areas on diagram

diagram 1603 1603 5355 8714 87208 87245 87245H 87246 87246G 90105T0059 9017906264 9017906264 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029 90466T0029
Part # Description Qty Price
87208 - PIPE SUB-ASSY, HEATER WATER
87208-0K110

KUN51..IND

 1
87208-0K190

KUN51..IND

 1
87245 - HOSE, HEATER WATER, INLET
87245-0K690

KUN51..IND

 1
87245-0K690

KUN51..IND

 1
87245H - HOSE, HEATER WATER, INLET H
87245-0K100

KUN51..IND

 1
87245-0K530

KUN51..IND

 1
87246 - HOSE, HEATER WATER, OUTLET
87245-0K690

KUN51..IND

 1
87245-0K690

KUN51..IND

 1
87246G - HOSE, HEATER WATER, OUTLET G
87245-0K680

KUN51..IND

 1
87245-0K520

KUN51..IND

 1
Common parts
90105-T0059
90179-06264
90466-T0029
Linked diagrams
1603
5355
8714
