KUN51R-NKMSYX (2009)
Toyota Fortuner
(0908-1002)IND
*282 TYPE A
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K090 |
KUN51..IND MARK SUMITOMO PS558H,*282 TYPE B:REF ILL. |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-60050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K220 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-35050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN51..IND *282 TYPE B:REF ILL. |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
KUN51..IND *282 TYPE B:REF ILL. |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K140 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06158 |
KUN51..IND *282 TYPE B:REF ILL. |
4 | ||
| 90240-06158 |
KUN51..IND |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06158 |
KUN51..IND *282 TYPE B:REF ILL. |
4 | ||
| 90240-06158 |
KUN51..IND |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K140 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||

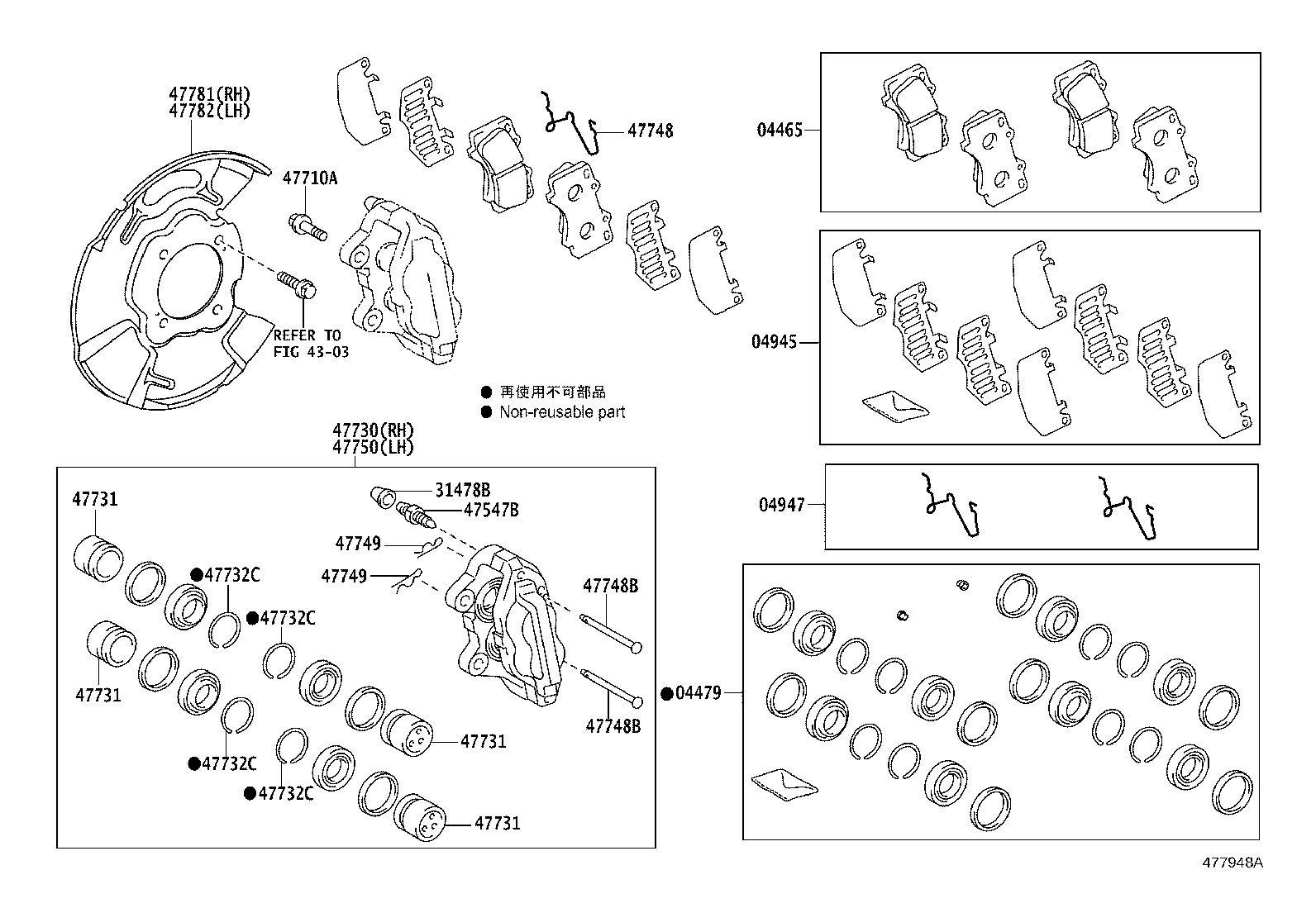

| Linked diagrams | ||||
| 4303 | ||||
(0908- )IND
*282 TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04465 - PAD KIT, DISC BRAKE, FRONT | ||||
| 04465-0K090 |
KUN51..IND MARK SUMITOMO PS558H,*282 TYPE B:REF ILL. |
1 | ||
| 04479 - CYLINDER KIT, DISC BRAKE, FRONT | ||||
| 04478-60050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 04945 - SHIM KIT, ANTI SQUEAL, FRONT | ||||
| 04945-0K220 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 04947 - FITTING KIT, DISC BRAKE, FRONT | ||||
| 04947-35050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 31478B - CAP, BLEEDER PLUG(FOR FRONT DISC BRAKE) | ||||
| 31478-30010 |
KUN51..IND *282 TYPE B:REF ILL. |
2 | ||
| 47547B - PLUG, BLEEDER(FOR FRONT DISC BRAKE) | ||||
| 47547-27030 |
KUN51..IND *282 TYPE B:REF ILL. |
2 | ||
| 47730 - CYLINDER ASSY, FRONT DISC BRAKE, RH | ||||
| 47730-0K140 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47731 - PISTON, FRONT DISC BRAKE | ||||
| 47731-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-50003 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 90522-50003 |
KUN51..IND |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-50003 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 90522-50003 |
KUN51..IND |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-50003 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 90522-50003 |
KUN51..IND |
8 | ||
| 47732C - RING, SET, NO.2(FOR FRONT DISC BRAKE) | ||||
| 90522-50003 |
KUN51..IND *282 TYPE B:REF ILL. |
8 | ||
| 90522-50003 |
KUN51..IND |
8 | ||
| 47748 - SPRING, ANTI-RATTLE, NO.1(FOR FRONT DISC BRAKE) | ||||
| 47748-35010 |
KUN51..IND |
2 | ||
| 47748-35010 |
KUN51..IND *282 TYPE B:REF ILL. |
2 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06158 |
KUN51..IND *282 TYPE B:REF ILL. |
4 | ||
| 90240-06158 |
KUN51..IND |
4 | ||
| 47748B - PIN, W/HOLE(FOR FRONT DISC BRAKE ANTI-RATTLE) | ||||
| 90240-06158 |
KUN51..IND *282 TYPE B:REF ILL. |
4 | ||
| 90240-06158 |
KUN51..IND |
4 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
4 | ||
| 47749-35040 |
KUN51..IND |
4 | ||
| 47749 - CLIP, PIN HOLD | ||||
| 47749-35040 |
KUN51..IND *282 TYPE B:REF ILL. |
4 | ||
| 47749-35040 |
KUN51..IND |
4 | ||
| 47750 - CYLINDER ASSY, DISC BRAKE, LH | ||||
| 47750-0K140 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 47781 - COVER, DISC BRAKE DUST, FRONT RH | ||||
| 47781-0K050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||
| 47782 - COVER, DISC BRAKE DUST, FRONT LH | ||||
| 47782-0K050 |
KUN51..IND *282 TYPE B:REF ILL. |
1 | ||

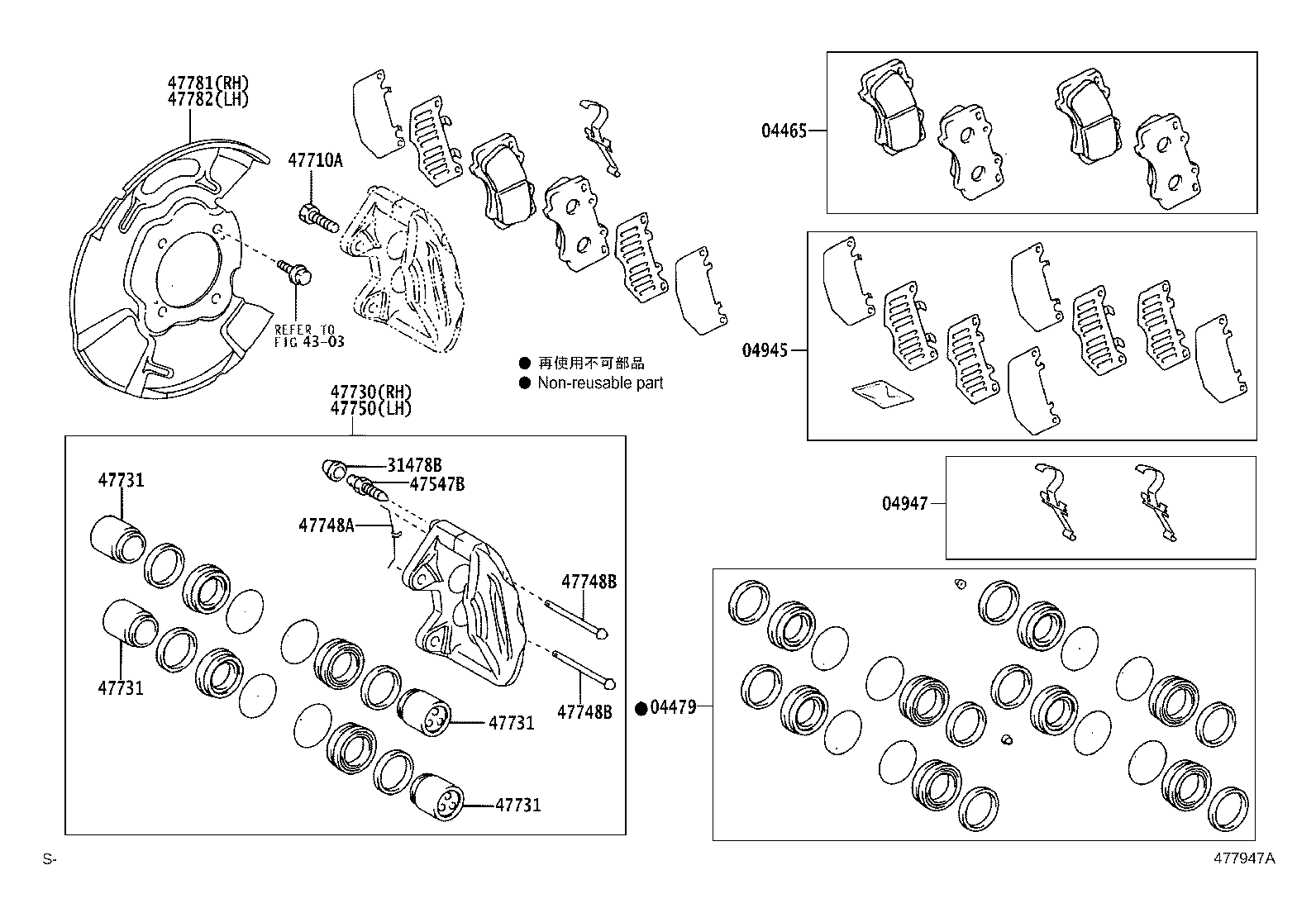

| Linked diagrams | ||||
| 4303 | ||||
(1107- )TGN61..IDSUV..GEN ; (1107- )GGN50,60,KUN5#,61,LAN50,TGN51 ; (1107-
TYPE B
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Linked diagrams | ||||
| 4303 | ||||
