KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )IND

Click highlighted areas on diagram

TYPE B

diagram 1905 1905 1905 1905 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 47264D 47381K 8401 90105T0059 90105T0059 90178T0067 90182T0001 90182T0001
Part # Description Qty Price
44610 - BOOSTER ASSY, BRAKE
44610-0K180

KUN51..IND

 1
44610-09300

KUN51..IND

TYPE A=47200-0K151

 1
44610-0K180

KUN51..IND

TYPE B=131010-18990

 1
44730 - VALVE ASSY, VACUUM CHECK(FOR BRAKE)
44730-22150

KUN51..IND

*283 TYPE B:REF ILL.

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003

KUN50,61..5F;KUN51,60..SUVW,THSUV

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020

KUN61..5F;KUN51,60..SUVW,THSUV

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-0K010

KUN51..RHD;KUN50,6#..RHD..SUVW..5F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0K010

KUN51..IND

*283 TYPE B:REF ILL.

 1
44772-0K010

KUN51..IND

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K020

KUN50,61..5F;KUN51,60..SUVW,THSUV

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0B010

KUN51..IND

*283 TYPE A:REF ILL.

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-09030

KUN51..IND

*283 TYPE A:REF ILL.

 1
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401

(0908-1106)IND

Click highlighted areas on diagram

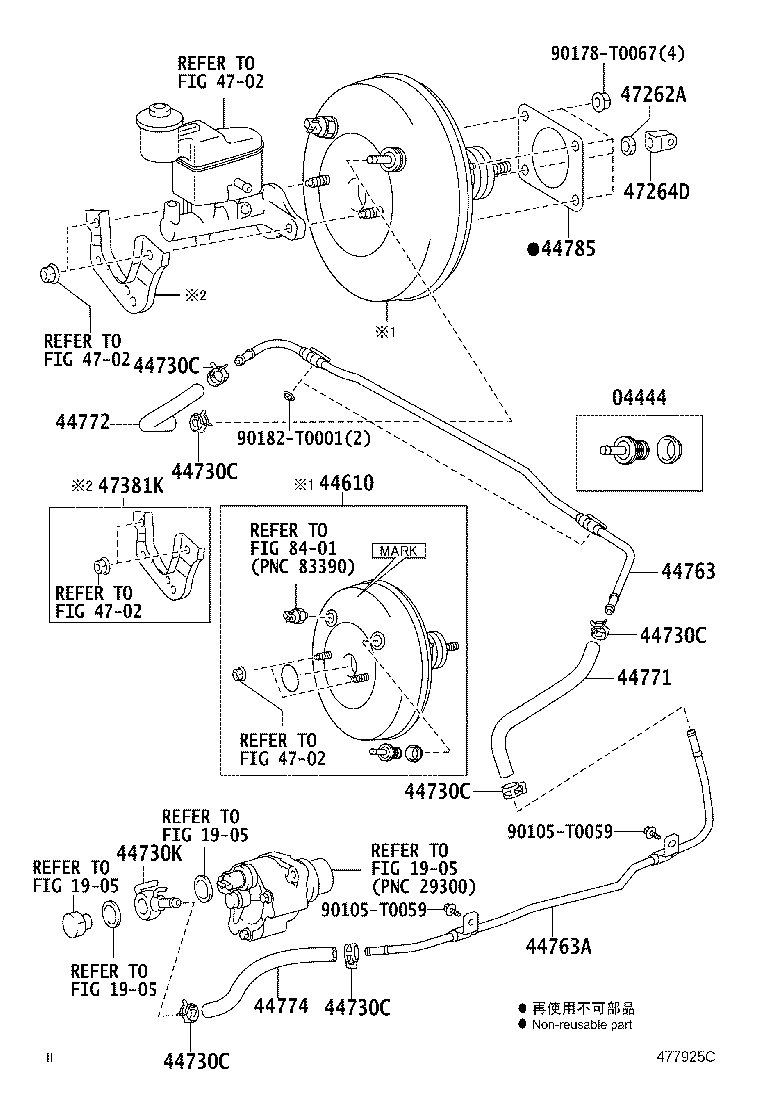

TYPE A

diagram 04444 1905 1905 1905 1905 44610 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4702 4702 47262A 47264D 47381K 8401 90105T0059 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
04444 - VALVE KIT, BOOSTER CONTROL
04444-02010

KUN51..IND

*283 TYPE A:REF ILL.

 1
44610 - BOOSTER ASSY, BRAKE
44610-0K180

KUN51..IND

 1
44610-09300

KUN51..IND

TYPE A=47200-0K151

 1
44610-0K180

KUN51..IND

TYPE B=131010-18990

 1
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730C - CLIP(FOR VACUUM HOSE)
90466-T0019

KUN51..RHD;LAN50..LHD;KUN50,6#..RHD..SUVW..5F

 6
44730K - UNION, VACUUM HOSE(FOR VACUUM PUMP)
90405-T0003

KUN50,61..5F;KUN51,60..SUVW,THSUV

 1
44763A - TUBE, HOSE TO HOSE, NO.1
44763-0K020

KUN61..5F;KUN51,60..SUVW,THSUV

 1
44771 - HOSE, VACUUM TUBE CONNECTOR
44771-0K010

KUN51..RHD;KUN50,6#..RHD..SUVW..5F

 1
44772 - HOSE, CHECK VALVE TO CONNECTOR TUBE
44772-0K010

KUN51..IND

*283 TYPE B:REF ILL.

 1
44772-0K010

KUN51..IND

 1
44774 - HOSE, UNION TO CONNECTOR TUBE
44774-0K020

KUN50,61..5F;KUN51,60..SUVW,THSUV

 1
47262A - NUT, MASTER CYLINDER PUSH ROD CLEVIS LOCK
47262-0K010

KUN51..IND

*283 TYPE A:REF ILL.

 1
47264D - CLEVIS, BRAKE MASTER CYLINDER PUSH ROD
47264-0B010

KUN51..IND

*283 TYPE A:REF ILL.

 1
47381K - BRACKET, BRAKE BOOSTER TUBE CLAMP
47381-09030

KUN51..IND

*283 TYPE A:REF ILL.

 1
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401

(1107- )KUN5#,6#..RHD

Click highlighted areas on diagram

W(VSC)

diagram 1905 1905 1905 1905 44610 44696 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4708 47262A 47264D 8401 90105T0059 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
4708
8401

(1107- )KUN5#,6#..RHD

Click highlighted areas on diagram

diagram 04444 1905 1905 1905 1905 44610 44610 44696 44730 44730C 44730C 44730C 44730C 44730C 44730C 44730K 44763 44763A 44771 44772 44774 44785 4702 4702 4702 4702 47262A 47264D 47381K 47381K 8401 8401 90105T0059 90178T0067 90182T0001
Part # Description Qty Price
Common parts
90105-T0059
90178-T0067
90182-T0001
Linked diagrams
1905
4702
8401
