Toyota Fortuner KUN51 CLUTCH PEDAL & FLEXIBLE HOSE

Manufacturers Home
Toyota
GR
FORTUNER
KUN51R-NKMSYX (2009)
3102 - CLUTCH PEDAL & FLEXIBLE HOSE

KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012

Engine 1KDFTV

Transmission

Displacement 2500cc

Power 168 HP (125 kW)

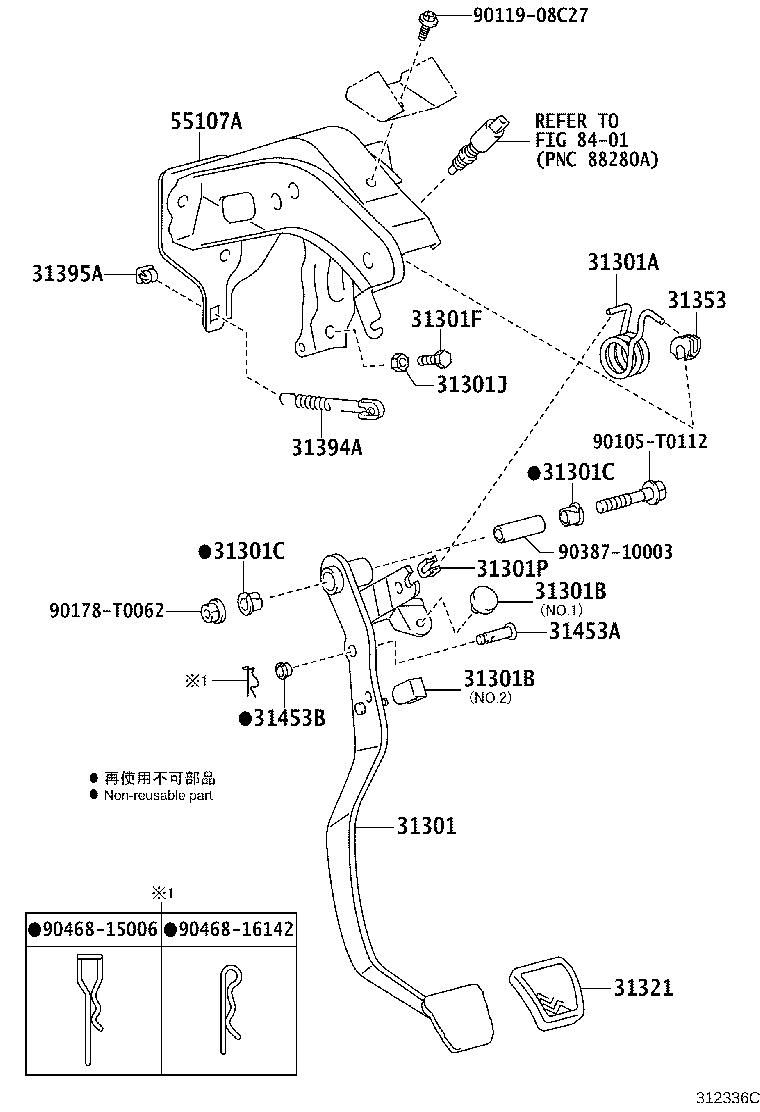

ILLUST NO. 1 OF 2(1008- )5F..IDN,TH ; (1009- )IND ; (1010-)KUN51,61..RHD..5F..SA

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K160	KUN51..IND	09/2010 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06079	GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2	01/2005 - 03/2009	1
90949-T3001	GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1	01/2005 - 03/2009	1
90949-T3001	KUN51,60..SUVW..5F..(IND,PHL,VN)	09/2010 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0004	GGN50,60,KUN5#,6#,LAN50..RHD..SUVW..5F	01/2005 - 10/2008	1
90541-T0004	KUN51..IND NO.2	09/2010 - 12/2999	1
90541-06036	KUN51,60..SUVW..5F..(IND,PHL,VN) NO.1	09/2010 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0004	GGN50,60,KUN5#,6#,LAN50..RHD..SUVW..5F	01/2005 - 10/2008	1
90541-T0004	KUN51..IND NO.2	09/2010 - 12/2999	1
90541-06036	KUN51,60..SUVW..5F..(IND,PHL,VN) NO.1	09/2010 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-T0011	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	1
31394A - SPRING, PEDAL W/HOOK
31394-25010	KUN51,60..SUVW..5F..(IND,PHL,VN)	09/2010 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-0K011	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4	01/2005 - 03/2009	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010	GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL)	01/2005 - 03/2009	1
55107-0K060	KUN51,60..SUVW..5F..(IND,PHL,VN)	09/2010 - 12/2999	1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006
90468-16142
Linked diagrams
8401

ILLUST NO. 1 OF 2(1008- )KUN51,60..LHD..IDSUV,THSUV..5F ; (1009- )KUN60..LHD..SUVW..5F ; (1010

Click highlighted areas on diagram

Part #	Description	Period	Qty
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K160	KUN51..IND	09/2010 - 12/2999	1
31301A - SPRING(FOR CLUTCH PEDAL)
90905-06079	GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.2	01/2005 - 03/2009	1
90949-T3001	GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL) NO.1	01/2005 - 03/2009	1
90949-T3001	KUN51,60..SUVW..5F..(IND,PHL,VN)	09/2010 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0004	GGN50,60,KUN5#,6#,LAN50..RHD..SUVW..5F	01/2005 - 10/2008	1
90541-T0004	KUN51..IND NO.2	09/2010 - 12/2999	1
90541-06036	KUN51,60..SUVW..5F..(IND,PHL,VN) NO.1	09/2010 - 12/2999	1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-T0004	GGN50,60,KUN5#,6#,LAN50..RHD..SUVW..5F	01/2005 - 10/2008	1
90541-T0004	KUN51..IND NO.2	09/2010 - 12/2999	1
90541-06036	KUN51,60..SUVW..5F..(IND,PHL,VN) NO.1	09/2010 - 12/2999	1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-T0011	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	1
31394A - SPRING, PEDAL W/HOOK
31394-25010	KUN51,60..SUVW..5F..(IND,PHL,VN)	09/2010 - 12/2999	1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-0K011	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F L=29.4	01/2005 - 03/2009	1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002	KUN60..SUVW..5F..(IDN,PHL);GGN50,60,KUN5#,61,LAN50,TGN51,61..5F	01/2005 - 03/2009	1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K010	GGN50,60,KUN5#,61..5F;KUN60..SUVW..5F..(IDN,PHL)	01/2005 - 03/2009	1
55107-0K060	KUN51,60..SUVW..5F..(IND,PHL,VN)	09/2010 - 12/2999	1
Common parts
90105-T0112
90119-08C27
90178-T0062
90387-10003
90468-15006
Linked diagrams
8401

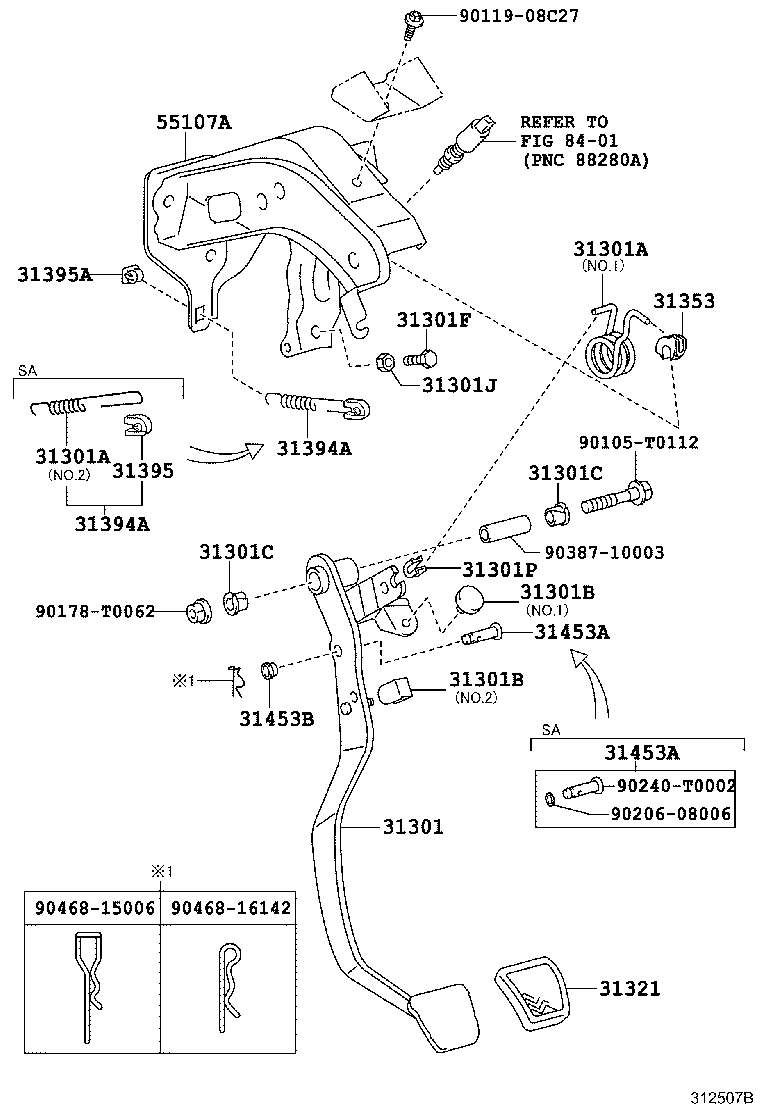

ILLUST NO. 1 OF 2(1107- )KUN51,6#..RHD..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90105-T0112
90119-08C27
90178-T0062
90206-08006
90240-T0002
90387-10003
90468-15006
90468-16142
Linked diagrams
8401

ILLUST NO. 2 OF 2(1107- )KUN51,6#..RHD..5F

Click highlighted areas on diagram

Part #	Description	Period	Qty	Price
Common parts
90178-T0007
90468-T0004
90949-T1012
Linked diagrams
3103
3105
4708
