KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1KDFTV..KUN51..IND

Click highlighted areas on diagram

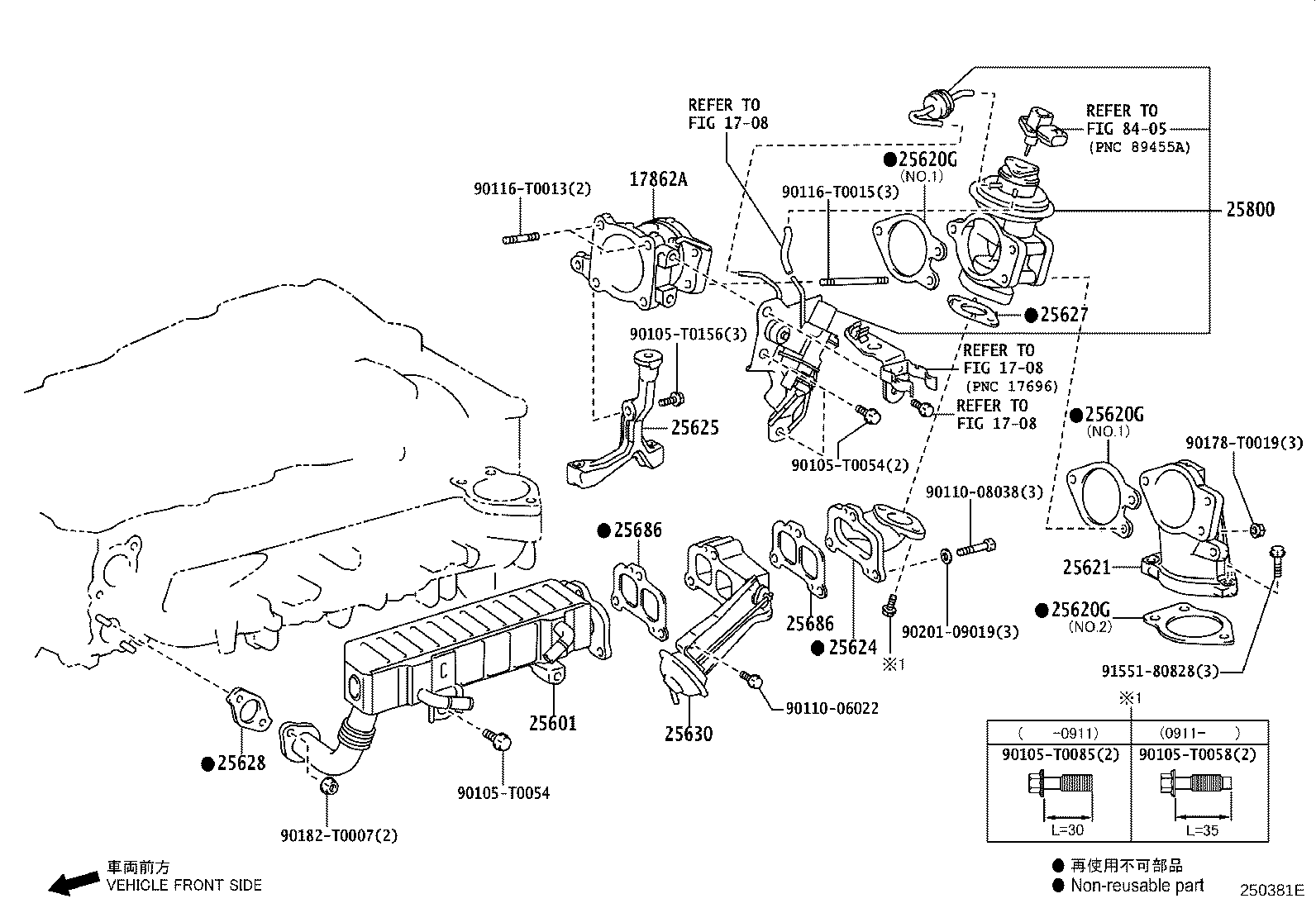

diagram 1708 1708 1708 17862A 25601 25620G 25620G 25620G 25621 25624 25625 25627 25628 25630 25686 25686 25800 8405 90105T0054 90105T0054 90105T0058 90105T0085 90105T0156 9011006022 9011008038 90116T0013 90116T0015 90178T0019 90182T0007 9020109019 9155180828
Part # Description Qty Price
17862A - CONNECTOR, INTAKE AIR, NO.2
17862-0L010

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
25601 - PIPE SUB-ASSY, EGR, NO.1
25601-0L020

1KDFTV..KUN51..IND

 1
25601-30080

1KDFTV..KUN51

(J)

 1
25601-0L020

1KDFTV..KUN51

(L)

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L010

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

NO.1

 2
26171-0L030

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

NO.2

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L010

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

NO.1

 2
26171-0L030

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

NO.2

 1
25620G - GASKET, DIESEL THROTTLE
26171-0L010

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

NO.1

 2
26171-0L030

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

NO.2

 1
25621 - CONNECTOR, INTAKE AIR(FOR GASKET)
17861-0L030

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
25624 - ADAPTER, EGR VALVE
25611-0L010

1KDFTV..KUN51..IND

 1
25625 - BRACKET, EGR VALVE
26127-30010

1KDFTV..KUN61..5F;1KDFTV..KUN51..SUVW,THSUV

 1
25627 - GASKET, EGR VALVE
25627-30060

1KDFTV..KUN51..IND

 1
25628 - GASKET, EGR INLET
25628-30010

1KDFTV..KUN51..IND

 1
25630 - VALVE ASSY, EGR, NO.2
25630-0L030

1KDFTV..KUN51..IND

 1
25686 - GASKET, EGR COOLER, NO.2
25686-0L010

1KDFTV..KUN51..IND

 2
25686 - GASKET, EGR COOLER, NO.2
25686-0L010

1KDFTV..KUN51..IND

 2
25800 - VALVE ASSY, ELECTRIC EGR CONTROL
25800-0L080

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
25800-0L010

1KDFTV..KUN51,61

 1
Common parts
90105-T0054
90105-T0058
90105-T0085
90105-T0156
90110-06022
90110-08038
90116-T0013
90116-T0015
90178-T0019
90182-T0007
90201-09019
91551-80828
Linked diagrams
1708
8405

(1107- )1KDFTV..KUN51..SASUV,THSUV ; (1107-)1KDFTV..KUN51..RHD..5F..GEN ; (1

Click highlighted areas on diagram

diagram 1104 1701 1708 1708 1708 1708 25601 25620G 25620G 25621 25625 25627 25628 25800 2606 2606 9010508286 90105T0053 90105T0156 90116T0013 9011906749 90119T0058 9012608052 90178T0019 90182T0007 9155180812 9155180835 9155180870 9415180600 9415180800
Part # Description Qty Price
Common parts
90105-08286
90105-T0053
90105-T0156
90116-T0013
90119-06749
90119-T0058
90126-08052
90178-T0019
90182-T0007
91551-80812
91551-80835
91551-80870
94151-80600
94151-80800
Linked diagrams
1104
1701
1708
2606

(1110- )1KDFTV..KUN51..SUVW..5F,5FC..DCR..IND,LA ; (1208- )1KDFTV..TH ; (1311

Click highlighted areas on diagram

EURO 4 REGULATION

diagram 1603 1603 1603 1603 1708 1708 1708 17862A 25601 25620G 25620G 25620G 25621 25624 25625 25627 25628 25630 25686 25686 25800 8405 90105T0054 90105T0054 90105T0156 9011006022 9011008038 90116T0013 90116T0015 9011906749 90119T0058 9012608052 90178T0019 90182T0007 9020109019 9155180816 9155180816 9155180828 9155180835 9212280870 9415180600 9415180800
Part # Description Qty Price
Common parts
90105-T0054
90105-T0156
90110-06022
90110-08038
90116-T0013
90116-T0015
90119-06749
90119-T0058
90126-08052
90178-T0019
90182-T0007
90201-09019
91551-80816
91551-80828
91551-80835
92122-80870
94151-80600
94151-80800
Linked diagrams
1603
1708
8405
