KUN51R-NKMSYX (2009)
Toyota Fortuner
Production
Aug 2009
-
Jan 2012
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )1KDFTV..KUN51..IND ; (1001- )2KDFTV..KUN60..TH

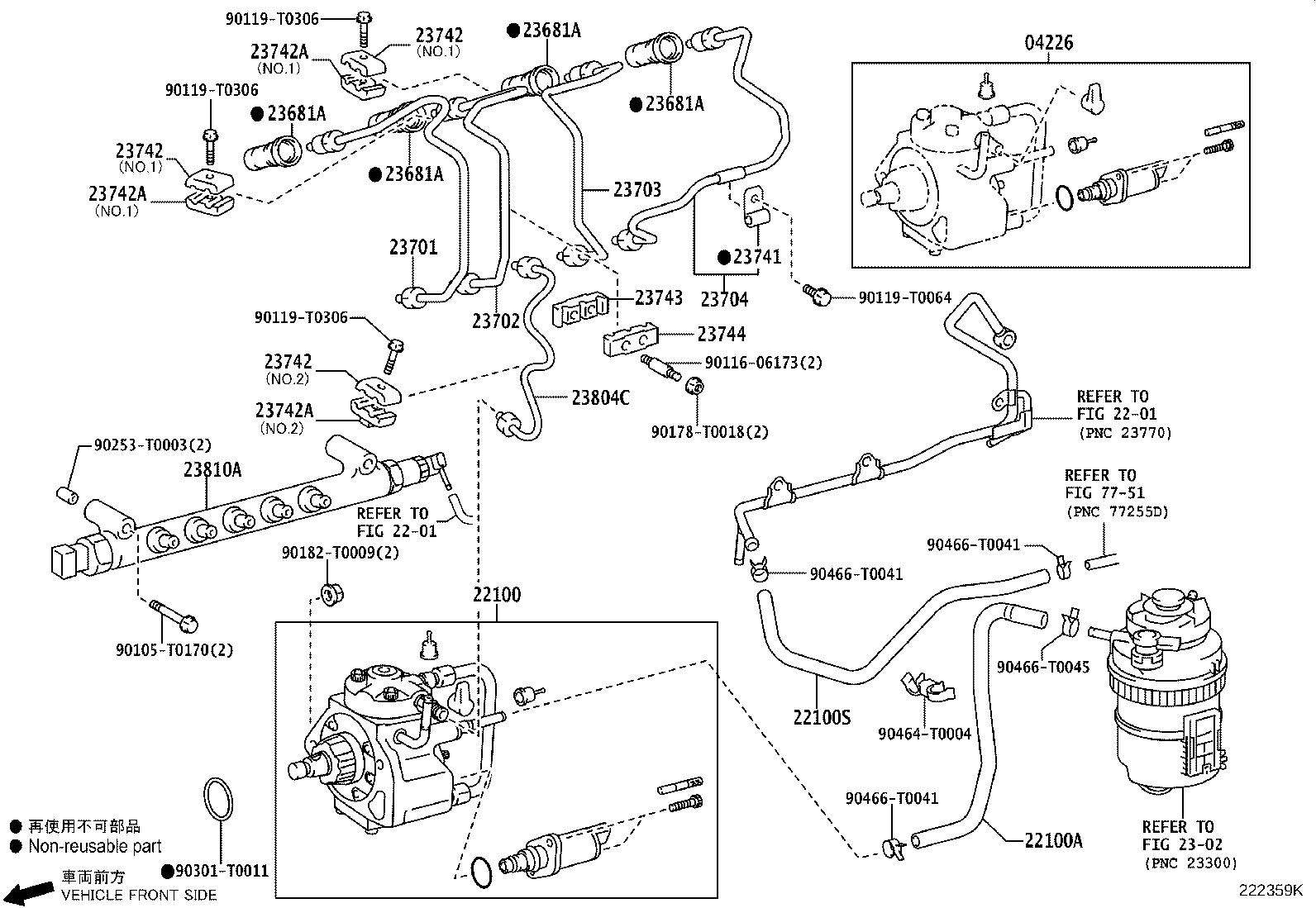

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 22100 - PUMP ASSY, INJECTION OR SUPPLY | ||||
| 22100-0L070 |
1KDFTV..KUN51..IND |
1 | ||
| 22100-0L060 |
1KDFTV..KUN51..IND |
1 | ||
| 22100A - HOSE OR PIPE, FUEL(FOR INJECTION PUMP TO FUEL FILTER) | ||||
| 23271-0L010 |
1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV |
1 | ||
| 23701 - PIPE SUB-ASSY, INJECTION, NO.1 | ||||
| 23701-0L020 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23702 - PIPE SUB-ASSY, INJECTION, NO.2 | ||||
| 23702-0L020 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23703 - PIPE SUB-ASSY, INJECTION, NO.3 | ||||
| 23703-0L020 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23704 - PIPE SUB-ASSY, INJECTION, NO.4 | ||||
| 23704-09040 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23741 - CLAMP, INJECTION PIPE, NO.1 | ||||
| 23741-0L020 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23804C - PIPE SUB-ASSY, FUEL INLET | ||||
| 23804-0L010 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23810A - RAIL ASSY, COMMON | ||||
| 23810-0L010 |
1KDFTV,2KDFTV..KUN5#,6# |
1 | ||
| Common parts | ||||
| 90105-T0170 | ||||
| 90116-06173 | ||||
| 90119-T0064 | ||||
| 90119-T0306 | ||||
| 90178-T0018 | ||||
| 90182-T0009 | ||||
| 90253-T0003 | ||||
| 90301-T0011 | ||||
| 90464-T0004 | ||||
| 90466-T0041 | ||||
| 90466-T0045 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
(1107- )1KDFTV..KUN61..5FC..TH ; (1107- )2KDFTV..KUN60..SUVW..4FC..IDN ; (110
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0170 | ||||
| 90116-06173 | ||||
| 90119-06775 | ||||
| 90119-T0064 | ||||
| 90119-T0306 | ||||
| 90178-T0018 | ||||
| 90179-08022 | ||||
| 90182-T0009 | ||||
| 90253-13008 | ||||
| 90253-T0003 | ||||
| 90301-49003 | ||||
| 90301-T0011 | ||||
| 90464-T0004 | ||||
| 90466-T0023 | ||||
| 90466-T0041 | ||||
| 91552-81060 | ||||
| 91631-G0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
(1107- )2KDFTV..KUN60..4FC,5F..IND,SA,TH ; (1107- )1KDFTV..KUN51..SUVW..4FC,5
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0170 | ||||
| 90116-06173 | ||||
| 90119-06775 | ||||
| 90119-T0064 | ||||
| 90119-T0306 | ||||
| 90178-T0018 | ||||
| 90179-08022 | ||||
| 90182-T0009 | ||||
| 90253-13008 | ||||
| 90253-T0003 | ||||
| 90301-49003 | ||||
| 90301-T0011 | ||||
| 90464-T0004 | ||||
| 90466-T0023 | ||||
| 90466-T0041 | ||||
| 91552-81060 | ||||
| 91631-G0614 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
(1107- )2KDFTV..KUN60..IDSUV..4FC ; (1107-)2KDFTV..KUN60..LHD..SUVW..4FC ; (
Click highlighted areas on diagram
EXCEPT EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0118 | ||||
| 90105-T0170 | ||||
| 90116-06173 | ||||
| 90119-06775 | ||||
| 90119-T0306 | ||||
| 90178-T0018 | ||||
| 90179-08022 | ||||
| 90182-T0009 | ||||
| 90253-13008 | ||||
| 90253-T0003 | ||||
| 90301-49003 | ||||
| 90301-T0011 | ||||
| 90464-T0004 | ||||
| 90466-T0023 | ||||
| 90466-T0041 | ||||
| 91551-80814 | ||||
| 91552-81060 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 2201 | ||||
| 2302 | ||||
| 7751 | ||||
