KUN51R-NKMSYX (2009)
Toyota Fortuner
Production
Aug 2009
-
Jan 2012
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)
(0908- )1KDFTV..KUN51..IND ; (1001- )2KDFTV..KUN60..TH

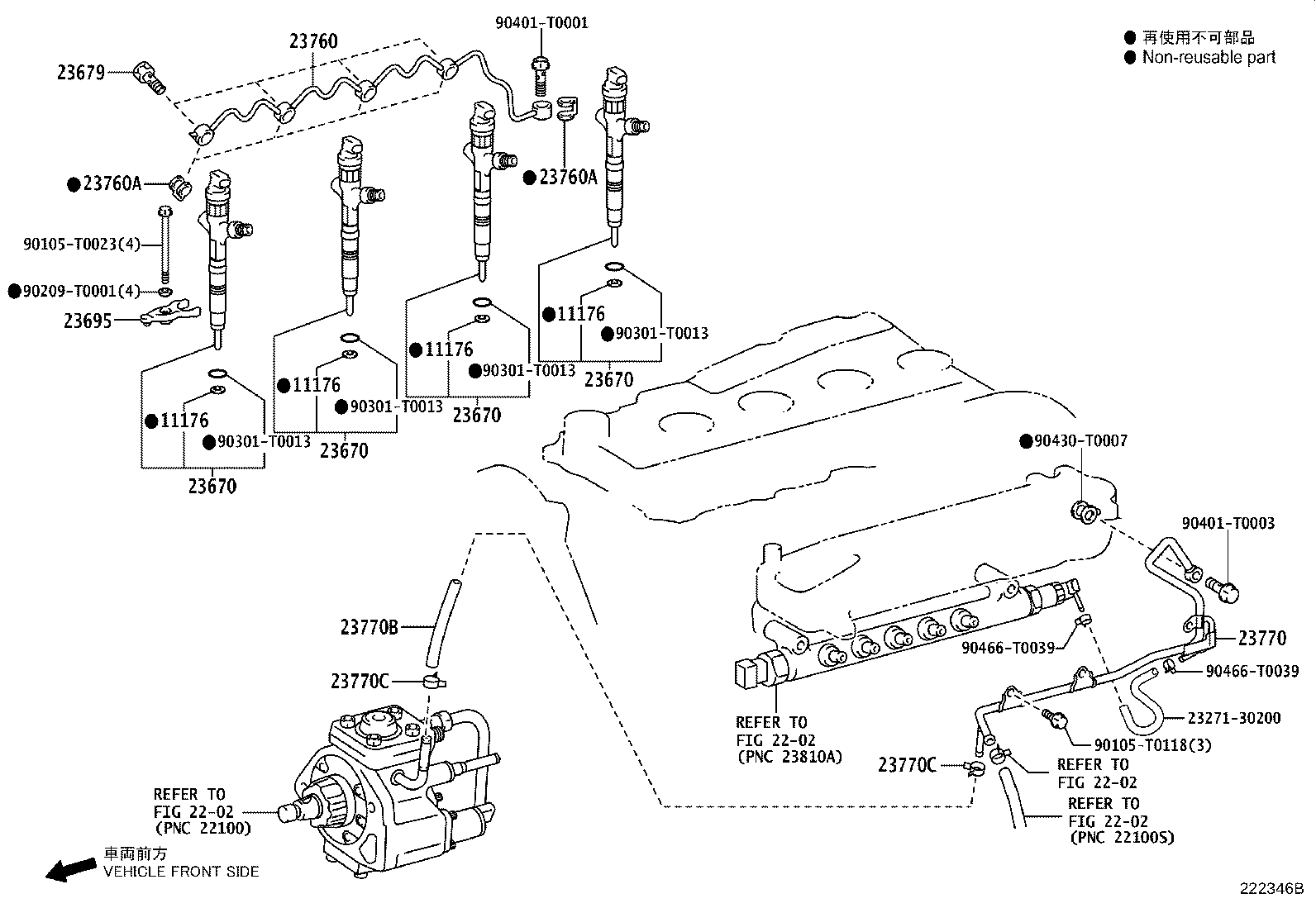

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23670 - INJECTOR ASSY | ||||
| 23670-09070 |
1KDFTV..KUN51,61 |
4 | ||
| 23670-09350 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND *130 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09070 |
1KDFTV..KUN51,61 |
4 | ||
| 23670-09350 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND *130 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09070 |
1KDFTV..KUN51,61 |
4 | ||
| 23670-09350 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND *130 |
4 | ||
| 23670 - INJECTOR ASSY | ||||
| 23670-09070 |
1KDFTV..KUN51,61 |
4 | ||
| 23670-09350 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND *130 |
4 | ||
| 23695 - CLAMP, NOZZLE HOLDER, NO.1 | ||||
| 23695-0L010 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
4 | ||
| 23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2 | ||||
| 23770-0L030 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 23770B - HOSE, FUEL | ||||
| 23273-30180 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND L=200 |
1 | ||
| 95337-06020 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND L=200 |
1 | ||
| Common parts | ||||
| 23271-30200 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-T0001 | ||||
| 90301-T0013 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1107-1208)2KDFTV..KUN60..IDN,PHL,VN ; (1107-)2KDFTV..KUN60..GEN ; (1107- )1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23271-30290 | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-T0013 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 96132-51000 | ||||
| 96721-19017 | ||||
| Linked diagrams | ||||
| 2202 | ||||
(1107- )2KDFTV..KUN60..5F..SA,TH ; (1208-)2KDFTV..KUN60..4FC..IDN,PHL,SA ; (
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 23271-30200 | ||||
| 90105-08374 | ||||
| 90105-T0023 | ||||
| 90105-T0118 | ||||
| 90209-10021 | ||||
| 90209-T0001 | ||||
| 90301-T0013 | ||||
| 90401-08016 | ||||
| 90401-10067 | ||||
| 90401-T0001 | ||||
| 90401-T0003 | ||||
| 90430-10028 | ||||
| 90430-T0007 | ||||
| 90466-T0039 | ||||
| 91551-80814 | ||||
| 96132-51000 | ||||
| 96721-19017 | ||||
| Linked diagrams | ||||
| 2202 | ||||
