KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(0908- )1KDFTV..KUN51..IND

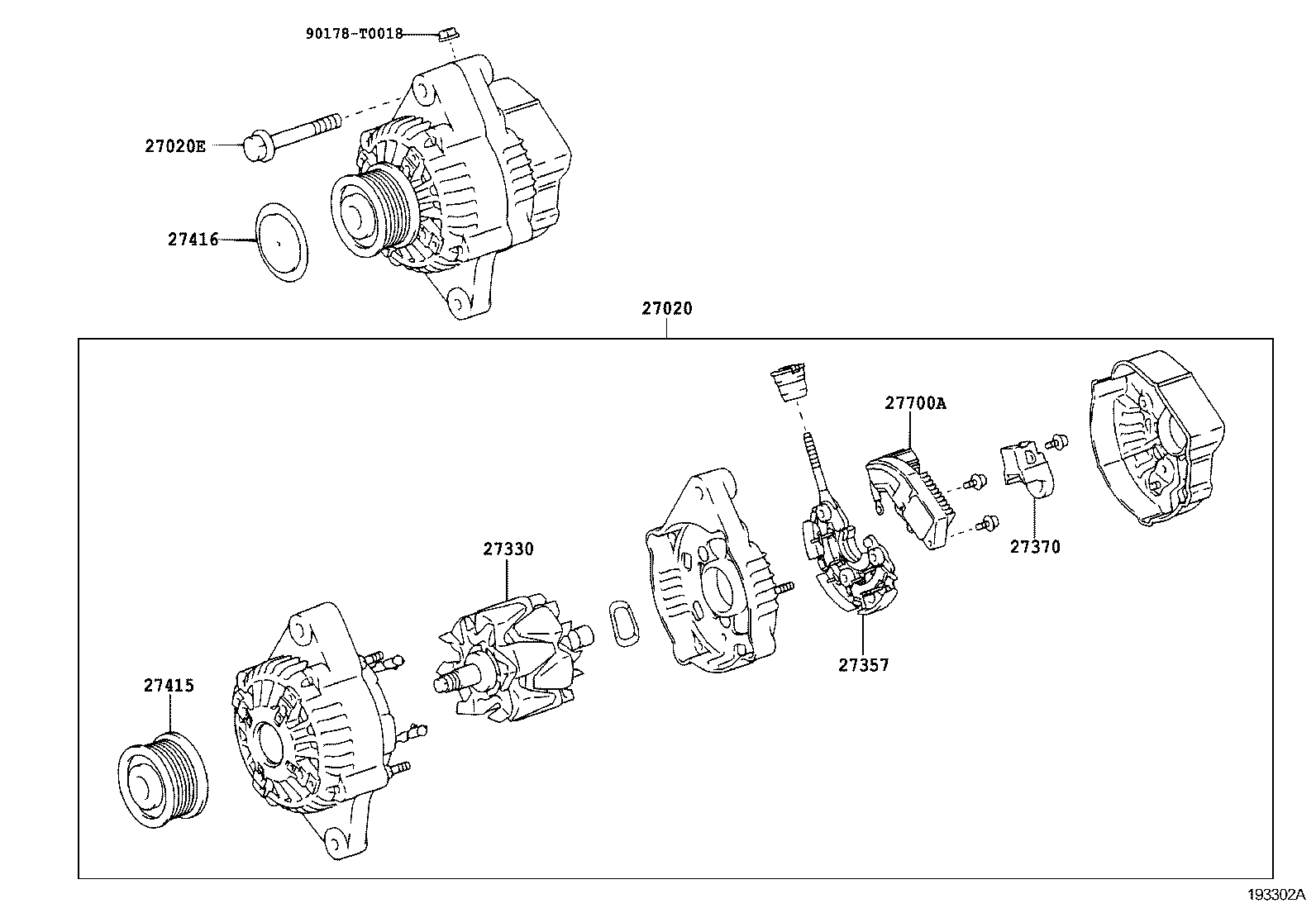

Click highlighted areas on diagram

12V 80A

diagram 27020 27020E 27330 27357 27370 27415 27416 27700A 90178T0018
Part # Description Qty Price
27020E - BOLT(FOR ALTERNATOR)
90105-10092

1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV

 1
27330 - ROTOR ASSY, ALTERNATOR
27330-0C030

1KDFTV..KUN51..IND

 1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-0L070

1KDFTV..KUN51..IND

 1
27700A - REGULATOR ASSY, GENERATOR
27700-0L020

1KDFTV..KUN51..IND

 1
Common parts
90178-T0018
