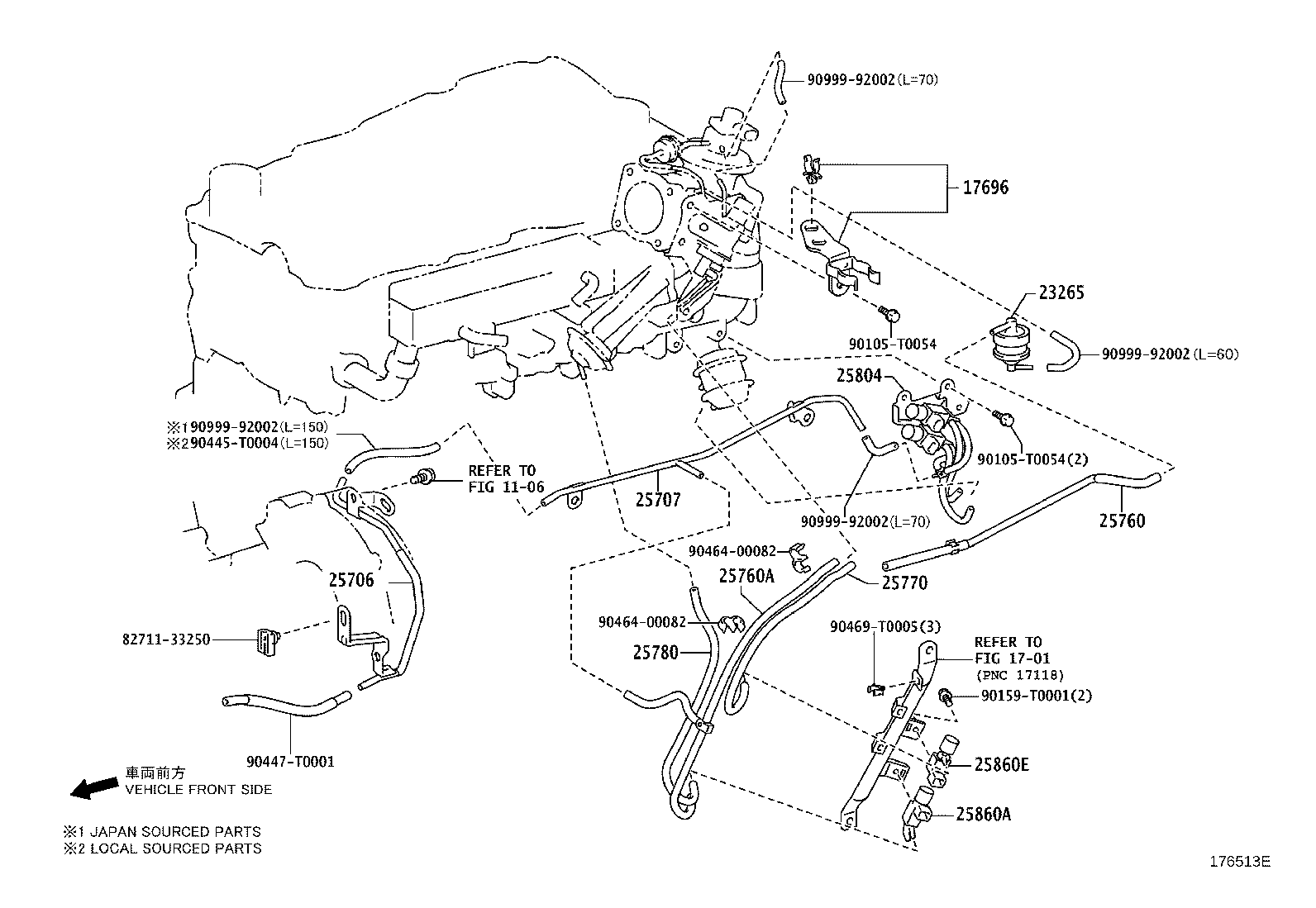

Toyota Fortuner KUN51 VACUUM PIPING

Part #	Description	Period	Qty
17696 - BRACKET, GAS FILTER
17696-0L020	1KDFTV..KUN61..5F;1KDFTV..KUN51..SUVW,THSUV	01/2005 - 10/2008	1
17696-0L030	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 01/2012	1
23265 - FILTER, GAS, NO.1
90917-11044	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 12/2999	1
90917-11036	1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV	01/2005 - 10/2008	1
25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1
25706-0L010	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 12/2999	1
25707 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.2
25707-0L020	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 12/2999	1
25760 - HOSE ASSY, VACUUM TRANSMITTING
25760-30060	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 12/2999	1
25760A - HOSE ASSY, VACUUM TRANSMITTING
25760-0L010	1KDFTV..KUN51..IND	08/2009 - 01/2012	1
25770 - HOSE ASSY, VACUUM TRANSMITTING, NO.2
25770-0L010	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 01/2012	1
25780 - HOSE ASSY, VACUUM TRANSMITTING, NO.3
25780-0L010	1KDFTV..KUN51..IND	08/2009 - 01/2012	1
25804 - VALVE SET, VACUUM CONTROL
25804-30010	1KDFTV..KUN51..IND	08/2009 - 12/2999	1
25860A - VALVE, VACUUM SWITCHING, NO.1
90910-12093	1KDFTV..KUN51..IND	08/2009 - 12/2999	1
25860E - VALVE, VACUUM SWITCHING, NO.2
90910-12184	2KDFTV..KUN60..TH;1KDFTV..KUN51..IND	08/2009 - 12/2999	1
Common parts
82711-33250
90105-T0054
90159-T0001
90445-T0004
90447-T0001
90464-00082
90469-T0005
90999-92002
Linked diagrams
1106
1701

KUN51R-NKMSYX (2009)
