KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

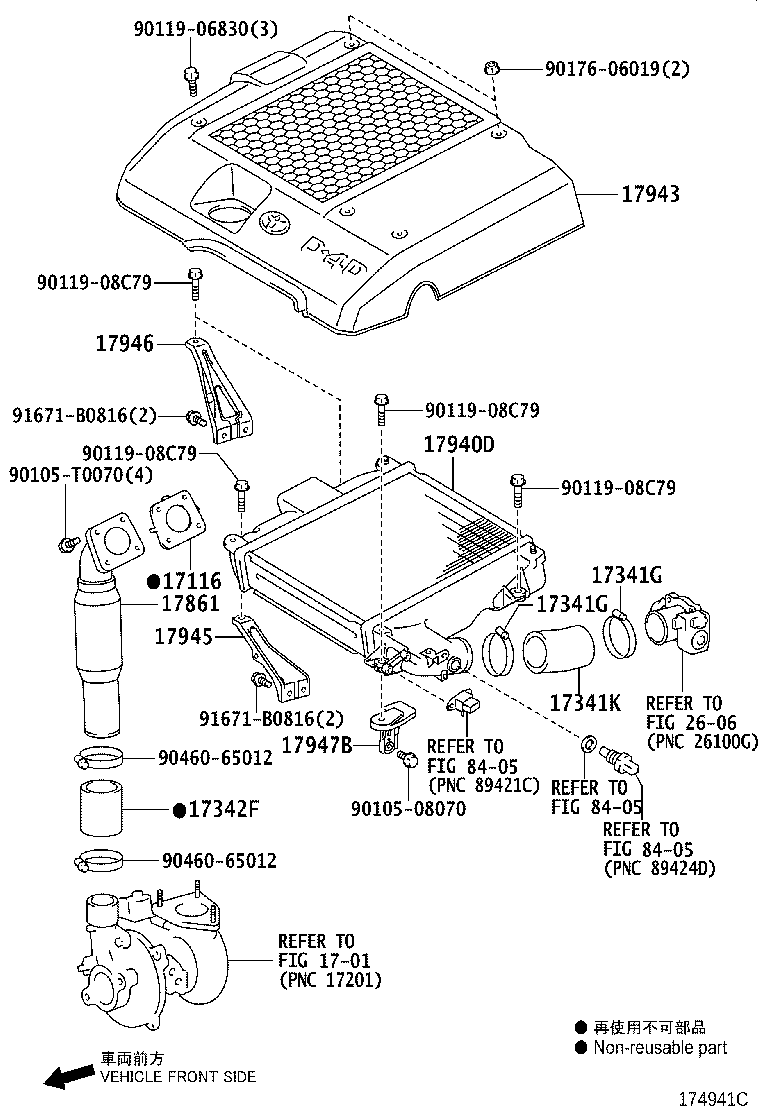

ILLUST NO. 2 OF 2(0908- )1KDFTV..KUN51..IND ; (1001- )2KDFTV..KUN60..TH

Click highlighted areas on diagram

diagram 1701 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 17947B 2606 8405 8405 8405 9010508070 90105T0070 9011906830 9011908C79 9011908C79 9011908C79 9011908C79 9017606019 9046065012 9046065012 91671B0816 91671B0816
Part # Description Qty Price
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV

 2
17940D - INTERCOOLER ASSY
17940-0L060

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
17943 - PROTECTOR, INTERCOOLER
12601-0L050

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-0L020

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-0L020

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
17947B - BRACKET, INTERCOOLER SUPPORT, NO.3
17947-0L010

2KDFTV..KUN60..TH;1KDFTV..KUN51..IND

 1
Common parts
90105-08070
90105-T0070
90119-06830
90119-08C79
90176-06019
90460-65012
91671-B0816
Linked diagrams
1701
2606
8405

ILLUST NO. 1 OF 2(1107-1305)1KDFTV..KUN51..IDSUV ; (1107- )2KDFTV..KUN60..5F..TH,VN ; (1107- )

Click highlighted areas on diagram

diagram 1701 17080 17700 17705 17750 17801 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
Common parts
90099-00289
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701

ILLUST NO. 1 OF 2(1108- )1KDFTV..KUN51..SASUV ; (1108- )2KDFTV..KUN60..4FC,5F..IND,SA ; (1108-

Click highlighted areas on diagram

diagram 1701 17700 17705 17750 17801 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
Common parts
90099-00289
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701

ILLUST NO. 2 OF 2(1107- )1KDFTV..KUN51..SUVW..5FC..DCR..IND,LA,TH ; (1208- )2KDFTV..IDN,PHL ;

Click highlighted areas on diagram

diagram 1701 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 17947B 2606 8405 8405 8405 9010508070 90105T0070 9011906830 9011908C79 9011908C79 9011908C79 9011908C79 90119T0429 90119T0429 90119T0429 90119T0429 9017606019 9046065012 9046065012 9167100816 9167100816
Part # Description Qty Price
Common parts
90105-08070
90105-T0070
90119-06830
90119-08C79
90119-T0429
90176-06019
90460-65012
91671-00816
Linked diagrams
1701
2606
8405
