KUN51R-NKMSYX (2009)
Toyota Fortuner
Production
Aug 2009
-
Jan 2012
Engine
1KDFTV
Transmission
Displacement
2500cc
Power
168 HP (125 kW)

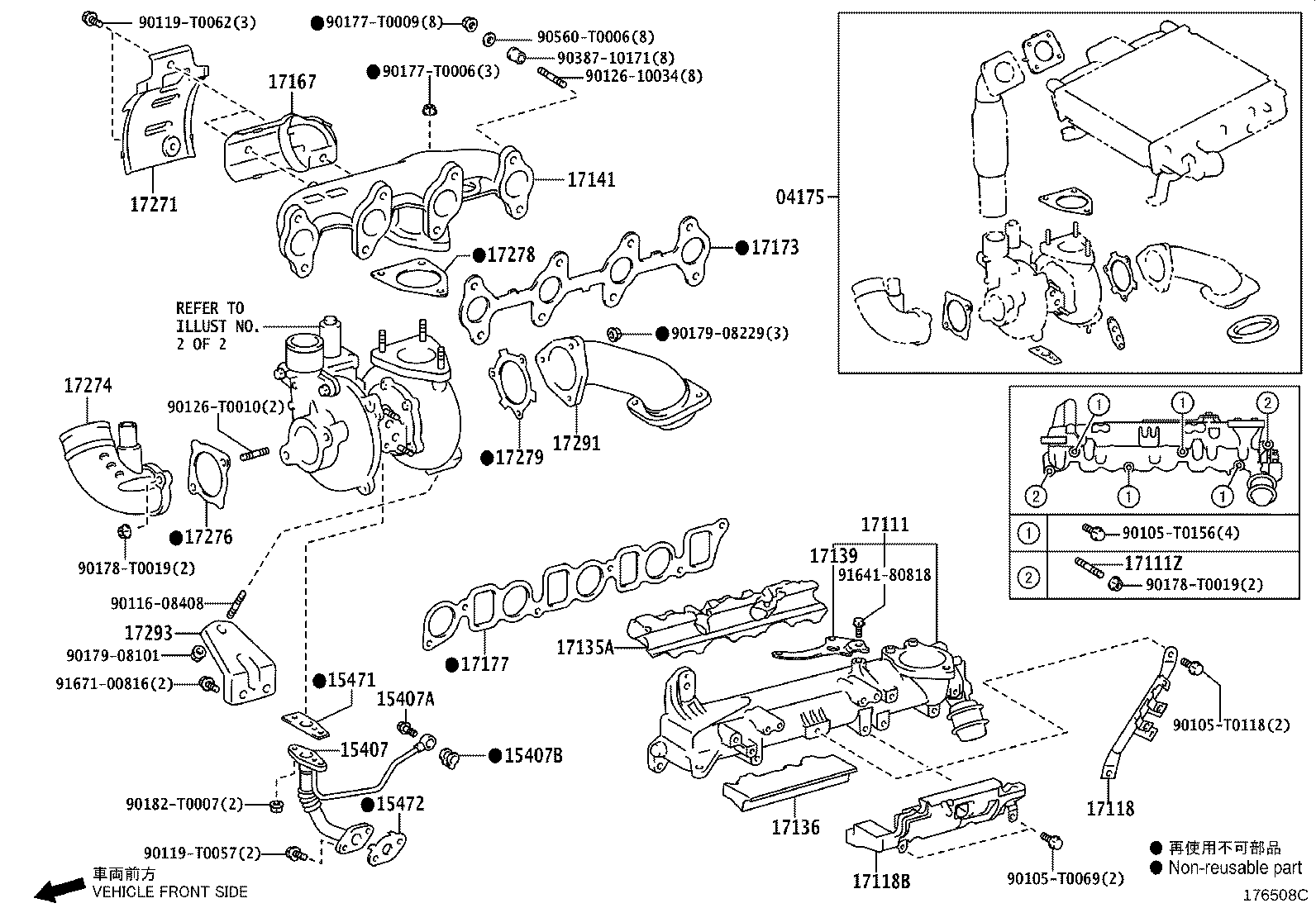

ILLUST NO. 1 OF 2(0908- )1KDFTV..KUN51..IND
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 15407 - PIPE SUB-ASSY, TURBO OIL INLET | ||||
| 15407-30050 |
1KDFTV..KUN61..5F;1KDFTV..KUN51..SUVW,THSUV |
1 | ||
| 17111 - MANIFOLD, INTAKE | ||||
| 17101-0L020 |
1KDFTV..KUN51 (L) |
1 | ||
| 17101-0L020 |
1KDFTV..KUN51..IND |
1 | ||
| 17101-30040 |
1KDFTV..KUN51 (J) |
1 | ||
| 17118 - STAY, MANIFOLD | ||||
| 17118-0L050 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 17118B - INSULATOR, INTAKE MANIFOLD | ||||
| 17853-0L010 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 17135A - INSULATOR, INTAKE MANIFOLD, NO.1 | ||||
| 17135-0L010 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 17136 - INSULATOR, INTAKE MANIFOLD, NO.2 | ||||
| 17136-0L010 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 17139 - STAY, MANIFOLD, NO.2 | ||||
| 17139-0L010 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 17173 - GASKET, EXHAUST MANIFOLD TO HEAD | ||||
| 17173-0L020 |
1KDFTV..KUN51 *130,(L) |
1 | ||
| 17173-30030 |
1KDFTV..KUN51 *130,(J) |
1 | ||
| 17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1 | ||||
| 17177-0L011 |
2KDFTV..KUN60..TH;1KDFTV..KUN51..IND |
1 | ||
| 17279 - GASKET, TURBINE OUTLET ELBOW | ||||
| 17279-30030 |
1KDFTV..KUN51 *130,(J) |
1 | ||
| 17279-0L010 |
1KDFTV..KUN51 *130,(L) |
1 | ||
| Common parts | ||||
| 90105-T0069 | ||||
| 90105-T0118 | ||||
| 90105-T0156 | ||||
| 90116-08408 | ||||
| 90119-T0057 | ||||
| 90119-T0062 | ||||
| 90126-10034 | ||||
| 90126-T0010 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90182-T0007 | ||||
| 90387-10171 | ||||
| 90560-T0006 | ||||
| 91641-80818 | ||||
| 91671-00816 | ||||

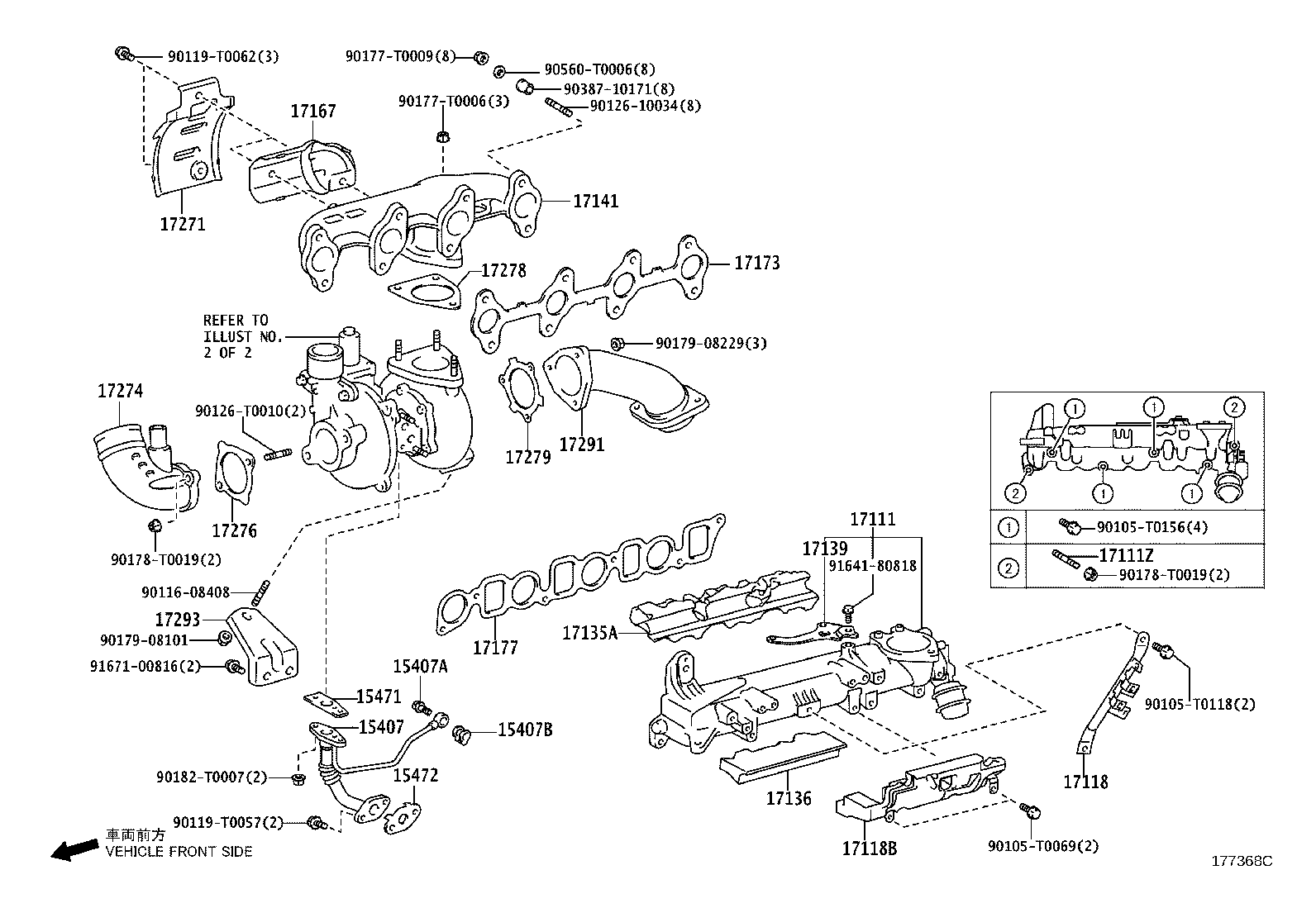

ILLUST NO. 1 OF 2(1107- )1KDFTV..KUN51..SASUV,THSUV ; (1107-)1KDFTV..KUN51..RHD..5F..GEN ; (1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0118 | ||||
| 90105-T0156 | ||||
| 90116-08408 | ||||
| 90116-T0015 | ||||
| 90119-06748 | ||||
| 90119-T0057 | ||||
| 90119-T0062 | ||||
| 90126-08052 | ||||
| 90126-10034 | ||||
| 90126-T0010 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90179-10070 | ||||
| 90182-T0007 | ||||
| 90201-10109 | ||||
| 90387-10171 | ||||
| 90560-T0006 | ||||
| 91551-80814 | ||||
| 91551-80835 | ||||
| 91651-B0814 | ||||
| 91671-00816 | ||||
| 92122-80870 | ||||
| 94151-80600 | ||||
| 94151-80800 | ||||
| 94184-01041 | ||||
ILLUST NO. 2 OF 2(1107- )1KDFTV
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90116-06048 | ||||
| 90116-10175 | ||||
| 90126-08009 | ||||
| 90126-T0006 | ||||
| 90126-T0008 | ||||
| 90126-T0009 | ||||
ILLUST NO. 1 OF 2(1110- )1KDFTV..KUN61..IND ; (1110- )1KDFTV..KUN61..5FC..TH ; (1110- )1KDF
Click highlighted areas on diagram
EURO 4 REGULATION
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0069 | ||||
| 90105-T0118 | ||||
| 90105-T0156 | ||||
| 90116-08408 | ||||
| 90119-T0057 | ||||
| 90119-T0062 | ||||
| 90126-10034 | ||||
| 90126-T0010 | ||||
| 90177-T0006 | ||||
| 90177-T0009 | ||||
| 90178-T0019 | ||||
| 90179-08101 | ||||
| 90179-08229 | ||||
| 90182-T0007 | ||||
| 90387-10171 | ||||
| 90560-T0006 | ||||
| 91641-80818 | ||||
| 91671-00816 | ||||
ILLUST NO. 2 OF 2(1107- )2KDFTV..KUN60..5F..TH ; (1107- )2KDFTV..KUN60..5F,5FC..IND,SA,VN ; (1
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90126-T0006 | ||||
| 90126-T0009 | ||||
| 90523-T0002 | ||||
