KUN51R-NKMSYX (2009)

Toyota Fortuner

Production Aug 2009 - Jan 2012
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

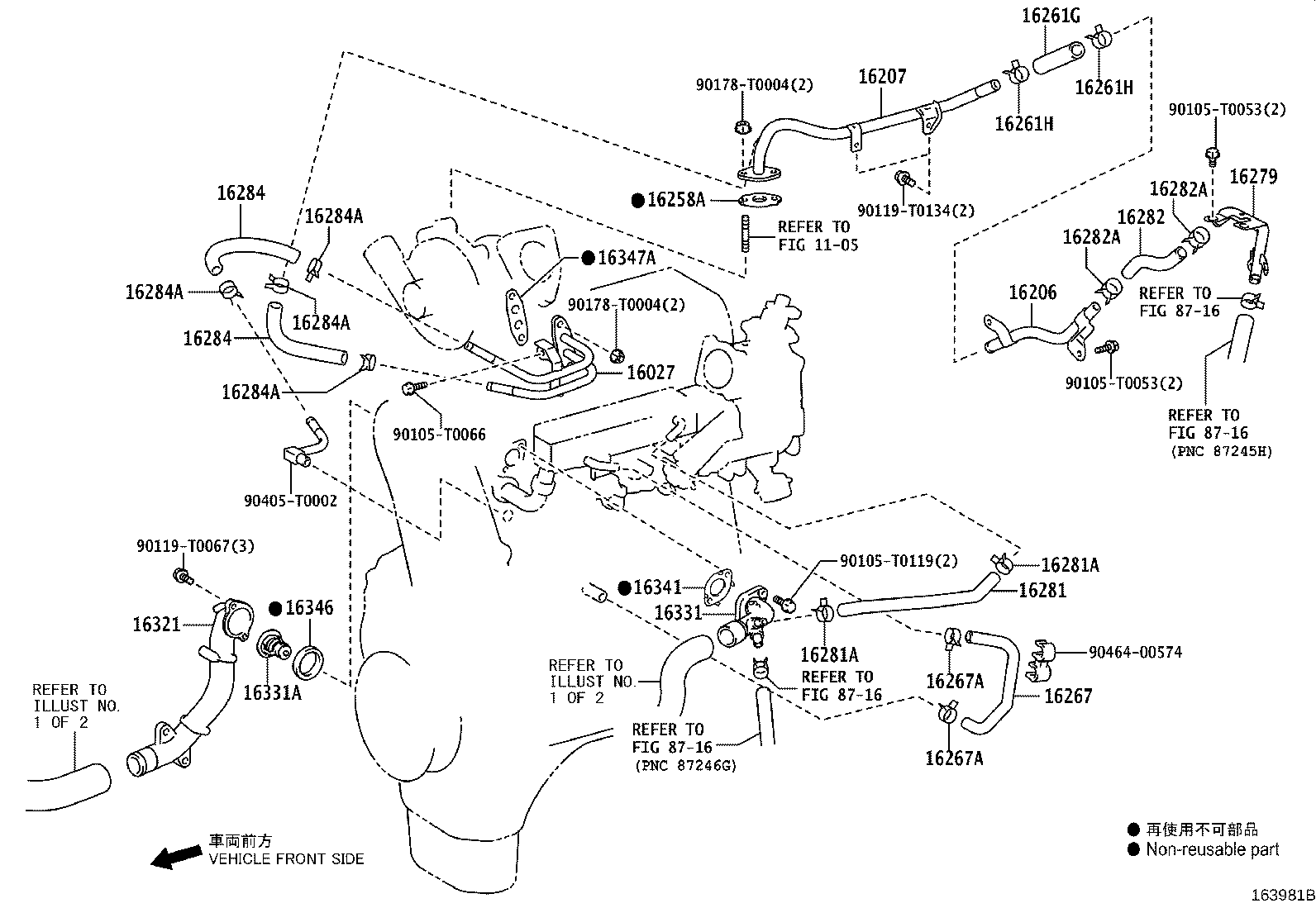

ILLUST NO. 2 OF 2(0908- )1KDFTV..KUN51..IND

Click highlighted areas on diagram

diagram 1105 16027 16206 16207 16258A 16261G 16261H 16261H 16267 16267A 16267A 16279 16281 16281A 16281A 16282 16282A 16282A 16284 16284 16284A 16284A 16284A 16284A 16321 16331 16331A 16341 16346 16347A 8716 8716 8716 8716 90105T0053 90105T0053 90105T0066 90105T0119 90119T0067 90119T0134 90178T0004 90178T0004 90405T0002 9046400574
Part # Description Qty Price
16206 - PIPE SUB-ASSY, WATER BY-PASS
16206-0L010

1KDFTV..KUN51..IND

 1
16207 - PIPE SUB-ASSY, WATER BY-PASS, NO.2
16207-0L010

1KDFTV..KUN51..IND

 1
16261G - HOSE, WATER BY-PASS, NO.1
16261-0L050

1KDFTV..KUN51

(L)

 1
16261-30060

1KDFTV..KUN51

(J)

 1
16267 - HOSE, WATER BY-PASS, NO.3
16267-0L010

1KDFTV..KUN51..IND

 1
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KUN51..IND

 2
16267A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.3)
90467-19022

1KDFTV..KUN51..IND

 2
16279 - PIPE, WATER BY-PASS, NO.3
16208-0L010

1KDFTV..KUN51..IND

 1
16281 - HOSE, WATER BY-PASS, NO.4
16281-0L010

1KDFTV..KUN51..IND

 1
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV..KUN51..IND

 2
16281A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.4)
90467-19022

1KDFTV..KUN51..IND

 2
16282 - HOSE, WATER BY-PASS, NO.5
16282-0L010

1KDFTV..KUN51..IND

 1
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90466-T0010

1KDFTV..KUN51..IND

 2
16282A - CLAMP OR CLIP(FOR WATER BY-PASS HOSE NO.5)
90466-T0010

1KDFTV..KUN51..IND

 2
16331 - OUTLET, WATER
16304-0L010

1KDFTV..KUN51..IND

 1
16331A - THERMOSTAT
90916-03118

1KDFTV,2KDFTV..KUN50,61..5F;1KDFTV,2KDFTV..KUN51,60..SUVW,THSUV

*WAX 82-95

 1
Common parts
90105-T0053
90105-T0066
90105-T0119
90119-T0067
90119-T0134
90178-T0004
90405-T0002
90464-00574
Linked diagrams
1105
8716

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV

Click highlighted areas on diagram

diagram 16261 16261A 16261A 16264 16264A 16264A 16361 16400 16400F 16400R 16400S 16407A 16417 16418 16453 16454 16455 16470 16470M 16471 16571 16571A 16571A 16572 16572A 16572A 16711 90119T0254 90119T0254 90119T0347 9017906293
Part # Description Qty Price
Common parts
90119-T0254
90119-T0347
90179-06293

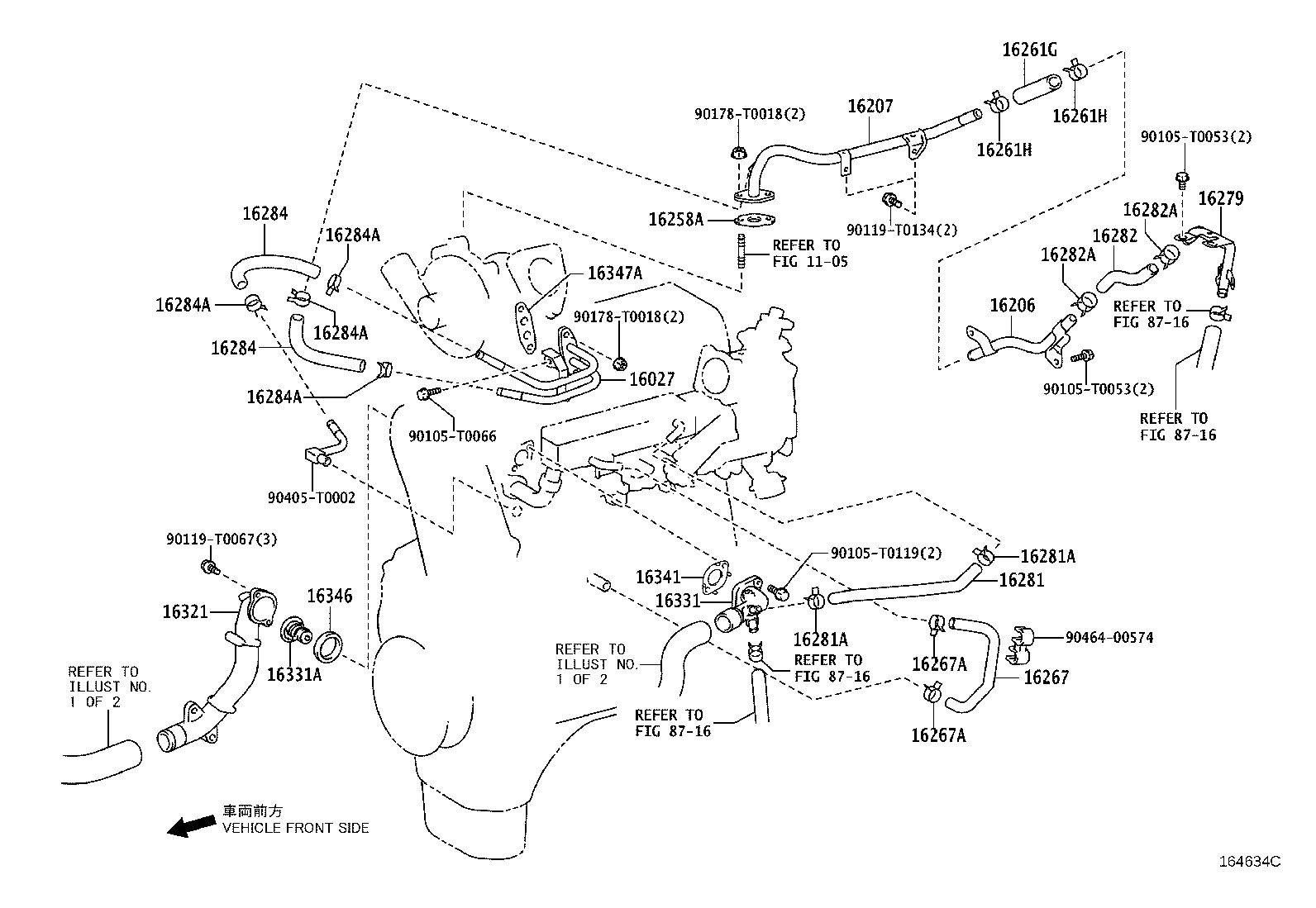

ILLUST NO. 2 OF 2(1110- )1KDFTV..KUN51..SUVW..5F,5FC..DCR..IND,LA ; (1408- )1KDFTV..KUN51..IDS

Click highlighted areas on diagram

EURO 4 REGULATION

diagram 1105 16027 16206 16207 16258A 16261G 16261H 16261H 16267 16267A 16267A 16279 16281 16281A 16281A 16282 16282A 16282A 16284 16284 16284A 16284A 16284A 16284A 16321 16331 16331A 16341 16346 16347A 8716 8716 8716 8716 90105T0053 90105T0053 90105T0066 90105T0119 90119T0067 90119T0134 90178T0018 90178T0018 90405T0002 9046400574
Part # Description Qty Price
Common parts
90105-T0053
90105-T0066
90105-T0119
90119-T0067
90119-T0134
90178-T0018
90405-T0002
90464-00574
Linked diagrams
1105
8716
