KUN51L-NKPSYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 4 OF 4(0501- )

Click highlighted areas on diagram

O-RING

diagram 9006814022 9006814023 9006814024 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90099-14119
90099-14120
90099-14121

ILLUST NO. 2 OF 4(0509-0810)KUN51,61..LA

Click highlighted areas on diagram

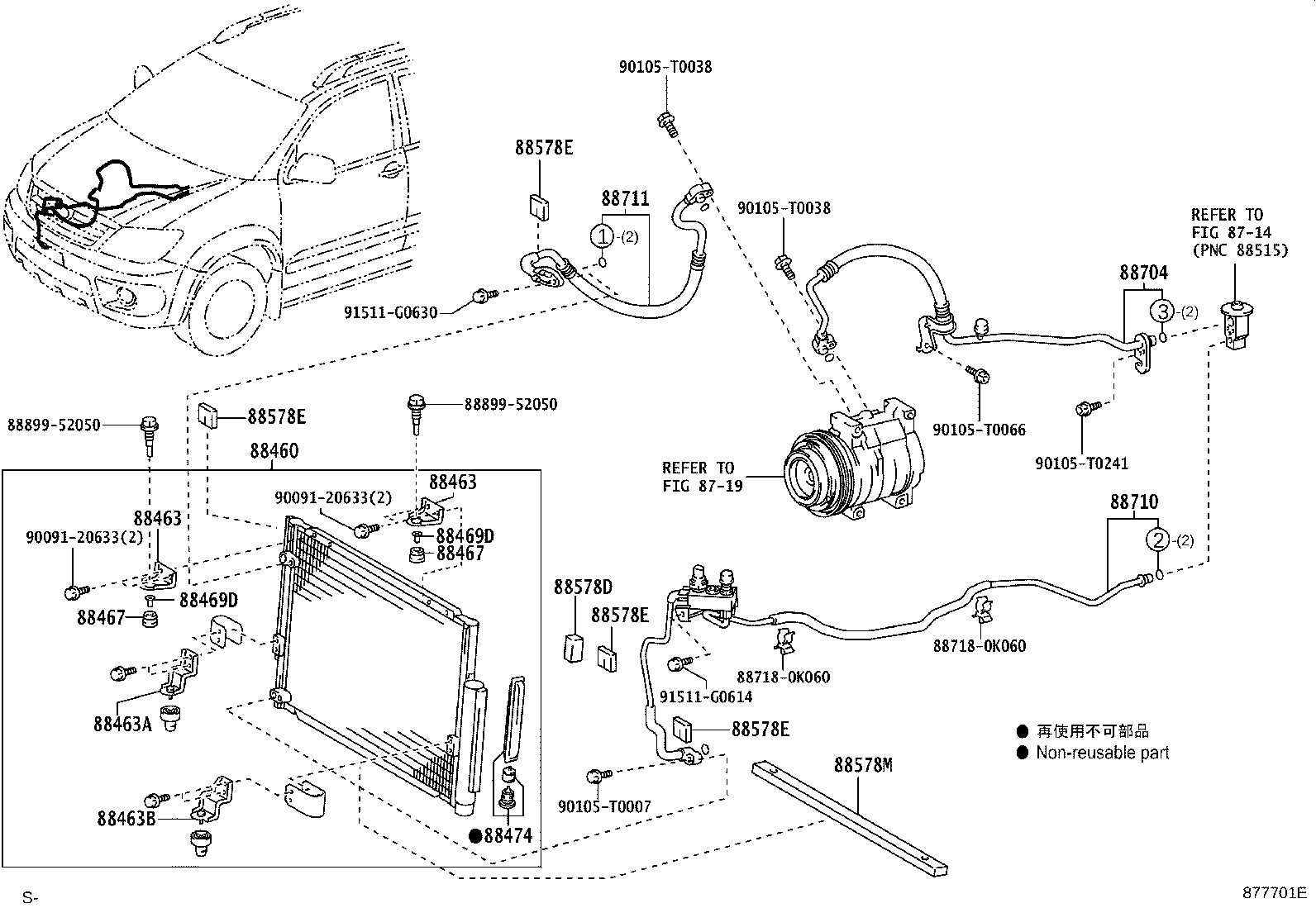

FRONT---SINGLE AIR CONDITIONER

diagram 8714 8719 88460 88463 88463 88463A 88463B 88467 88467 88469D 88469D 88474 88578D 88578E 88578E 88578E 88578E 88578M 88704 88710 88711 887180K060 887180K060 8889952050 8889952050 9009120633 9009120633 90105T0007 90105T0038 90105T0038 90105T0066 90105T0241 91511G0614 91511G0630
Part # Description Qty Price
88460 - CONDENSER ASSY, COOLER
88460-0K150

KUN51,61..LA

 1
88463A - BRACKET, COOLER CONDENSER, NO.2
88463-0K470

KUN51,61,TGN61..LA

 1
88463B - BRACKET, COOLER CONDENSER, NO.3
88463-0K460

KUN51,61,TGN61..LA

 1
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

KUN51,61..LA

 2
88467-12180

TGN51,61..IDSUV..(IDN,PHL);GGN50,KUN51,61,TGN61..IND,LA

 2
88467 - CUSHION, COOLER CONDENSER, NO.1
88467-12180

KUN51,61..LA

 2
88467-12180

TGN51,61..IDSUV..(IDN,PHL);GGN50,KUN51,61,TGN61..IND,LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN51,61,TGN61..LA

 2
88469D - COLLAR, CONDENSER BRACKET, NO.1
88469-52010

KUN51,61,TGN61..LA

 2
88474 - DRYER, COOLER
88474-17010

TGN61..IDN,LA,PHL;GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN51,6#,TGN51..ANCOM,GEN,IDN,IND,LA,MA,PHL,TH,VN

 1
88474-17010

TGN51..IDN,MA;TGN61..IDSUV..IDN;KUN51..(SUVW,THSUV)..(GEN,LA,PHL,TH);GGN60,KUN60,TGN61..SUVW..(ANCOM,IDN,PHL);GGN50,KUN50,61,TGN61..(5F,5FC)..(ANCOM,GEN,LA,MA)

 1
88578D - PACKING, COOLER PIPE, NO.1
88578-0K230

KUN51,61,TGN61..LA

 1
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN51,61,TGN61..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN51,61,TGN61..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN51,61,TGN61..LA

 4
88578E - PACKING, COOLER PIPE, NO.2
88578-0K220

KUN51,61,TGN61..LA

 4
88578M - PACKING, COOLING PIPE, NO.3
88578-0K210

KUN51,61..LA

 1
88704 - HOSE SUB-ASSY, SUCTION
88704-0K140

KUN51,61..LA

 1
88710 - TUBE ASSY, AIR CONDITIONER
88710-0K120

KUN51,61,TGN61..LA

 1
88711 - HOSE, COOLER REFRIGERANT DISCHARGE, NO.1
88711-0K100

KUN51,61..LA

 1
Common parts
88718-0K060
88899-52050
90091-20633
90105-T0007
90105-T0038
90105-T0066
90105-T0241
91511-G0614
91511-G0630
Linked diagrams
8714
8719
