KUN51L-NKPSYG (2005)

Toyota Fortuner

Production Sep 2005 - Oct 2008
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 3 OF 3(0501- )ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN

Click highlighted areas on diagram

O-RING

diagram 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90099-14119
90099-14120
90099-14121

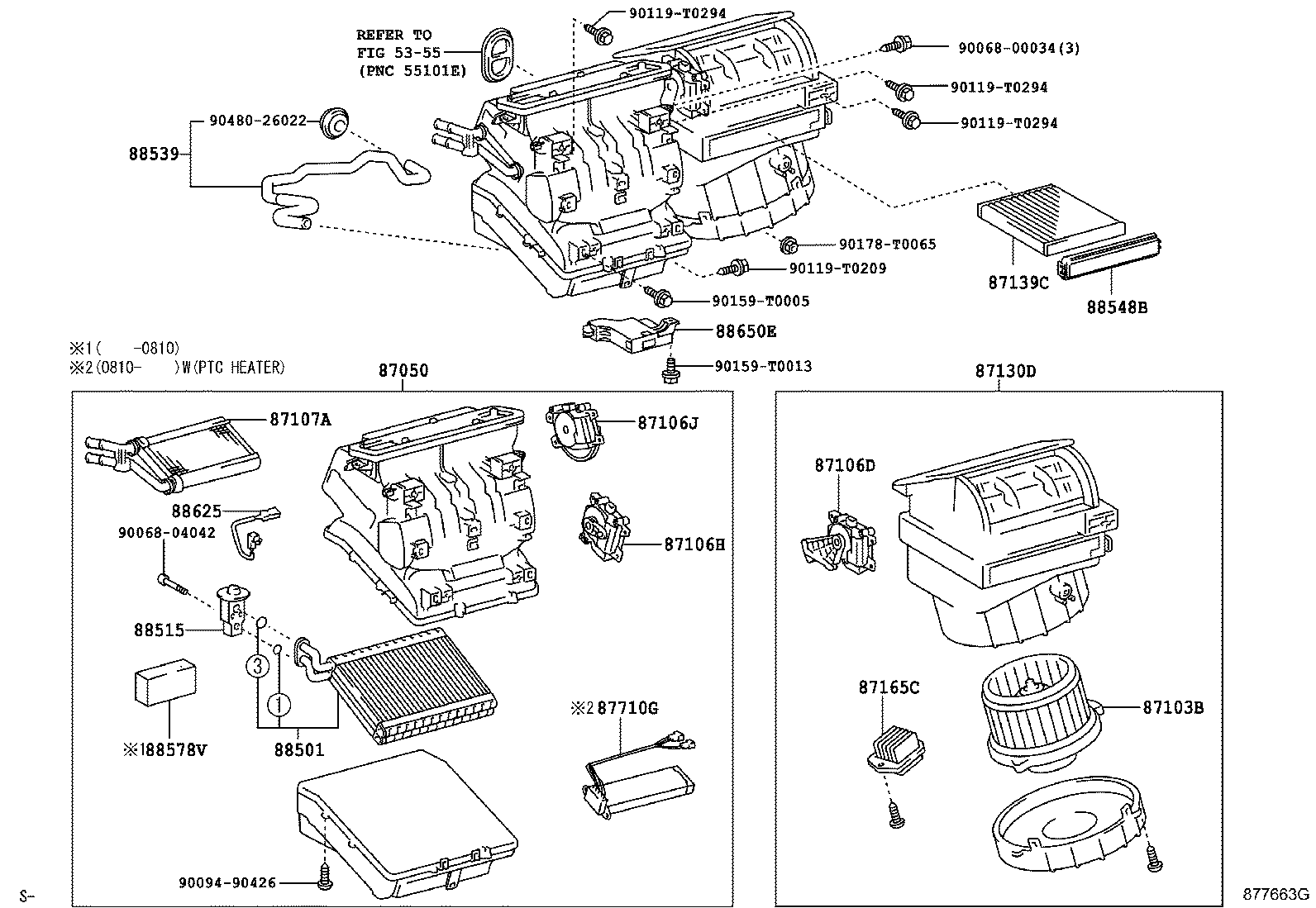

ILLUST NO. 1 OF 3(0509- )KUN51..LA ; (0602- )ANCOM ; (0810-)GGN50..LA

Click highlighted areas on diagram

FRONT---AUTO AIR CONDITIONER

diagram 5355 87050 87103B 87106D 87106H 87106J 87107A 87130D 87139C 87165C 87710G 88501 88515 88539 88548B 88578V 88625 88650E 9006800034 9006804042 9009490426 90119T0209 90119T0294 90119T0294 90119T0294 90159T0005 90159T0013 90178T0065 9048026022
Part # Description Qty Price
87050 - RADIATOR ASSY, AIR CONDITIONER
87050-0K150

KUN51..LA

 1
87050-0K160

KUN51..LA

FRONT HEATER-PTC HEATER W(AUTO AIR CONDITIONER)

 1
87103B - MOTOR SUB-ASSY, BLOWER W/FAN
87103-0K130

KUN51,61,TGN61..LA

 1
87106D - SERVO SUB-ASSY, DAMPER, NO.1
87106-0K030

KUN51..LA

 1
87106H - SERVO SUB-ASSY, DAMPER(FOR AIRMIX)
87106-0K010

KUN51..LA

 1
87106J - SERVO SUB-ASSY, DAMPER(FOR MODE)
87106-0K020

KUN51..LA

 1
87107A - UNIT SUB-ASSY, HEATER RADIATOR
87107-0K030

KUN51,61,TGN61..LA

 1
87130D - BLOWER ASSY
87130-0K130

KUN51..LA

FRONT HEATER-PTC HEATER W(AUTO AIR CONDITIONER)

 1
87130-0K061

KUN51..LA

 1
87130-0K060

KUN51..LA

 1
87130-0K131

KUN51..LA

FRONT HEATER-PTC HEATER W(AUTO AIR CONDITIONER)

 1
87139C - FILTER, CLEAN AIR
87139-0K010

KUN51,61,TGN61..LA

 1
87165C - CONTROL, BLOWER MOTOR
87165-60030

KUN51..LA

 1
87165-71020

KUN51..THSUV;KUN51..IND,LA,PHL;GGN50,KUN60..ANCOM,GEN,IDN,LA,PHL;GGN60,KUN51..(4FC,5FC)..(ANCOM,SA,TH);GGN50,KUN61,TGN51,61..(4FC,5FC)..(IDN,MA,PHL,SA,TH,VN)

 1
88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1
88501-0K110

KUN51,61,TGN61..LA

 1
88515 - VALVE, COOLER EXPANSION
88515-0K150

KUN51..LA

FRONT HEATER-PTC HEATER W(AUTO AIR CONDITIONER)

 1
88515-71010

KUN51..LA

 1
88515-0K150

KUN51..LA

 1
88539 - HOSE, COOLER UNIT DRAIN, NO.1
88539-0K040

KUN51,61,TGN61..LA

 1
88548B - CASE, AIR FILTER
88548-0K040

KUN51,61,TGN61..LA

 1
88578V - PACKING, COOLING UNIT, NO.3
88578-0K380

KUN51,61,TGN61..LA

 1
Common parts
90068-00034
90068-04042
90094-90426
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355

ILLUST NO. 1 OF 3(1107- )LHD

Click highlighted areas on diagram

FRONT(AUTO AIR CONDITIONER)

diagram 5355 87050 87103B 87106H 87106J 87106N 87107A 87114B 87130D 87139C 87165C 87710G 88501 88515 88515F 88539 88548B 88605 88625 88650E 9006800034 9009490426 9009900318 9009900968 90119T0209 90119T0294 90119T0294 90159T0005 90159T0013 90178T0065 9048026022
Part # Description Qty Price
Common parts
90068-00034
90094-90426
90099-00318
90099-00968
90119-T0209
90119-T0294
90159-T0005
90159-T0013
90178-T0065
90480-26022
Linked diagrams
5355

ILLUST NO. 2 OF 3(1107- )

Click highlighted areas on diagram

REAR

diagram 8401 87103D 87138D 8719387101 88501R 88510T 88515B 88539C 88566 88710H 88891S 9009900968 9009904497 9009914119 9009914120 9009914121 9011906830 9011906830 9011906830 9011906830 9011906830
Part # Description Qty Price
Common parts
87193-87101
90099-00968
90099-04497
90099-14119
90099-14120
90099-14121
90119-06830
Linked diagrams
8401

ILLUST NO. 3 OF 3(1107- )

Click highlighted areas on diagram

O-RING FOR FRONT AIR CONDITIONER

diagram 9006814022 9006814023 9006814024 9006814034 9006814035 9006814042 9006814043 9006814044 9009914119 9009914119 9009914120 9009914121
Part # Description Qty Price
Common parts
90068-14022
90068-14023
90068-14024
90068-14034
90068-14035
90068-14042
90068-14043
90068-14044
90099-14119
90099-14120
90099-14121
