KUN51L-NKPSYG (2005)
Toyota Fortuner
ILLUST NO. 1 OF 2(0501- )4FC,5FC
FLOOR PAN
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57213H - BRACKET, BODY MOUNTING, NO.2 RH | ||||
| 57213-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57213-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57214B - BRACKET, BODY MOUNTING, NO.2 LH | ||||
| 57214-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57214-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57411A - MEMBER, FLOOR SIDE, INNER RH | ||||
| 57411-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57411-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57412A - MEMBER, FLOOR SIDE, INNER LH | ||||
| 57412-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57412-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57417 - REINFORCEMENT, FRONT FLOOR UNDER, RH | ||||
| 57417-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57417-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57418 - REINFORCEMENT, FRONT FLOOR UNDER, LH | ||||
| 57418-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57418-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57425 - REINFORCEMENT, FRONT FLOOR, NO.2 RH | ||||
| 57425-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57425-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57426 - REINFORCEMENT, FRONT FLOOR, NO.2 LH | ||||
| 57426-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57426-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57452 - MEMBER, FRONT FLOOR CROSS, LH | ||||
| 57452-0K010 |
TGN51..SUVW;TGN51..IDSUV..GCC;GGN50,60,KUN5#,6#,LAN50,TGN61 |
1 | ||
| 57452-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57465B - BRACKET, FRONT SEAT, INNER | ||||
| 57465-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57465-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57466B - BRACKET, FRONT SEAT, INSIDE LH | ||||
| 57466-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57466-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 57468-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
2 | ||
| 57468B - BRACKET, FRONT SEAT, REAR | ||||
| 57468-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 57468-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
2 | ||
| 57509 - REINFORCEMENT SUB-ASSY, FRONT FLOOR, CENTER | ||||
| 57509-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57509-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57512 - REINFORCEMENT, FRONT FLOOR, RH | ||||
| 57512-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57512-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57513 - REINFORCEMENT, FRONT FLOOR, LH | ||||
| 57513-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57513-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57517A - RETAINER, FRONT FLOOR REINFORCEMENT, REAR | ||||
| 57516-0K010 |
GGN50,KUN51..LHD..(4FC,5FC);GGN60,KUN60,TGN51,61..LHD..(IDSUV,SUVW)..(4FC,5FC) |
1 | ||
| 57535 - BRACE, FRONT FLOOR, RH | ||||
| 57535-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57535-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 57536 - BRACE, FRONT FLOOR, LH | ||||
| 57536-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 57536-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 58102A - REINFORCEMENT SUB-ASSY, FRONT FLOOR | ||||
| 58102-0K010 |
GGN50..5FC;TGN51..IDSUV..4FC..GCC;KUN51..(SUVW,THSUV)..4FC;TGN61..IDSUV..4FC..(GCC,IDN);GGN60,KUN60,TGN51,61..SUVW..(4FC,5FC)..(ANCOM,GCC,IDN,MA,PHL,TH) |
1 | ||
| 58102-0K010 |
GGN60..SUVW..5FC;GGN50,KUN5#,6#,TGN51,61..4FC,5FC |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-0K020 |
GGN50..5FC;TGN51..IDSUV..4FC..GCC;KUN51,TGN51..(SUVW,THSUV)..4FC..(GCC,GEN,IDN,LA,MA,PHL,TH) |
1 | ||
| 58111-0K020 |
GGN50,KUN5#,TGN51..4FC,5FC |
1 | ||
| 58117A - REINFORCEMENT, FRONT FLOOR SIDE, RH | ||||
| 58117-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 58117-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 58118C - REINFORCEMENT, FRONT FLOOR SIDE, LH | ||||
| 58118-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 58118-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 58139A - PLATE, FRONT FLOOR SIDE, REAR RH | ||||
| 58139-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 58139-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 58149A - PLATE, FRONT FLOOR SIDE, REAR LH | ||||
| 58149-0K010 |
TGN51..IDSUV..GCC;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN51,61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,MA,PHL,SA,TH) |
1 | ||
| 58149-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 58387H - PLATE, REAR FLOOR | ||||
| 58387-0K010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
2 | ||
| 58387-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| Common parts | ||||
| 90105-T0063 | ||||
| 90105-T0077 | ||||
| 90115-T0011 | ||||
| 90159-T0014 | ||||
| 90189-T0013 | ||||
| 90467-T0001 | ||||
| Linked diagrams | ||||
| 5752 | ||||

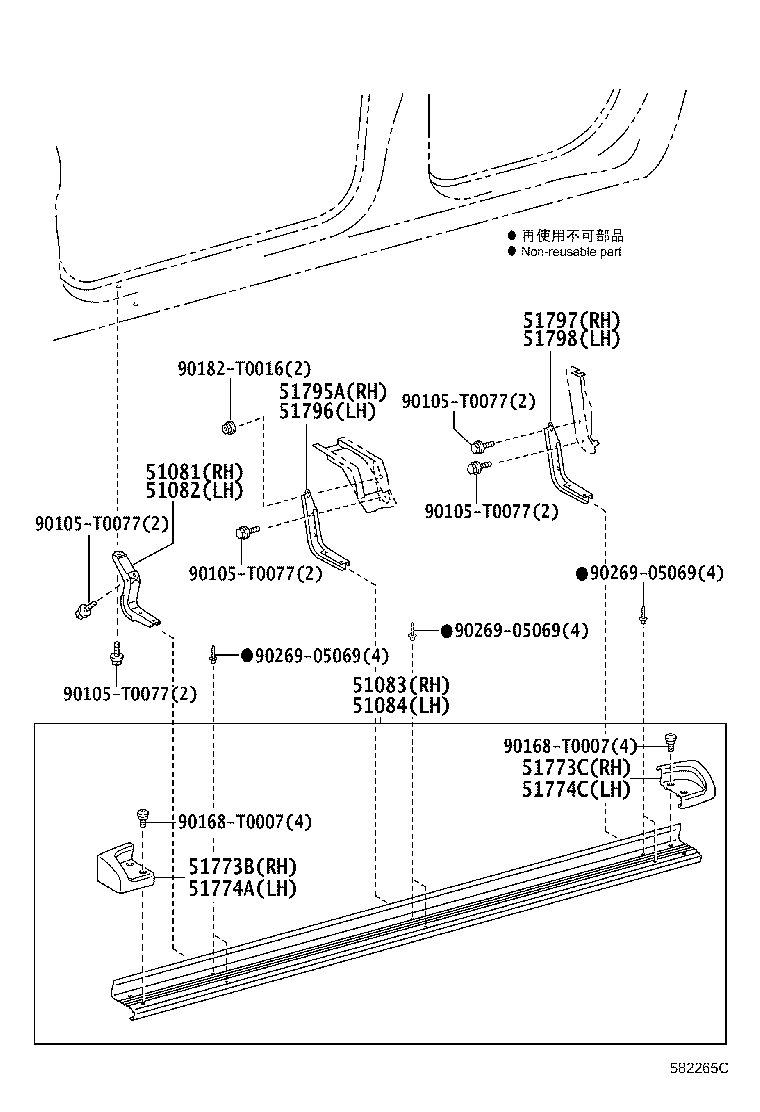

ILLUST NO. 2 OF 2(0501-1009)GGN50,KUN51..LA ; (0501- )KUN61,TGN61 ; (0501- )GGN50,60,KUN5#,60,
SIDE STEP
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 51081 - STAY SUB-ASSY, SIDE STEP, NO.1 RH | ||||
| 51081-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51..SR..(LA,SA) |
1 | ||
| 51081-0K020 |
GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51..SR;GGN50,KUN50..RHD..(4FC,5FC);GGN50,TGN61..SR..(ANCOM,GCC,GEN,IDN,LA,PHL) |
1 | ||
| 51082 - STAY SUB-ASSY, SIDE STEP, NO.1 LH | ||||
| 51082-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51..SR..(LA,SA) |
1 | ||
| 51082-0K020 |
GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51..SR;GGN50,KUN50..RHD..(4FC,5FC);GGN50,TGN61..SR..(ANCOM,GCC,GEN,IDN,LA,PHL) |
1 | ||
| 51083 - STEP SUB-ASSY, RH | ||||
| 51083-0K060 |
KUN51..LA |
1 | ||
| 51084 - STEP SUB-ASSY, LH | ||||
| 51084-0K060 |
KUN51..LA |
1 | ||
| 51773B - COVER, SIDE DOOR STEP PLATE, FRONT RH | ||||
| 51773-0K040 |
KUN51..LA |
1 | ||
| 51773C - COVER, STEP PLATE, RH | ||||
| 51774-0K040 |
KUN51..LA NO PAINT REQ. |
1 | ||
| 51774A - COVER, SIDE DOOR STEP PLATE, FRONT LH | ||||
| 51774-0K040 |
KUN51..LA |
1 | ||
| 51774C - COVER, STEP PLATE, LH | ||||
| 51773-0K040 |
KUN51..LA NO PAINT REQ. |
1 | ||
| 51795A - BRACKET, SIDE STEP, NO.2 RH | ||||
| 51795-0K020 |
GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51..SR;GGN50,KUN50..RHD..(4FC,5FC);GGN50,TGN61..SR..(ANCOM,GCC,GEN,IDN,LA,PHL) |
1 | ||
| 51795-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51..SR..(LA,SA) |
1 | ||
| 51796 - BRACKET, SIDE STEP, NO.2 LH | ||||
| 51796-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51..SR..(LA,SA) |
1 | ||
| 51796-0K020 |
GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51..SR;GGN50,KUN50..RHD..(4FC,5FC);GGN50,TGN61..SR..(ANCOM,GCC,GEN,IDN,LA,PHL) |
1 | ||
| 51797 - BRACKET, SIDE STEP, NO.3 RH | ||||
| 51797-0K040 |
GGN50,60,KUN51,61,LAN50,TGN51..SR..(LA,SA) |
1 | ||
| 51797-0K040 |
GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51..SR;GGN50,KUN50..RHD..(4FC,5FC);GGN50,TGN61..SR..(ANCOM,GCC,GEN,IDN,LA,PHL) |
1 | ||
| 51798 - BRACKET, SIDE STEP, NO.3 LH | ||||
| 51798-0K040 |
GGN50,60,KUN51,61,LAN50,TGN51..SR..(LA,SA) |
1 | ||
| 51798-0K040 |
GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51..SR;GGN50,KUN50..RHD..(4FC,5FC);GGN50,TGN61..SR..(ANCOM,GCC,GEN,IDN,LA,PHL) |
1 | ||
| Common parts | ||||
| 90105-T0077 | ||||
| 90168-T0007 | ||||
| 90182-T0016 | ||||
| 90269-05069 | ||||
ILLUST NO. 1 OF 2(1107- )
FRONT FLOOR PANEL
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0063 | ||||
| 90105-T0077 | ||||
| 90115-T0011 | ||||
| 90159-T0014 | ||||
| 90189-T0013 | ||||
| 90467-0707122 | ||||
| 90467-T0001 | ||||
| 90467-T0009 | ||||
| 90467-T0018 | ||||
| 90467-T0026 | ||||
| 90467-T0035 | ||||
| Linked diagrams | ||||
| 5752 | ||||
