KUN51L-NKPSYG (2005)
Toyota Fortuner

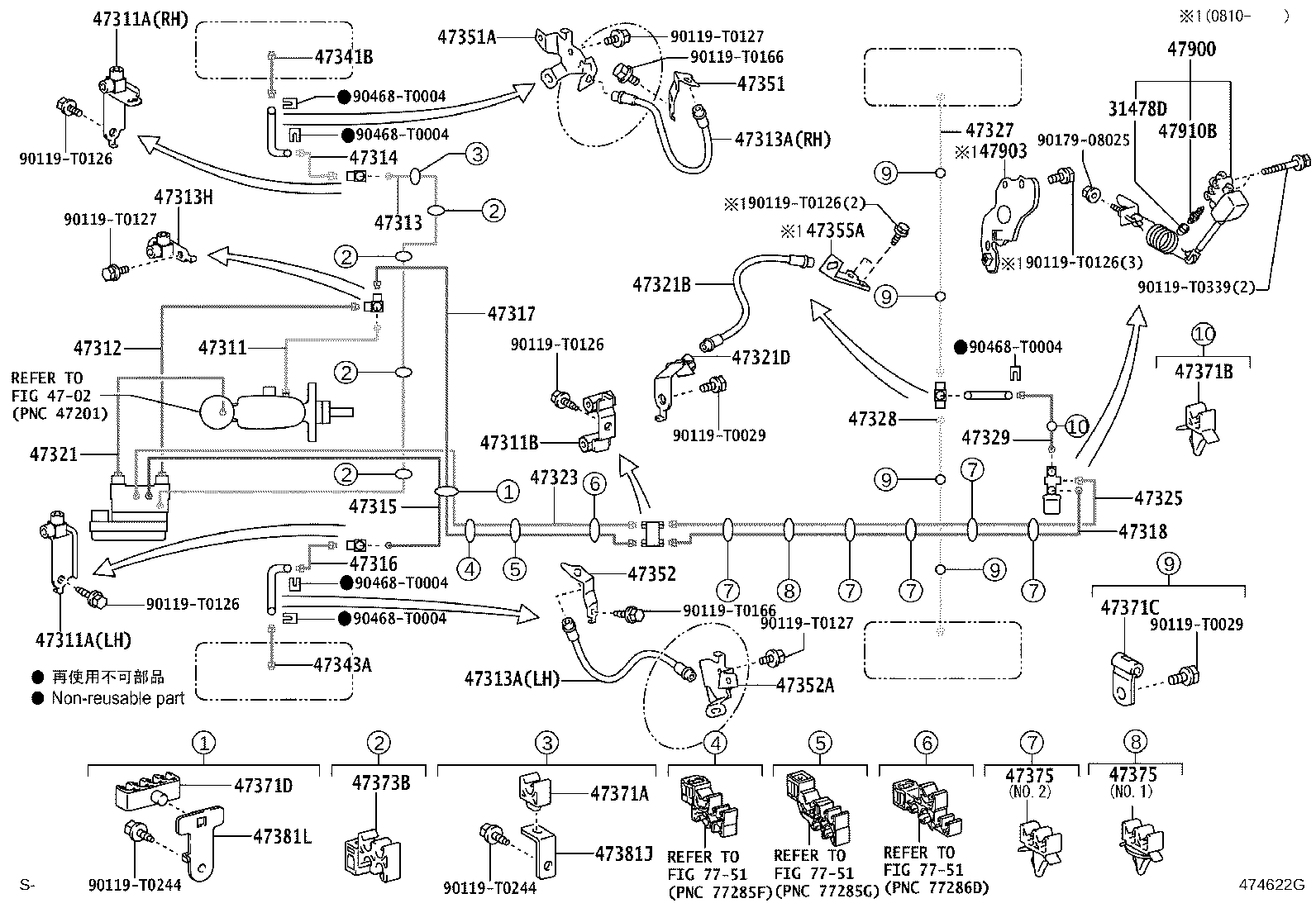

ILLUST NO. 1 OF 2(0509- )GGN50,KUN51,LAN50,TGN51..LHD..LA,SA ;(0910- )TGN61..LA
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-30010 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K040 |
KUN51,61,LAN50,TGN51,61..LHD..(LA,SA) |
1 | ||
| 47311-0K041 |
KUN51,61,LAN50,TGN51,61..LHD..(LA,SA) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR RH |
1 | ||
| 90412-10252 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR LH |
1 | ||
| 90412-10252 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) LH |
1 | ||
| 90412-10251 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) RH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR RH |
1 | ||
| 90412-10252 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR LH |
1 | ||
| 90412-10252 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) LH |
1 | ||
| 90412-10251 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) RH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90412-10253 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0K040 |
KUN51..LHD..(LA,SA) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K040 |
TGN51,61..PHL,VN;GGN50,KUN51,60..LHD..(GCC,GEN,LA,PHL,SA,VN) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
2 | ||
| 90080-94029 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
2 | ||
| 90080-94029 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10312 |
GGN50,KUN51,60..LHD;GGN60,TGN51,61..ANCOM,PHL,VN |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K030 |
GGN50..GCC,GEN,LA;KUN51,6#,LAN50,TGN51,61;GGN50,60,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47314-0K030 |
TGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F) |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K040 |
TGN51,61..PHL,VN;GGN50,KUN51,60..LHD..(GCC,GEN,LA,PHL,SA,VN) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K030 |
TGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F) |
1 | ||
| 47316-0K030 |
GGN50..GCC,GEN,LA;KUN51,6#,LAN50,TGN51,61;GGN50,60,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0K030 |
KUN51,61,LAN50,TGN51,61..LHD..(LA,SA) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0K080 |
KUN51,61,TGN61..LA |
1 | ||
| 47318-0K080 |
GGN50,KUN5#,6#,TGN51,61..IND,LA,MA,VN |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0K040 |
KUN51..LHD..(LA,SA) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2012 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 90947-T2012 |
TGN51;KUN51,61,LAN50..5F;KUN51..4FC..(GEN,LA,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10310 |
TGN51;KUN51,61,LAN50..5F;KUN51..4FC..(GEN,LA,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 90413-10310 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K040 |
TGN51,61..PHL,VN;GGN50,KUN51,60..LHD..(GCC,GEN,LA,PHL,SA,VN) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K100 |
KUN51,61,TGN61..LA |
1 | ||
| 47325-0K100 |
GGN50,KUN5#,6#,TGN51,61..IND,LA,MA,VN |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K060 |
KUN51,61,LAN50..5F;TGN51..GCC,IDN,SA,VN;KUN51..4FC..(GEN,LA,PHL);GGN50,KUN60,TGN61..GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47327-0K060 |
TGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F) |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K060 |
KUN51,61,LAN50..5F;TGN51..GCC,IDN,SA,VN;KUN51..4FC..(GEN,LA,PHL);GGN50,KUN60,TGN61..GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47328-0K060 |
TGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F) |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-0K060 |
GGN50,KUN5#,6#,TGN51,61..IND,LA,MA,VN |
1 | ||
| 47329-0K060 |
KUN51,61,TGN61..LA |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K010 |
GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA |
1 | ||
| 47341-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K010 |
GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA |
1 | ||
| 47343-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-0K010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 47351-0K010 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47353-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47353-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-0K030 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47352-0K030 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47354-0K020 |
GGN50,60,KUN51,61,LAN50,TGN51,61..LA,SA |
1 | ||
| 47354-0K020 |
GGN50..LHD;GGN60..SUVW..5FC;KUN51,6#,LAN50,TGN51,61;GGN50,KUN50..RHD..(4FC,5FC) |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-0K020 |
TGN51;KUN51,61,LAN50..5F;KUN5#..4FC..(GEN,LA,MA,PHL);GGN50,60,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
GGN60..ANCOM;GGN50,KUN51,6#,LAN50,TGN51,61..LHD |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-T1005 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
TGN51..GCC,IDN,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN61,LAN50..GCC,GEN,LA,SA;GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F) |
4 | ||
| 90461-T0001 |
GGN50..GCC,GEN,LA;GGN50,60..5FC..SA;KUN51,6#,LAN50,TGN51,61..GCC,GEN,IDN,IND,LA,PHL,SA,TH,VN |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1010 |
GGN50,60,KUN51,6#,LAN50,TGN51,61..LHD |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1012 |
GGN60..ANCOM;GGN50,KUN51,6#,LAN50,TGN51,61..LHD |
4 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN51,60,TGN51,61 NO.1 & NO.2 |
6 | ||
| 90469-T0006 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN NO.1 |
1 | ||
| 90949-T1004 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN NO.2 |
5 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN51,60,TGN51,61 NO.1 & NO.2 |
6 | ||
| 90469-T0006 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN NO.1 |
1 | ||
| 90949-T1004 |
GGN50,60,KUN5#,6#,TGN51,61..ANCOM,IND,LA,MA,VN NO.2 |
5 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
GGN60..ANCOM;GGN50,KUN51,6#,LAN50,TGN51,61..LHD |
1 | ||
| 47381L - BRACKET, BRAKE TUBE CLAMP, NO.3 | ||||
| 90949-T2002 |
GGN50,60,KUN51,6#,LAN50,TGN51,61..LHD |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-0K050 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| 47900-0K050 |
TGN51;KUN51,61,LAN50..5F;KUN51..4FC..(GEN,LA,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47903 - BRACKET SUB-ASSY, LOADSENSING VALVE | ||||
| 47903-0K020 |
TGN51;KUN51,61,LAN50..5F;KUN51..4FC..(GEN,LA,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
TGN51;KUN51,61,LAN50..5F;KUN51..4FC..(GEN,LA,PHL);GGN60,KUN50..(4FC,5FC)..(ANCOM,MA);GGN50,KUN60,TGN61..ANCOM,GCC,GEN,IDN,LA,PHL,TH,VN |
1 | ||
| 47547-27030 |
TGN51..GCC,IDN,MA,SA,TH;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR..(GCC,GEN,IDN,LA,PHL,SA,TH) |
1 | ||
| Common parts | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0244 | ||||
| 90119-T0339 | ||||
| 90179-08025 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
