KUN51L-NKPSYG (2005)
Toyota Fortuner
ILLUST NO. 2 OF 2(0501- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 04412 - GASKET KIT, REAR DIFFERENTIAL CARRIER | ||||
| 04412-0K310 |
LAN50,TGN51..SA;GGN50,60,KUN51,TGN61..ANCOM,LA |
1 | ||
| 41110A - BOLT, NO.1 (FOR REAR DIFFERENTIAL CARRIER SET) | ||||
| 90116-08233 |
GGN50,60,KUN5#,6#,TGN51,61 S=14 & 14,L=42 |
2 | ||
| 90116-08329 |
TGN51;GGN50,60,KUN5#,6#,TGN61..ANCOM,IDN,LA,MA,PHL,TH S=17 & 12,L=37 |
8 | ||
| 42110 - HOUSING ASSY, REAR AXLE | ||||
| 42110-0K140 |
GGN50,60,KUN51..ANCOM,LA |
1 | ||
| 42110A - PLUG (FOR REAR AXLE HOUSING FILLER) | ||||
| 90341-18006 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42110B - GASKET (FOR REAR AXLE HOUSING FILLER PLUG) | ||||
| 12157-10010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42110C - PLUG, BREATHER (FOR REAR AXLE HOUSING) | ||||
| 90930-03031 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42110D - GASKET (FOR REAR AXLE HOUSING DRAIN PLUG) | ||||
| 12157-10010 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42110E - PLUG (FOR REAR AXLE HOUSING DRAIN) | ||||
| 90341-18057 |
TGN51;TGN61..IDSUV..(GCC,IDN);GGN50,KUN50,61,LAN50..5F,5FC;GGN60,TGN61..(5F,5FC)..(ANCOM,LA);GGN60,KUN51,60,TGN61..(SUVW,THSUV)..(4FC,5F)..SR |
1 | ||
| 42181 - GASKET, REAR DIFFERENTIAL CARRIER | ||||
| 42181-60020 |
LAN50,TGN51;TGN61..IDSUV..(GCC,IDN);KUN51..(SUVW,THSUV)..(GEN,LA,PHL,TH);GGN60,KUN60,TGN61..SUVW..(ANCOM,GCC,IDN,PHL,TH);GGN50,KUN50,61,TGN61..(5F,5FC)..(ANCOM,GEN,LA,MA) |
1 | ||
| Common parts | ||||
| 90170-08042 | ||||
| 90201-08002 | ||||

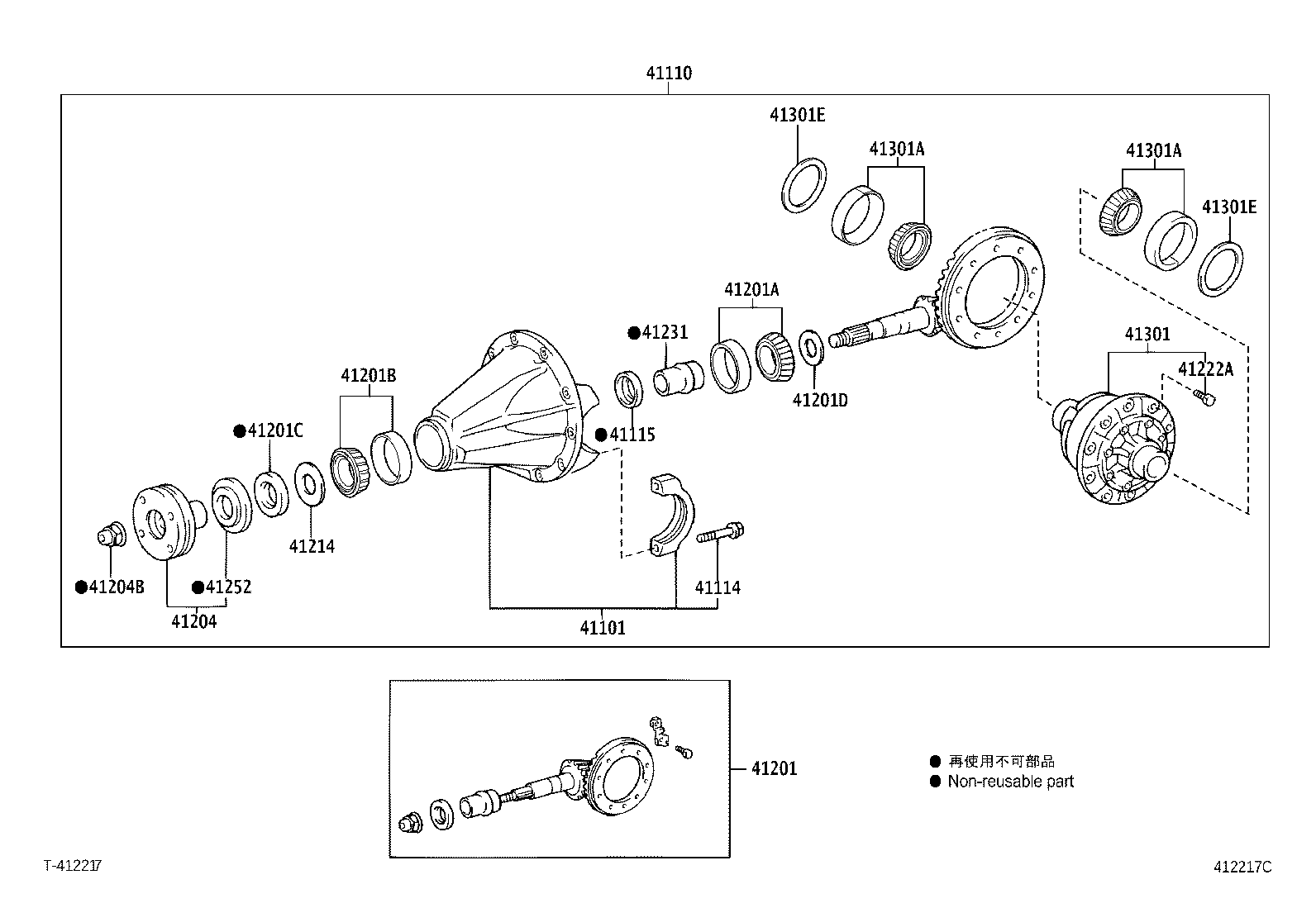

ILLUST NO. 1 OF 2(0509- )GGN50,60,KUN51..ANCOM,LA ; (0509-)LAN50,TGN51,61..5F..LA,SA
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 41110 - CARRIER ASSY, DIFFERENTIAL, REAR | ||||
| 41110-0K120 |
KUN51..4FC..LA *FGR=43:11=3.909 |
1 | ||
| 41110-0K420 |
KUN51..4FC..LA *FGR=43:11=3.909 |
1 | ||
| 41201 - FINAL GEAR KIT, DIFFERENTIAL, REAR | ||||
| 41201-09650 |
KUN51..4FC..LA *FGR=43:11=3.909 |
1 | ||
| 41201-09A70 |
KUN51..4FC..LA *FGR=43:11=3.909 |
1 | ||
| 41201C - SEAL, OIL (FOR REAR DIFFERENTIAL CARRIER) | ||||
| 90080-31109 |
LAN50,TGN51..SA;GGN50,60,KUN51,TGN61..ANCOM,LA |
1 | ||
| 41201D - WASHER, PLATE (FOR REAR DIFFERENTIAL DRIVE PINION) | ||||
| 90080-56136 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.47 |
1 | ||
| 90080-56138 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.42 |
1 | ||
| 90080-56140 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.37 |
1 | ||
| 90080-56139 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.40 |
1 | ||
| 90080-56142 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.32 |
1 | ||
| 90080-56145 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.24 |
1 | ||
| 90080-56141 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.35 |
1 | ||
| 90080-56149 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.14 |
1 | ||
| 90080-56137 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.45 |
1 | ||
| 90080-56144 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.27 |
1 | ||
| 90080-56146 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.22 |
1 | ||
| 90080-56143 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.30 |
1 | ||
| 90080-56150 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.12 |
1 | ||
| 90080-56151 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.09 |
1 | ||
| 90080-56147 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.19 |
1 | ||
| 90080-56148 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.17 |
1 | ||
| 90080-56153 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.04 |
1 | ||
| 90080-56156 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.97 |
1 | ||
| 90080-56154 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.02 |
1 | ||
| 90080-56164 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.76 |
1 | ||
| 90080-56161 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.84 |
1 | ||
| 90080-56238 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.69 |
1 | ||
| 90080-56162 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.81 |
1 | ||
| 90080-56157 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.94 |
1 | ||
| 90080-56155 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.99 |
1 | ||
| 90080-56160 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.86 |
1 | ||
| 90080-56152 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=1.07 |
1 | ||
| 90080-56166 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.71 |
1 | ||
| 90080-56163 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.79 |
1 | ||
| 90080-56165 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.74 |
1 | ||
| 90080-56158 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.91 |
1 | ||
| 90080-56159 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=0.89 |
1 | ||
| 41204 - FLANGE SUB-ASSY, REAR DRIVE PINION COMPANION, REAR | ||||
| 41204-0K010 |
KUN5#,60;TGN51..5F |
1 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90080-56169 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.24 |
2 | ||
| 90080-56176 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.06 |
2 | ||
| 90080-56221 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.92 |
2 | ||
| 90080-56211 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.18 |
2 | ||
| 90080-56174 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.11 |
2 | ||
| 90080-56213 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.12 |
2 | ||
| 90080-56177 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.04 |
2 | ||
| 90080-56212 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.15 |
2 | ||
| 90080-56219 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.97 |
2 | ||
| 90080-56170 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.22 |
2 | ||
| 90080-56173 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.14 |
2 | ||
| 90080-56180 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.96 |
2 | ||
| 90080-56178 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.01 |
2 | ||
| 90080-56184 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.86 |
2 | ||
| 90080-56179 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.99 |
2 | ||
| 90080-56182 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.91 |
2 | ||
| 90080-56192 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.66 |
2 | ||
| 90080-56181 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.94 |
2 | ||
| 90080-56191 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.68 |
2 | ||
| 90080-56186 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.81 |
2 | ||
| 90080-56172 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.17 |
2 | ||
| 90080-56189 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.73 |
2 | ||
| 90080-56175 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.09 |
2 | ||
| 90080-56183 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.89 |
2 | ||
| 90080-56195 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.58 |
2 | ||
| 90080-56190 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.71 |
2 | ||
| 90080-56185 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.84 |
2 | ||
| 90080-56196 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.56 |
2 | ||
| 90080-56198 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.51 |
2 | ||
| 90080-56206 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.30 |
2 | ||
| 90080-56188 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.76 |
2 | ||
| 90080-56187 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.78 |
2 | ||
| 90080-56193 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.63 |
2 | ||
| 90080-56197 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.53 |
2 | ||
| 90080-56203 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.38 |
2 | ||
| 90080-56200 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.45 |
2 | ||
| 90080-56201 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.43 |
2 | ||
| 90080-56205 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.33 |
2 | ||
| 90080-56214 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.10 |
2 | ||
| 90080-56199 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.48 |
2 | ||
| 90080-56209 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.23 |
2 | ||
| 90080-56208 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.25 |
2 | ||
| 90080-56210 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.20 |
2 | ||
| 90080-56218 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.00 |
2 | ||
| 90080-56204 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.35 |
2 | ||
| 90080-56202 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.40 |
2 | ||
| 90080-56168 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.27 |
2 | ||
| 90080-56167 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.29 |
2 | ||
| 90080-56171 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.19 |
2 | ||
| 90080-56207 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.28 |
2 | ||
| 90080-56194 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.61 |
2 | ||
| 90080-56215 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.07 |
2 | ||
| 90080-56227 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.77 |
2 | ||
| 90080-56228 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.74 |
2 | ||
| 90080-56223 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.87 |
2 | ||
| 90080-56230 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.69 |
2 | ||
| 90080-56216 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.05 |
2 | ||
| 90080-56225 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.82 |
2 | ||
| 90080-56217 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.02 |
2 | ||
| 90080-56226 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.79 |
2 | ||
| 90080-56220 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.95 |
2 | ||
| 90080-56236 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.54 |
2 | ||
| 90080-56224 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.84 |
2 | ||
| 90080-56234 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.59 |
2 | ||
| 90080-56235 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.57 |
2 | ||
| 90080-56237 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.51 |
2 | ||
| 90080-56222 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.90 |
2 | ||
| 90080-56231 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.67 |
2 | ||
| 90080-56232 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.64 |
2 | ||
| 90080-56229 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.72 |
2 | ||
| 90080-56233 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.62 |
2 | ||
| 41301E - SHIM(FOR DIFFERENTIAL CASE) | ||||
| 90080-56169 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.24 |
2 | ||
| 90080-56176 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.06 |
2 | ||
| 90080-56221 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.92 |
2 | ||
| 90080-56211 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.18 |
2 | ||
| 90080-56213 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.12 |
2 | ||
| 90080-56174 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.11 |
2 | ||
| 90080-56212 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.15 |
2 | ||
| 90080-56177 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.04 |
2 | ||
| 90080-56219 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.97 |
2 | ||
| 90080-56207 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.28 |
2 | ||
| 90080-56170 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.22 |
2 | ||
| 90080-56173 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.14 |
2 | ||
| 90080-56180 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.96 |
2 | ||
| 90080-56178 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.01 |
2 | ||
| 90080-56184 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.86 |
2 | ||
| 90080-56179 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.99 |
2 | ||
| 90080-56182 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.91 |
2 | ||
| 90080-56192 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.66 |
2 | ||
| 90080-56181 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.94 |
2 | ||
| 90080-56191 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.68 |
2 | ||
| 90080-56186 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.81 |
2 | ||
| 90080-56172 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.17 |
2 | ||
| 90080-56189 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.73 |
2 | ||
| 90080-56175 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.09 |
2 | ||
| 90080-56183 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.89 |
2 | ||
| 90080-56195 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.58 |
2 | ||
| 90080-56190 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.71 |
2 | ||
| 90080-56185 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.84 |
2 | ||
| 90080-56196 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.56 |
2 | ||
| 90080-56198 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.51 |
2 | ||
| 90080-56206 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.30 |
2 | ||
| 90080-56188 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.76 |
2 | ||
| 90080-56187 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.78 |
2 | ||
| 90080-56193 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.63 |
2 | ||
| 90080-56197 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.53 |
2 | ||
| 90080-56203 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.38 |
2 | ||
| 90080-56200 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.45 |
2 | ||
| 90080-56201 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.43 |
2 | ||
| 90080-56205 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.33 |
2 | ||
| 90080-56214 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.10 |
2 | ||
| 90080-56199 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.48 |
2 | ||
| 90080-56209 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.23 |
2 | ||
| 90080-56208 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.25 |
2 | ||
| 90080-56210 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.20 |
2 | ||
| 90080-56218 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.00 |
2 | ||
| 90080-56204 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.35 |
2 | ||
| 90080-56202 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.40 |
2 | ||
| 90080-56168 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.27 |
2 | ||
| 90080-56167 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.29 |
2 | ||
| 90080-56171 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=4.19 |
2 | ||
| 90080-56194 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.61 |
2 | ||
| 90080-56215 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.07 |
2 | ||
| 90080-56227 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.77 |
2 | ||
| 90080-56228 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.74 |
2 | ||
| 90080-56223 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.87 |
2 | ||
| 90080-56230 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.69 |
2 | ||
| 90080-56216 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.05 |
2 | ||
| 90080-56225 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.82 |
2 | ||
| 90080-56217 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=3.02 |
2 | ||
| 90080-56226 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.79 |
2 | ||
| 90080-56220 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.95 |
2 | ||
| 90080-56236 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.54 |
2 | ||
| 90080-56224 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.84 |
2 | ||
| 90080-56234 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.59 |
2 | ||
| 90080-56235 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.57 |
2 | ||
| 90080-56237 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.51 |
2 | ||
| 90080-56222 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.90 |
2 | ||
| 90080-56231 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.67 |
2 | ||
| 90080-56232 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.64 |
2 | ||
| 90080-56229 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.72 |
2 | ||
| 90080-56233 |
KUN51,TGN61..LA;LAN50,TGN51..SA T=2.62 |
2 | ||
ILLUST NO. 1 OF 2(1107- )GGN50,60,KUN51,61..SUVW..ANCOM,CO,LA,SA ; (1310- )KUN60..SA
| Part # | Description | Qty | Price |
|---|
ILLUST NO. 2 OF 2(1107- )
| Part # | Description | Qty | Price |
|---|
Part Price Details
Loading price information...
Part Number:
Price:
