KUN51L-NKPSY (2012)

Toyota Fortuner

Production Aug 2012 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

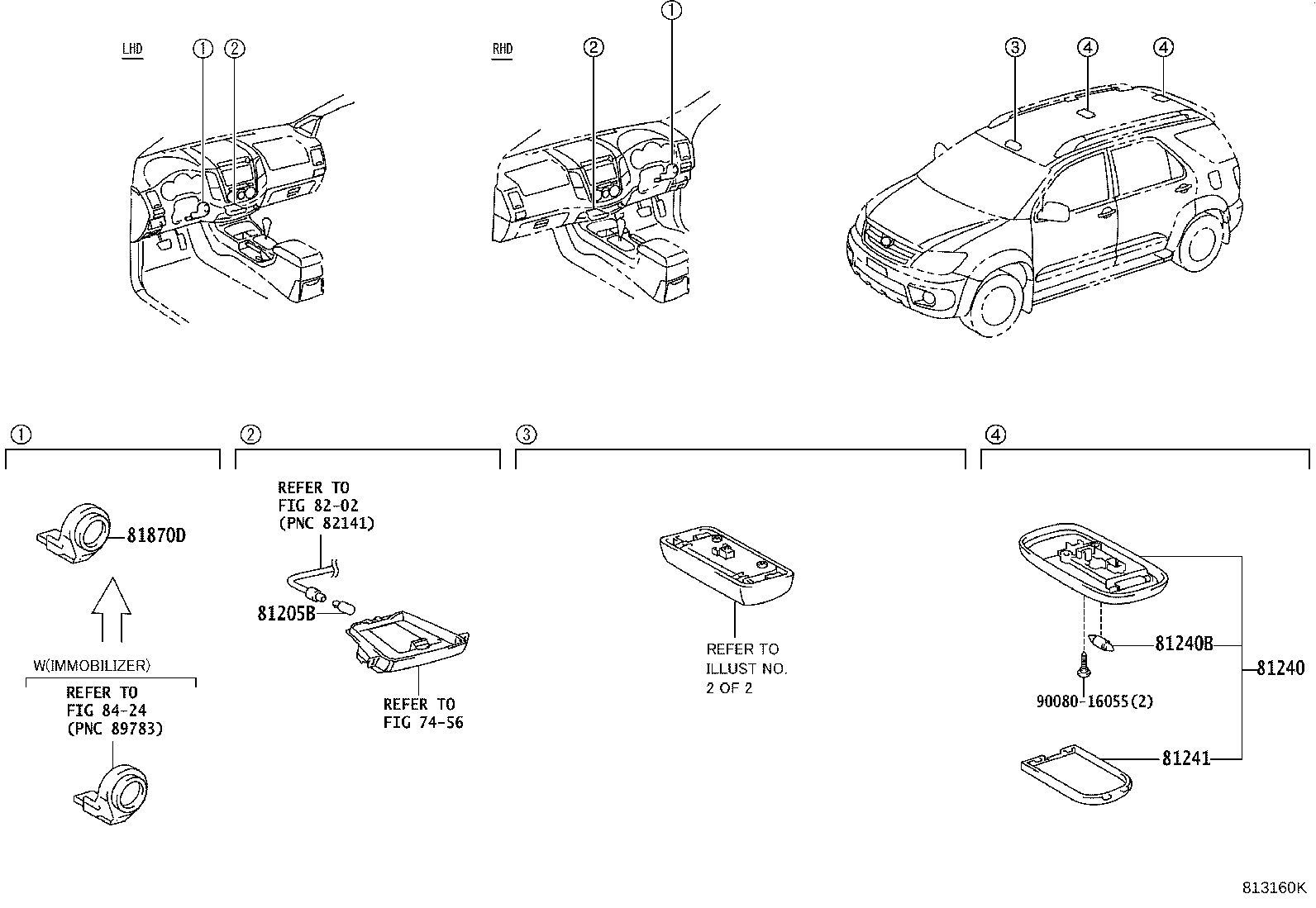

ILLUST NO. 1 OF 2(0501- )

Click highlighted areas on diagram

diagram 7456 81205B 81240 81240B 81241 81870D 8202 8424 9008016055
Part # Description Qty Price
Common parts
90080-16055
Linked diagrams
7456
8202
8424

ILLUST NO. 2 OF 2(0501- )

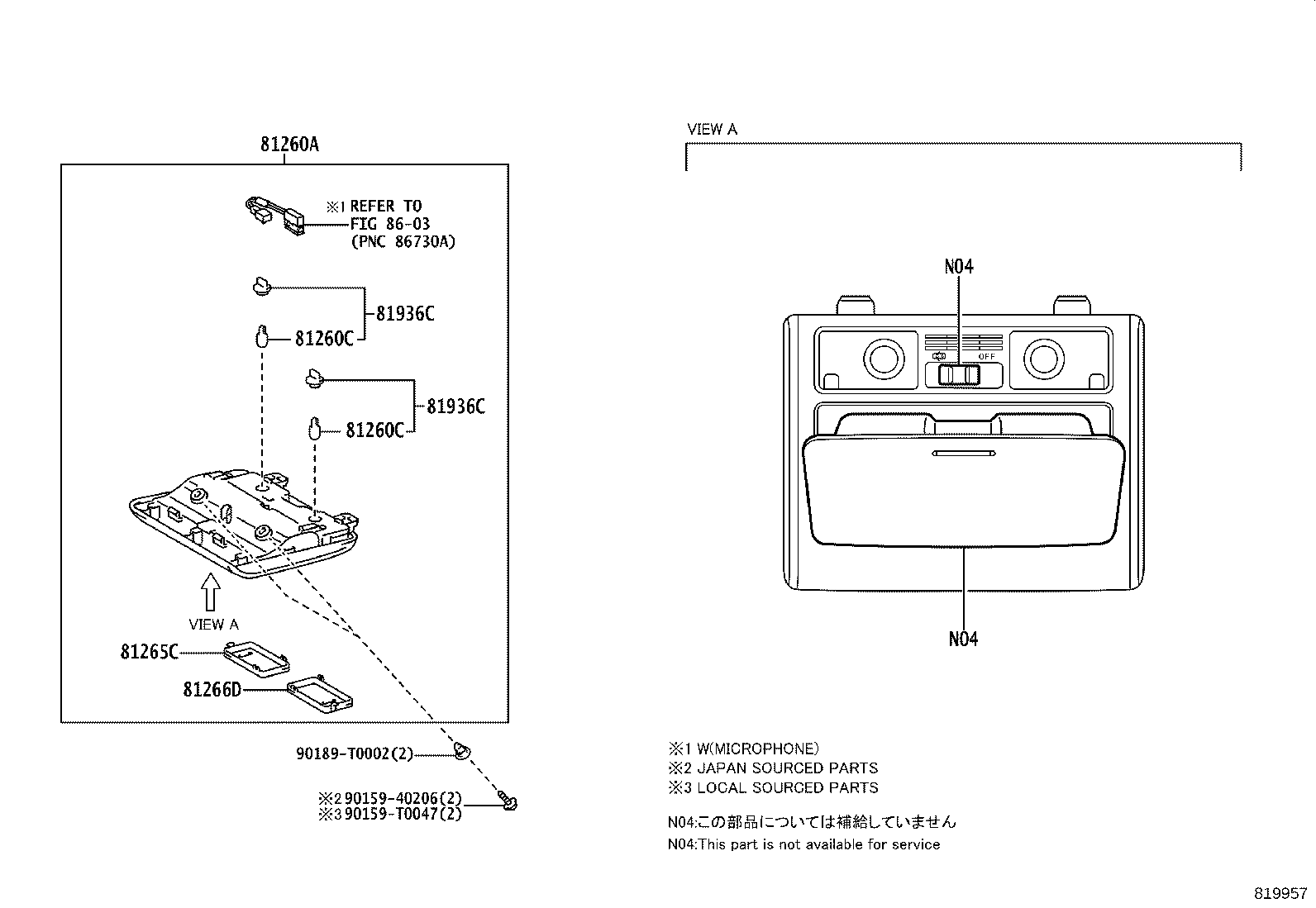

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81265C 81266D 9016440083 9016440083 90189T0002 90189T0002
Part # Description Qty Price
Common parts
90164-40083
90189-T0002

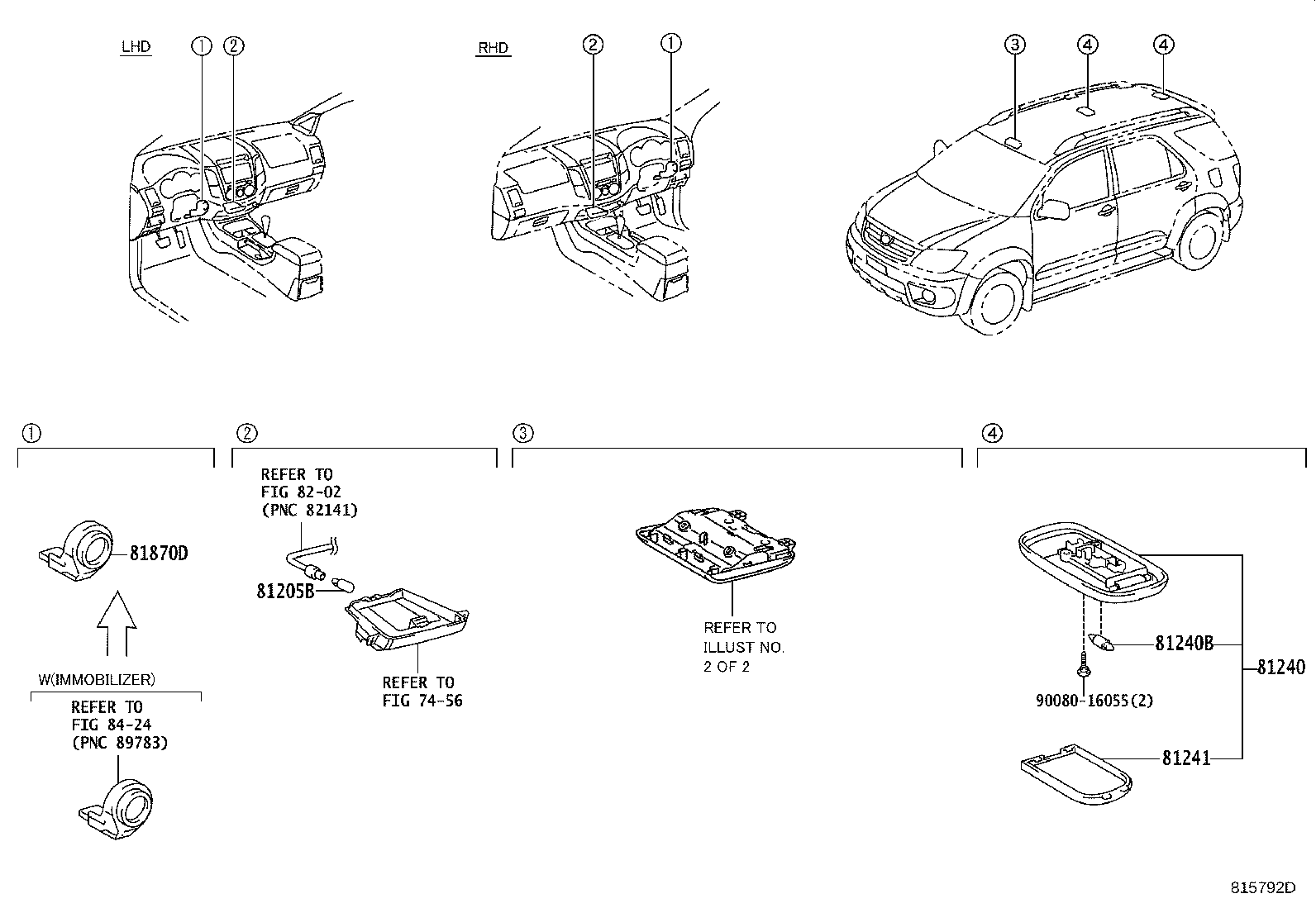

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

diagram 7456 81205B 81240 81240B 81241 81870D 8202 8424 9008016055
Part # Description Qty Price
81205B - BULB, ASH RECEPTACLE LAMP
90981-TB001

GGN50,60,KUN5#,6#,LAN50,TGN51,61

14V 1.4W

 1
81240 - LAMP ASSY, ROOM, NO.1
81240-0K010E0

LAN50..LHD;KUN61..SA,TH;KUN61..5FC..IND;KUN51..(SASUV,SUVW,THSUV)..(4FC,5FC);TGN51..SUVW..(CO,EPT,GCC,GEN,IDN,KZS,PKN);KUN51..(SASUV,SUVW,THSUV)..5F..(CO,GEN,LA,SA,TH);GGN50,60,KUN60,TGN61..(SUVW,THSUV)..(ANCOM,CO,EPT,GCC,GEN,IDN,IND,LA,PHL,SA,TH)

SAND BEIGE,TRIM4#

 2
81240B - BULB, ROOM LAMP, NO.1
90981-14011

LAN50..LHD;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

12V 8W

 2
Common parts
90080-16055
Linked diagrams
7456
8202
8424

ILLUST NO. 2 OF 2(1107- )

Click highlighted areas on diagram

diagram 81260A 81260C 81260C 81265C 81266D 81936C 81936C 8603 9015940206 90159T0047 90189T0002
Part # Description Qty Price
81260A - LAMP ASSY, MAP
81260-0K020E1

KUN51..SUVW..PHL;TGN61..SUVW..(GEN,PHL);KUN60..LHD..SUVW..(GEN,PHL);KUN51..(IDSUV,SUVW)..4FC..GEN;GGN50,TGN61..(IDSUV,THSUV)..(GEN,LA)

AUDIO-WITHOUT(AUDIO) & 6SPEAKER,SAND BEIGE,TRIM4#

 1
81260-0K040E1

TGN51..4FC..(KZS,VN);KUN51..LHD..IDSUV..4FC..(GEN,LA);KUN60,TGN61..LHD..SUVW..(GEN,PHL,VN);KUN51..LHD..(SUVW,THSUV)..4FC..(CO,GEN,PHL);GGN50,KUN51..LHD..(IDSUV,THSUV)..(5F,5FC)..(GEN,LA)

SAND BEIGE,TRIM4#

 1
81260C - BULB(FOR MAP LAMP)
90981-11062

LAN50..LHD;TGN51..4FC..SA;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

12V 8W

 2
81260C - BULB(FOR MAP LAMP)
90981-11062

LAN50..LHD;TGN51..4FC..SA;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

12V 8W

 2
81265C - LENS, MAP LAMP, NO.1
81265-0K020

LAN50..LHD;TGN51..4FC..SA;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

 1
81266D - LENS, MAP LAMP, NO.2
81266-0K020

LAN50..LHD;TGN51..4FC..SA;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

 1
81936C - BULB ASSY
81936-12150

LAN50..LHD;TGN51..4FC..SA;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

 2
81936C - BULB ASSY
81936-12150

LAN50..LHD;TGN51..4FC..SA;GGN50,60,KUN5#,6#,TGN61;TGN51..CO,EPT,GCC,GEN,IDN,KZS,MA,PKN,VN

 2
Common parts
90159-40206
90159-T0047
90189-T0002
Linked diagrams
8603
