KUN51L-NKPSY (2012)

Toyota Fortuner

Production Aug 2012 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )ANCOM,GCC,GEN,IDN,IND,LA,MA,PHL,TH,VN

Click highlighted areas on diagram

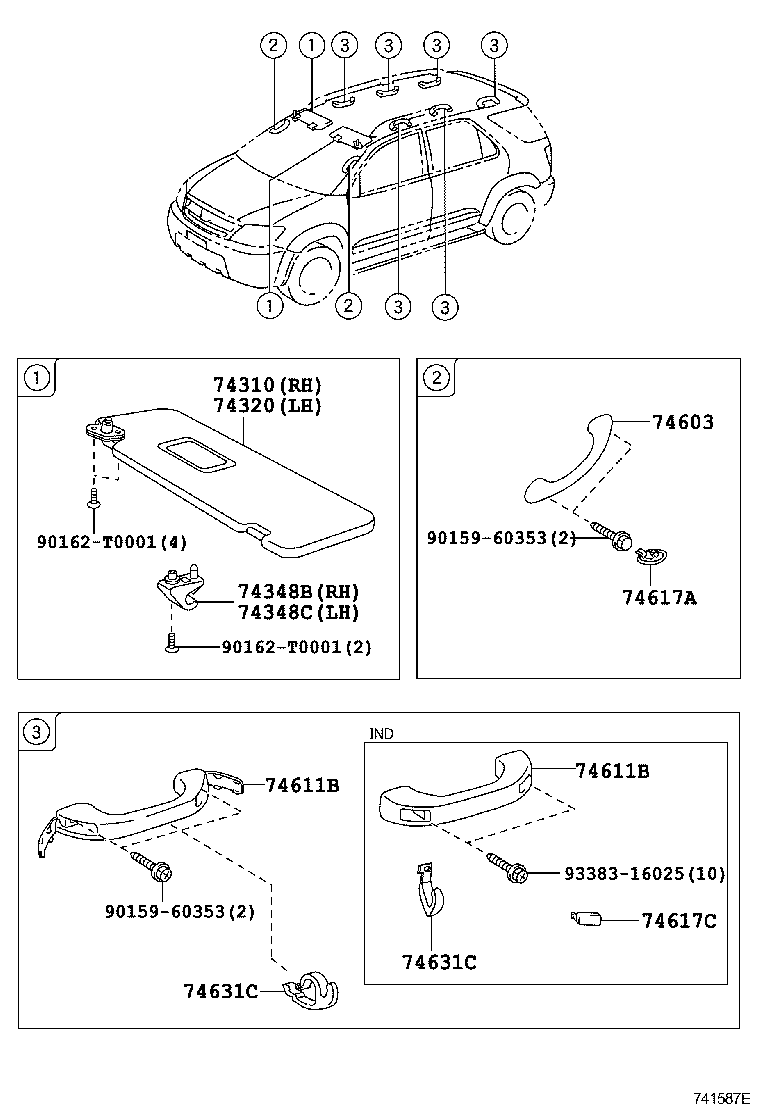

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74611B 74611B 74617A 74617C 74631C 74631C 9015960353 9015960353 90162T0001 90162T0001 9338316025
Part # Description Qty Price
Common parts
90159-60353
90162-T0001
93383-16025

ILLUST NO. 1 OF 2(0501- )LHD

Click highlighted areas on diagram

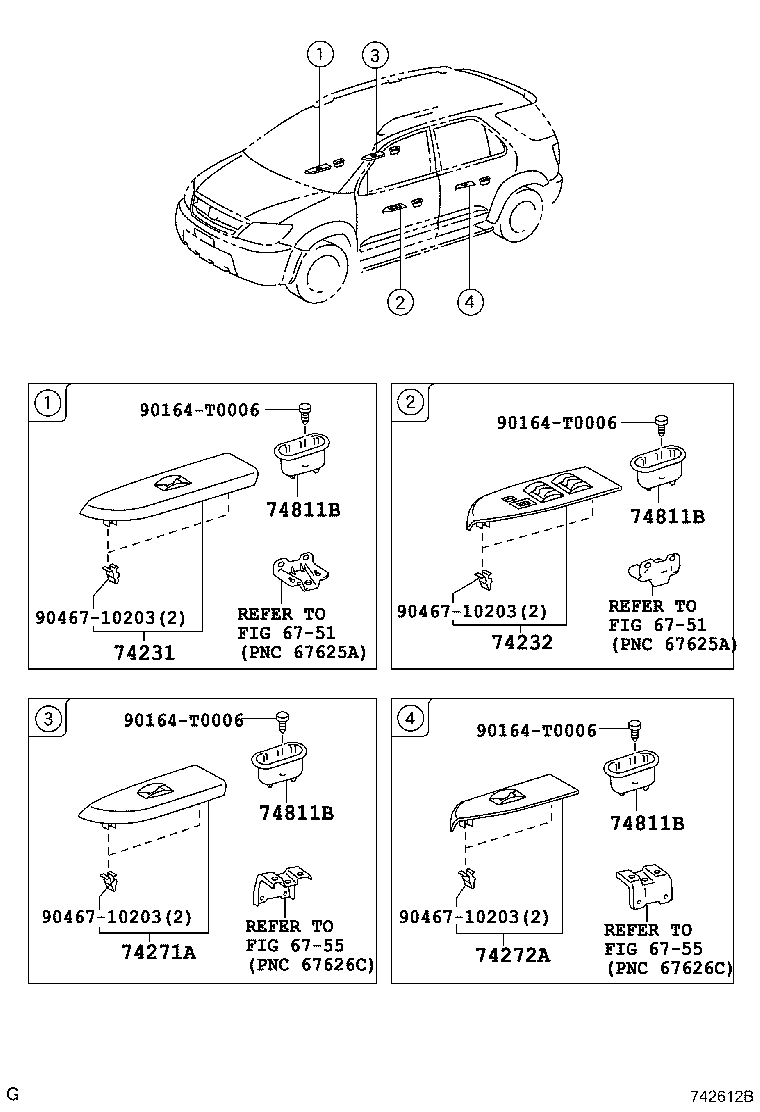

ARMREST

diagram 6751 6751 6755 6755 74231 74232 74271A 74272A 74811B 74811B 74811B 74811B 90164T0006 90164T0006 90164T0006 90164T0006 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
Common parts
90164-T0006
90467-10203
Linked diagrams
6751
6755

ILLUST NO. 1 OF 2(1107- )

Click highlighted areas on diagram

ARMREST

diagram 6751 6751 6751 6751 6755 74231 74231 74232 74232 74271A 74272A 74811B 74811B 74811B 74811B 74811B 90164T0006 90164T0006 90164T0006 90164T0006 90164T0006 9046710203 9046710203 9046710203 9046710203 9046710203
Part # Description Qty Price
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0K360

TGN51..SA,VN;GGN50,60,KUN51,60,LAN50..LHD;TGN61..4FC..HTWC..(LA,PHL,VN)

 1
74231 - PANEL, FRONT ARMREST BASE, UPPER RH
74231-0K360

TGN51..SA,VN;GGN50,60,KUN51,60,LAN50..LHD;TGN61..4FC..HTWC..(LA,PHL,VN)

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0K360

TGN51..SA,VN;GGN50,60,KUN51,60,LAN50..LHD;TGN61..4FC..HTWC..(LA,PHL,VN)

 1
74232 - PANEL, FRONT ARMREST BASE, UPPER LH
74232-0K360

TGN51..SA,VN;GGN50,60,KUN51,60,LAN50..LHD;TGN61..4FC..HTWC..(LA,PHL,VN)

 1
74271A - PANEL, REAR DOOR ARMREST BASE, UPPER RH
74271-0K200

KUN51..4FC,5FC;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);KUN61,TGN51..GEN,IDN,IND,MA,PKN,SA,TH,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);GGN50,60,KUN60,LAN50..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL,SA,VN)

 1
74272A - PANEL, REAR DOOR ARMREST BASE, UPPER LH
74272-0K200

KUN51..4FC,5FC;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);KUN61,TGN51..GEN,IDN,IND,MA,PKN,SA,TH,VN;TGN61..4FC..HTWC..(GEN,IDN,LA,PHL,TH,VN);GGN50,60,KUN60,LAN50..SR..(ANCOM,CO,EPT,GCC,GEN,IDN,LA,PHL,SA,VN)

 1
74811B - HANDLE, DOOR PULL
74811-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 4
74811B - HANDLE, DOOR PULL
74811-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 4
74811B - HANDLE, DOOR PULL
74811-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 4
74811B - HANDLE, DOOR PULL
74811-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 4
74811B - HANDLE, DOOR PULL
74811-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 4
Common parts
90164-T0006
90467-10203
Linked diagrams
6751
6755

ILLUST NO. 2 OF 2(1107- )IDSUV,SUVW,THSUV..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,TH,VN

Click highlighted areas on diagram

VISOR & ASSIST GRIP

diagram 74310 74320 74348B 74348C 74603 74603 74611B 74611B 74617A 74617C 74617C 74631C 74631C 74631C 9015960353 9015960353 9015960353 90162T0001 90162T0001 9338316025
Part # Description Qty Price
74310 - VISOR ASSY, RH
74310-0K580E0

KUN51..IDSUV..LA;GGN50..(IDSUV,THSUV)..(GEN,LA);KUN51,60,TGN51,61..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,VN)

SAND BEIGE,TRIM4#

 1
74320 - VISOR ASSY, LH
74320-0K340E0

KUN51,60,TGN51,61..LHD..(IDSUV,SUVW)..(GEN,PHL,VN)

SAND BEIGE,TRIM4#

 1
74348B - HOLDER, VISOR, RH
74348-0K010E1

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,60,KUN51,60,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,PHL,TH)

SAND BEIGE,TRIM4#

 1
74348C - HOLDER, VISOR, LH
74348-0K010E1

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,60,KUN51,60,TGN51,61..(SUVW,THSUV)..(ANCOM,CO,GCC,GEN,IDN,LA,PHL,TH)

SAND BEIGE,TRIM4#

 1
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K020E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 2
74603 - GRIP SUB-ASSY, ASSIST, FRONT
74603-0K020E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 2
74611B - GRIP, ASSIST
74611-0K040E1

GGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 5
74611B - GRIP, ASSIST
74611-0K040E1

GGN50,KUN5#,6#,TGN51,61..(SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#

 5
74617A - PLUG, ASSIST GRIP
74616-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#,FRONT-LH,REAR-RH

 2
74615-0K010E0

KUN61..5FC..TH;KUN61..4FC..(IND,TH);GGN50,KUN51..IDSUV..LA;GGN50,KUN5#,60,TGN51,61..(IDSUV,SUVW,THSUV)..(GCC,GEN,IDN,KZS,MA,PHL,TH)

SAND BEIGE,TRIM4#,FRONT-RH,REAR-LH

 2
74631C - HOOK, COAT
74631-0K010E1

KUN51..SUVW..(GEN,PHL,TH);TGN51,61..SUVW..(CO,GCC,GEN,IDN,MA,PHL,TH);GGN50,60,KUN50,6#..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH)

SAND BEIGE,TRIM4#

 2
74631C - HOOK, COAT
74631-0K010E1

KUN51..SUVW..(GEN,PHL,TH);TGN51,61..SUVW..(CO,GCC,GEN,IDN,MA,PHL,TH);GGN50,60,KUN50,6#..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH)

SAND BEIGE,TRIM4#

 2
74631C - HOOK, COAT
74631-0K010E1

KUN51..SUVW..(GEN,PHL,TH);TGN51,61..SUVW..(CO,GCC,GEN,IDN,MA,PHL,TH);GGN50,60,KUN50,6#..(SUVW,THSUV)..(ANCOM,GCC,GEN,IDN,MA,PHL,TH)

SAND BEIGE,TRIM4#

 2
Common parts
90159-60353
90162-T0001
93383-16025
