KUN51L-NKPSY (2012)
Toyota Fortuner

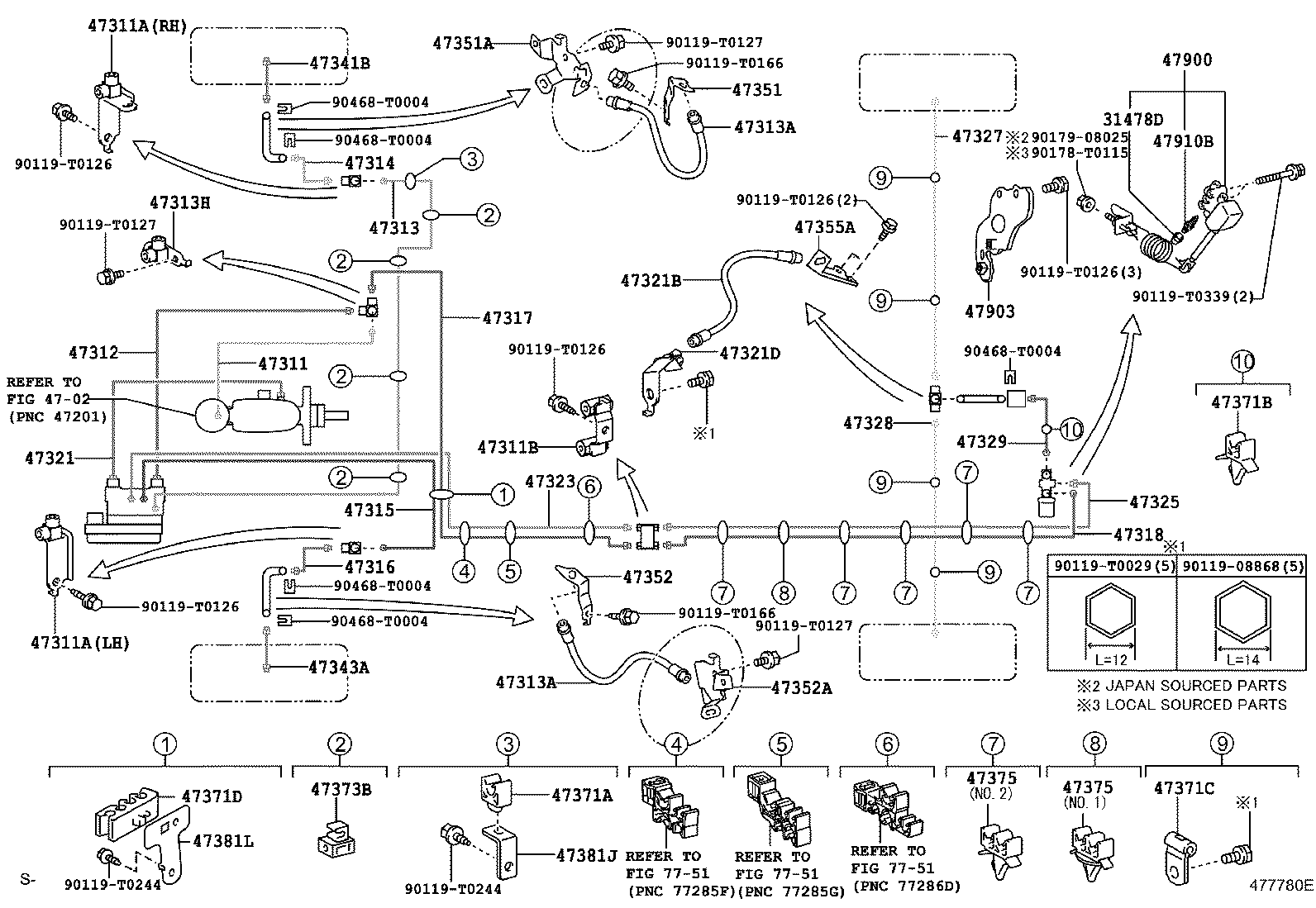

ILLUST NO. 1 OF 2(1107- )KUN51..LHD..IDSUV,SUVW,THSUV..4FC..GEN,PHL,SA ; (1107- )GGN50,60,KUN6
W(ABS)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 31478D - CAP, BLEEDER PLUG(FOR LSPV) | ||||
| 31478-0D040 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 31478-0D040 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47311 - TUBE, FRONT BRAKE, NO.1 | ||||
| 47311-0K030 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);GGN50,KUN60,TGN51,61..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47311-0K030 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);GGN50,KUN60,TGN51,61..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 90412-10251 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 90412-10252 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 90412-10252 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 47311A - WAY(FOR FRONT BRAKE TUBE) | ||||
| 90412-10251 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 90412-10251 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH RH |
1 | ||
| 90412-10252 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 90412-10252 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH LH |
1 | ||
| 47311B - WAY, NO.1(FOR FRONT BRAKE TUBE) | ||||
| 90412-10253 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 90412-10253 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47312 - TUBE, FRONT BRAKE, NO.2 | ||||
| 47312-0K030 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;GGN50,KUN60..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);KUN51,TGN61..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47312-0K030 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;GGN50,KUN60..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);KUN51,TGN61..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47313 - TUBE, FRONT BRAKE, NO.3 | ||||
| 47313-0K040 |
TGN61..5F..CO;GGN50..GCC,GEN;KUN51..LHD..DCR;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN50,KUN60,LAN50,TGN51..LHD..(IDSUV,SUVW)..(4FC,5F)..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47313-0K040 |
TGN61..5F..CO;GGN50..GCC,GEN;KUN51..LHD..DCR;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN50,KUN60,LAN50,TGN51..LHD..(IDSUV,SUVW)..(4FC,5F)..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 90080-94029 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT) | ||||
| 90080-94029 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 90080-94029 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
2 | ||
| 47313H - WAY, NO.3(FOR FRONT BRAKE TUBE) | ||||
| 90413-10312 |
GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);GGN50,TGN61..5F..SR..(CO,LA);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN60,KUN51,60,LAN50,TGN51..LHD..(DCR,DEFI,HDCR,HTWC)..(ANCOM,CO,GEN,LA,PHL,SA) |
1 | ||
| 90413-10312 |
GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);GGN50,TGN61..5F..SR..(CO,LA);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN60,KUN51,60,LAN50,TGN51..LHD..(DCR,DEFI,HDCR,HTWC)..(ANCOM,CO,GEN,LA,PHL,SA) |
1 | ||
| 47314 - TUBE, FRONT BRAKE, NO.4 | ||||
| 47314-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47314-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47315 - TUBE, FRONT BRAKE, NO.5 | ||||
| 47315-0K040 |
TGN61..5F..CO;GGN50..GCC,GEN;KUN51..LHD..DCR;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN50,KUN60,LAN50,TGN51..LHD..(IDSUV,SUVW)..(4FC,5F)..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47315-0K040 |
TGN61..5F..CO;GGN50..GCC,GEN;KUN51..LHD..DCR;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN50,KUN60,LAN50,TGN51..LHD..(IDSUV,SUVW)..(4FC,5F)..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47316 - TUBE, FRONT BRAKE, NO.6 | ||||
| 47316-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47316-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47317 - TUBE, FRONT BRAKE, NO.7 | ||||
| 47317-0K020 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);GGN50,KUN60,TGN51,61..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47317-0K020 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);GGN50,KUN60,TGN51,61..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47318 - TUBE, FRONT BRAKE, NO.8 | ||||
| 47318-0K090 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47318-0K090 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47321 - TUBE, REAR BRAKE, NO.1 | ||||
| 47321-0K030 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;GGN50,KUN60..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);KUN51,TGN61..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47321-0K030 |
GGN50..IDSUV..LA;KUN51..IDSUV..4FC..LA;GGN50,KUN60..LHD..(GCC,GEN,PHL);KUN51..LHD..(IDSUV,THSUV)..(5F,5FC);KUN51,TGN61..LHD..(IDSUV,SUVW,THSUV)..4FC..(GEN,PHL,SA) |
1 | ||
| 47321B - HOSE, FLEXIBLE(FOR REAR BRAKE TUBE) | ||||
| 90947-T2012 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 90947-T2012 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47321D - WAY, NO.1(FOR REAR BRAKE TUBE) | ||||
| 90413-10310 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 90413-10310 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47323 - TUBE, REAR BRAKE, NO.3 | ||||
| 47323-0K040 |
TGN61..5F..CO;GGN50..GCC,GEN;KUN51..LHD..DCR;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN50,KUN60,LAN50,TGN51..LHD..(IDSUV,SUVW)..(4FC,5F)..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47323-0K040 |
TGN61..5F..CO;GGN50..GCC,GEN;KUN51..LHD..DCR;GGN50..IDSUV..5FC..LA;TGN61..4FC..(CO,LA,PHL);KUN51,TGN61..(5F,5FC)..DLX..(HTWCF,IART);GGN50,KUN60,LAN50,TGN51..LHD..(IDSUV,SUVW)..(4FC,5F)..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47325 - TUBE, REAR BRAKE, NO.5 | ||||
| 47325-0K140 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47325-0K140 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47327 - TUBE, REAR BRAKE, NO.7 | ||||
| 47327-0K060 |
KUN51..DLX;KUN51..LHD..SA;GGN50..GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 47327-0K060 |
KUN51..DLX;KUN51..LHD..SA;GGN50..GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 47328 - TUBE, REAR BRAKE, NO.8 | ||||
| 47328-0K060 |
KUN51..DLX;KUN51..LHD..SA;GGN50..GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 47328-0K060 |
KUN51..DLX;KUN51..LHD..SA;GGN50..GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,PHL,SA,TH |
1 | ||
| 47329 - TUBE, REAR BRAKE, NO.9 | ||||
| 47329-0K030 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47329-0K030 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47341B - TUBE, WHEEL CYLINDER, FRONT RH NO.1 | ||||
| 47341-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN60,TGN61..CO,GCC,LA,SA;GGN50,60,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47341-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN60,TGN61..CO,GCC,LA,SA;GGN50,60,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47343A - TUBE, WHEEL CYLINDER, FRONT LH NO.1 | ||||
| 47343-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN60,TGN61..CO,GCC,LA,SA;GGN50,60,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47343-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);KUN60,TGN61..CO,GCC,LA,SA;GGN50,60,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47351 - BRACKET, FLEXIBLE HOSE(FOR FRONT RH) | ||||
| 47351-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47351-0K010 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47351A - BRACKET, FLEXIBLE HOSE, FRONT RH NO.1 | ||||
| 47353-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47353-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47352 - BRACKET, FLEXIBLE HOSE(FOR FRONT LH) | ||||
| 47352-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47352-0K030 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47352A - BRACKET, FLEXIBLE HOSE, FRONT LH NO.1 | ||||
| 47354-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47354-0K020 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH |
1 | ||
| 47355A - BRACKET, FLEXIBLE HOSE, NO.5 | ||||
| 47355-0K020 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47355-0K020 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47371A - CLAMP, BRAKE TUBE, NO.1 | ||||
| 90949-T1011 |
KUN51..LHD..GEN;KUN60..4FC..(GEN,PHL,SA);GGN50,60..ANCOM,CO,GCC,GEN,LA,SA;KUN51,61..(4FC,5FC)..(CO,LA,PHL,SA,TH);LAN50,TGN51,61..LHD..(CO,GCC,LA,PHL,SA);KUN51,60..LHD..(IDSUV,SUVW)..5F..(CO,GEN,LA,PHL,SA) |
1 | ||
| 90949-T1011 |
KUN51..LHD..GEN;KUN60..4FC..(GEN,PHL,SA);GGN50,60..ANCOM,CO,GCC,GEN,LA,SA;KUN51,61..(4FC,5FC)..(CO,LA,PHL,SA,TH);LAN50,TGN51,61..LHD..(CO,GCC,LA,PHL,SA);KUN51,60..LHD..(IDSUV,SUVW)..5F..(CO,GEN,LA,PHL,SA) |
1 | ||
| 47371B - CLAMP, BRAKE TUBE, NO.6 | ||||
| 90949-T1007 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 90949-T1007 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH |
1 | ||
| 47371C - CLAMP, BRAKE TUBE, NO.7 | ||||
| 90461-T0001 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,PHL,SA,TH |
4 | ||
| 90461-T0001 |
KUN61..4FC;KUN61..(5F,5FC)..(SA,TH);GGN50,60,KUN5#,60,LAN50,TGN51,61..CO,GCC,GEN,IDN,LA,PHL,SA,TH |
4 | ||
| 47371D - CLAMP, BRAKE TUBE, NO.8 | ||||
| 90949-T1010 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA) |
1 | ||
| 90949-T1010 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA) |
1 | ||
| 47373B - CLAMP, BRAKE TUBE, NO.3 | ||||
| 90949-T1012 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA) |
4 | ||
| 90949-T1012 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA) |
4 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.2 |
5 | ||
| 90949-T1006 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.2 |
5 | ||
| 90469-T0007 |
KUN61..4FC;GGN50..5FC..CO;KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,KUN51..SR..(HTWC,IART)..(GCC,GEN,LA,SA);GGN60,KUN5#,60,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.1 |
1 | ||
| 90469-T0007 |
KUN61..4FC;GGN50..5FC..CO;KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,KUN51..SR..(HTWC,IART)..(GCC,GEN,LA,SA);GGN60,KUN5#,60,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.1 |
1 | ||
| 47375 - CLAMP, BRAKE TUBE, NO.5 | ||||
| 90949-T1006 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.2 |
5 | ||
| 90949-T1006 |
KUN51..LHD..SA;GGN50,KUN51..IDSUV..LA;GGN50,KUN51..GCC,GEN,PHL;KUN51,61..RHD..5F..(SA,TH);KUN6#..4FC..(GEN,IDN,IND,PHL);KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);KUN50,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.2 |
5 | ||
| 90469-T0007 |
KUN61..4FC;GGN50..5FC..CO;KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,KUN51..SR..(HTWC,IART)..(GCC,GEN,LA,SA);GGN60,KUN5#,60,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.1 |
1 | ||
| 90469-T0007 |
KUN61..4FC;GGN50..5FC..CO;KUN51..IDSUV..LA;KUN61..(5F,5FC)..(SA,TH);GGN50,KUN51..SR..(HTWC,IART)..(GCC,GEN,LA,SA);GGN60,KUN5#,60,LAN50,TGN51,61..GCC,GEN,IDN,KZS,PHL,SA,TH NO.1 |
1 | ||
| 47381J - BRACKET, BRAKE TUBE CLAMP, NO.2 | ||||
| 90949-T2001 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD |
1 | ||
| 90949-T2001 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD |
1 | ||
| 47381L - BRACKET, BRAKE TUBE CLAMP, NO.3 | ||||
| 90949-T2002 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA) |
1 | ||
| 90949-T2002 |
GGN50,60,KUN51,60,LAN50,TGN51,61..LHD..(ANCOM,CO,GCC,GEN,LA,PHL,SA) |
1 | ||
| 47900 - VALVE ASSY, LOAD SENSING W/SPRING | ||||
| 47900-0K050 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47900-0K050 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47903 - BRACKET SUB-ASSY, LOADSENSING VALVE | ||||
| 47903-0K020 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47903-0K020 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47910B - PLUG, BLEEDER | ||||
| 47547-27030 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| 47547-27030 |
KUN51..DLX;KUN51..LHD..SA;GGN50..ANCOM,GCC,GEN;GGN50..IDSUV..5FC..LA;KUN51..RHD..5F..(SA,TH);KUN51..DCR..(CO,GEN,LA,PHL);GGN50,KUN61..5F..(CO,LA,SA);KUN6#..4FC..(GEN,IDN,IND,PHL);LAN50,TGN51..CO,GCC,GEN,IDN,MA,SA;KUN60..(5F,5FC)..(GEN,IDN,PHL,SA,TH);GGN60,KUN50,TGN61..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,TH |
1 | ||
| Common parts | ||||
| 90119-08868 | ||||
| 90119-T0029 | ||||
| 90119-T0126 | ||||
| 90119-T0127 | ||||
| 90119-T0166 | ||||
| 90119-T0244 | ||||
| 90119-T0339 | ||||
| 90178-T0115 | ||||
| 90179-08025 | ||||
| 90468-T0004 | ||||
| Linked diagrams | ||||
| 4702 | ||||
| 7751 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
