KUN51L-NKPSY (2012)

Toyota Fortuner

Production Aug 2012 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 2 OF 2(0501- )1KDFTV

Click highlighted areas on diagram

diagram 17201 9011606048 9011606048 9011610175 9012608009 90126T0006 90126T0008 90126T0009 90126T0009
Part # Description Qty Price
Common parts
90116-06048
90116-10175
90126-08009
90126-T0006
90126-T0008
90126-T0009

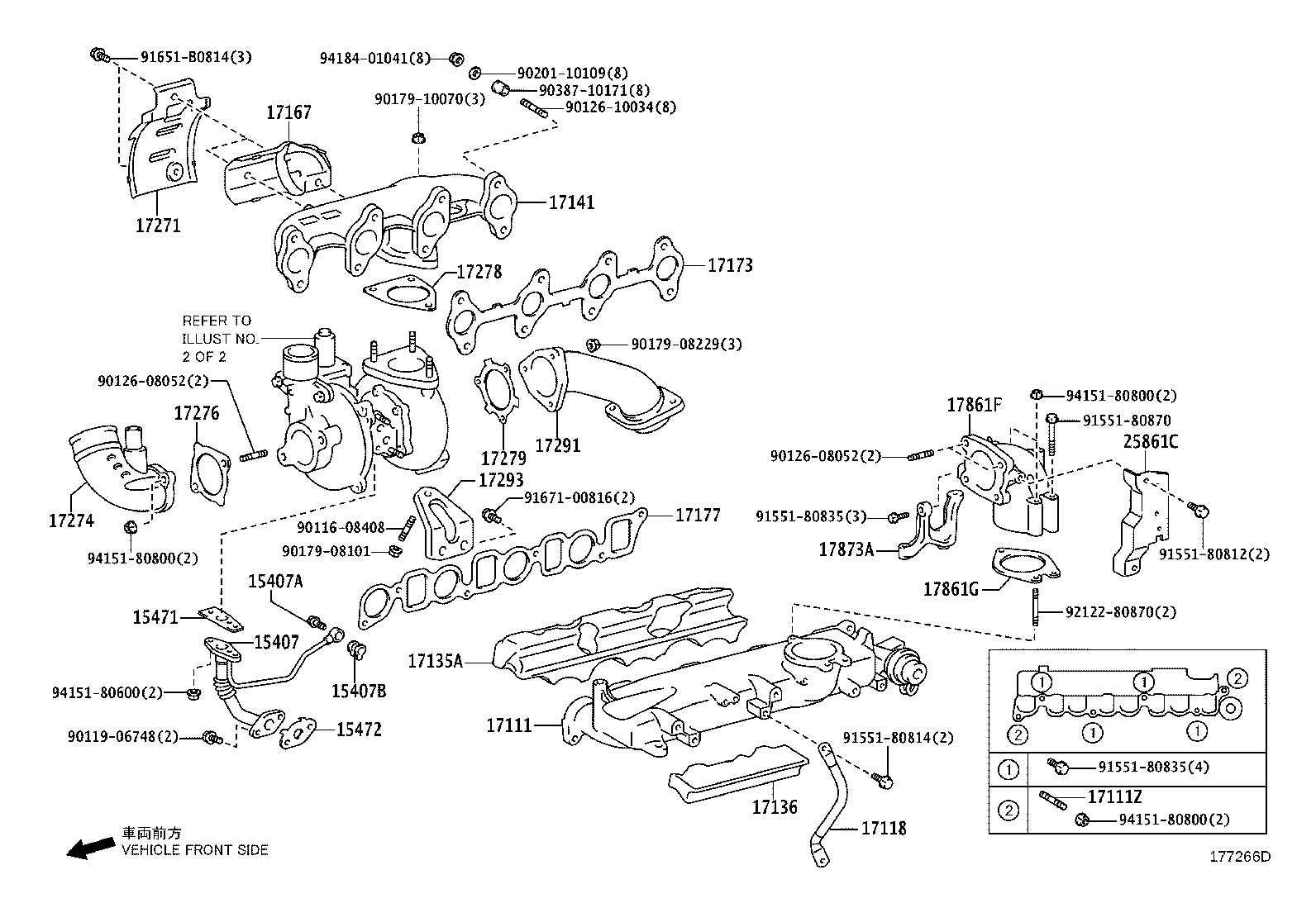

ILLUST NO. 1 OF 2(1107- )1KDFTV..KUN51..IDSUV,SUVW..4FC..GEN

Click highlighted areas on diagram

diagram 15407 15407A 15407B 15471 15472 17111 17111Z 17118 17135A 17136 17141 17167 17173 17177 17271 17274 17276 17278 17279 17291 17293 17861F 17861G 17873A 25861C 9011608408 9011906748 9012608052 9012608052 9012610034 9017908101 9017908229 9017910070 9020110109 9038710171 9155180812 9155180814 9155180835 9155180835 9155180870 91651B0814 9167100816 9212280870 9415180600 9415180800 9415180800 9415180800 9418401041
Part # Description Qty Price
15407 - PIPE SUB-ASSY, TURBO OIL INLET
15407-30050

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
15407A - BOLT, UNION(FOR TURBO OIL INLET PIPE)
90401-12097

2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)

*360

 1
15407B - GASKET(FOR TURBO OIL INLET PIPE)
90904-30004

2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)

*360

 1
15471 - GASKET, TURBO OIL INLET
15471-30011

2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)

*360

 1
15472 - GASKET, TURBO OIL OUTLET, NO.1
15472-30010

2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)

*360

 1
17111 - MANIFOLD, INTAKE
17101-30030

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17111Z - BOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)
92122-80822

2KDFTV..KUN60..5FC;2KDFTV..KUN60..GEN,IDN,PHL,SA,VN;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,MA,PHL,SA,TH)

*360

 2
17118 - STAY, MANIFOLD
17118-30070

2KDFTV..KUN60..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17135A - INSULATOR, INTAKE MANIFOLD, NO.1
17135-30011

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17136 - INSULATOR, INTAKE MANIFOLD, NO.2
17136-30010

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17141 - MANIFOLD, EXHAUST
17141-30060

2KDFTV..KUN60..SA;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..RHD..SUVW..(4FC,5FC)..SR;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17167 - INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17167-30020

2KDFTV..KUN60..SA;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..RHD..SUVW..(4FC,5FC)..SR;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17173 - GASKET, EXHAUST MANIFOLD TO HEAD
17173-30030

2KDFTV..KUN60..SA;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..RHD..SUVW..(4FC,5FC)..SR;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17177 - GASKET, INTAKE MANIFOLD TO HEAD, NO.1
17177-30011

2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)

*360

 1
17271 - INSULATOR, TURBO, NO.1
17271-30030

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17274 - ELBOW, COMPRESSOR INLET
17274-30020

2KDFTV..KUN60..SA;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..RHD..SUVW..(4FC,5FC)..SR;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17276 - GASKET, COMPRESSOR INLET
17276-67010

2KDFTV..KUN60..SA;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..RHD..SUVW..(4FC,5FC)..SR;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17278 - GASKET, TURBO TO EXHAUST MANIFOLD
17278-67010

2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH)

*360

 1
17279 - GASKET, TURBINE OUTLET ELBOW
17279-30030

2KDFTV..KUN60..SA,VN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..RHD..SUVW..(4FC,5FC)..SR;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,PHL,SA,TH)

*360

 1
17291 - ELBOW, TURBINE OUTLET
17291-30050

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17293 - STAY, TURBOCHARGER
17293-30040

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17861F - CONNECTOR, INTAKE AIR
17861-30080

1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN

 1
17861G - GASKET, INTAKE AIR CONNECTOR
26171-30030

1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN

 1
17873A - BRACKET, INTAKE AIR CONNECTOR, NO.2
26127-30010

1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN

 1
25861C - BRACKET, VACUUM SWITCHING VALVE
25861-30051

1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN

 1
Common parts
90116-08408
90119-06748
90126-08052
90126-10034
90179-08101
90179-08229
90179-10070
90201-10109
90387-10171
91551-80812
91551-80814
91551-80835
91551-80870
91651-B0814
91671-00816
92122-80870
94151-80600
94151-80800
94184-01041

ILLUST NO. 2 OF 2(1107- )1KDFTV

Click highlighted areas on diagram

diagram 04175 17201 9011606048 9011606048 9011610175 9012608009 90126T0006 90126T0008 90126T0009 90126T0009
Part # Description Qty Price
04175 - GASKET KIT, TURBOCHARGER
04175-30161

2KDFTV..KUN60..5FC;1KDFTV..KUN51..IDSUV..4FC..LA;1KDFTV..KUN51,61..4FC..(GEN,SA)

 1
17201 - TURBOCHARGER SUB-ASSY
17201-30110

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
Common parts
90116-06048
90116-10175
90126-08009
90126-T0006
90126-T0008
90126-T0009
