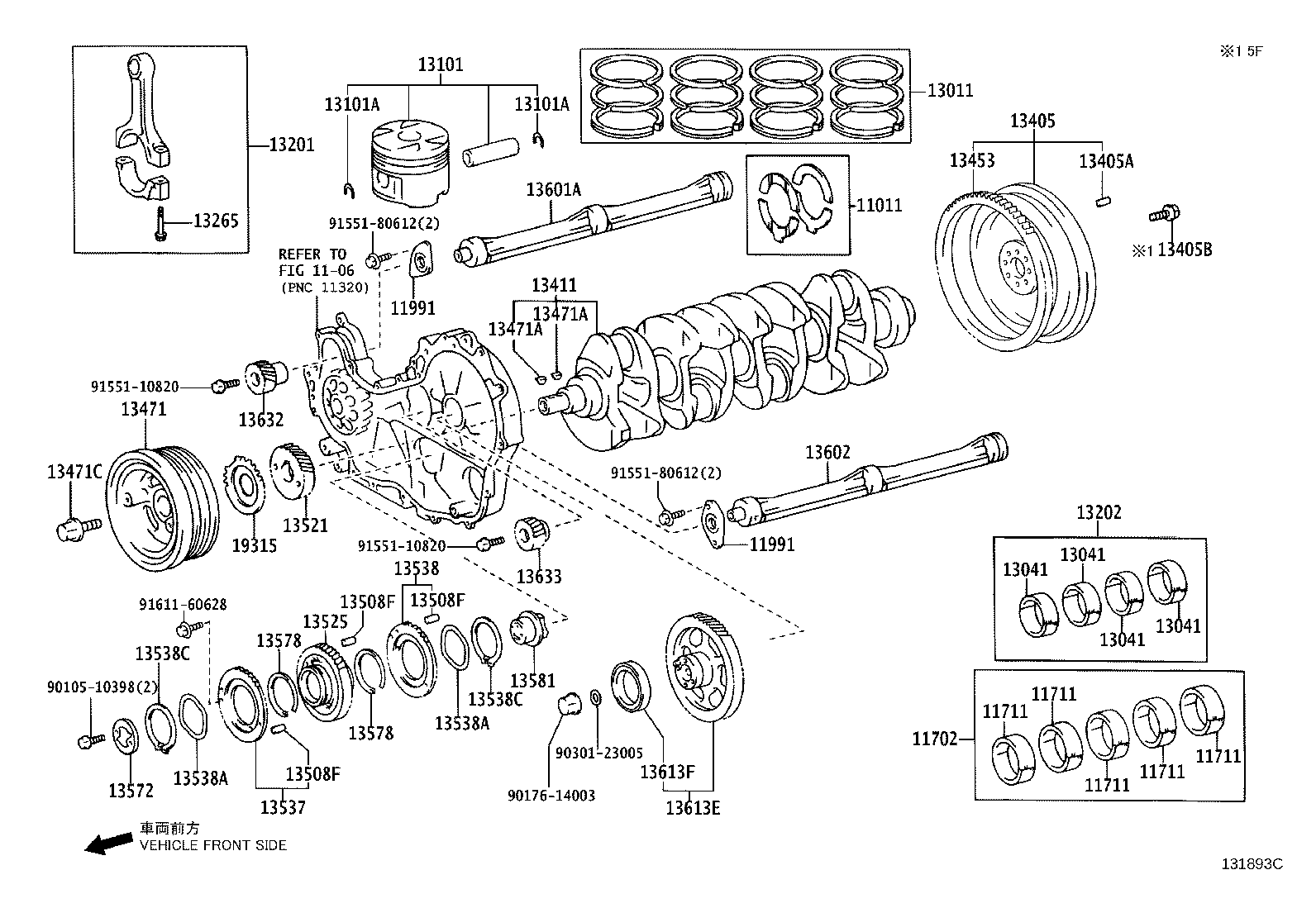

KUN51L-NKPSY (2012)
Toyota Fortuner
(1107- )1KDFTV..4FC,5F..GEN,PHL,SA,TH ; (1107- )1KDFTV..KUN51..IDSUV..4FC,5F.
*360
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11011 - WASHER SET, CRANKSHAFT THRUST | ||||
| 11011-30010 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) STD,*360 |
1 | ||
| 11012-30010 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) O/S 0.125,*360 |
1 | ||
| 11013-30010 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) O/S 0.250,*360 |
1 | ||
| 11702 - BEARING SET, CRANKSHAFT | ||||
| 11704-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) U/S 0.25,*360 |
1 | ||
| 11705-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) U/S 0.50,*360 |
1 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360 |
5 | ||
| 11701-3002005 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360 |
5 | ||
| 11701-3002003 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360 |
5 | ||
| 11701-3002006 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360 |
5 | ||
| 11701-3002004 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360 |
5 | ||
| 11701-3002005 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360 |
5 | ||
| 11701-3002003 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360 |
5 | ||
| 11701-3002006 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360 |
5 | ||
| 11701-3002004 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360 |
5 | ||
| 11701-3002005 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360 |
5 | ||
| 11701-3002003 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360 |
5 | ||
| 11701-3002006 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360 |
5 | ||
| 11701-3002004 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360 |
5 | ||
| 11701-3002005 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360 |
5 | ||
| 11701-3002003 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360 |
5 | ||
| 11701-3002006 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360 |
5 | ||
| 11701-3002004 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360 |
5 | ||
| 11711 - BEARING, CRANKSHAFT | ||||
| 11701-3002002 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360 |
5 | ||
| 11701-3002005 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360 |
5 | ||
| 11701-3002003 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360 |
5 | ||
| 11701-3002006 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360 |
5 | ||
| 11701-3002004 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360 |
5 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-67010 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 11991 - WASHER, BALANCESHAFT THRUST | ||||
| 11991-67010 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13011 - RING SET, PISTON | ||||
| 13011-30110 |
1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN STD |
1 | ||
| 13014-30110 |
1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN O/S 0.75 |
1 | ||
| 13015-30110 |
1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN O/S 1.00 |
1 | ||
| 13013-30110 |
1KDFTV..KUN51..(IDSUV,SUVW)..4FC..GEN O/S 0.50 |
1 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002004 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360:REFER R/M |
4 | ||
| 13041-3002005 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360:REFER R/M |
4 | ||
| 13041-3002006 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360:REFER R/M |
4 | ||
| 13041-3002003 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360:REFER R/M |
4 | ||
| 13041-3002002 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002004 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360:REFER R/M |
4 | ||
| 13041-3002005 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360:REFER R/M |
4 | ||
| 13041-3002006 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360:REFER R/M |
4 | ||
| 13041-3002003 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360:REFER R/M |
4 | ||
| 13041-3002002 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002004 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360:REFER R/M |
4 | ||
| 13041-3002005 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360:REFER R/M |
4 | ||
| 13041-3002006 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360:REFER R/M |
4 | ||
| 13041-3002003 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360:REFER R/M |
4 | ||
| 13041-3002002 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360:REFER R/M |
4 | ||
| 13041 - BEARING, CONNECTING ROD | ||||
| 13041-3002004 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK4,*360:REFER R/M |
4 | ||
| 13041-3002005 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK5,*360:REFER R/M |
4 | ||
| 13041-3002006 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK6,*360:REFER R/M |
4 | ||
| 13041-3002003 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK3,*360:REFER R/M |
4 | ||
| 13041-3002002 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) MARK2,*360:REFER R/M |
4 | ||
| 13101 - PISTON SUB-ASSY, W/PIN | ||||
| 13101-3015003 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) STD,MARK3,*360:REFER R/M |
4 | ||
| 13101-3015002 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) STD,MARK2,*360:REFER R/M |
4 | ||
| 13105-30150 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) O/S 1.00,*360 |
4 | ||
| 13101-3015001 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) STD,MARK1,*360:REFER R/M |
4 | ||
| 13103-30150 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) O/S 0.50,*360 |
4 | ||
| 13104-30150 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) O/S 0.75,*360 |
4 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
8 | ||
| 13101A - RING, HOLE SNAP(FOR PISTON PIN) | ||||
| 90520-37014 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
8 | ||
| 13201 - ROD SUB-ASSY, CONNECTING | ||||
| 13201-30051 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
4 | ||
| 13202 - BEARING SET, CONNECTING ROD | ||||
| 13204-30020 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) U/S 0.25,*360 |
1 | ||
| 13205-30020 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) U/S 0.50,*360 |
1 | ||
| 13265 - BOLT, CONNECTING ROD | ||||
| 13265-67021 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
8 | ||
| 13405 - FLYWHEEL SUB-ASSY | ||||
| 13405-67030 |
1KDFTV..KUN51..IDSUV..4FC..LA;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..(4FC,5FC)..(IDN,IND,PHL,SA,TH);1KDFTV,2KDFTV..KUN5#,61..4FC..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13405A - PIN, STRAIGHT(FOR FLYWHEEL) | ||||
| 90250-05121 |
1KDFTV..KUN51..IDSUV..4FC..LA;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..(4FC,5FC)..(IDN,IND,PHL,SA,TH);1KDFTV,2KDFTV..KUN5#,61..4FC..(GEN,IDN,MA,PHL,SA,TH) L=15,OD=5,*360 |
1 | ||
| 13411 - CRANKSHAFT | ||||
| 13401-30050 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 13453 - GEAR, FLYWHEEL RING | ||||
| 13453-67030 |
1KDFTV..KUN51..IDSUV..4FC..LA;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..(4FC,5FC)..(IDN,IND,PHL,SA,TH);1KDFTV,2KDFTV..KUN5#,61..4FC..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13471 - PULLEY, CRANKSHAFT | ||||
| 13408-30011 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13471A - KEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET) | ||||
| 95161-30516 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13471C - BOLT(FOR CRANKSHAFT PULLEY SET) | ||||
| 90119-18003 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
4 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
4 | ||
| 13508F - PIN, STRAIGHT(FOR IDLE GEAR) | ||||
| 90250-05027 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
4 | ||
| 13521 - GEAR OR SPROCKET, CRANKSHAFT TIMING | ||||
| 13521-67020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13525 - GEAR, IDLE, NO.1 | ||||
| 13508-67011 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 13537 - GEAR, IDLE SUB, NO.1 | ||||
| 13537-67900 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 13538 - GEAR, IDLE SUB, NO.2 | ||||
| 13538-67900 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13538A - WASHER, WAVE | ||||
| 90206-69001 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13538C - RING, SHAFT SNAP | ||||
| 90520-58002 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13572 - PLATE, IDLE GEAR THRUST | ||||
| 13572-67041 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13578 - SPRING, IDLE GEAR | ||||
| 13578-67010 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 13581 - SHAFT, IDLE GEAR, NO.1 | ||||
| 13581-67041 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13601A - BALANCESHAFT SUB-ASSY, NO.1 | ||||
| 13601-67020 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 13602 - BALANCESHAFT SUB-ASSY, NO.2 | ||||
| 13602-67020 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 13613E - GEAR, INJECTION | ||||
| 13603-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13613F - BEARING, RADIAL BALL | ||||
| 90363-67001 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 13632 - GEAR, BALANCESHAFT DRIVEN, NO.1 | ||||
| 13632-67010 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 13633 - GEAR, BALANCESHAFT DRIVEN, NO.2 | ||||
| 13633-67010 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 19315 - PLATE, CRANK ANGLE SENSOR, NO.1 | ||||
| 19315-30010 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| Common parts | ||||
| 90105-10398 | ||||
| 90176-14003 | ||||
| 90301-23005 | ||||
| 91551-10820 | ||||
| 91551-80612 | ||||
| 91611-60628 | ||||
| Linked diagrams | ||||
| 1106 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
