KUN51L-NKPSY (2012)
Toyota Fortuner
(0501- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90105-T0042 | ||||
| 90116-06138 | ||||
| 90116-06140 | ||||
| 90116-06171 | ||||
| 90116-T0008 | ||||
| 90116-T0020 | ||||
| 90119-06754 | ||||
| 90119-T0147 | ||||
| 90179-06298 | ||||
| 90182-T0007 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-13034 | ||||
| 90480-T0005 | ||||
| 91511-B0616 | ||||
| 91551-80610 | ||||
| 92122-80614 | ||||
| 96721-24014 | ||||
| Linked diagrams | ||||
| 1301 | ||||

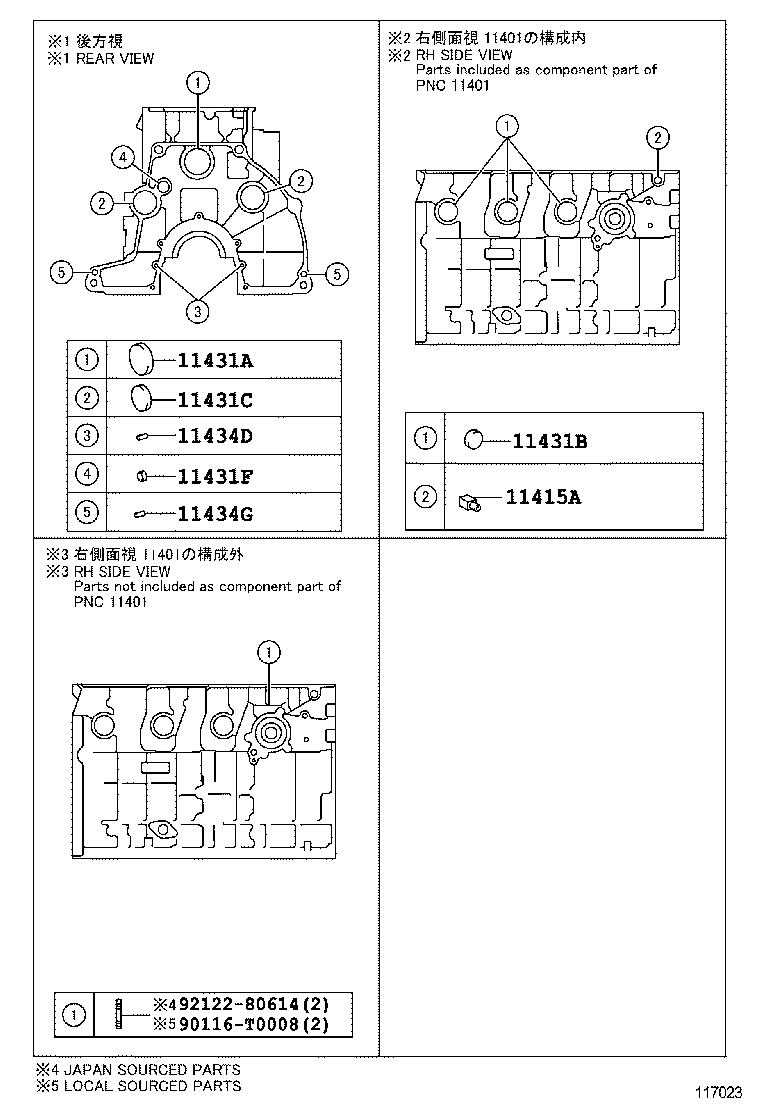

ILLUST NO. 2 OF 2(1107- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11431A - PLUG, TIGHT, NO.1(FOR CYLINDER BLOCK) | ||||
| 96411-64500 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 11431B - PLUG, TIGHT, NO.2(FOR CYLINDER BLOCK) | ||||
| 96411-63500 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
3 | ||
| 11431C - PLUG, TIGHT, NO.3(FOR CYLINDER BLOCK) | ||||
| 96411-64000 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 11434D - PIN, STRAIGHT(FOR ENGINE REAR OIL SEAL) | ||||
| 90250-06068 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) L=11,OD=6,*360 |
2 | ||
| 11434G - PIN, STRAIGHT(FOR END PLATE) | ||||
| 90250-10192 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
2 | ||
| Common parts | ||||
| 90116-T0008 | ||||
| 92122-80614 | ||||

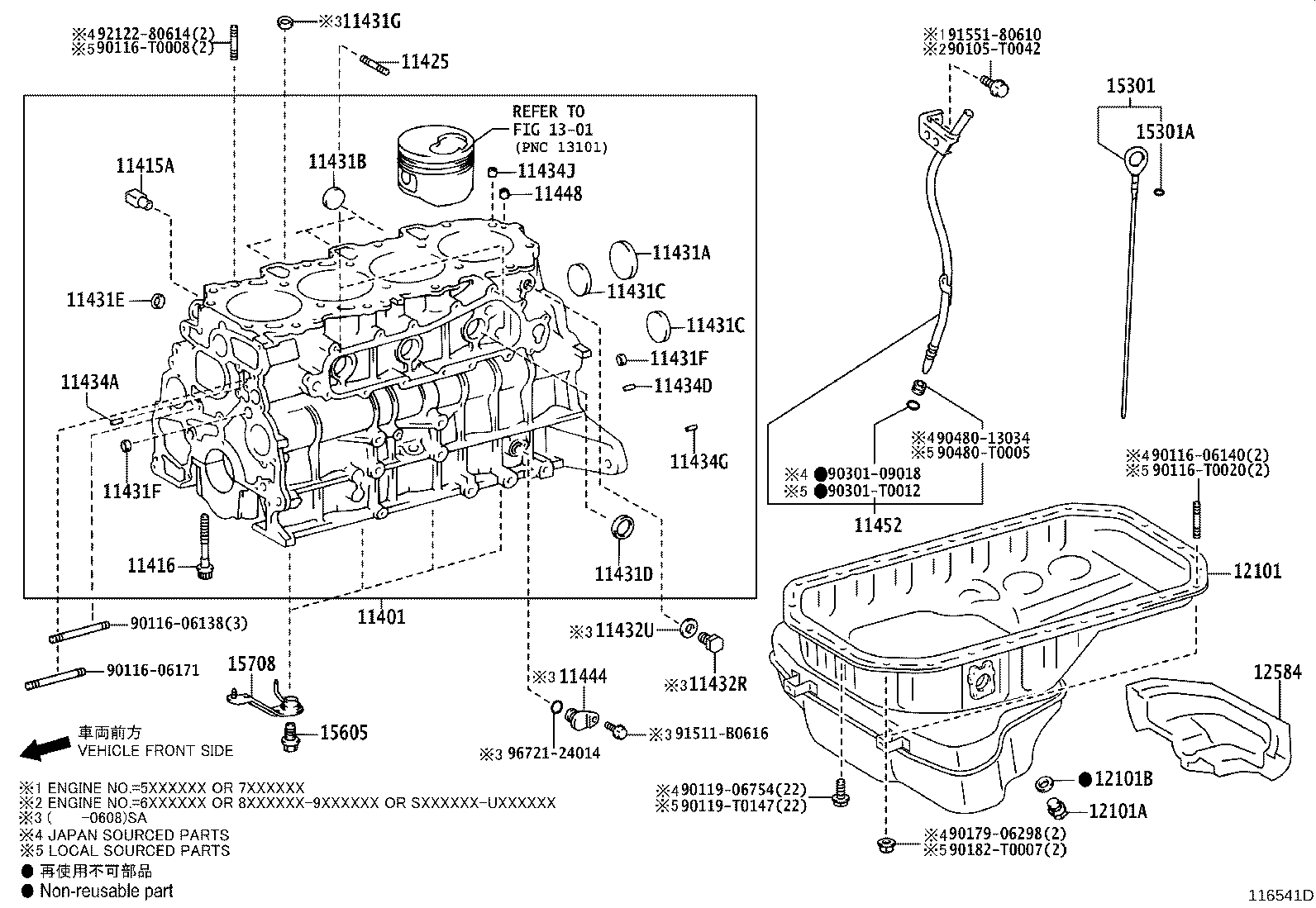

ILLUST NO. 1 OF 2(1107- )1KDFTV,2KDFTV
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11401 - BLOCK SUB-ASSY, CYLINDER | ||||
| 11401-39897 |
1KDFTV..KUN51..IDSUV..4FC..LA;1KDFTV..KUN51,61..4FC..(GEN,SA) |
1 | ||
| 11416 - BOLT(FOR CRANKSHAFT BEARING CAP SET) | ||||
| 90910-02113 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
10 | ||
| 11425 - BOLT, STUD(FOR OIL FILTER) | ||||
| 90116-06171 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
2 | ||
| 11431D - PLUG, TIGHT, NO.4(FOR CYLINDER BLOCK) | ||||
| 90331-35004 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
3 | ||
| 11431E - PLUG, TIGHT, NO.5(FOR CYLINDER BLOCK) | ||||
| 96411-62000 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 11431F - PLUG, TIGHT, NO.6(FOR CYLINDER BLOCK) | ||||
| 96411-61800 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) L=18,OD=8,*360 |
2 | ||
| 11434A - PIN, STRAIGHT(FOR TIMING GEAR COVER SET) | ||||
| 90250-08120 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) L=18,OD=8,*360 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
2 | ||
| 11434J - PIN, RING (FOR CYLINDER HEAD SET) | ||||
| 90253-15016 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
2 | ||
| 11448 - ORIFICE, CYLINDER BLOCK OIL | ||||
| 11448-67010 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 11452 - GUIDE, OIL LEVEL GAGE | ||||
| 11452-30070 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 12101 - PAN SUB-ASSY, OIL | ||||
| 12101-30100 |
2KDFTV..KUN60..LHD..5F;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,(J) |
1 | ||
| 12101-0L030 |
2KDFTV..KUN60..LHD..5F;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,(L) |
1 | ||
| 12101A - PLUG(FOR OIL PAN DRAIN) | ||||
| 90341-12012 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 12101B - GASKET(FOR OIL PAN DRAIN PLUG) | ||||
| 90430-12031 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 12584 - INSULATOR, CYLINDER BROCK, NO.4 | ||||
| 12584-0L010 |
1KDFTV..KUN51..4FC..CO;1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,IND,PHL,TH,VN) |
1 | ||
| 15301 - GAGE SUB-ASSY, OIL LEVEL | ||||
| 15301-30070 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 15301A - RING, O(FOR OIL LEVEL GAGE) | ||||
| 96741-19005 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 15605 - VALVE SUB-ASSY, OIL CHECK | ||||
| 15605-17030 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
4 | ||
| 15708 - NOZZLE SUB-ASSY, OIL, NO.1 | ||||
| 15708-30011 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
4 | ||
| Common parts | ||||
| 15368-30010 | ||||
| 90105-T0069 | ||||
| 90116-06138 | ||||
| 90116-06140 | ||||
| 90116-06171 | ||||
| 90116-T0020 | ||||
| 90119-06754 | ||||
| 90119-T0147 | ||||
| 90179-06298 | ||||
| 90182-T0007 | ||||
| 90301-09018 | ||||
| 90301-T0012 | ||||
| 90480-13034 | ||||
| 90480-T0005 | ||||
| 91551-80610 | ||||
| Linked diagrams | ||||
| 1301 | ||||
