KUN51L-NKMSYG (2011)
Toyota Fortuner
(1110-1210)1KDFTV..KUN51..5F..CO,LA
12V 2.2KW

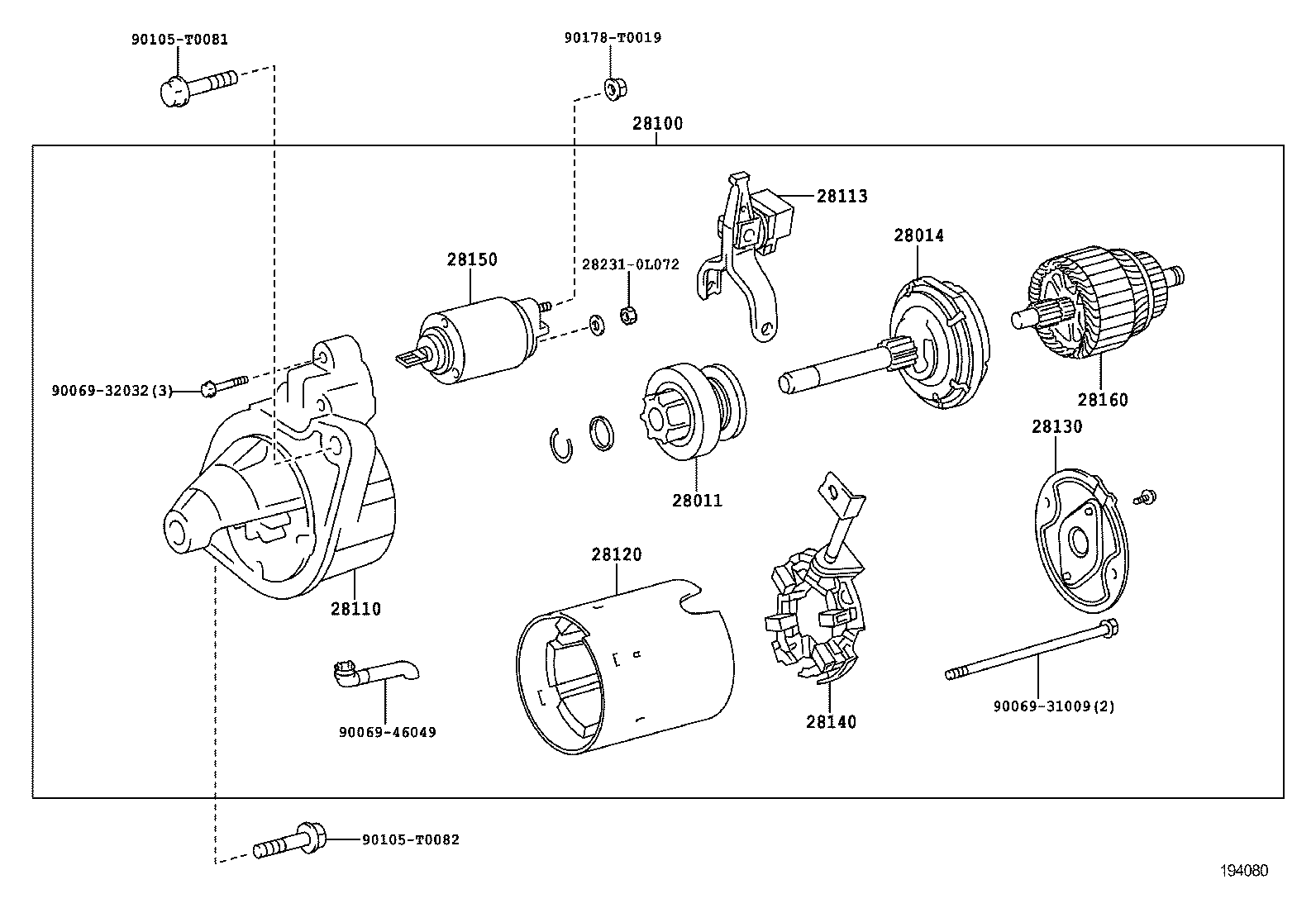

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28011-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) 12V 2.2KW |
1 | ||
| 28100-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) 12V 2.2KW |
1 | ||
| 28100-0L141 |
1KDFTV..KUN51..5F..(CO,LA) 12V 2.2KW |
1 | ||
| 28100-0L141 |
1KDFTV..KUN51..5F..(CO,LA) 12V 2.2KW |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0L030 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28120-0L030 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28120-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28120-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-64040 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 90099-64040 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0L141 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28140-0L141 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28140-0L030 |
1KDFTV..KUN51,61..CO,LA,SA |
1 | ||
| 28140-0L030 |
1KDFTV..KUN51,61..CO,LA,SA |
1 | ||
| 28140-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28140-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0L141 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28150-0L141 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28150-0L071 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28150-0L071 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28150-0L030 |
1KDFTV..KUN51,61..CO,LA,SA |
1 | ||
| 28150-0L030 |
1KDFTV..KUN51,61..CO,LA,SA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28160-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28160-64041 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28160-64041 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| Common parts | ||||
| 90105-T0081 | ||||
| 90105-T0082 | ||||
| 90178-T0019 | ||||
| 90178-T0022 | ||||
| 96711-19006 | ||||
(1210- )1KDFTV..KUN51..SUVW..5F..CO,LA
12V 2.2KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28014 - SHAFT SUB-ASSY, PLANET CARRIER | ||||
| 28014-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) 12V 2.2KW |
1 | ||
| 28100-0L141 |
1KDFTV..KUN51..5F..(CO,LA) 12V 2.2KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-0L071 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28113 - LEVER, STARTER PINION DRIVE | ||||
| 28113-0L072 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-0L030 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28120-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-0L141 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28140-0L030 |
1KDFTV..KUN51,61..CO,LA,SA |
1 | ||
| 28140-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28150 - SWITCH ASSY, MAGNET STARTER | ||||
| 28150-0L141 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| 28150-0L071 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28150-0L030 |
1KDFTV..KUN51,61..CO,LA,SA |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-0L070 |
1KDFTV..KUN51..SUVW..5F..(CO,LA) |
1 | ||
| 28160-64041 |
1KDFTV..KUN51..5F..(CO,LA) |
1 | ||
| Common parts | ||||
| 28231-0L072 | ||||
| 90069-31009 | ||||
| 90069-32032 | ||||
| 90069-46049 | ||||
| 90105-T0081 | ||||
| 90105-T0082 | ||||
| 90178-T0019 | ||||
