KUN51L-NKMSYF (2011)

Toyota Fortuner

Production Nov 2011 - Oct 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107-1208)2KDFTV..KUN60..IDN,PHL,VN ; (1107-)2KDFTV..KUN60..GEN ; (1107- )1

Click highlighted areas on diagram

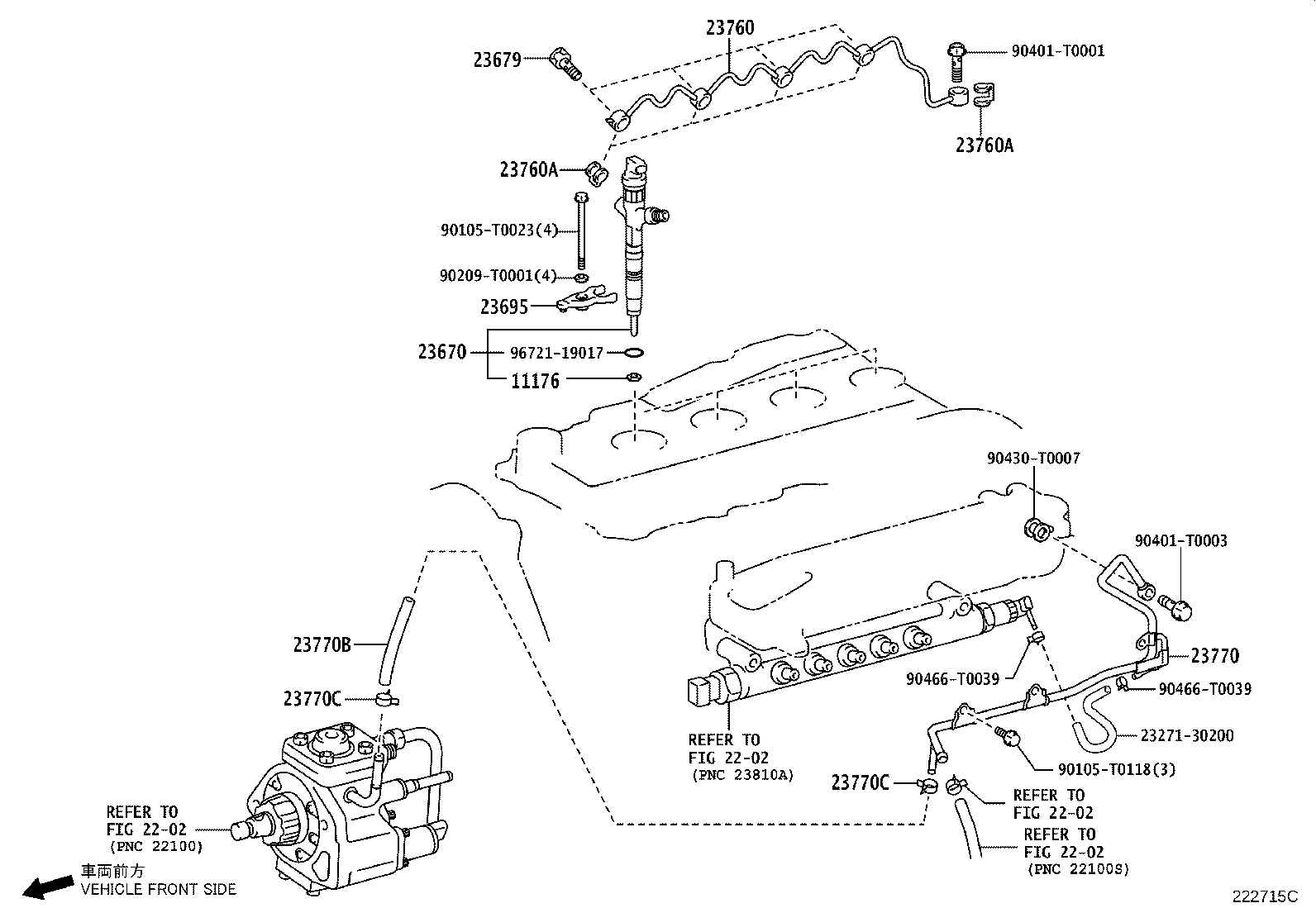

diagram 11176 2202 2202 2202 2202 2327130290 23670 23679 23695 23760 23760A 23760A 23770 23770B 23770C 23770C 9010508374 90105T0023 90105T0118 9020910021 90209T0001 90301T0013 9040108016 9040110067 90401T0001 90401T0003 9043010028 90430T0007 90466T0039 90466T0039 9155180814 9613251000 9613251000 9672119017
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-0L011

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23670 - INJECTOR ASSY
23670-09350

1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;2KDFTV..KUN60..RHD..SUVW..4FC;2KDFTV..KUN60..5F..(IND,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,PHL,SA,TH)

*130 OR *593

 4
23679 - SCREW, INJECTOR FOLLOW
23679-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 1
23760A - GASKET
90430-T0008

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 5
23760A - GASKET
90430-T0008

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 5
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-0L040

1KDFTV..KUN51..5F..CO

*130 OR *593,(L)

 1
23770-30120

1KDFTV..KUN51..5F..CO

*130 OR *593,(J)

 1
23770B - HOSE, FUEL
95337-06020

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

L=200,*130 OR *593

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90466-T0043

1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH)

*130 OR *593

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90466-T0043

1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH)

*130 OR *593

 2
Common parts
23271-30290
90105-08374
90105-T0023
90105-T0118
90209-10021
90209-T0001
90301-T0013
90401-08016
90401-10067
90401-T0001
90401-T0003
90430-10028
90430-T0007
90466-T0039
91551-80814
96132-51000
96721-19017
Linked diagrams
2202

(1408- )1KDFTV..KUN51..IDSUV..5F..LA ; (1410-)1KDFTV..KUN51..5F..CO

Click highlighted areas on diagram

EURO 4 REGULATION

diagram 11176 2202 2202 2202 2202 2327130200 23670 23679 23695 23760 23760A 23760A 23770 23770B 23770C 23770C 90105T0023 90105T0118 90209T0001 90401T0001 90401T0003 90430T0007 90466T0039 90466T0039 9672119017
Part # Description Qty Price
11176 - SEAT, INJECTION NOZZLE
11176-0L011

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
11176-0L011

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23670 - INJECTOR ASSY
23670-09350

1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;2KDFTV..KUN60..RHD..SUVW..4FC;2KDFTV..KUN60..5F..(IND,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,PHL,SA,TH)

*130 OR *593

 4
23670-09350

1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;2KDFTV..KUN60..RHD..SUVW..4FC;2KDFTV..KUN60..5F..(IND,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,PHL,SA,TH)

*130 OR *593

 4
23679 - SCREW, INJECTOR FOLLOW
23679-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23679-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23695 - CLAMP, NOZZLE HOLDER, NO.1
23695-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23695-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 4
23760 - PIPE ASSY, NOZZLE LEAKAGE
23760-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 1
23760-0L010

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 1
23760A - GASKET
90430-T0008

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 5
90430-T0008

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 5
23760A - GASKET
90430-T0008

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 5
90430-T0008

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

*130 OR *593

 5
23770 - PIPE ASSY, NOZZLE LEAKAGE, NO.2
23770-0L040

1KDFTV..KUN51..5F..CO

*130 OR *593,(L)

 1
23770-0L040

1KDFTV..KUN51..5F..CO

*130 OR *593,(L)

 1
23770-30120

1KDFTV..KUN51..5F..CO

*130 OR *593,(J)

 1
23770-30120

1KDFTV..KUN51..5F..CO

*130 OR *593,(J)

 1
23770B - HOSE, FUEL
95337-06020

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

L=200,*130 OR *593

 1
95337-06020

2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..(DCR,HDCR)..(CO,IDN,IND,LA,MA,PHL,SA,TH)

L=200,*130 OR *593

 1
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90466-T0043

1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH)

*130 OR *593

 2
90466-T0043

1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH)

*130 OR *593

 2
23770C - CLAMP OR CLIP(FOR FUEL HOSE SET)
90466-T0043

1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH)

*130 OR *593

 2
90466-T0043

1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH)

*130 OR *593

 2
Common parts
23271-30200
90105-T0023
90105-T0118
90209-T0001
90401-T0001
90401-T0003
90430-T0007
90466-T0039
96721-19017
Linked diagrams
2202
