KUN51L-NKASJG (2012)

Toyota Fortuner

Production Apr 2012 - Oct 2015
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

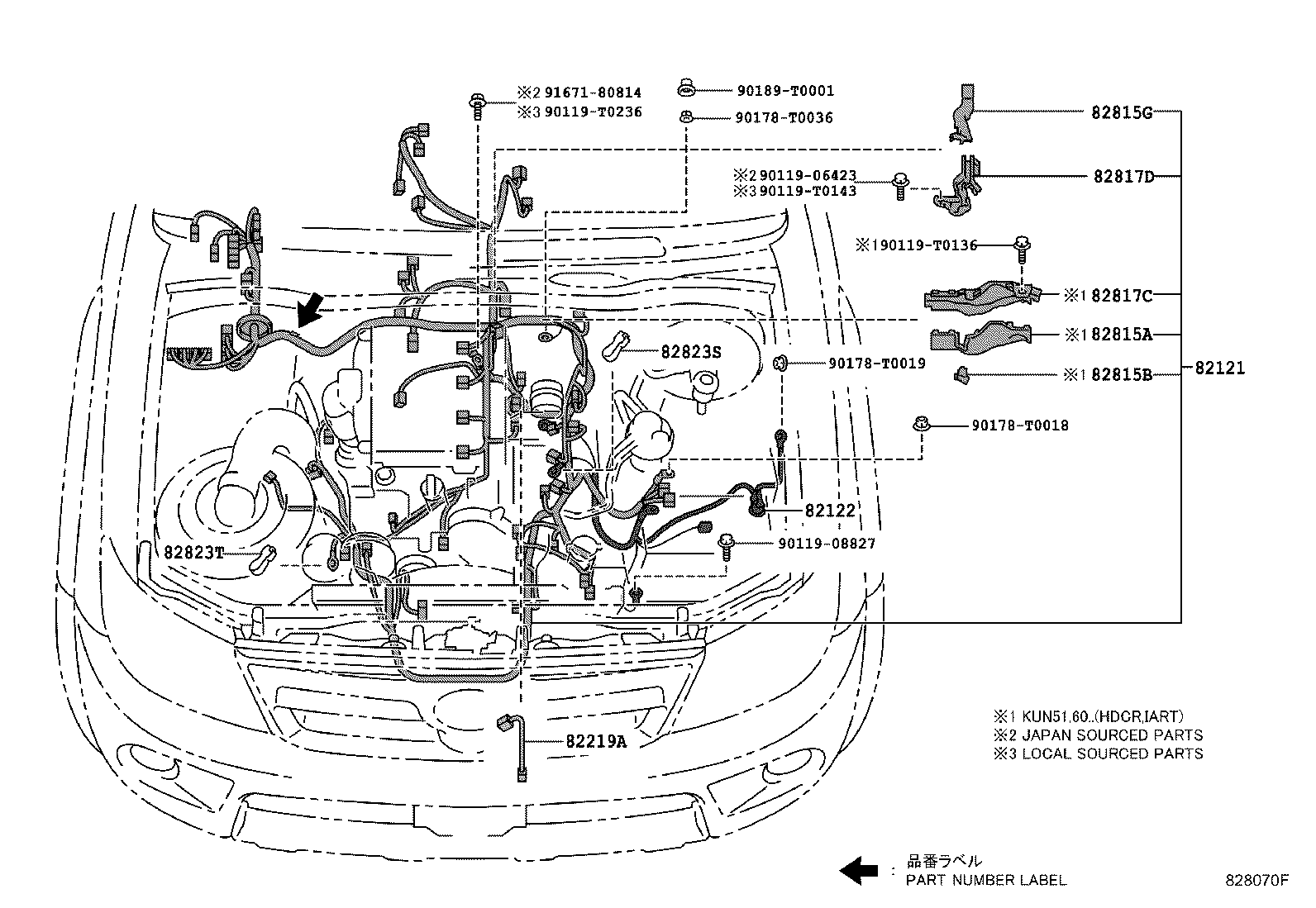

ILLUST NO. 2 OF13(1204- )KUN51,6#..5FC

Click highlighted areas on diagram

ENGINE

diagram 82121 82122 82219A 82815A 82815B 82815G 82817C 82817D 82823S 82823T 9011906423 9011908827 90119T0136 90119T0143 90119T0236 90178T0018 90178T0019 90178T0036 90189T0001 9167180814
Part # Description Qty Price
82121 - WIRE, ENGINE
82139-0K812

KUN51..SUVW..5F..LA

 1
82139-0KJ10

KUN51..IART

 1
82139-0K771

KUN51..SUVW..5F..LA

PERU SPEC

 1
82139-0K771

KUN51..SUVW..5F..LA

EXPORT FROM ARGENTINA

 1
82139-0K811

KUN51..SUVW..5F..LA

 1
82139-0KJ12

KUN51..IART

 1
82139-0K771

KUN51..SUVW..5F..LA

HIGH ALTITUDE COUNTRY SPEC

 1
82139-0K772

KUN51..SUVW..5F..LA

PERU SPEC

 1
82139-0K772

KUN51..SUVW..5F..LA

EXPORT FROM ARGENTINA

 1
82139-0K772

KUN51..SUVW..5F..LA

HIGH ALTITUDE COUNTRY SPEC

 1
82139-0KJ13

KUN51..IART

 1
82139-0K773

KUN51..SUVW..5F..LA

HIGH ALTITUDE COUNTRY SPEC

 1
82139-0K773

KUN51..SUVW..5F..LA

PERU SPEC

 1
82139-0K813

KUN51..SUVW..5F..(CO,LA)

 1
82139-0K773

KUN51..SUVW..5F..LA

EXPORT FROM ARGENTINA

 1
82139-0KJ14

KUN51..IART

 1
82122 - WIRE, ENGINE, NO.2
82122-0K100

KUN51..SUVW..5F..(CO,LA)

 1
82122-0K040

KUN51..5F..(CO,LA)

 1
82122-0K040

KUN61..IND,TH;KUN51..IDSUV..5F..LA;KUN51,60..(IDSUV,SUVW,THSUV)..5F..(GEN,IDN,IND,PHL,TH,VN);KUN51..(IDSUV,SUVW,THSUV)..(4FC,5FC)..(CO,GEN,IND,LA,PHL,TH)

 1
82815A - COVER, WIRING HARNESS PROTECTOR
82815-0K090

KUN51..IART

 1
82815B - COVER, WIRING HARNESS PROTECTOR
82815-0K110

KUN51..IART

 1
82815G - COVER, WIRING HARNESS PROTECTOR NO.5
82815-0K100

KUN51..LHD..5FC

 1
82817C - PROTECTOR, WIRING HARNESS, NO.4
82817-0K090

KUN51..IART

 1
82817D - PROTECTOR, WIRING HARNESS, NO.5
82817-0K100

KUN51..LHD..5FC

 1
82823S - CAP, STARTER TERMINAL
82823-35050

KUN60..5F;TGN51..KZS;KUN51,61,LAN50..IDSUV,SUVW,THSUV

 1
82823T - CAP, ALTERNATOR TERMINAL
82823-22050

GGN50,60,KUN5#,6#,LAN50,TGN51,61..IDSUV,SUVW,THSUV

 1
Common parts
90119-06423
90119-08827
90119-T0136
90119-T0143
90119-T0236
90178-T0018
90178-T0019
90178-T0036
90189-T0001
91671-80814
