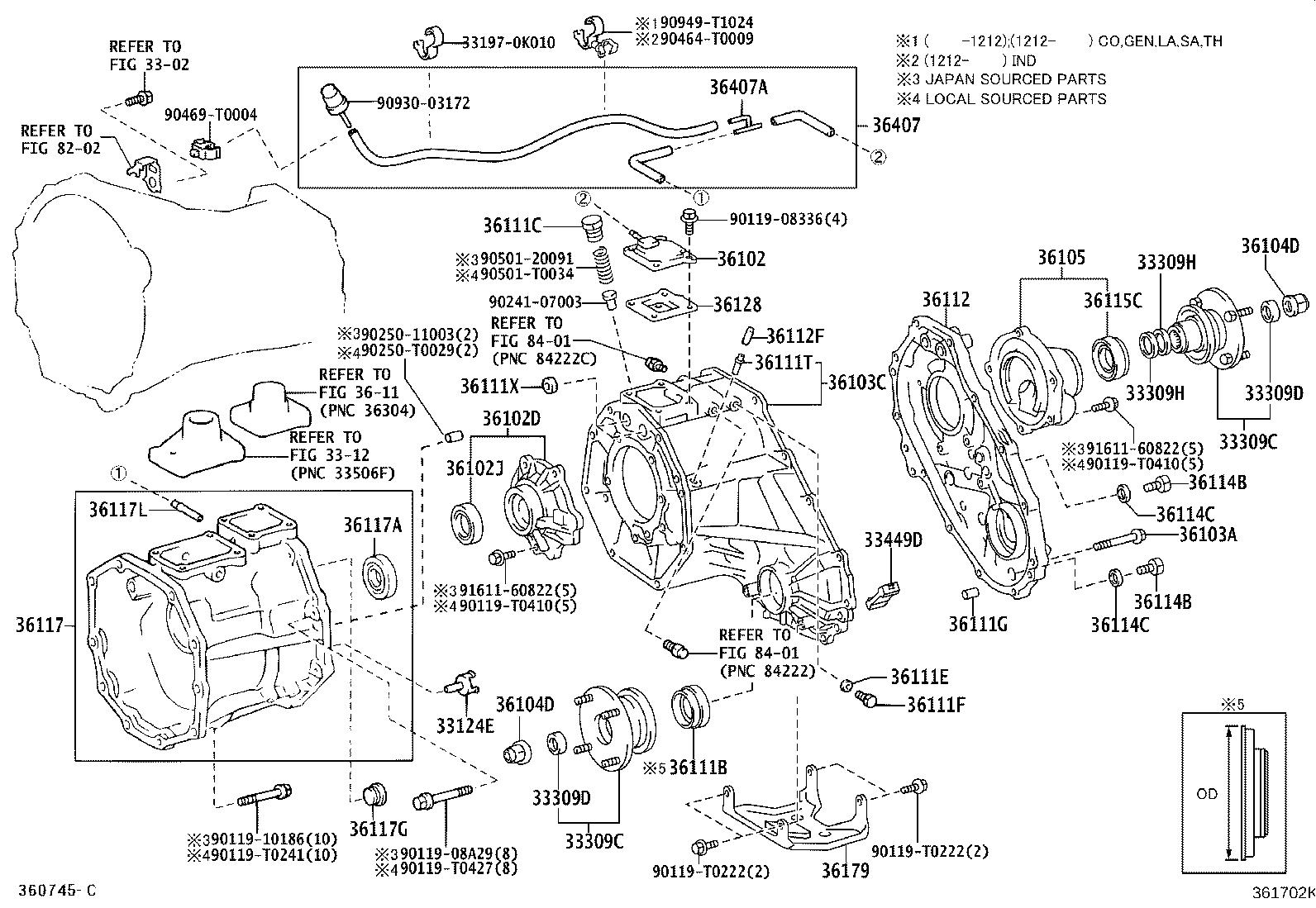

KUN51L-IKMSY (2011)
Toyota Fortuner
(1107- )KUN51..5F
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 33124E - PIPE, OIL RECEIVER(FOR TRANSFER) | ||||
| 33124-0K060 |
GGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN) TYPE B:SEE 33-01,(L) |
1 | ||
| 33124-35100 |
GGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH) TYPE B:SEE 33-01,(J) |
1 | ||
| 33124-0K010 |
GGN50,KUN51,TGN51..5F TYPE D:REFER 33-01 |
1 | ||
| 33124-0K010 |
KUN51,TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 33124-35100 |
KUN51,TGN51..5F..(KZS,TH) TYPE A:REFER 33-01 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35111 |
KUN51..TH FR,TYPE A:REFER36-08 |
1 | ||
| 33309-35120 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA RR,TYPE B:REFER36-08 |
1 | ||
| 33309-35120 |
KUN51..TH RR,TYPE A:REFER36-08 |
1 | ||
| 33309-35120 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH RR,TYPE B:REFER36-08 |
1 | ||
| 33309-35111 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA FR,TYPE B:REFER36-08 |
1 | ||
| 33309-35111 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH FR,TYPE B:REFER36-08 |
1 | ||
| 33309-35111 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN FR,TYPE A:REFER36-08 |
1 | ||
| 33309-0K020 |
TGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA) RR,TYPE B:REFER36-08 |
1 | ||
| 33309-35120 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN RR,TYPE A:REFER36-08 |
1 | ||
| 33309C - FLANGE SUB-ASSY, OUTPUT SHAFT COMPANION | ||||
| 33309-35111 |
KUN51..TH FR,TYPE A:REFER36-08 |
1 | ||
| 33309-35120 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA RR,TYPE B:REFER36-08 |
1 | ||
| 33309-35120 |
KUN51..TH RR,TYPE A:REFER36-08 |
1 | ||
| 33309-35120 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH RR,TYPE B:REFER36-08 |
1 | ||
| 33309-35111 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA FR,TYPE B:REFER36-08 |
1 | ||
| 33309-35111 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH FR,TYPE B:REFER36-08 |
1 | ||
| 33309-35111 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN FR,TYPE A:REFER36-08 |
1 | ||
| 33309-0K020 |
TGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA) RR,TYPE B:REFER36-08 |
1 | ||
| 33309-35120 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN RR,TYPE A:REFER36-08 |
1 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90312-23001 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH TYPE B:REFER 36-08 |
2 | ||
| 90312-23001 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA TYPE B:REFER 36-08 |
2 | ||
| 90312-23001 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN TYPE A:REFER 36-08 |
2 | ||
| 90312-T0004 |
TGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA) TYPE B:REFER 36-08 |
2 | ||
| 33309D - SEAL, OIL(FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) | ||||
| 90312-23001 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90312-23001 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH TYPE B:REFER 36-08 |
2 | ||
| 90312-23001 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA TYPE B:REFER 36-08 |
2 | ||
| 90312-23001 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN TYPE A:REFER 36-08 |
2 | ||
| 90312-T0004 |
TGN51..4FC;GGN50,KUN5#,LAN50;TGN51..5F..(CO,KZS,SA) TYPE B:REFER 36-08 |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35030 |
KUN51..TH N=31,OD=38,TYPE A:REFER 36-08 |
2 | ||
| 36275-35030 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH N=31,OD=38,TYPE B:REFER 36-08 |
2 | ||
| 36275-35030 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA N=31,OD=38,TYPE A:REFER 36-08 |
2 | ||
| 33309H - WASHER, TRANSFER OUTPUT SHAFT | ||||
| 36275-35030 |
KUN51..TH N=31,OD=38,TYPE A:REFER 36-08 |
2 | ||
| 36275-35030 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH N=31,OD=38,TYPE B:REFER 36-08 |
2 | ||
| 36275-35030 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA N=31,OD=38,TYPE A:REFER 36-08 |
2 | ||
| 33449D - MAGNET (FOR TRANSFER CASE) | ||||
| 33449-32020 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 33449-32020 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 33449-32020 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36102 - COVER SUB-ASSY, TRANSFER CASE | ||||
| 36102-35040 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC TYPE B:REFER 36-08 |
1 | ||
| 36102-35040 |
GGN50,KUN50,TGN51..4FC,5FC;KUN51..(4FC,5F)..(CO,GEN,IND,LA,PHL,SA) TYPE A:REFER 36-08 |
1 | ||
| 36102-0K020 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC TYPE B:REFER 36-08 |
1 | ||
| 36102-35040 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36102D - RETAINER SUB-ASSY, TRANSFER RH BEARING | ||||
| 36102-35060 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA TYPE B:REFER 36-08 |
1 | ||
| 36102-35060 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH TYPE B:REFER 36-08 |
1 | ||
| 36102-35060 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36102-0K010 |
TGN51..5F..(CO,SA);TGN51..4FC..(CO,GCC,GEN,IDN,MA,SA);GGN50,KUN5#,LAN50..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36102-35060 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36102J - SEAL, TYPE T OIL (FOR TRANSFER COVER) | ||||
| 90311-43008 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
1 | ||
| 90311-43008 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN TYPE A:REFER 36-08 |
1 | ||
| 90311-43008 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36103A - BOLT (FOR TRANSFER CASE) | ||||
| 90119-08A28 |
TGN51..4FC;KUN51..5FC..TH;TGN51..5F..(CO,SA);GGN50,KUN5#,LAN50..ANCOM,CO,EPT,GCC,GEN,IND,LA,MA,PHL,SA *8-1.25PX55-30,TYPE B:REFER 36-08 |
12 | ||
| 90119-08A28 |
KUN51..TH *8-1.25PX55-30,TYPE A:REFER 36-08 |
12 | ||
| 90119-08A28 |
TGN51..5F..GCC;KUN51..(4FC,5F)..TH *8-1.25PX55-30,TYPE B:REFER 36-08 |
12 | ||
| 90119-08A28 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA *8-1.25PX55-30,TYPE A:REFER 36-08 |
12 | ||
| 90119-T0411 |
TGN51..5F..(CO,SA);TGN51..4FC..(CO,GCC,GEN,IDN,MA,SA);GGN50,KUN5#,LAN50..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH *8-1.25PX55-30,TYPE B:REFER 36-08 |
12 | ||
| 36103C - CASE, TRANSFER, FRONT | ||||
| 36103-60350 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36103-0K010 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
1 | ||
| 36103-60350 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90179-22016 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90179-22016 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 36104D - NUT (FOR TRANSFER OUTPUT SHAFT) | ||||
| 90179-22016 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90179-22016 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 90179-22016 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 36105 - HOUSING SUB-ASSY, TRANSFER EXTENSION, FRONT | ||||
| 36105-60040 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36105-60040 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36105-60040 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36111B - SEAL, OIL (FOR TRANSFER CASE) | ||||
| 90311-41013 |
GGN50,KUN5#,LAN50,TGN51 T/P B:SEE36-08,OD=80 |
1 | ||
| 90311-41013 |
KUN51..TH T/P A:SEE36-08,OD=80 |
1 | ||
| 90311-41013 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN T/P A:SEE36-08,OD=80 |
1 | ||
| 36111C - PLUG (FOR TRANSFER CASE) | ||||
| 90341-14012 |
LAN50..RHD;TGN51..5F..SA;KUN51..(4FC,5FC)..CO;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,IDN);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH) TYPE B:REFER 36-08 |
1 | ||
| 90341-14012 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 90341-14012 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36111E - GASKET (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KUN51..5F..TH TYPE A:REFER 36-08 |
1 | ||
| 90430-18008 |
TGN51..5F..(CO,SA);GGN50,KUN51,LAN50..5F TYPE B:REFER 36-08 |
1 | ||
| 90430-18008 |
TGN51..5F..(CO,KZS,SA);GGN50,KUN51,LAN50..5F..(CO,GCC,GEN,LA,SA) TYPE A:REFER 36-08 |
1 | ||
| 36111F - PLUG (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KUN51..5F..TH TYPE A:REFER 36-08 |
1 | ||
| 90341-18006 |
TGN51..5F..(CO,KZS,SA);GGN50,KUN51,LAN50..5F..(CO,GCC,GEN,LA,SA) TYPE A:REFER 36-08 |
1 | ||
| 90341-18006 |
TGN51..5F..(CO,KZS,SA);GGN50,KUN51,LAN50..5F..(CO,GCC,GEN,LA,SA,TH) TYPE B:REFER 36-08 |
1 | ||
| 36111G - PIN, STRAIGHT (FOR TRANSFER CASE) | ||||
| 90250-10214 |
KUN51..TH L=14,OD=10,TYPE A:REFER 36-08 |
2 | ||
| 90250-10214 |
LAN50..RHD;TGN51..5F..SA;KUN51..(4FC,5FC)..CO;GGN50,TGN51..(SUVW,THSUV)..(GCC,GEN,IDN);KUN51..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH) L=14,OD=10,TYPE B:REFER 36-08 |
2 | ||
| 90250-10214 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA L=14,OD=10,TYPE A:REFER 36-08 |
2 | ||
| 36111T - TUBE (FOR TRANSFER CASE) | ||||
| 90441-05001 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC TYPE B:REFER 36-08 |
1 | ||
| 90441-05001 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 90441-05001 |
GGN50,KUN5#,LAN50,TGN51..(4FC,5F)..(CO,GCC,GEN,IDN,KZS,LA,MA,PHL,SA) TYPE A:REFER 36-08 |
1 | ||
| 90406-T0007 |
KUN5#..CO,GEN,IDN,LA,MA,PHL,SA,TH;GGN50,TGN51..(4FC,5FC)..(ANCOM,CO,GCC,GEN,IDN,LA,MA,SA) TYPE B:REFER 36-08 |
1 | ||
| 36111X - SEAL, OIL (FOR TRANSFER CASE), NO.2 | ||||
| 90311-15008 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90311-15008 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN TYPE A:REFER 36-08 |
2 | ||
| 90311-15008 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
2 | ||
| 36112 - CASE, TRANSFER, REAR | ||||
| 36112-60180 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36112-60180 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 36112-0K010 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
1 | ||
| 36112F - CAP, TRANSFER, REAR CASE | ||||
| 90339-04024 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
1 | ||
| 90339-04024 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
1 | ||
| 90339-04024 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90341-18006 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90341-18006 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 36114B - PLUG, NO.1 (FOR TRANSFER CASE) | ||||
| 90341-18006 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90341-18006 |
GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA,TH TYPE B:REFER 36-08 |
2 | ||
| 90341-18006 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90430-18008 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
2 | ||
| 90430-18008 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 36114C - GASKET, NO.1 (FOR TRANSFER CASE) | ||||
| 90430-18008 |
KUN51..TH TYPE A:REFER 36-08 |
2 | ||
| 90430-18008 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
2 | ||
| 90430-18008 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,GCC,GEN,IDN,LA,MA,PHL,SA TYPE A:REFER 36-08 |
2 | ||
| 36115C - SEAL, TYPE T OIL (FOR TRANSFER EXTENSION HOUSING) | ||||
| 90311-41007 |
KUN51..5FC..TH;GGN50,KUN5#,LAN50,TGN51..ANCOM,CO,EPT,GCC,GEN,IDN,IND,KZS,LA,MA,PHL,PKN,SA,VN TYPE A:REFER 36-08 |
1 | ||
| 90311-41007 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 90311-41007 |
GGN50,KUN5#,LAN50,TGN51 TYPE B:REFER 36-08 |
1 | ||
| 36117 - ADAPTER, TRANSFER | ||||
| 36107-60070 |
KUN51..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 36107-0K010 |
KUN51..5F TYPE C:REFER 33-01 |
1 | ||
| 36107-0K050 |
KUN51..(SUVW,THSUV)..5F..(GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 36107-0K030 |
KUN51..5F TYPE D:REFER 33-01 |
1 | ||
| 36117A - SEAL, OIL(FOR TRANSFER ADAPTER) | ||||
| 90311-43007 |
KUN51,TGN51..5F..(KZS,TH) TYPE A:REFER 33-01 |
1 | ||
| 90311-T0028 |
GGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 90311-T0018 |
KUN51,TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC TYPE C:REFER 33-01 |
1 | ||
| 90311-T0018 |
GGN50,KUN51,TGN51..5F TYPE D:REFER 33-01 |
1 | ||
| 36117G - PLUG, W/HEAD STRAIGHT SCREW(FOR TRANSFER ADAPTER) | ||||
| 90341-24006 |
KUN51..(SUVW,THSUV)..5F..(GEN,TH) TYPE B:REFER 33-01 |
1 | ||
| 90341-24006 |
KUN51..5F..TH TYPE A:REFER 33-01 |
1 | ||
| 90341-24006 |
KUN51..5F TYPE D:REFER 33-01,TYPE C:REFER 33-01 |
1 | ||
| 36117L - TUBE(FOR TRANSFER ADAPTER) | ||||
| 90441-05001 |
LAN50..RHD;KUN51..4FC..CO;TGN51..SUVW..5F..(GCC,SA);TGN51..SUVW..4FC..(EPT,GCC,GEN,IDN,KZS,PKN,VN);GGN50,KUN51..(SUVW,THSUV)..(ANCOM,EPT,GCC,GEN,IND,PHL,TH) |
1 | ||
| 36128 - DEFLECTOR, BREATHER OIL | ||||
| 36128-35060 |
KUN51..TH TYPE A:REFER 36-08 |
1 | ||
| 36128-35060 |
KUN51;GGN50,KUN50,TGN51..4FC,5FC TYPE B:REFER 36-08 |
1 | ||
| 36128-35060 |
GGN50,KUN50,TGN51..4FC,5FC;KUN51..(4FC,5F)..(CO,GEN,IND,LA,PHL,SA) TYPE A:REFER 36-08 |
1 | ||
| 36179 - PROTECTOR, TRANSFER CASE LOWER | ||||
| 36179-0K010 |
LAN50..RHD;TGN51..5F..SA;TGN51..SUVW..(GCC,GEN,IDN);KUN51..RHD..SUVW..(4FC,5F)..(GEN,TH);KUN51..LHD..(SUVW,THSUV)..4FC..(GEN,PHL,SA);GGN50,KUN51..LHD..(SUVW,THSUV)..(5F,5FC)..(GCC,GEN) |
1 | ||
| 36407 - HOSE SUB-ASSY, TRANSFER BREATHER | ||||
| 36407-71070 |
GGN50,KUN51,TGN51..5F..(CO,GCC,GEN,KZS,LA,SA,TH) |
1 | ||
| 36407A - WAY, 3(FOR TRANSFER BREATHER HOSE) | ||||
| 90413-04001 |
GGN50,KUN51,TGN51..5F..(CO,GCC,GEN,KZS,LA,SA,TH) |
1 | ||
| Common parts | ||||
| 33197-0K010 | ||||
| 90119-08336 | ||||
| 90119-08A29 | ||||
| 90119-10186 | ||||
| 90119-T0222 | ||||
| 90119-T0241 | ||||
| 90119-T0410 | ||||
| 90119-T0427 | ||||
| 90241-07003 | ||||
| 90250-11003 | ||||
| 90250-T0029 | ||||
| 90464-T0009 | ||||
| 90469-T0004 | ||||
| 90501-20091 | ||||
| 90501-T0034 | ||||
| 90930-03172 | ||||
| 90949-T1024 | ||||
| 91611-60822 | ||||
| Linked diagrams | ||||
| 3302 | ||||
| 3312 | ||||
| 3611 | ||||
| 8202 | ||||
| 8401 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
