KUN51L-IKMSY (2011)

Toyota Fortuner

Production Jul 2011 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

(1107- )KUN51..5F

Click highlighted areas on diagram

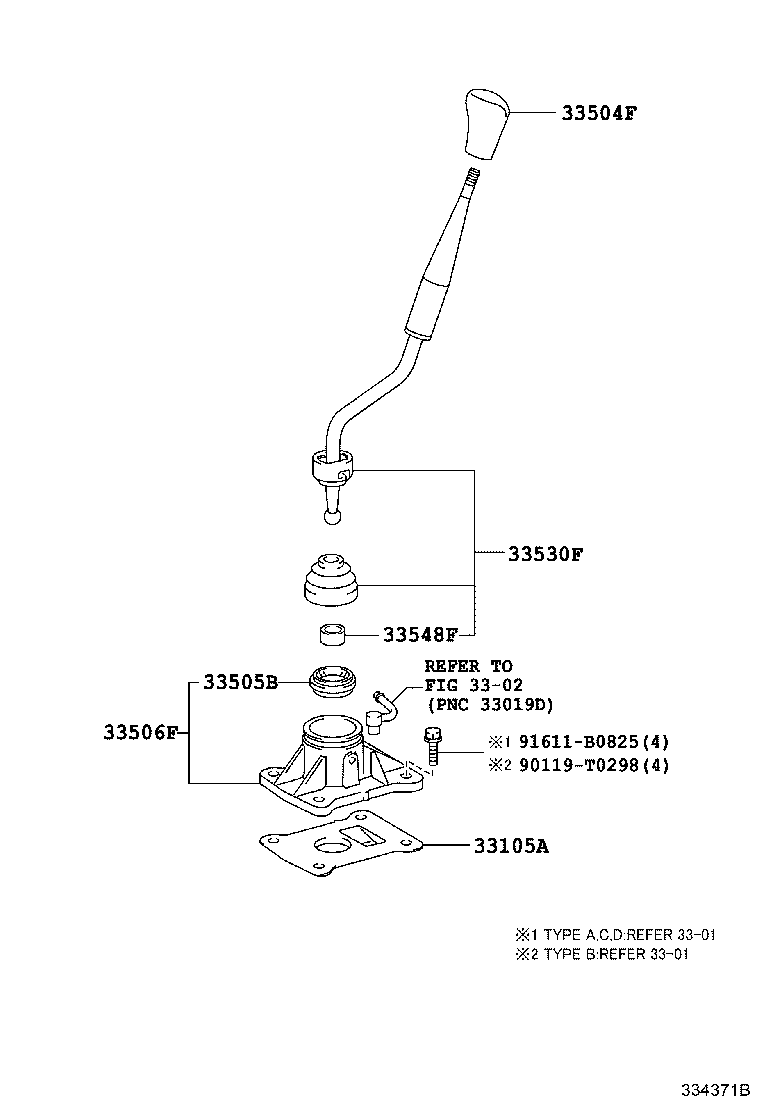

diagram 3302 33105A 33504F 33505B 33506F 33530F 33548F 90119T0298 91611B0825
Part # Description Qty Price
33105A - DEFLECTOR SUB-ASSY, EXTENSION HOUSING OIL(MTM)
33144-35030

KUN51,TGN51..5F..(KZS,TH)

TYPE A:REFER 33-01

 1
33144-35030

GGN50,KUN51,TGN51..5F

TYPE D:REFER 33-01

 1
33144-35030

KUN51,TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC

TYPE C:REFER 33-01

 1
33144-35030

GGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH)

TYPE B:REFER 33-01

 1
33504F - KNOB SUB-ASSY, SHIFT LEVER
33504-22140E4

TGN51..SA;GGN50,KUN51,6#,LAN50..5F..SR..(GCC,GEN,IDN,PHL,SA)

ASH BROWN,TRIM4#

 1
33504-0K040E0

TGN51..5F..SA;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);GGN50,KUN6#,LAN50..5F..SR..(CO,GCC,GEN,IDN,IND,PHL,SA,VN)

ASH BROWN,TRIM4#,(L)

 1
33504-22140E4

KUN51,60..5F..TH

SEAT COVER MATERIAL-LEATHER,ASH BROWN,TRIM4#

 1
33504-22140E4

TGN51..5F..SA;KUN51..LHD..5F..GEN;KUN51..5F..(CO,IND,LA,SA);GGN50,KUN6#,LAN50..5F..SR..(CO,GCC,GEN,IDN,IND,PHL,SA,VN)

ASH BROWN,TRIM4#,(J)

 1
33505B - SEAT SUB-ASSY, SHIFT LEVER
33505-0K010

GGN50,KUN51,60,TGN51,61..(SUVW,THSUV)..5F..(GCC,GEN,IDN,PHL,TH)

TYPE B:REFER 33-01

 1
33505-35030

KUN51,TGN51..5F..(KZS,TH)

TYPE A:REFER 33-01

 1
33505-35030

GGN50,KUN51,TGN51..5F

TYPE D:REFER 33-01

 1
33505-35030

GGN50..5F..(CO,LA);KUN51,6#,TGN51,61..5F;GGN50..IDSUV..5F..GCC

TYPE C:REFER 33-01

 1
33506F - RETAINER SUB-ASSY, CONTROL SHIFT LEVER (FOR FLOOR SHIFT
33506-0K020

GGN50,KUN51,TGN51..(SUVW,THSUV)..5F..(GCC,GEN,TH)

TYPE B:REFER 33-01

 1
33506-60060

KUN51,TGN51..5F..(KZS,TH)

TYPE A:REFER 33-01

 1
33506-0K010

KUN51,TGN51..5F;GGN50..5F..(CO,LA);GGN50..IDSUV..5F..GCC

TYPE C:REFER 33-01

 1
33506-60060

GGN50,KUN51,TGN51..5F

TYPE D:REFER 33-01

 1
33530F - LEVER ASSY, SHIFT (FOR FLOOR SHIFT)
33530-0K461

KUN51..LHD..5F

 1
33548F - BUSH, NO.1, SHIFT LEVER (FOR FLOOR SHIFT)
33548-04010

GGN50,KUN51,6#,LAN50,TGN51,61..5F

 1
Common parts
90119-T0298
91611-B0825
Linked diagrams
3302
