KUN51L-IKMSY (2011)

Toyota Fortuner

Production Jul 2011 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

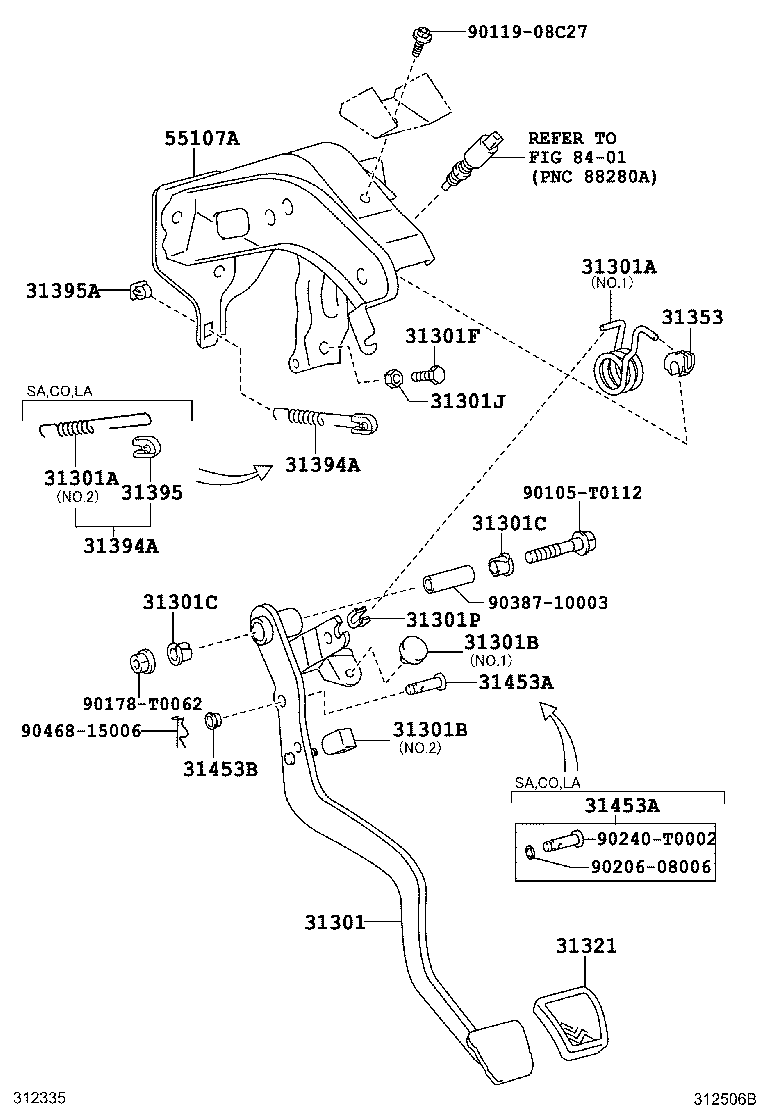

ILLUST NO. 1 OF 2(1107- )KUN51,60..LHD..5F

Click highlighted areas on diagram

diagram 31301 31301A 31301A 31301B 31301B 31301C 31301C 31301F 31301J 31301P 31321 31353 31394A 31394A 31395 31395A 31453A 31453A 31453B 55107A 8401 90105T0112 9011908C27 90178T0062 9020608006 90240T0002 9038710003 9046815006
Part # Description Qty Price
31301 - PEDAL SUB-ASSY, CLUTCH
31301-0K180

KUN51..LHD..(IDSUV,THSUV)..5F;GGN50,KUN60..LHD..(IDSUV,SUVW)..5F..(GCC,GEN,PHL,VN)

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-T3001

KUN51..IDSUV..5F..LA;GGN50,KUN60..5F..(GCC,GEN,IDN,LA,PHL,TH,VN);KUN51,61..(IDSUV,SUVW,THSUV)..5F..(GEN,IND,TH)

NO.1

 1
31301A - SPRING(FOR CLUTCH PEDAL)
90949-T3001

KUN51..IDSUV..5F..LA;GGN50,KUN60..5F..(GCC,GEN,IDN,LA,PHL,TH,VN);KUN51,61..(IDSUV,SUVW,THSUV)..5F..(GEN,IND,TH)

NO.1

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KUN51,6#..5F;GGN50..5F..GCC

NO.1

 1
90541-T0005

KUN51..LHD..5F;GGN50,KUN60..LHD..(IDSUV,SUVW)..5F..(GCC,GEN,PHL,VN)

NO.2

 1
31301B - CUSHION, NO.1(FOR CLUTCH PEDAL)
90541-06036

KUN51,6#..5F;GGN50..5F..GCC

NO.1

 1
90541-T0005

KUN51..LHD..5F;GGN50,KUN60..LHD..(IDSUV,SUVW)..5F..(GCC,GEN,PHL,VN)

NO.2

 1
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

 2
31301C - BUSH(FOR CLUTCH PEDAL)
90386-13015

GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

 2
31301F - BOLT(FOR CLUTCH PEDAL STOPPER)
90101-10369

LAN50..RHD;GGN50,TGN51,61..5F;KUN51,60..(IDSUV,SUVW,THSUV)..5F..(CO,GEN,IDN,LA,PHL,TH)

 1
31301J - NUT(FOR CLUTCH PEDAL STOPPER)
90170-T0011

GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

 1
31301P - BUSH(FOR CLUTCH PEDAL TURNOVER)
90389-06055

GGN50,KUN51,6#..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)

 1
31321 - PAD, CLUTCH PEDAL
31321-52010

KUN51..IDSUV..5F..LA;KUN51,TGN61..5F..(GCC,GEN,SA,TH);GGN50,KUN6#,LAN50,TGN51..5F..(GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

 1
31353 - HOLDER, CLUTCH PEDAL SPRING
31353-26010

GGN50,KUN51,6#..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)

 1
31394A - SPRING, PEDAL W/HOOK
31394-25010

GGN50,KUN51,6#..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)

 1
31394A - SPRING, PEDAL W/HOOK
31394-25010

GGN50,KUN51,6#..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)

 1
31395A - HOOK, PEDAL SPRING, NO.1
31395-33020

GGN50,KUN51,6#..5F..(CO,GCC,GEN,IDN,LA,PHL,SA,TH,VN)

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-0K011

GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

L=29.4

 1
31453A - PIN, W/HOLE(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
47148-0K011

GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

L=29.4

 1
31453B - BUSH(FOR CLUTCH MASTER CYLINDER PUSH ROD CLEVIS)
90386-08002

GGN50,KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,PHL,SA,TH)

 1
55107A - SUPPORT SUB-ASSY, CLUTCH PEDAL
55107-0K060

KUN51..IDSUV..5F..LA;KUN51..(IDSUV,SUVW,THSUV)..5F..(GEN,TH);GGN50,KUN60..(IDSUV,SUVW)..5F..(GCC,GEN,IDN,PHL,TH,VN)

 1
Common parts
90105-T0112
90119-08C27
90178-T0062
90206-08006
90240-T0002
90387-10003
90468-15006
Linked diagrams
8401

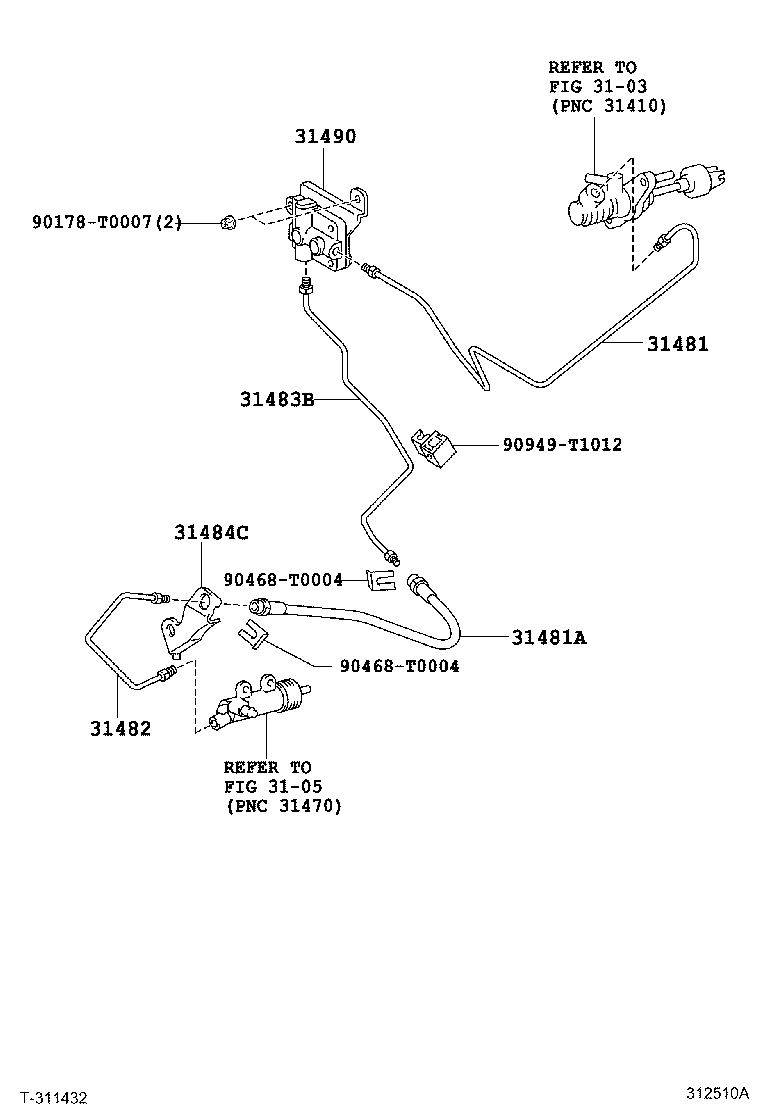

ILLUST NO. 2 OF 2(1107- )KUN51,60..LHD..5F

Click highlighted areas on diagram

diagram 3103 3105 31481 31481A 31482 31483B 31484C 31490 90178T0007 90468T0004 90468T0004 90949T1012
Part # Description Qty Price
31481 - TUBE, CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE
31481-0K130

KUN51..LHD..5F

 1
31481A - HOSE, CLUTCH, NO.1
90947-T2008

KUN60..IDSUV..5F..PHL;KUN51,6#,LAN50,TGN51,61..5F..(CO,GCC,GEN,IDN,KZS,LA,SA,TH)

 1
31482 - TUBE, CLUTCH RELEASE CYLINDER TO FLEXIBLE HOSE
31482-0K040

KUN60..IDSUV..5F..PHL;KUN51,6#..5F..(CO,GEN,IDN,LA,SA,TH,VN)

 1
31483B - TUBE, ACCUMULATOR TO FLEXIBLE HOSE
31483-0K010

KUN60..IDSUV..5F..PHL;KUN51,6#,LAN50..5F..(CO,GEN,IDN,LA,SA,TH,VN)

 1
31484C - BRACKET, CLUTCH TUBE, NO.1
31484-0K020

KUN60..IDSUV..5F..PHL;KUN51,6#..5F..(CO,GEN,IDN,LA,SA,TH,VN)

 1
31490 - ACCUMULATOR ASSY, CLUTCH
31490-0K010

LAN50..RHD;KUN60..IDSUV..5F..GEN;KUN60..SUVW..5F..(GEN,IDN,PHL);KUN51..(SUVW,THSUV)..5F..(CO,GEN,LA,TH)

 1
Common parts
90178-T0007
90468-T0004
90949-T1012
Linked diagrams
3103
3105
