KUN51L-IKMSY (2011)

Toyota Fortuner

Production Jul 2011 - Aug 2013
Engine 1KDFTV
Transmission
Displacement 2500cc
Power 168 HP (125 kW)

ILLUST NO. 1 OF 2(1107-1305)1KDFTV..KUN51..IDSUV ; (1107- )2KDFTV..KUN60..5F..TH,VN ; (1107- )

Click highlighted areas on diagram

diagram 1701 17080 17700 17705 17750 17801 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
17080 - CLEANER ASSY, AIR W/AIR FLOW METER
17080-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17080-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17700 - CLEANER ASSY, AIR
17700-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17700-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L020

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17705-0L020

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L010

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
17751-0L010

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010

1KDFTV..KUN61..4FC..(IND,TH);1KDFTV,2KDFTV..KUN6#..5FC..TH;2KDFTV..KUN60..GEN,IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#..(IDSUV,SUVW,THSUV)..(CO,GEN,IDN,LA,MA,PHL,TH)

 1
17801-0C010

1KDFTV..KUN61..4FC..(IND,TH);1KDFTV,2KDFTV..KUN6#..5FC..TH;2KDFTV..KUN60..GEN,IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#..(IDSUV,SUVW,THSUV)..(CO,GEN,IDN,LA,MA,PHL,TH)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L030

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN5#,61..RHD..(4FC,5F)..(GEN,IDN,SA,TH)

 1
17881-0L030

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN5#,61..RHD..(4FC,5F)..(GEN,IDN,SA,TH)

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0L010

1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN61..4FC..(IND,TH);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,VN;1KDFTV..KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL,TH)

 1
22204-0L010

1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN61..4FC..(IND,TH);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,VN;1KDFTV..KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL,TH)

 1
Common parts
90099-00289
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701

ILLUST NO. 1 OF 2(1108- )1KDFTV..KUN51..SASUV ; (1108- )2KDFTV..KUN60..4FC,5F..IND,SA ; (1108-

Click highlighted areas on diagram

diagram 1701 17700 17705 17750 17801 17881 17881A 17881A 22204 9009900289 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
17700 - CLEANER ASSY, AIR
17700-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L020

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L010

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010

1KDFTV..KUN61..4FC..(IND,TH);1KDFTV,2KDFTV..KUN6#..5FC..TH;2KDFTV..KUN60..GEN,IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#..(IDSUV,SUVW,THSUV)..(CO,GEN,IDN,LA,MA,PHL,TH)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L030

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN5#,61..RHD..(4FC,5F)..(GEN,IDN,SA,TH)

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0L010

1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN61..4FC..(IND,TH);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,VN;1KDFTV..KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL,TH)

 1
Common parts
90099-00289
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701

ILLUST NO. 2 OF 2(1107- )1KDFTV..KUN51..SUVW..5FC..DCR..LA ; (1107- )1KDFTV..4FC,5F..CO,GEN,LA

Click highlighted areas on diagram

EXCEPT EURO 4 REGULATION

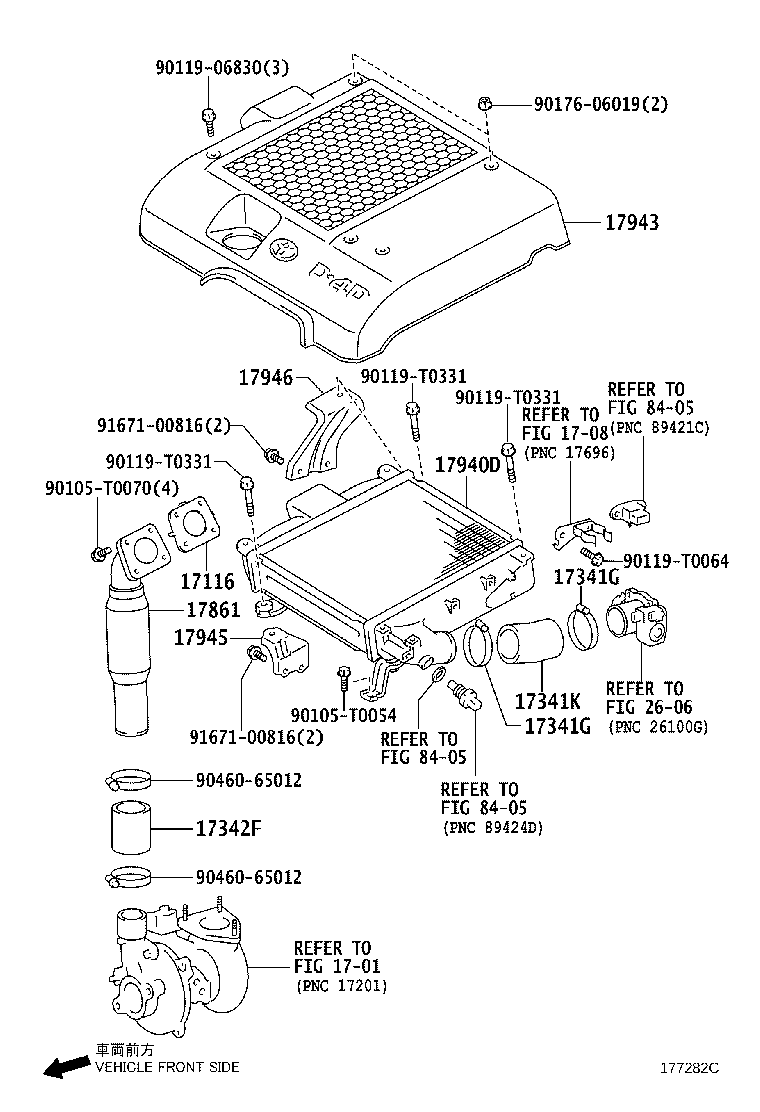

diagram 1701 1708 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 2606 8405 8405 8405 90105T0054 90105T0070 9011906830 90119T0064 90119T0331 90119T0331 90119T0331 9017606019 9046065012 9046065012 9167100816 9167100816
Part # Description Qty Price
17116 - GASKET, INTAKE FLANGE
17116-0L010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-30060

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17861 - CONNECTOR, INTAKE AIR
17860-30030

1KDFTV..KUN51..(4FC,5F)..TH;1KDFTV..KUN61..4FC..(IND,TH);1KDFTV..KUN51..(5F,5FC)..DCR..LA

 1
17860-30030

1KDFTV..KUN61..SA;1KDFTV..KUN51..5FC..TH;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN61..(5F,5FC)..(IND,TH);1KDFTV..KUN51..5F..(CO,GEN,IND,SA);2KDFTV..KUN60..(4FC,5F)..(SA,TH,VN);1KDFTV..KUN51..4FC..(CO,GEN,LA,PHL,SA)

 1
17940D - INTERCOOLER ASSY
17940-0L010

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17943 - PROTECTOR, INTERCOOLER
12601-0L040

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30070

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17945-0L010

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30030

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17946-30030

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
Common parts
90105-T0054
90105-T0070
90119-06830
90119-T0064
90119-T0331
90176-06019
90460-65012
91671-00816
Linked diagrams
1701
1708
2606
8405

ILLUST NO. 2 OF 2(1107- )1KDFTV..KUN51..SUVW..5FC..DCR..IND,LA,TH ; (1208- )2KDFTV..IDN,PHL ;

Click highlighted areas on diagram

diagram 1701 17116 17341G 17341G 17341K 17342F 17861 17940D 17943 17945 17946 17947B 2606 8405 8405 8405 9010508070 90105T0070 9011906830 9011908C79 9011908C79 9011908C79 9011908C79 90119T0429 90119T0429 90119T0429 90119T0429 9017606019 9046065012 9046065012 9167100816 9167100816
Part # Description Qty Price
17116 - GASKET, INTAKE FLANGE
17116-0L010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17116-0L010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17116-0L010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17116-0L010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
17341G - CLAMP OR CLIP(FOR AIR HOSE, NO.1)
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
90460-80006

1KDFTV..KUN61..4FC;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN5#,60..CO,GEN,IDN,LA,MA,PHL,SA,TH,VN

 2
17341K - HOSE, AIR, NO.1(FOR INTERCOOLER)
17341-30060

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17341-30060

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17341-30060

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17341-30060

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17342F - HOSE, AIR, NO.2(FOR INTERCOOLER)
17342-30010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17342-30010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17342-30010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17342-30010

2KDFTV..KUN60..SA,TH,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..RHD..SUVW..4FC..SR;1KDFTV,2KDFTV..KUN5#..CO,GEN,IDN,LA,PHL,SA,TH

 1
17861 - CONNECTOR, INTAKE AIR
17860-30030

1KDFTV..KUN51..(4FC,5F)..TH;1KDFTV..KUN61..4FC..(IND,TH);1KDFTV..KUN51..(5F,5FC)..DCR..LA

 1
17860-30030

1KDFTV..KUN51..(4FC,5F)..TH;1KDFTV..KUN61..4FC..(IND,TH);1KDFTV..KUN51..(5F,5FC)..DCR..LA

 1
17860-30030

1KDFTV..KUN51..(4FC,5F)..TH;1KDFTV..KUN61..4FC..(IND,TH);1KDFTV..KUN51..(5F,5FC)..DCR..LA

 1
17860-30030

1KDFTV..KUN51..(4FC,5F)..TH;1KDFTV..KUN61..4FC..(IND,TH);1KDFTV..KUN51..(5F,5FC)..DCR..LA

 1
17860-30030

1KDFTV..KUN61..SA;1KDFTV..KUN51..5FC..TH;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN61..(5F,5FC)..(IND,TH);1KDFTV..KUN51..5F..(CO,GEN,IND,SA);2KDFTV..KUN60..(4FC,5F)..(SA,TH,VN);1KDFTV..KUN51..4FC..(CO,GEN,LA,PHL,SA)

 1
17860-30030

1KDFTV..KUN61..SA;1KDFTV..KUN51..5FC..TH;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN61..(5F,5FC)..(IND,TH);1KDFTV..KUN51..5F..(CO,GEN,IND,SA);2KDFTV..KUN60..(4FC,5F)..(SA,TH,VN);1KDFTV..KUN51..4FC..(CO,GEN,LA,PHL,SA)

 1
17860-30030

1KDFTV..KUN61..SA;1KDFTV..KUN51..5FC..TH;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN61..(5F,5FC)..(IND,TH);1KDFTV..KUN51..5F..(CO,GEN,IND,SA);2KDFTV..KUN60..(4FC,5F)..(SA,TH,VN);1KDFTV..KUN51..4FC..(CO,GEN,LA,PHL,SA)

 1
17860-30030

1KDFTV..KUN61..SA;1KDFTV..KUN51..5FC..TH;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN61..(5F,5FC)..(IND,TH);1KDFTV..KUN51..5F..(CO,GEN,IND,SA);2KDFTV..KUN60..(4FC,5F)..(SA,TH,VN);1KDFTV..KUN51..4FC..(CO,GEN,LA,PHL,SA)

 1
17940D - INTERCOOLER ASSY
17940-0L010

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17940-0L010

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17940-0L010

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17940-0L010

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17943 - PROTECTOR, INTERCOOLER
12601-0L040

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
12601-0L040

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
12601-0L040

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
12601-0L040

1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH)

 1
17945 - BRACKET, INTERCOOLER SUPPORT
17945-30070

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17945-30070

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17945-30070

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17945-30070

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17945-0L010

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17945-0L010

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17945-0L010

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17945-0L010

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17946 - BRACKET, INTERCOOLER SUPPORT, NO.2
17946-30030

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17946-30030

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17946-30030

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17946-30030

1KDFTV..KUN51,61..(SASUV,SUVW,THSUV)..(4FC,5F)..(GEN,PHL,SA,TH)

*360

 1
17946-30030

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17946-30030

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17946-30030

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
17946-30030

1KDFTV..KUN51..4FC..CO;1KDFTV..KUN51..THSUV..4FC;1KDFTV..KUN51..(SUVW,THSUV)..5F..GEN;1KDFTV..KUN51,61..SUVW..(4FC,5F)..(PHL,TH)

*130

 1
Common parts
90105-08070
90105-T0070
90119-06830
90119-08C79
90119-T0429
90176-06019
90460-65012
91671-00816
Linked diagrams
1701
2606
8405

ILLUST NO. 1 OF 2(1208- )1KDFTV,2KDFTV..KUN51,6#..5FC..TH ; (1311- )2KDFTV..KUN60..5F..TH ; (1

Click highlighted areas on diagram

EURO 4 REGULATION

diagram 1701 17080 17705 17750 17801 17881 17881A 17881A 22204 9009900289 90119T0145 90119T0286 90119T0334 90480T0002
Part # Description Qty Price
17080 - CLEANER ASSY, AIR W/AIR FLOW METER
17080-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17080-0L051

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-0L020

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17705-0L020

2KDFTV..KUN60..VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51,61..(SUVW,THSUV)..(4FC,5F)..(GEN,PHL,TH)

 1
17750 - COVER ASSY, AIR CLEANER INLET, SEAL
17751-0L010

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
17751-0L010

1KDFTV,2KDFTV..KUN51,6#..(SUVW,THSUV)..(GEN,IDN,PHL,TH,VN)

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-0C010

1KDFTV..KUN61..4FC..(IND,TH);1KDFTV,2KDFTV..KUN6#..5FC..TH;2KDFTV..KUN60..GEN,IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#..(IDSUV,SUVW,THSUV)..(CO,GEN,IDN,LA,MA,PHL,TH)

 1
17801-0C010

1KDFTV..KUN61..4FC..(IND,TH);1KDFTV,2KDFTV..KUN6#..5FC..TH;2KDFTV..KUN60..GEN,IDN,PHL,VN;1KDFTV,2KDFTV..KUN5#..(IDSUV,SUVW,THSUV)..(CO,GEN,IDN,LA,MA,PHL,TH)

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-0L030

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN5#,61..RHD..(4FC,5F)..(GEN,IDN,SA,TH)

 1
17881-0L030

2KDFTV..KUN60..SA,VN;2KDFTV..KUN60..SUVW..4FC..IDN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV)..(GEN,PHL,SA);1KDFTV,2KDFTV..KUN5#,61..RHD..(4FC,5F)..(GEN,IDN,SA,TH)

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
90460-T0005

1KDFTV..KUN61..4FC;2KDFTV..KUN60..SA,VN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV..KUN51..LHD..(IDSUV,SUVW,THSUV);2KDFTV..KUN60..SUVW..(4FC,5FC)..(IDN,TH);1KDFTV,2KDFTV..KUN5#..RHD..(GEN,IDN,SA,TH)

 2
22204 - METER SUB-ASSY, INTAKE AIR FLOW
22204-0L010

1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN61..4FC..(IND,TH);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,VN;1KDFTV..KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL,TH)

 1
22204-0L010

1KDFTV..KUN61..5FC..TH;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN61..4FC..(IND,TH);2KDFTV..KUN50,60..GEN,IDN,MA,PHL,VN;1KDFTV..KUN51..(IDSUV,SUVW,THSUV)..(GEN,PHL,TH)

 1
Common parts
90099-00289
90119-T0145
90119-T0286
90119-T0334
90480-T0002
Linked diagrams
1701
