KUN51L-IKMSY (2011)
Toyota Fortuner
(1107- )2KDFTV..KUN60..4FC,5F ; (1107- )1KDFTV,2KDFTV..KUN5#,61..DCR,HDCR

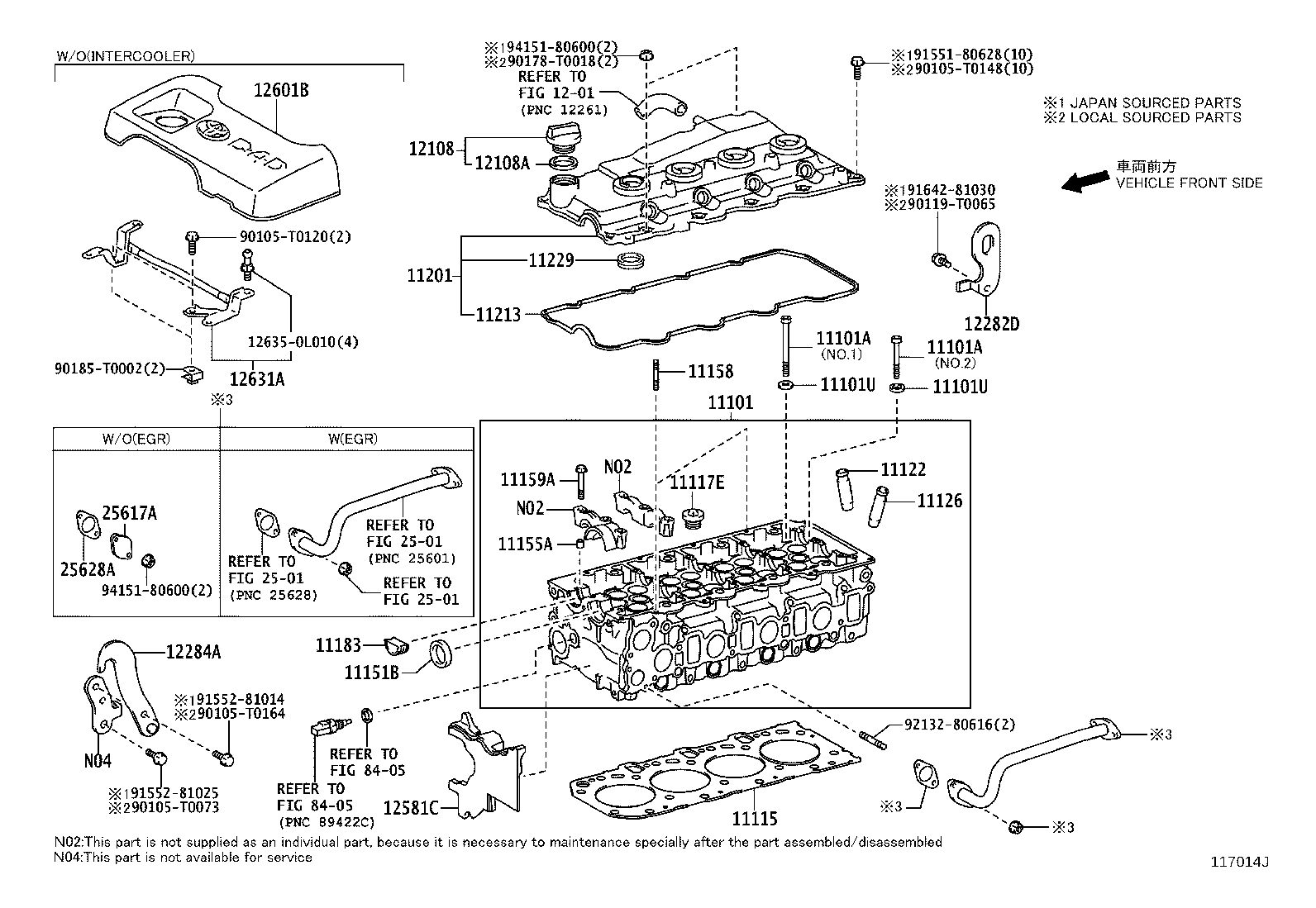

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 11101 - HEAD SUB-ASSY, CYLINDER | ||||
| 11101-30081 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 11101-0L060 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51,61..IND,PHL,SA,TH *130 |
1 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02146 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,NO.1 |
8 | ||
| 90910-02145 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,NO.2 |
10 | ||
| 90910-T2005 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130,NO.2 |
10 | ||
| 90910-T2006 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130,NO.1 |
8 | ||
| 11101A - BOLT(FOR CYLINDER HEAD SET) | ||||
| 90910-02146 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,NO.1 |
8 | ||
| 90910-02145 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,NO.2 |
10 | ||
| 90910-T2005 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130,NO.2 |
10 | ||
| 90910-T2006 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130,NO.1 |
8 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
18 | ||
| 90560-T0005 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130 |
18 | ||
| 11101U - SPACER(FOR CYLINDER HEAD SET BOLT) | ||||
| 90560-13023 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
18 | ||
| 90560-T0005 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130 |
18 | ||
| 11115 - GASKET, CYLINDER HEAD | ||||
| 11115-0L020A0 |
1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..PHL,SA,TH MARKA,*130:REFER R/M |
1 | ||
| 11115-0L020E0 |
1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..PHL,SA,TH MARKE,*130:REFER R/M |
1 | ||
| 11115-0L020D0 |
1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..PHL,SA,TH MARKD,*130:REFER R/M |
1 | ||
| 11115-0L020C0 |
1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..PHL,SA,TH MARKC,*130:REFER R/M |
1 | ||
| 11115-0L020B0 |
1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..PHL,SA,TH MARKB,*130:REFER R/M |
1 | ||
| 11115-30032C0 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) MARK C,*360:REFER R/M |
1 | ||
| 11115-30032E0 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) MARK E,*360:REFER R/M |
1 | ||
| 11115-30032B0 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) MARK B,*360:REFER R/M |
1 | ||
| 11115-30032A0 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) MARK A,*360:REFER R/M |
1 | ||
| 11115-30032D0 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) MARK D,*360:REFER R/M |
1 | ||
| 11117E - PLUG, W/HEAD STRAIGHT SCREW, NO.1 | ||||
| 90341-14015 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
4 | ||
| 90341-T0005 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..IDN,IND,MA,PHL,SA,TH *130 |
4 | ||
| 11122 - BUSH, INTAKE VALVE GUIDE | ||||
| 11123-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) STD,*360 |
8 | ||
| 11122-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) O/S 0.05,*360 |
8 | ||
| 11123-30020 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) STD,*130 |
8 | ||
| 11122-30020 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) O/S 0.05,*130 |
8 | ||
| 11126 - BUSH, EXHAUST VALVE GUIDE | ||||
| 11123-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) STD,*360 |
8 | ||
| 11122-30020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) O/S 0.05,*360 |
8 | ||
| 11122-30020 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) O/S 0.05,*130 |
8 | ||
| 11123-30020 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) STD,*130 |
8 | ||
| 11151B - SEAL, OIL(FOR CAMSHAFT SETTING) | ||||
| 90080-31097 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) *130 |
1 | ||
| 90311-32019 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 11155A - PIN, RING W/HEAD | ||||
| 90253-T0001 |
2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;2KDFTV..KUN60..(4FC,5F)..SR;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV,2KDFTV..KUN5#,61..IDN,IND,MA,PHL,SA,TH *130 |
4 | ||
| 90253-10004 |
1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
4 | ||
| 11158 - BOLT, STUD(FOR HEAD TO CYLINDER HEAD COVER) | ||||
| 90116-06149 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) S=9 & 16,L=37,*360 |
2 | ||
| 90116-06149 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) S=9 & 16,L=37,*130 |
2 | ||
| 11159A - BOLT(FOR HEAD TO CAMSHAFT BEARING CAP) | ||||
| 90119-07011 |
1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);1KDFTV,2KDFTV..KUN5#..IDN,MA,PHL,SA,TH;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN) *130 |
15 | ||
| 90119-07011 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
15 | ||
| 11183 - PLUG, SEMICIRCULAR | ||||
| 11183-0L010 |
1KDFTV..KUN51..THSUV;1KDFTV..KUN51,61..PHL,SA,TH;2KDFTV..KUN50,60..IDN,MA,PHL,TH *130 |
1 | ||
| 11183-67020 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 11183-67020 |
1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..(IND,PHL,SA,TH) *130,(J) |
1 | ||
| 11201 - COVER SUB-ASSY, CYLINDER HEAD | ||||
| 11210-0L020 |
1KDFTV..KUN51..THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH;1KDFTV..KUN51,61..CO,LA,PHL,SA,TH *130 |
1 | ||
| 11210-30110 |
1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH) *130,(J) |
1 | ||
| 11210-30110 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 11213 - GASKET, CYLINDER HEAD COVER | ||||
| 11213-0L010 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,(L) |
1 | ||
| 11213-30040 |
1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH) *130,(J) |
1 | ||
| 11213-0L010 |
1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#..(DCR,HDCR)..(CO,IDN,LA,MA,PHL,SA,TH) *130,(L) |
1 | ||
| 11213-30040 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360,(J) |
1 | ||
| 11229 - GASKET, CYLINDER HEAD COVER, NO.3 | ||||
| 23682-0L010 |
1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#..(DCR,HDCR)..(CO,IDN,LA,MA,PHL,SA,TH) *130,(L) |
4 | ||
| 23682-30020 |
1KDFTV..KUN51..IDSUV,SASUV,THSUV;2KDFTV..KUN50,60..IDN,MA,PHL,TH,VN;1KDFTV..KUN51,61..SUVW..DCR..(CO,IND,LA,PHL,SA,TH) *130,(J) |
4 | ||
| 23682-30020 |
2KDFTV..KUN60..PHL,VN;2KDFTV..KUN60..LHD..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
4 | ||
| 12108 - CAP SUB-ASSY, OIL FILLER | ||||
| 12180-21010 |
2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,VN;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 12180-0H020 |
1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#..(DCR,HDCR)..(CO,IDN,LA,MA,PHL,SA,TH) *130 |
1 | ||
| 12108A - GASKET(FOR OIL FILLER CAP) | ||||
| 90430-37140 |
2KDFTV..KUN50,60..GEN,IDN,MA,PHL,SA,VN;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 90080-43027 |
1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN61..(5F,5FC)..(SA,TH);1KDFTV,2KDFTV..KUN6#..4FC..(IND,SA,TH);2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#..(DCR,HDCR)..(CO,IDN,LA,MA,PHL,SA,TH) *130 |
1 | ||
| 12282D - HANGER, ENGINE, NO.2 | ||||
| 12282-67030 |
2KDFTV..KUN60..SUVW..4FC..GEN;2KDFTV..KUN60..RHD..(GEN,IDN,SA);2KDFTV..KUN60..LHD..5F..(GEN,PHL);1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;2KDFTV..KUN60..(4FC,5FC)..(IND,PHL,TH);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(GEN,IDN,MA,PHL,SA,TH) *360 |
1 | ||
| 12282-67030 |
1KDFTV..KUN51..5FC..CO;2KDFTV..KUN60..4FC..SA;1KDFTV..KUN51..IDSUV..LA;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;2KDFTV..KUN60..(4FC,5F)..(GEN,IDN,PHL,TH,VN);1KDFTV,2KDFTV..KUN5#,61..(4FC,5F)..(IDN,MA,PHL,SA,TH) *130 |
1 | ||
| 12284A - HANGER, ENGINE, NO.1 UPPER | ||||
| 12284-30020 |
2KDFTV..KUN60..5F..GEN;2KDFTV..KUN60..SUVW..4FC..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(GEN,PHL,SA,TH) *360 |
1 | ||
| 12284-30020 |
2KDFTV..KUN60..GEN;1KDFTV..KUN51..SASUV,THSUV;1KDFTV..KUN51..RHD..5F..GEN;1KDFTV..KUN51..IDSUV..(4FC,5F)..LA;1KDFTV..KUN51,61..(4FC,5F)..(PHL,SA,TH) *130 |
1 | ||
| Common parts | ||||
| 12635-0L010 | ||||
| 90105-T0073 | ||||
| 90105-T0120 | ||||
| 90105-T0148 | ||||
| 90105-T0164 | ||||
| 90119-T0065 | ||||
| 90178-T0018 | ||||
| 90185-T0002 | ||||
| 91551-80628 | ||||
| 91552-81014 | ||||
| 91552-81025 | ||||
| 91642-81030 | ||||
| 92132-80616 | ||||
| 94151-80600 | ||||
| Linked diagrams | ||||
| 1201 | ||||
| 2501 | ||||
| 8405 | ||||
